Quarter Window Glass: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the RH side.
• A bolt without a torque specification is shown in the standard bolt chart.

1. INSTALL QUARTER WINDOW ASSEMBLY RH
   1. Install the quarter window.
      1. When using a new regulator:

         Install the 3 nuts. Tighten the nuts as much as possible by hand.

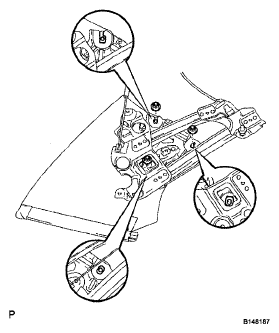

         Fig 1: Identifying Quarter Window Assembly RH

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. When reusing the regulator:

         Align the matchmarks and tighten the 3 nuts.

         Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

2. INSTALL POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
   1. Install the power window regulator and regulator base plate with the 2 screws.
3. INSTALL QUARTER WINDOW STOP
   1. Install the 2 quarter window stops with the 2 bolts. Tighten the bolts as much as possible by hand.
      Fig 2: Placing Matchmarks On Regulator

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL QUARTER WINDOW ASSEMBLY RH
   1. Install the quarter window to the vehicle body.
      1. Loosely install the regulator's 2 bolts and nut.
      2. Tighten the motor's 3 nuts.

         Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

5. ADJUST QUARTER WINDOW ASSEMBLY RH (See  ADJUSTMENT   )
6. INSTALL REAR SEATBACK ASSEMBLY (See  INSTALLATION  )
7. INSTALL REAR SEAT HEADREST ASSEMBLY (See  INSTALLATION  )
8. INSTALL WIND DEFLECTOR BOARD ASSEMBLY (See  INSTALLATION  )
9. INSTALL REAR SEAT HEADREST PLATE COVER (See  INSTALLATION  )
10. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION  )
