Inspection Procedure

1. Turn the ignition switch ON.
2. Check that the VSC OFF indicator light turns on.
3. Check for DTC (see DTC CHECK / CLEAR  ).

   Result

   RESULT CHART



   Result	Proceed to
   DTC is not output	A
   DTC is output	B

B: REPAIR CIRCUITS INDICATED BY OUTPUT

A: Go to Next Step

1. Using the intelligent tester's ACTIVE TEST, generate a control command and then check that the VSC OFF indicator light operates.

   Skid control ECU

   DIAGNOSTIC NOTE CHART



   Item	Vehicle Condition / Test Details	Diagnostic Note
   VSC/TRC OFF IND	Turns VSC OFF indicator ON/OFF	Observe combination meter

   OK: VSC OFF indicator light is turned on or off in accordance with intelligent tester.

OK: REPLACE SKID CONTROL ECU

NG: Go to Next Step

Fig 1: Inspecting VSC OFF Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the VSC OFF switch.
2. Measure the resistance of the switch.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Switch Condition	Specified Condition
   1 - 2	Pushed	Below 1 Ω
   1 - 2	Released	10 kΩ or higher

NG: REPLACE VSC OFF SWITCH

OK: Go to Next Step

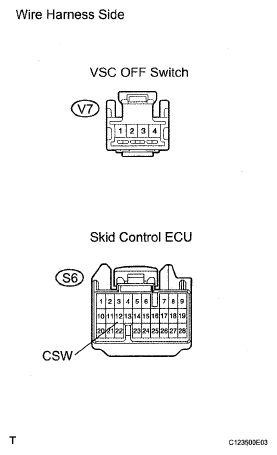

Fig 2: Checking Wire Harness (VSC OFF Switch - Skid Control ECU And Body Ground)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the V7 switch connector.
2. Disconnect the S6 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   S6-12 (CSW) - V7-2	Below 1 Ω
   S6-12 (CSW) - Body ground	10 kΩ or higher
   V7-1 - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to Next Step

1. Check that each ECU connector is properly installed.

   OK: Each ECU connector is properly installed.

NG: CONNECT CONNECTOR TO ECU CORRECTLY

OK: Go to Next Step

1. Check the DATA LIST for proper functioning of the IG voltage.

   Skid control ECU

   DIAGNOSTIC NOTE CHART



   Tester Display	Measurement Item/ Range	Normal Condition	Diagnostic Note
   IG VOLTAGE	ECU power supply voltage /LOW/ NORMAL/HIGH	LOW: Below 10 V NORMAL: 10 to 14 V HIGH: 14 V or more	-

   Result

   RESULT CHART



   Result	Proceed to
   Display is not NORMAL	A
   Display is NORMAL	B

B: REPLACE SKID CONTROL ECU

A: Go to Next Step

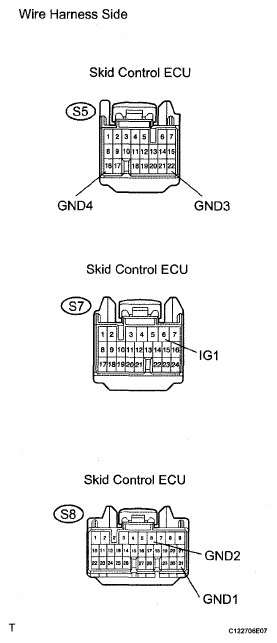

Fig 3: Checking Wire Harness (Skid Control ECU - Battery And Body Ground)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the S5, S7 and S8 ECU connectors.
2. Turn the ignition switch ON.
3. Measure the voltage of the wire harness side connectors.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   S7-6 (IG1) - S5-16 (GND4)	10 to 14 V
   S7-6 (IG1) - S5-22 (GND3)	10 to 14 V
   S7-6 (IG1) - S8-6 (GND2)	10 to 14 V
   S7-6 (IG1) - S8-31 (GND1)	10 to 14 V
   S7-6 (IG1) - Body ground	10 to 14 V

4. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   S5-16 (GND4) - Body ground	Below 1 Ω
   S5-22 (GND3) - Body ground	Below 1 Ω
   S8-6 (GND2) - Body ground	Below 1 Ω
   S8-31 (GND1) - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to Next Step

1. Check for open and short circuits in the multiplex communication system between the skid control ECU and combination meter.

NG: REPAIR OR REPLACE MULTIPLEX COMMUNICATION SYSTEM

OK: Go to Next Step

1. Check the combination meter (see PROBLEM SYMPTOMS TABLE ).

NG: REPAIR OR REPLACE COMBINATION METER

OK: REPLACE SKID CONTROL ECU
