Combination Meter: Notes

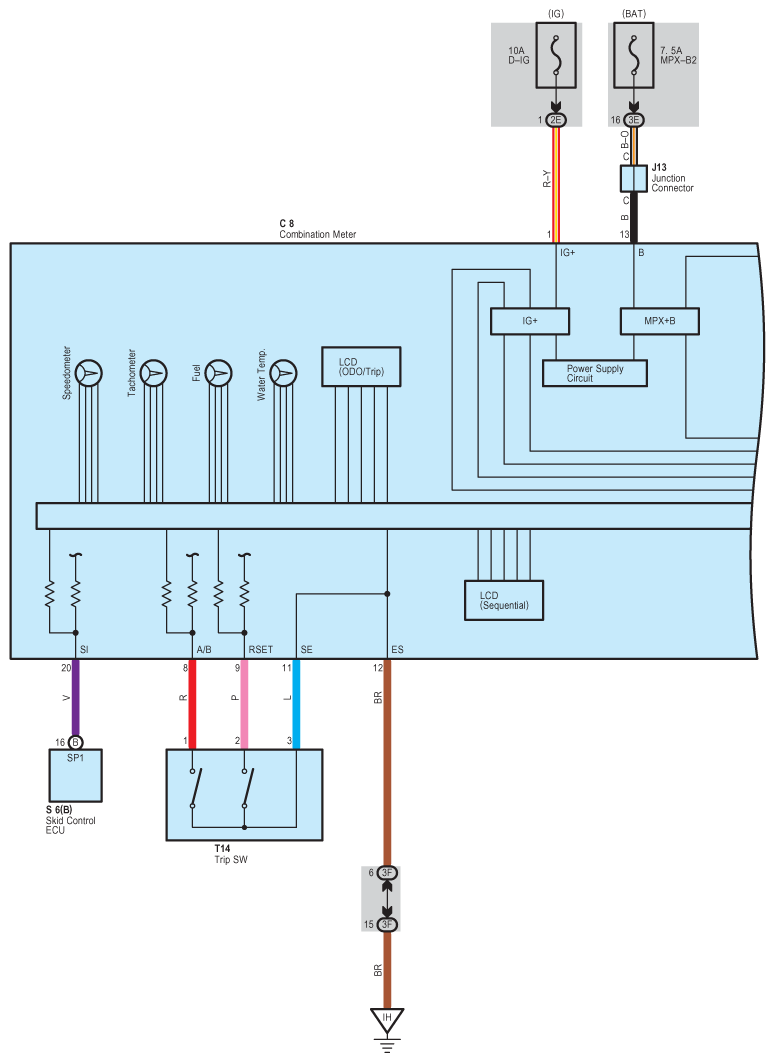

Fig 1: Combination Meter - Wiring Diagram (1 Of 6)
G08933920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

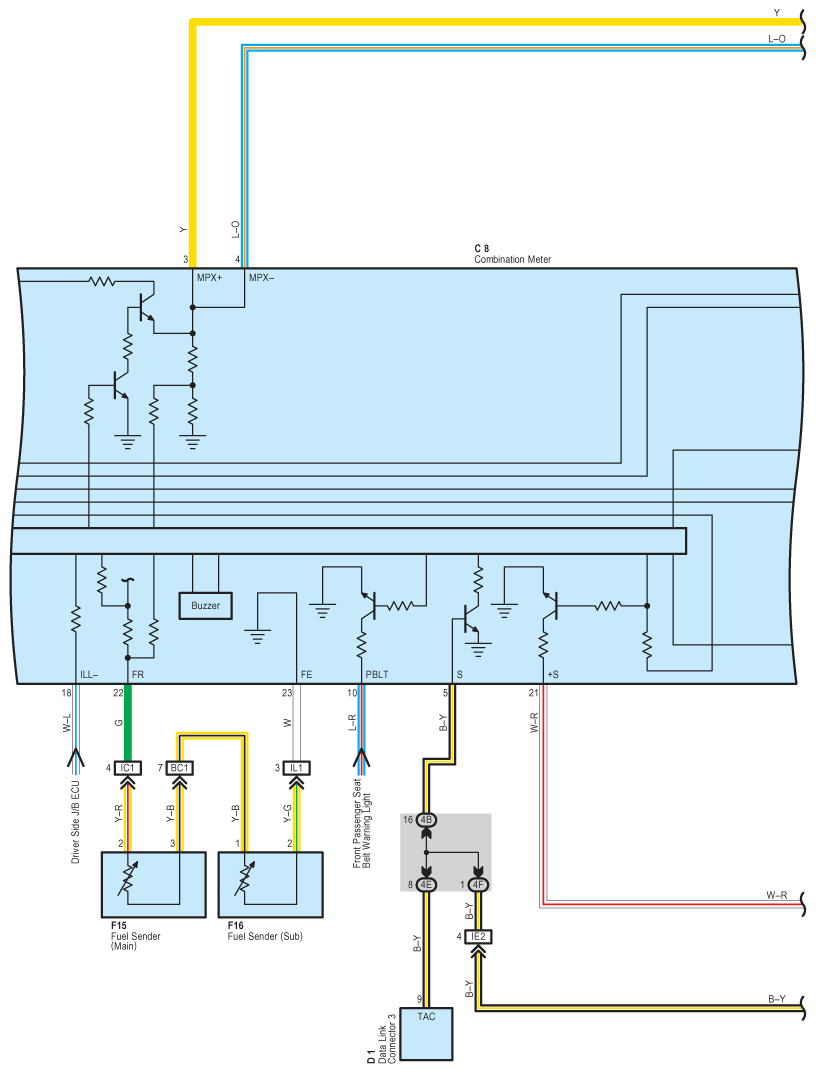

Fig 2: Combination Meter - Wiring Diagram (2 Of 6)
G08933921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

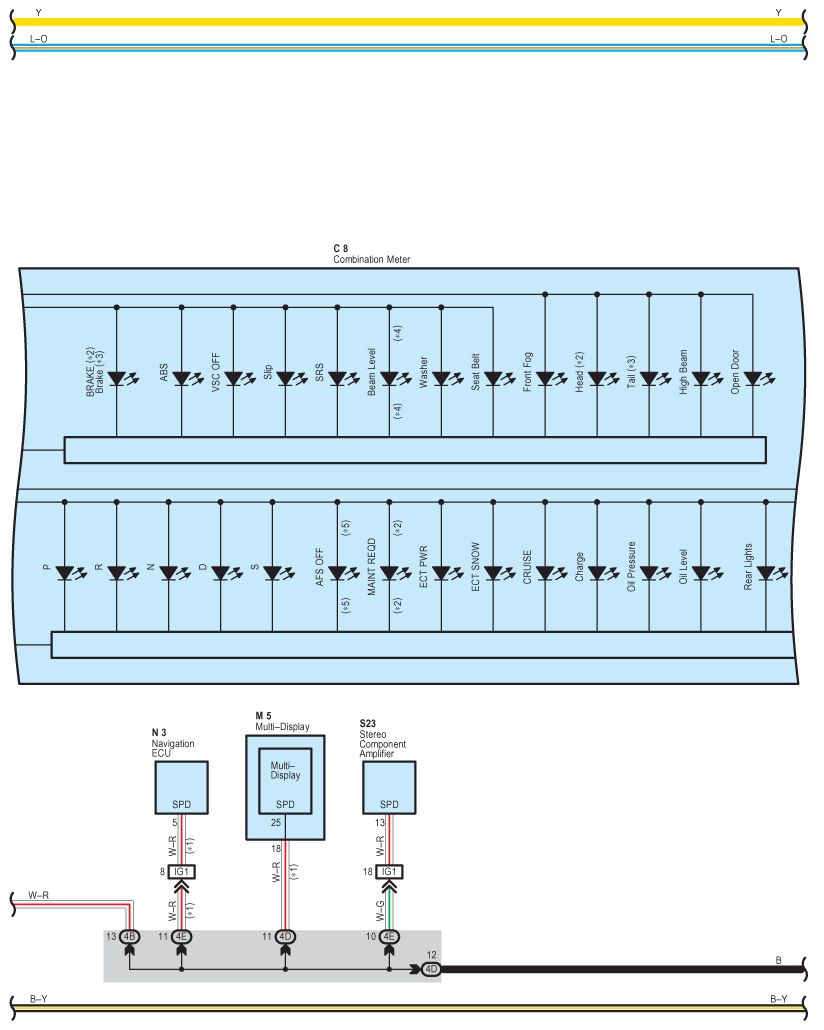

Fig 3: Combination Meter - Wiring Diagram (3 Of 6)
G08933922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

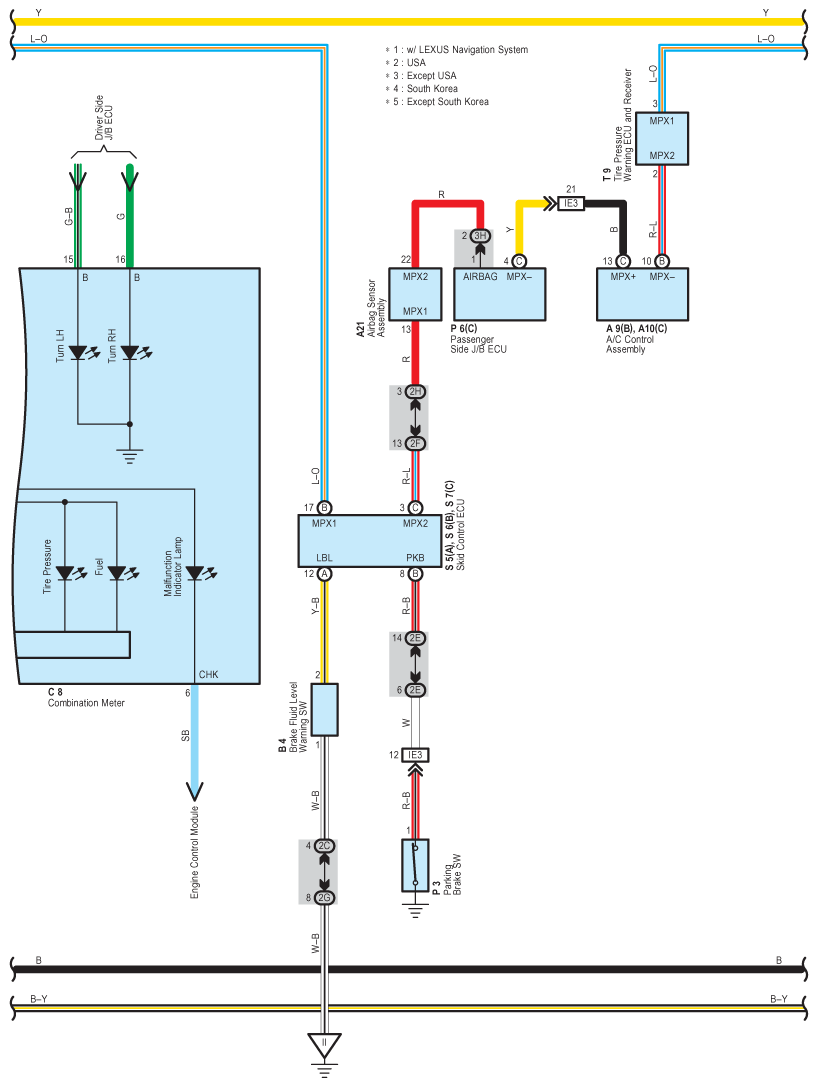

Fig 4: Combination Meter - Wiring Diagram (4 Of 6)
G08933923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

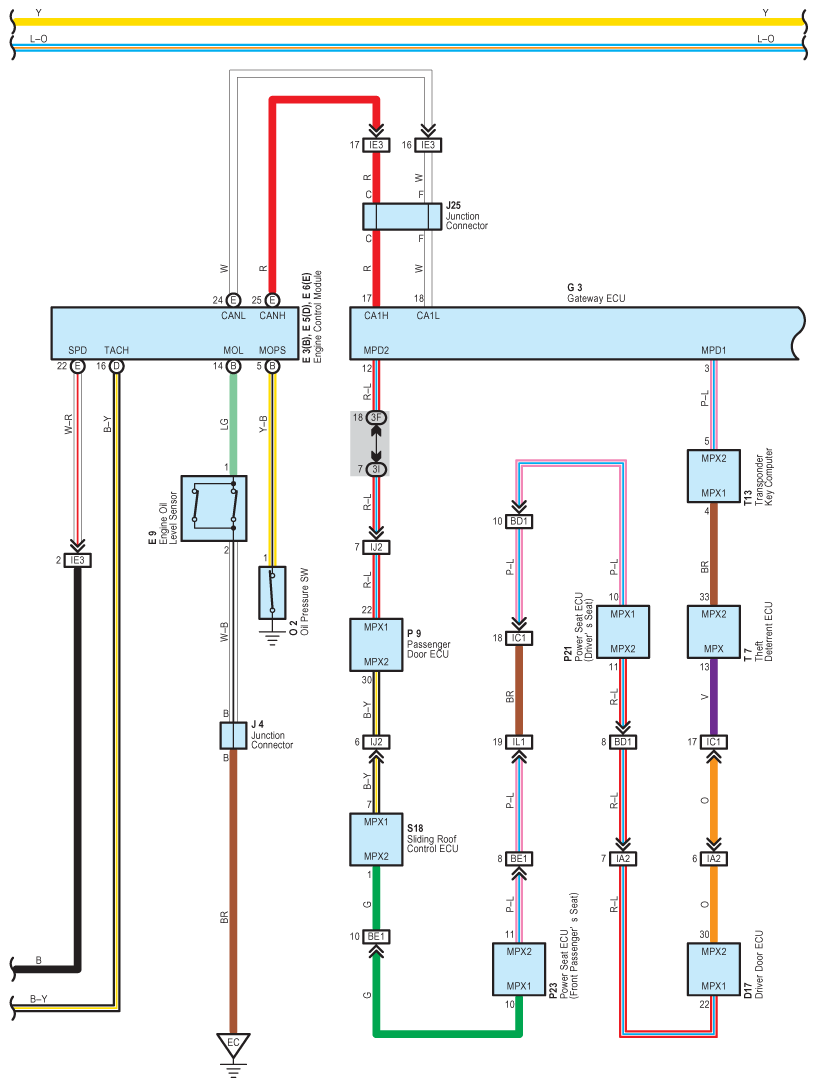

Fig 5: Combination Meter - Wiring Diagram (5 Of 6)
G08933924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

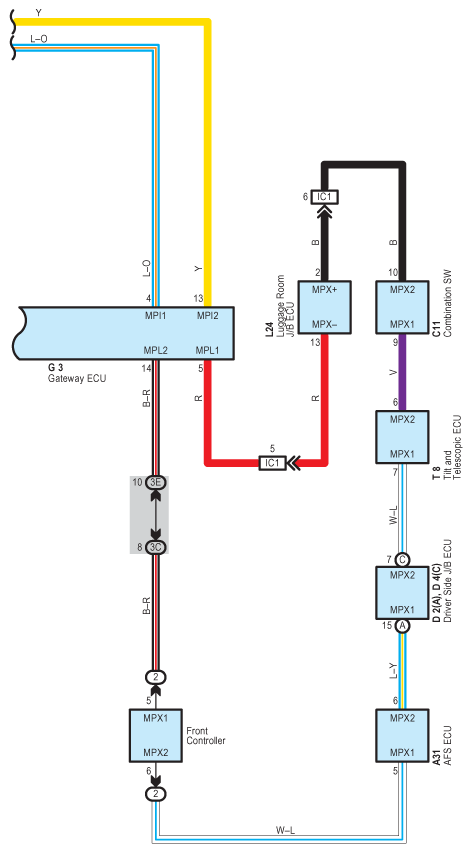

Fig 6: Combination Meter - Wiring Diagram (6 Of 6)
G08933925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
