Engine Control: Notes

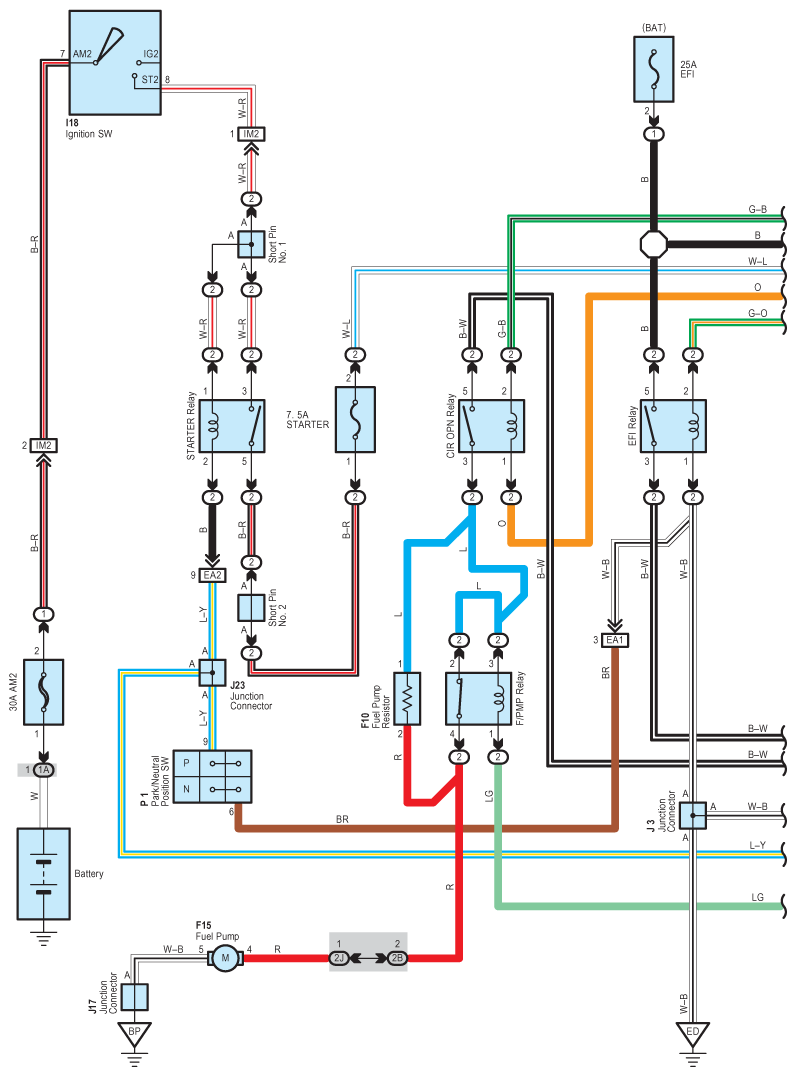

Fig 1: Engine Control - Wiring Diagram (1 Of 9)

G08933761

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

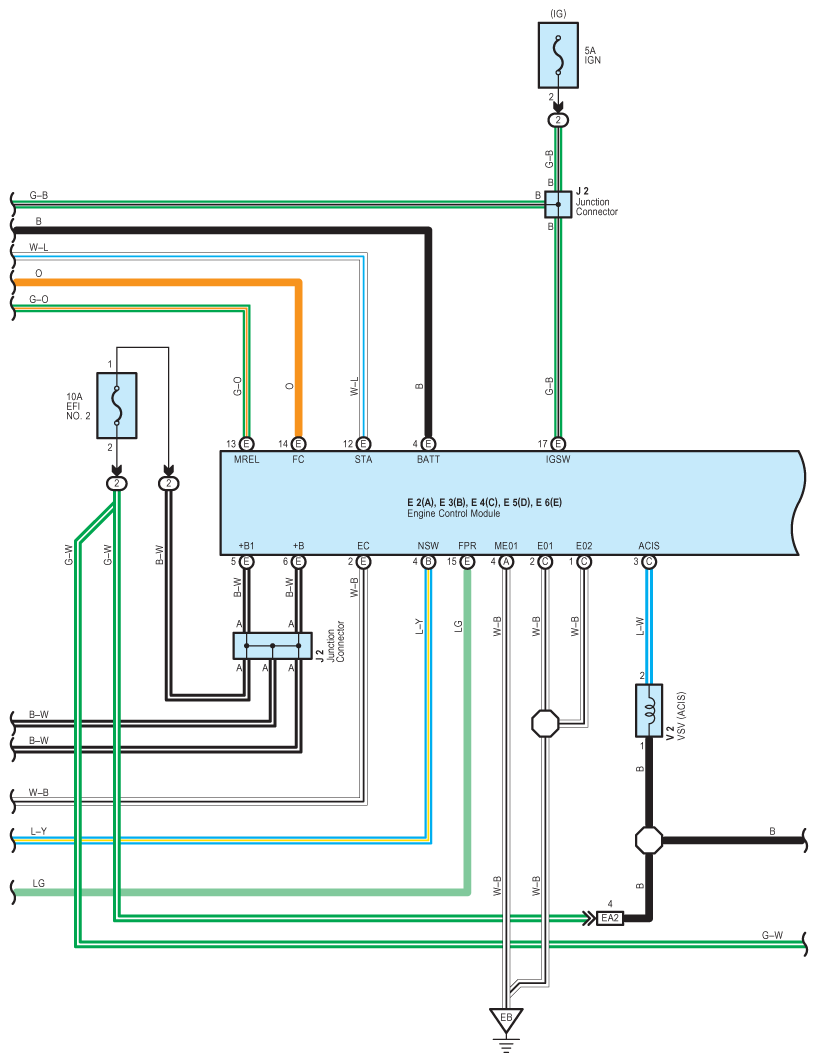

Fig 2: Engine Control - Wiring Diagram (2 Of 9)

G08933762

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

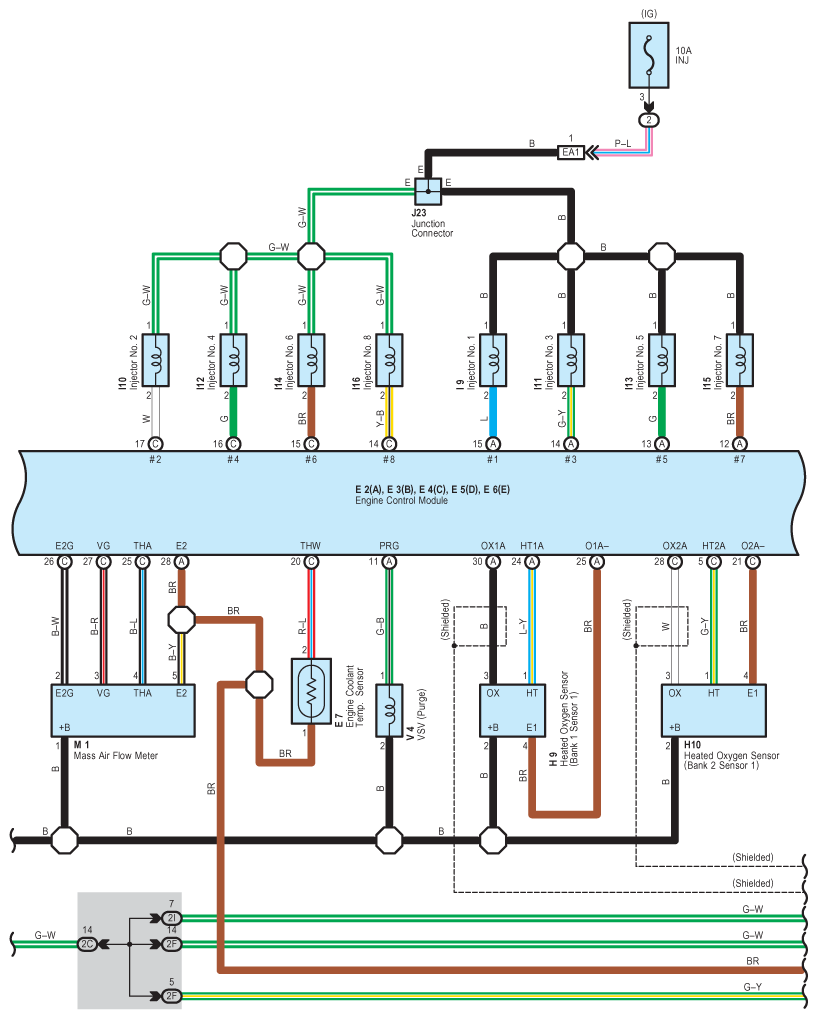

Fig 3: Engine Control - Wiring Diagram (3 Of 9)

G08933763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

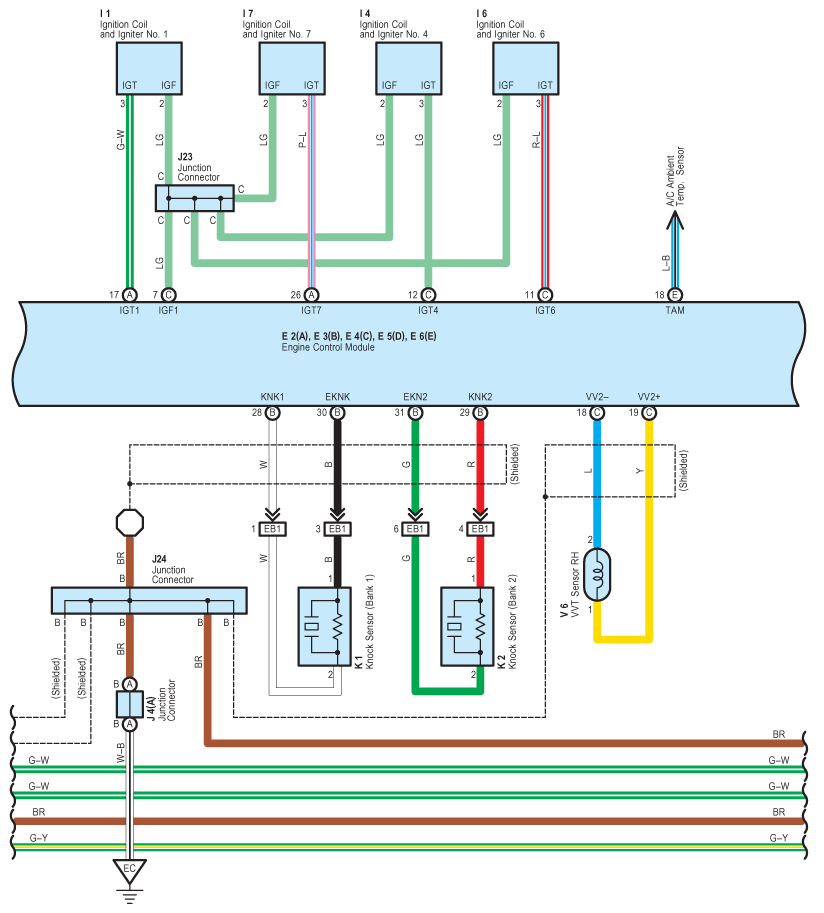

Fig 4: Engine Control - Wiring Diagram (4 Of 9)

G08933764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

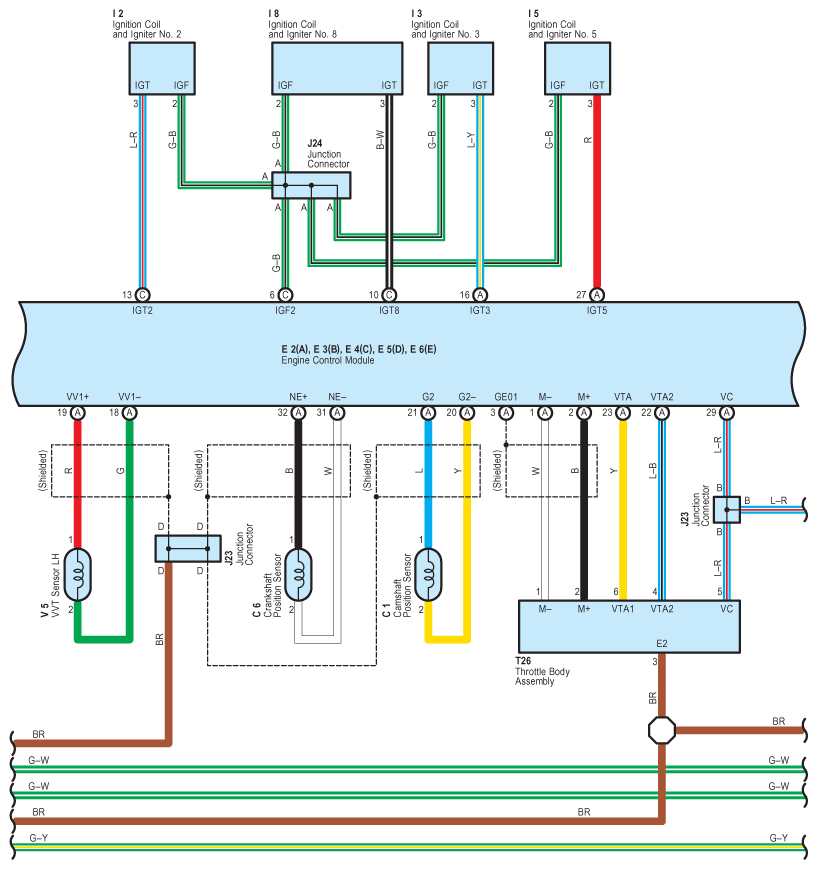

Fig 5: Engine Control - Wiring Diagram (5 Of 9)

G08933765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

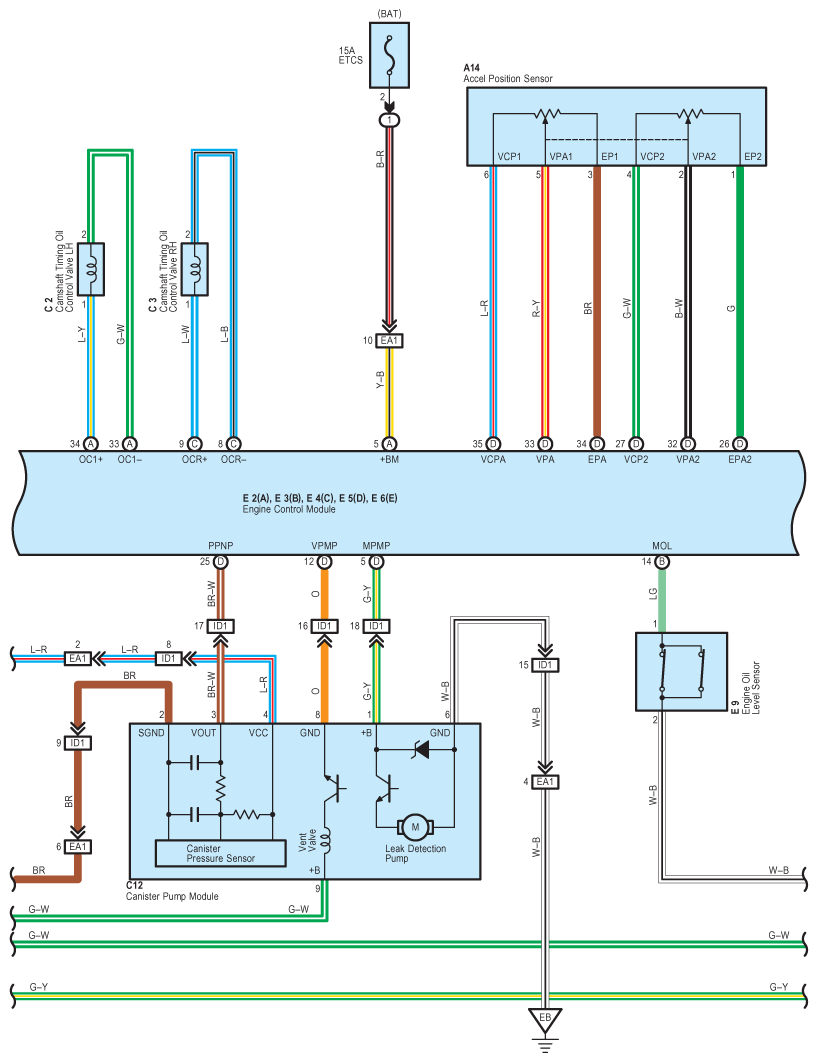

Fig 6: Engine Control - Wiring Diagram (6 Of 9)

G08933766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

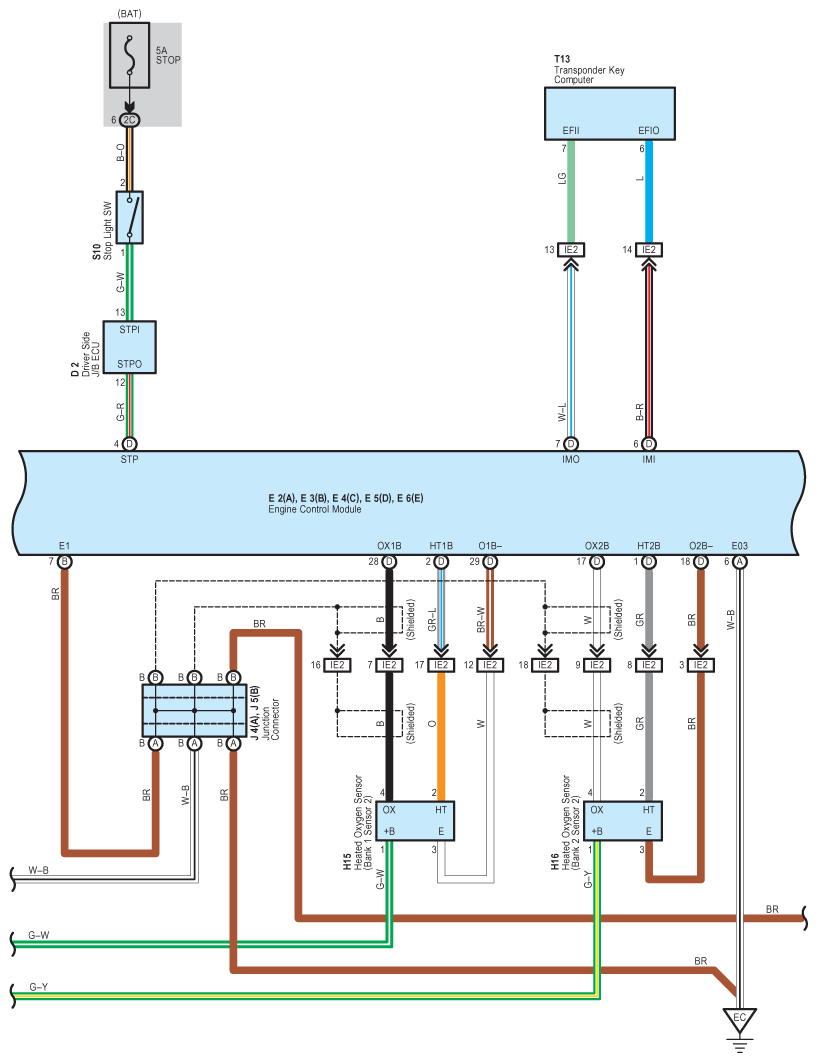

Fig 7: Engine Control - Wiring Diagram (7 Of 9)

G08933767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

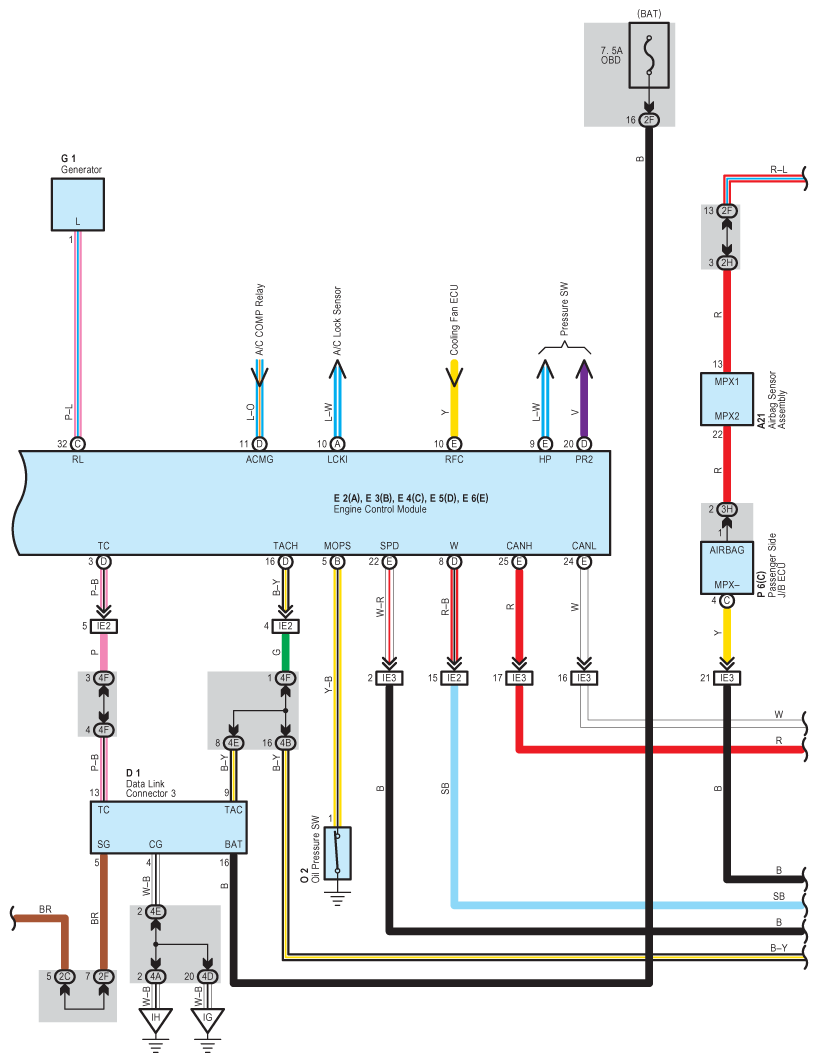

Fig 8: Engine Control - Wiring Diagram (8 Of 9)

G08933768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

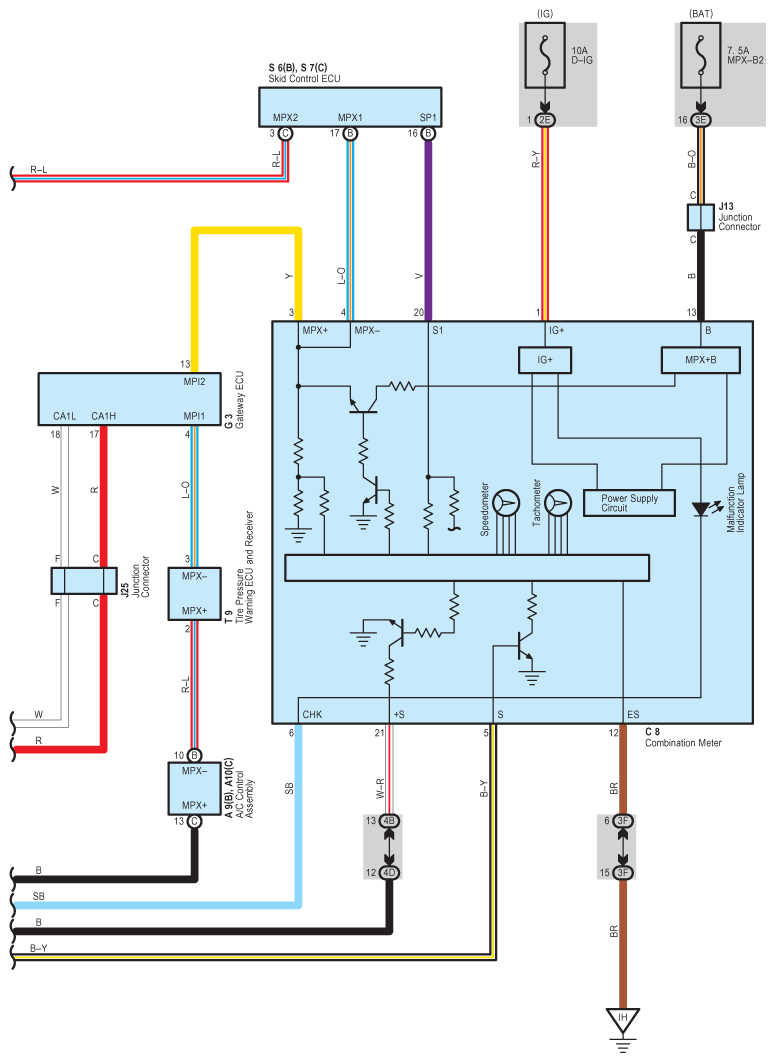

Fig 9: Engine Control - Wiring Diagram (9 Of 9)

G08933769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
