Front Fog Light: Notes

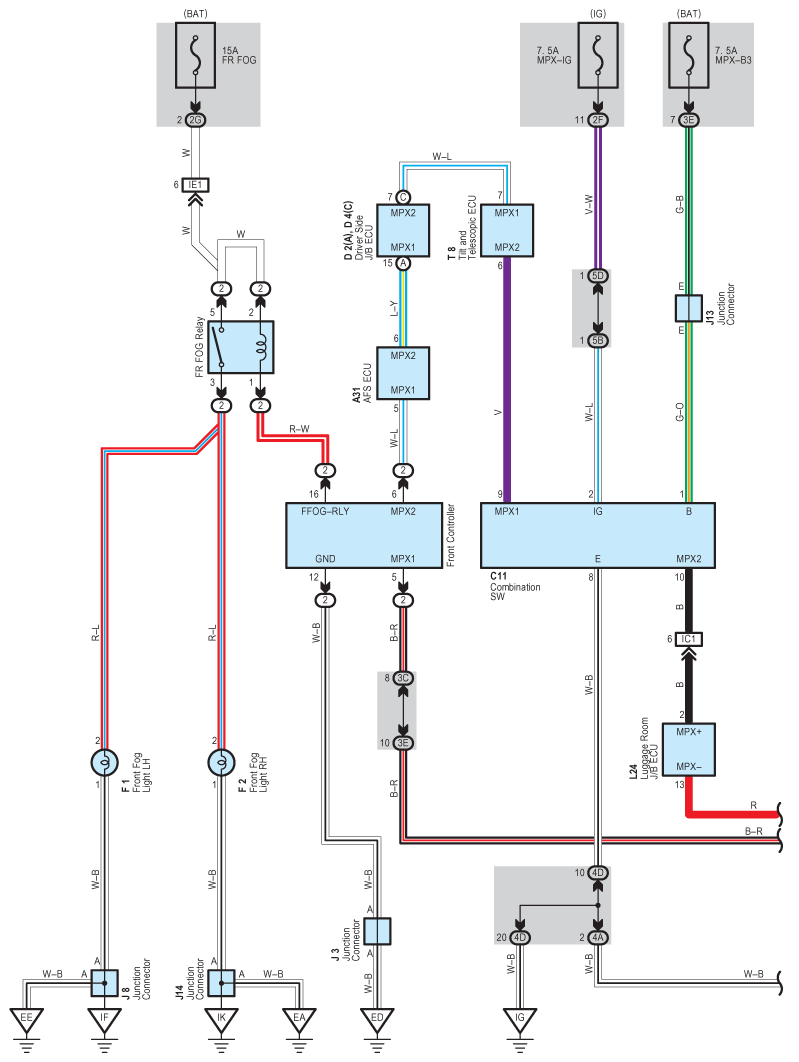

Fig 1: Front Fog Light - Wiring Diagram (1 Of 2)
G08933805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

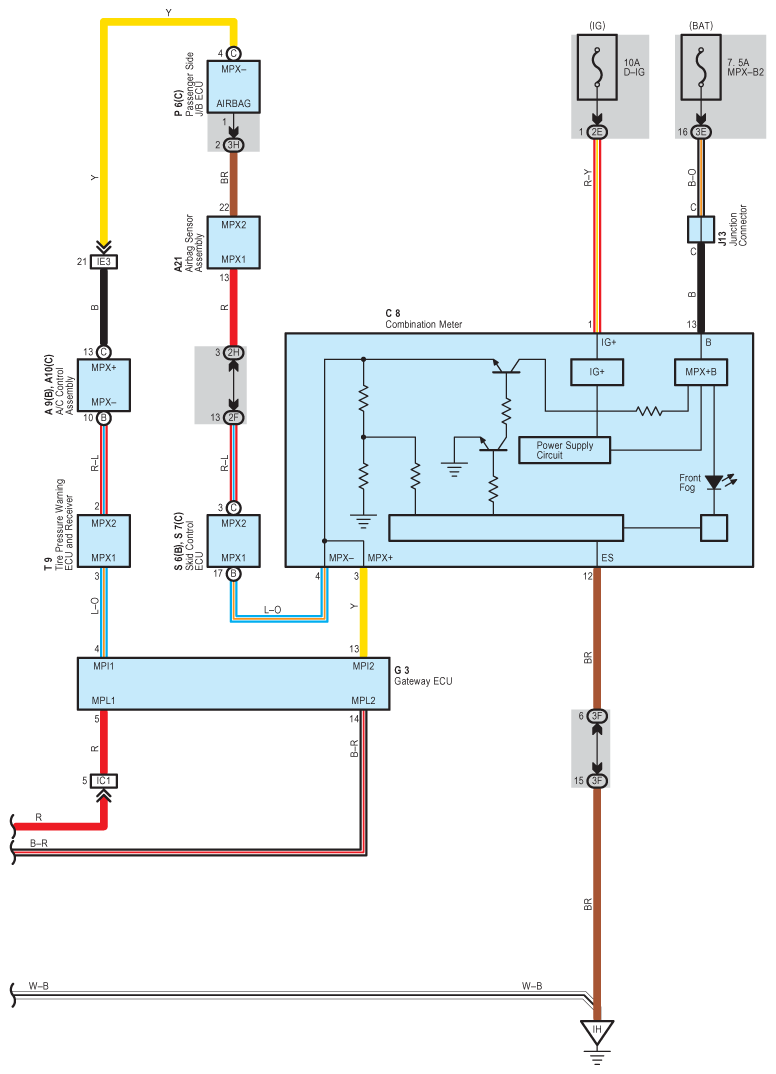

Fig 2: Front Fog Light - Wiring Diagram (2 Of 2)
G08933806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
