Multiplx Communication System - Junction Block ECU: Notes

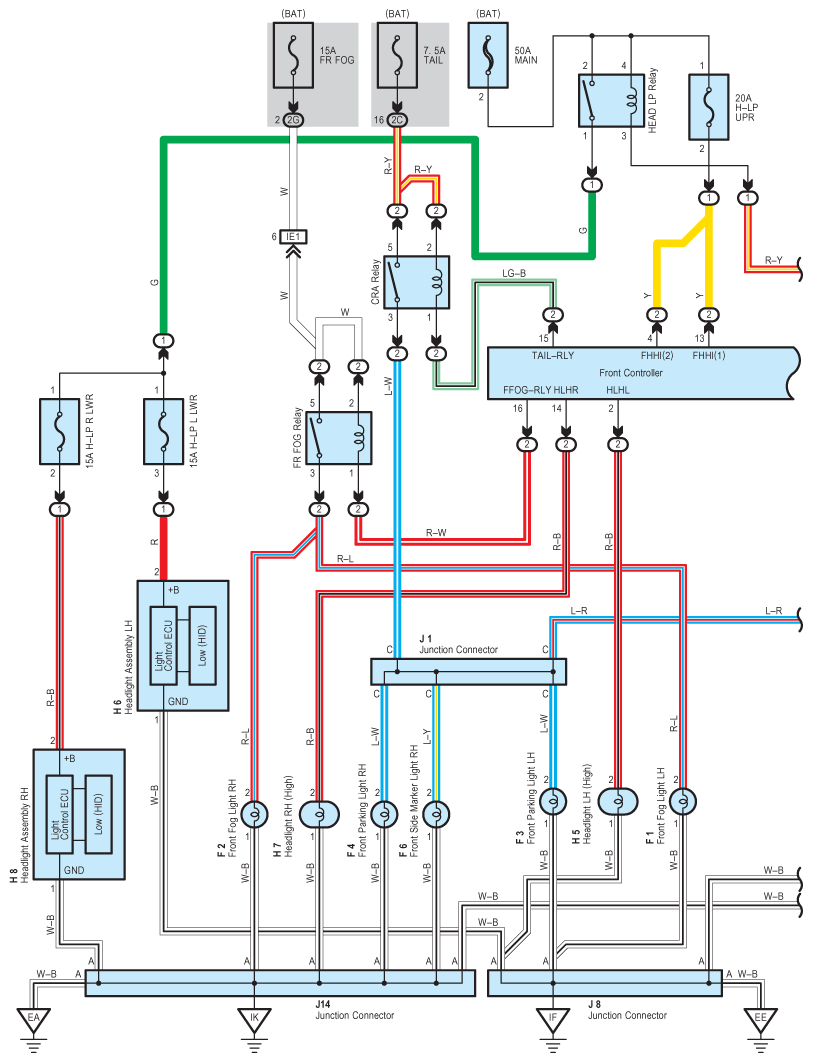

Fig 1: Multiplx Communication System - J/B Ecu - Wiring Diagram (1 Of 20)

G08933776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

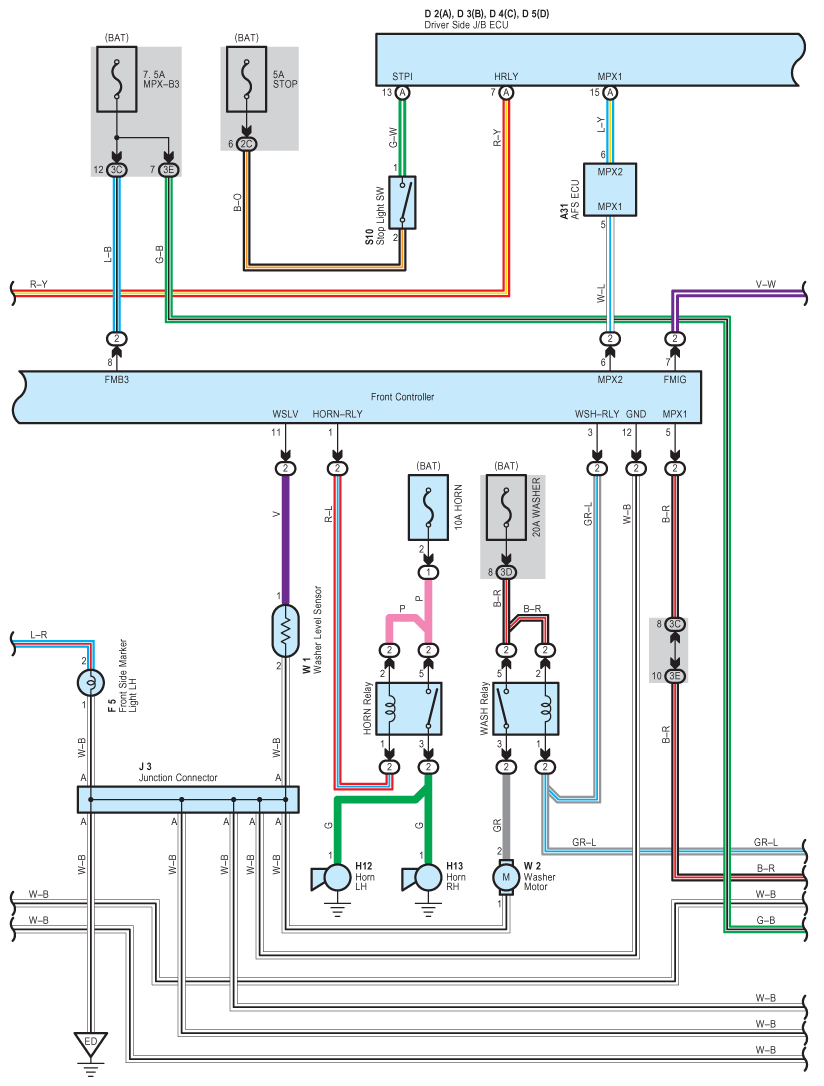

Fig 2: Multiplx Communication System - J/B Ecu - Wiring Diagram (2 Of 20)

G08933777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

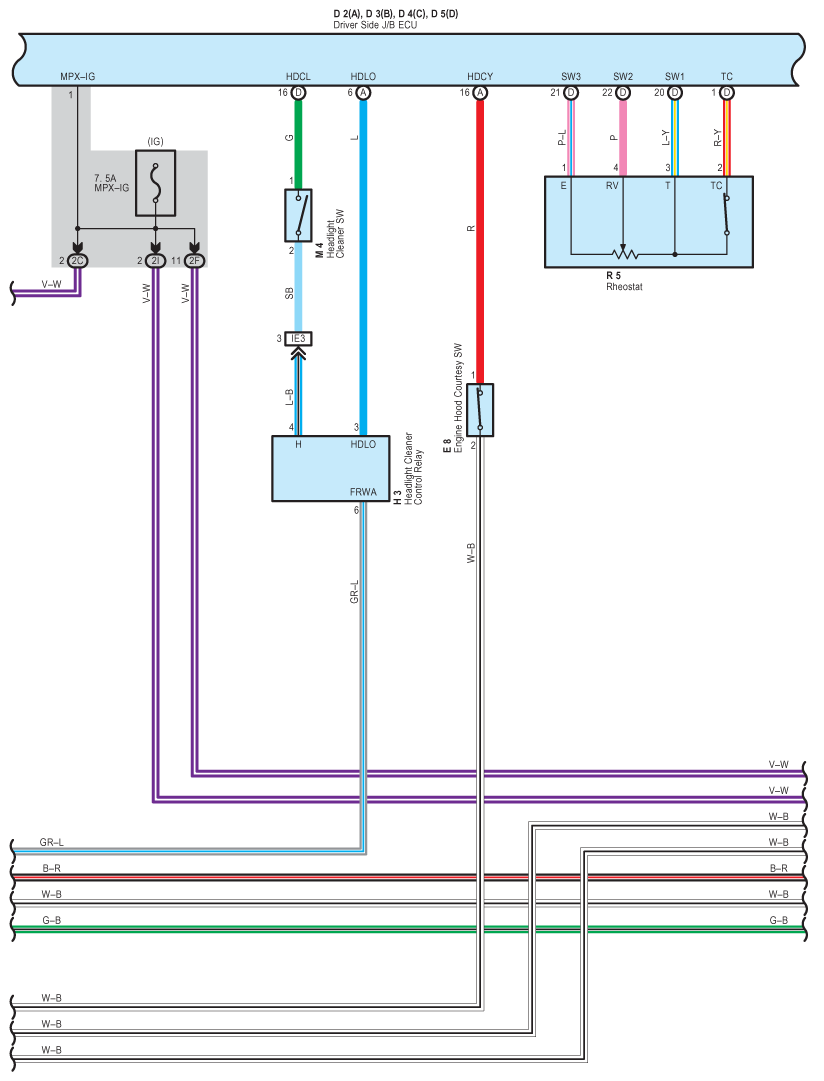

Fig 3: Multiplx Communication System - J/B Ecu - Wiring Diagram (3 Of 20)

G08933778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

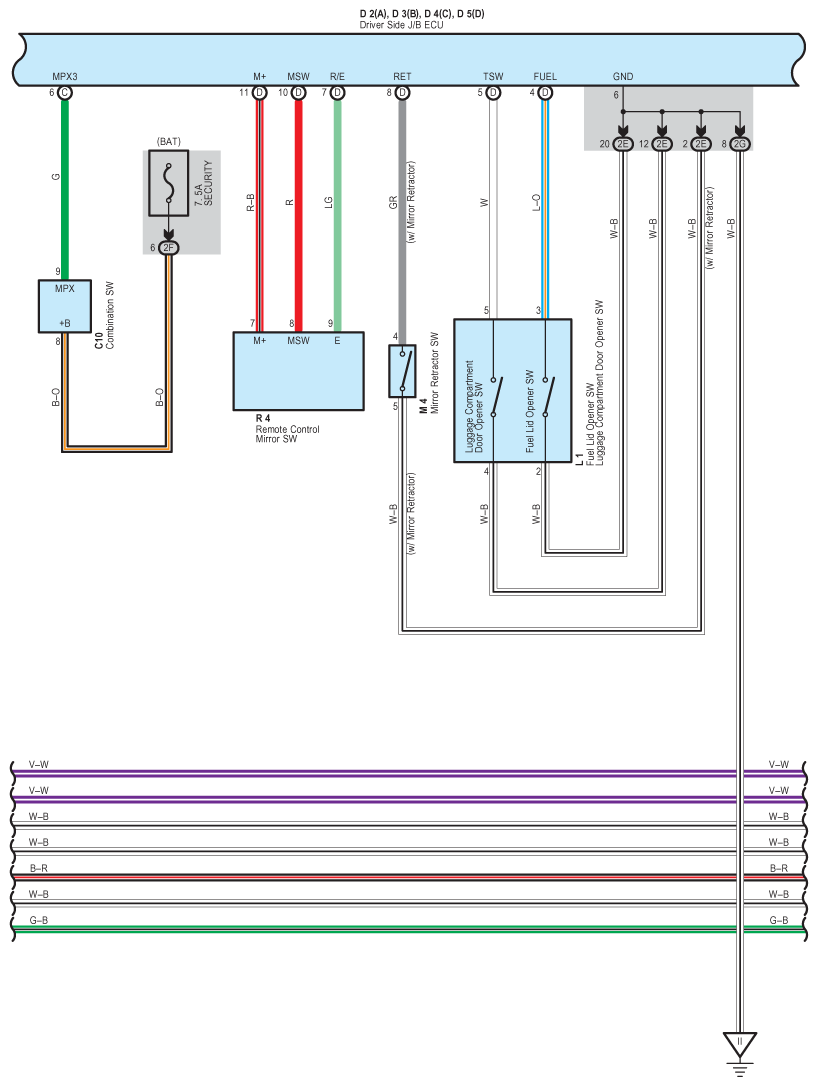

Fig 4: Multiplx Communication System - J/B Ecu - Wiring Diagram (4 Of 20)

G08933779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

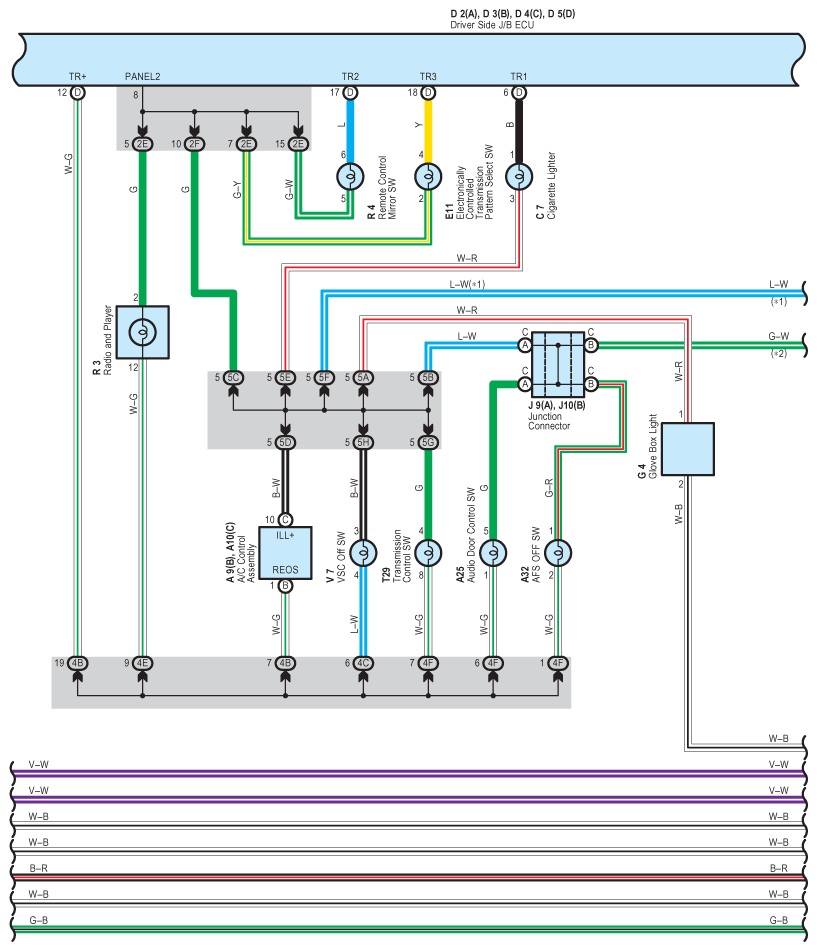

Fig 5: Multiplx Communication System - J/B Ecu - Wiring Diagram (5 Of 20)

G08933780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

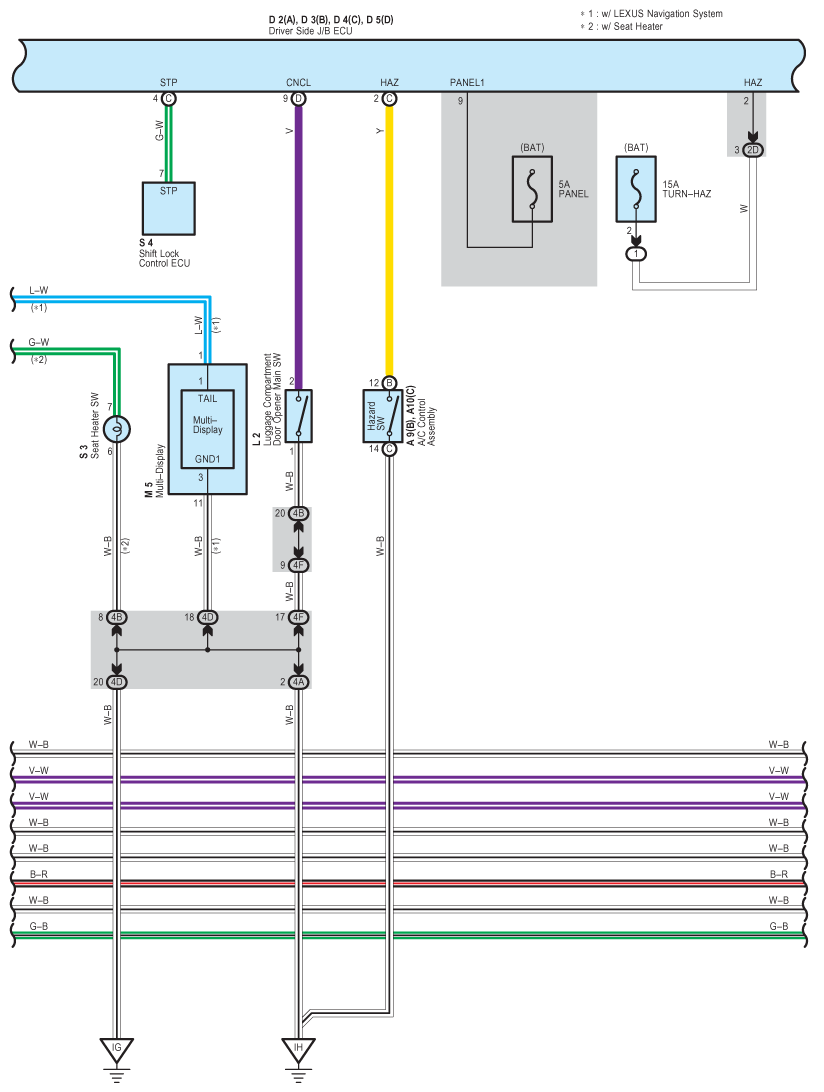

Fig 6: Multiplx Communication System - J/B Ecu - Wiring Diagram (6 Of 20)

G08933781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

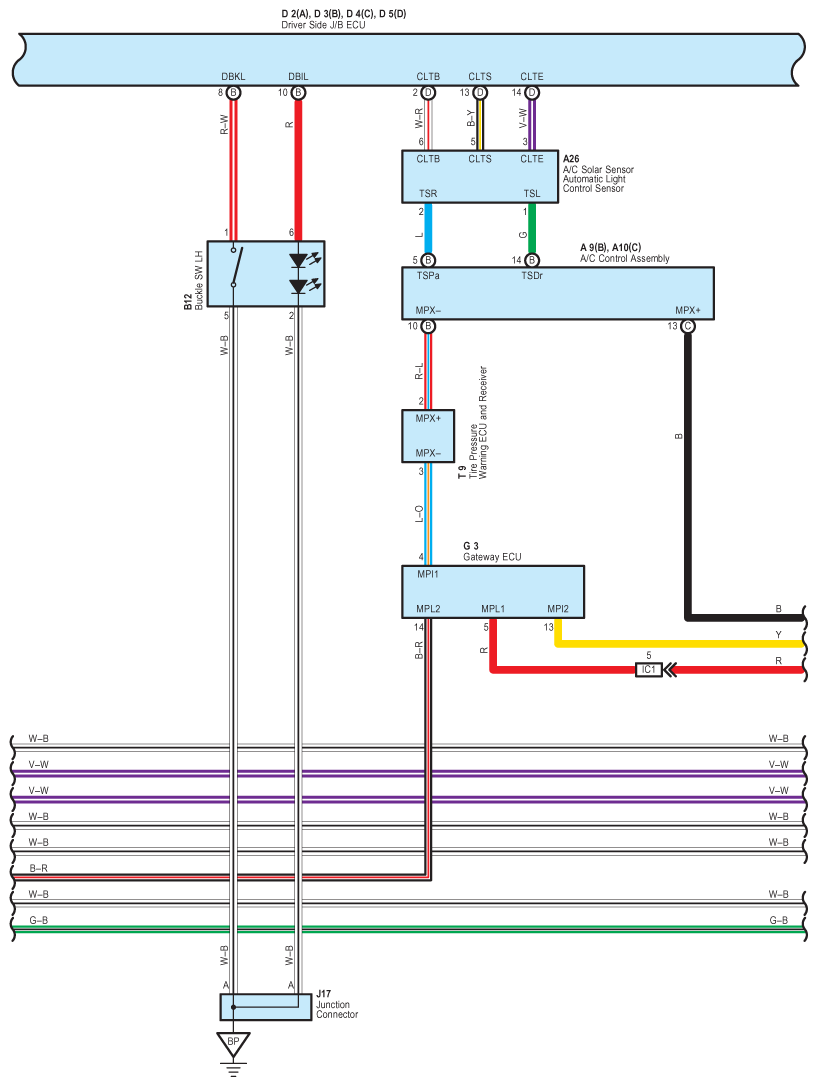

Fig 7: Multiplx Communication System - J/B Ecu - Wiring Diagram (7 Of 20)

G08933782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Multiplx Communication System - J/B Ecu - Wiring Diagram (8 Of 20)

G08933783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

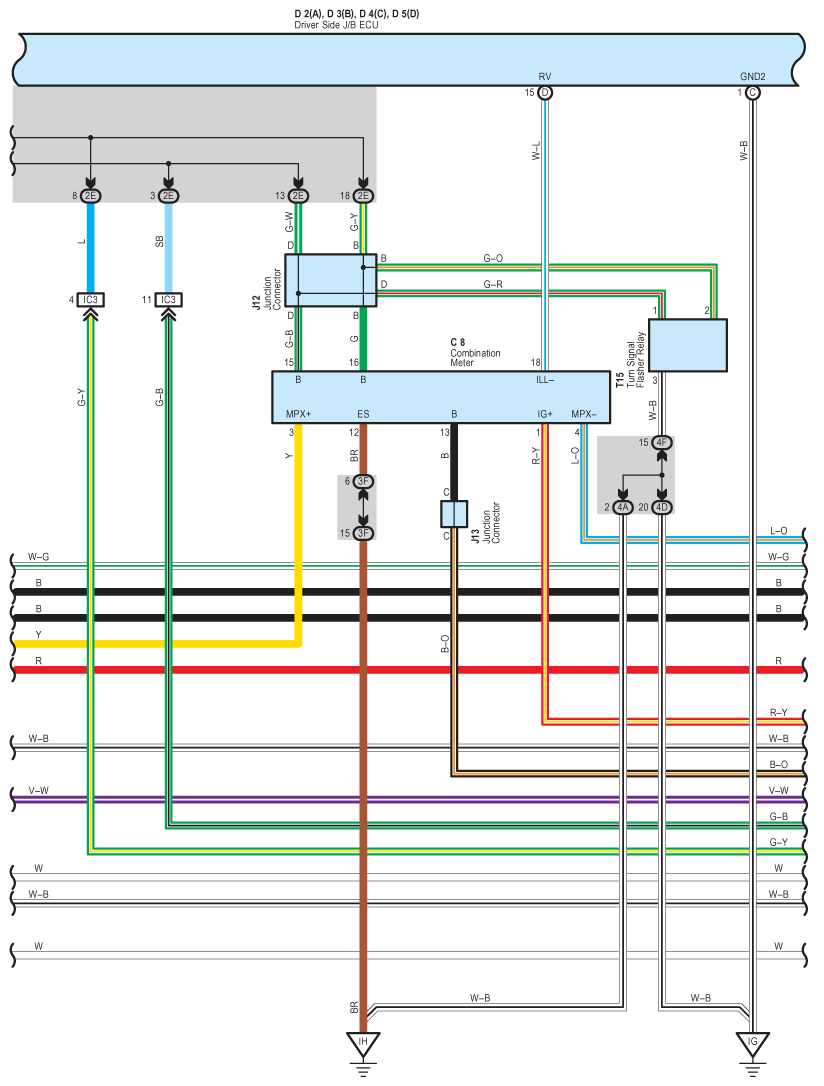

Fig 9: Multiplx Communication System - J/B Ecu - Wiring Diagram (9 Of 20)

G08933784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

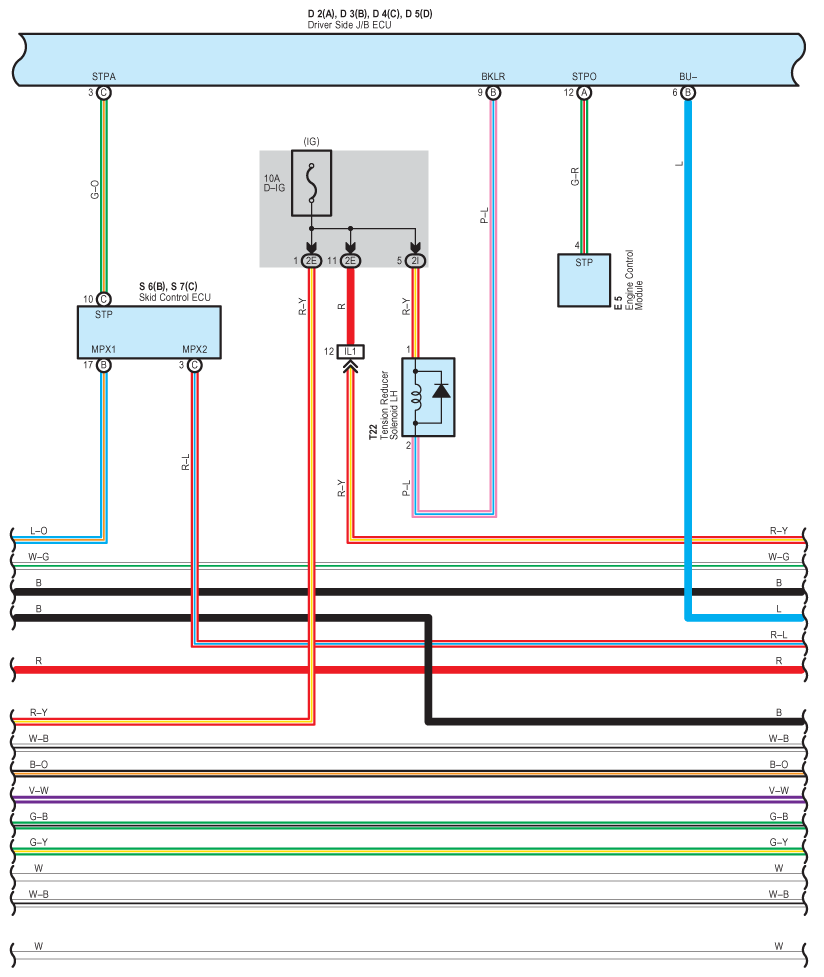

Fig 10: Multiplx Communication System - J/B Ecu - Wiring Diagram (10 Of 20)

G08933785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

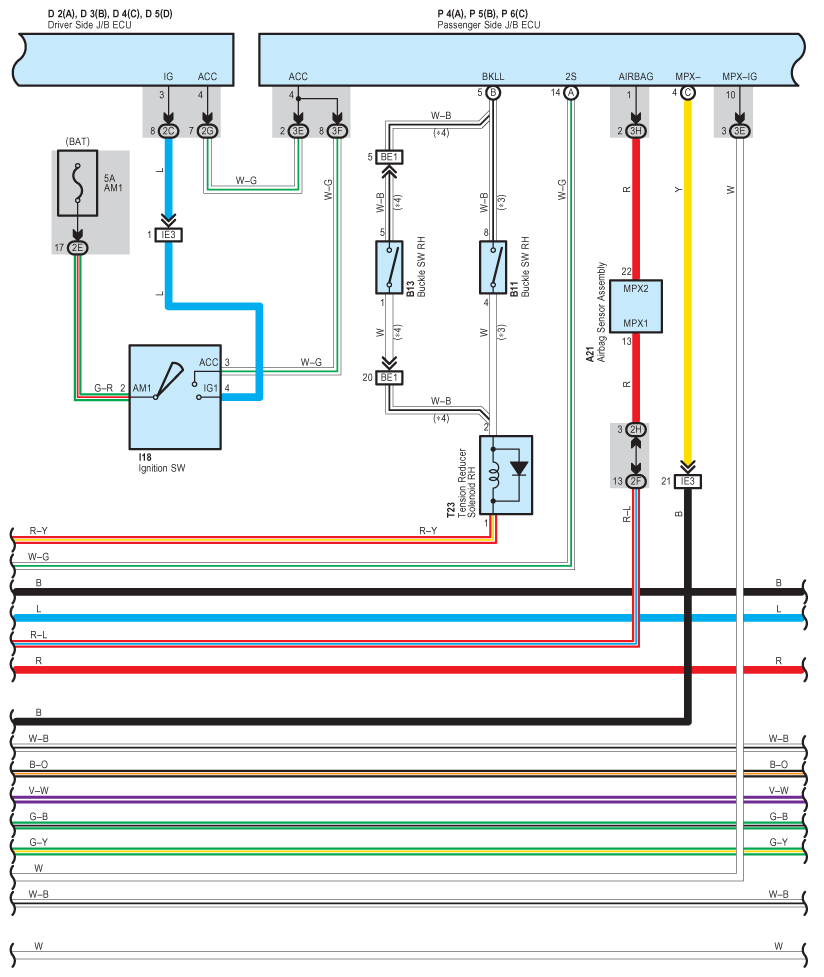

Fig 11: Multiplx Communication System - J/B Ecu - Wiring Diagram (11 Of 20)

G08933786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

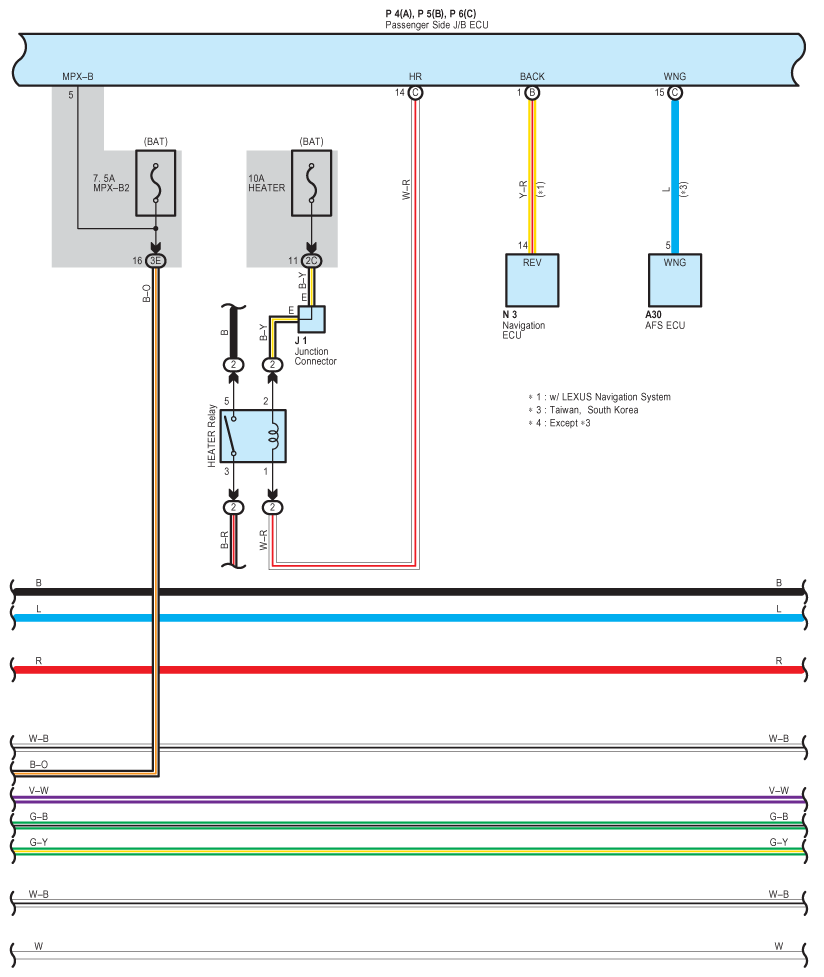

Fig 12: Multiplx Communication System - J/B Ecu - Wiring Diagram (12 Of 20)

G08933787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

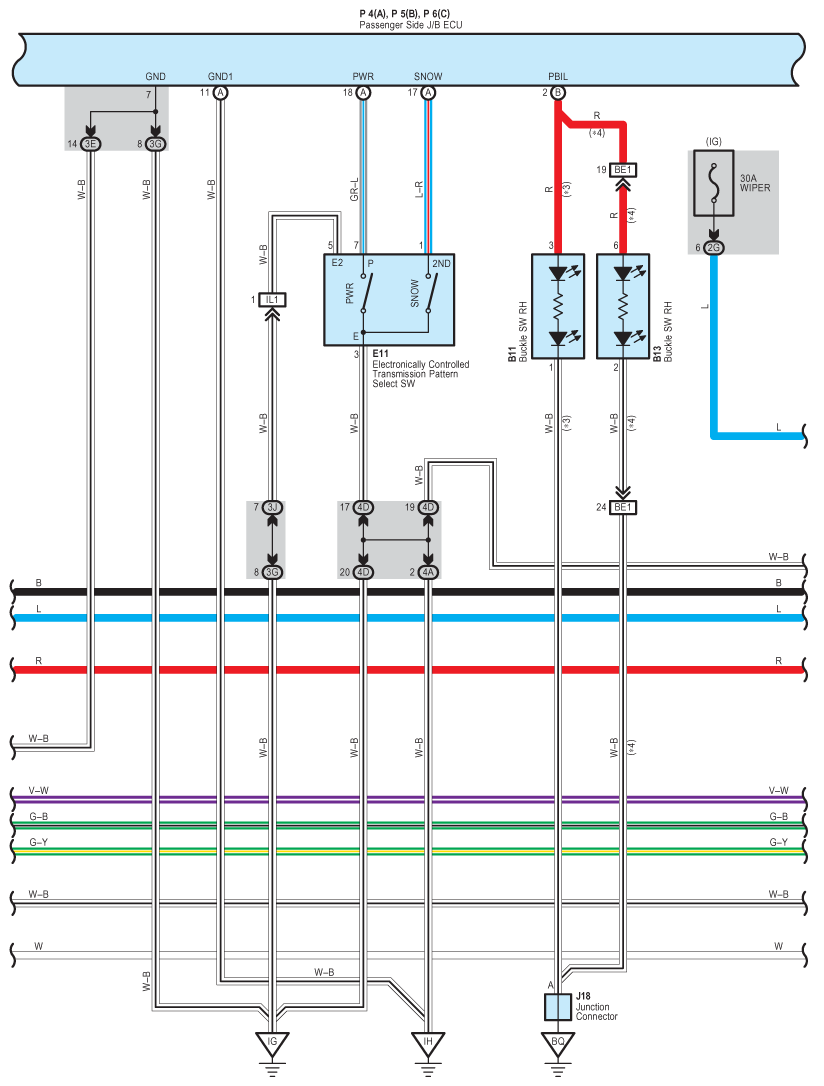

Fig 13: Multiplx Communication System - J/B Ecu - Wiring Diagram (13 Of 20)

G08933788

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

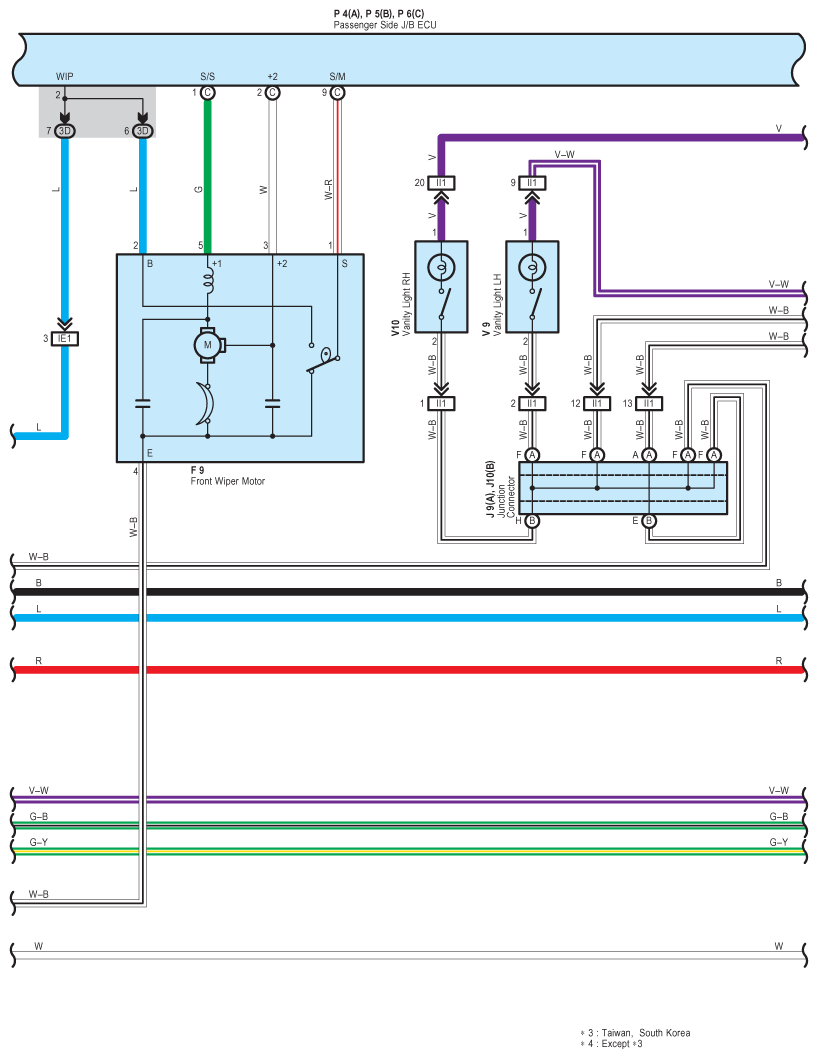

Fig 14: Multiplx Communication System - J/B Ecu - Wiring Diagram (14 Of 20)

G08933789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

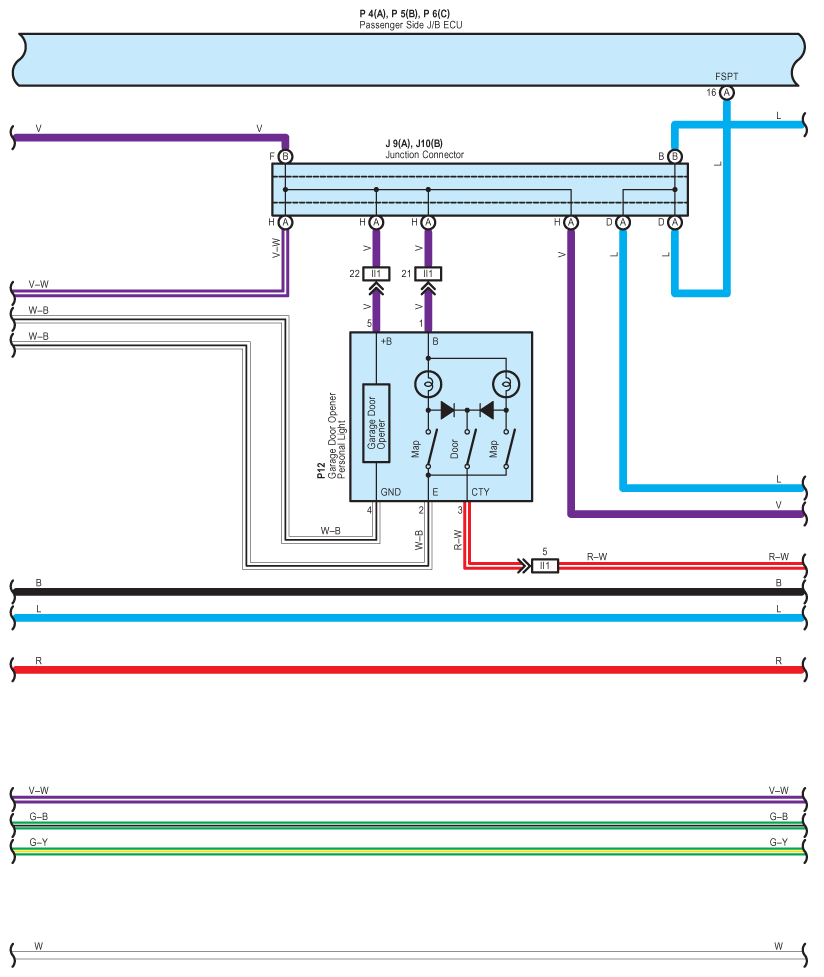

Fig 15: Multiplx Communication System - J/B Ecu - Wiring Diagram (15 Of 20)

G08933790

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

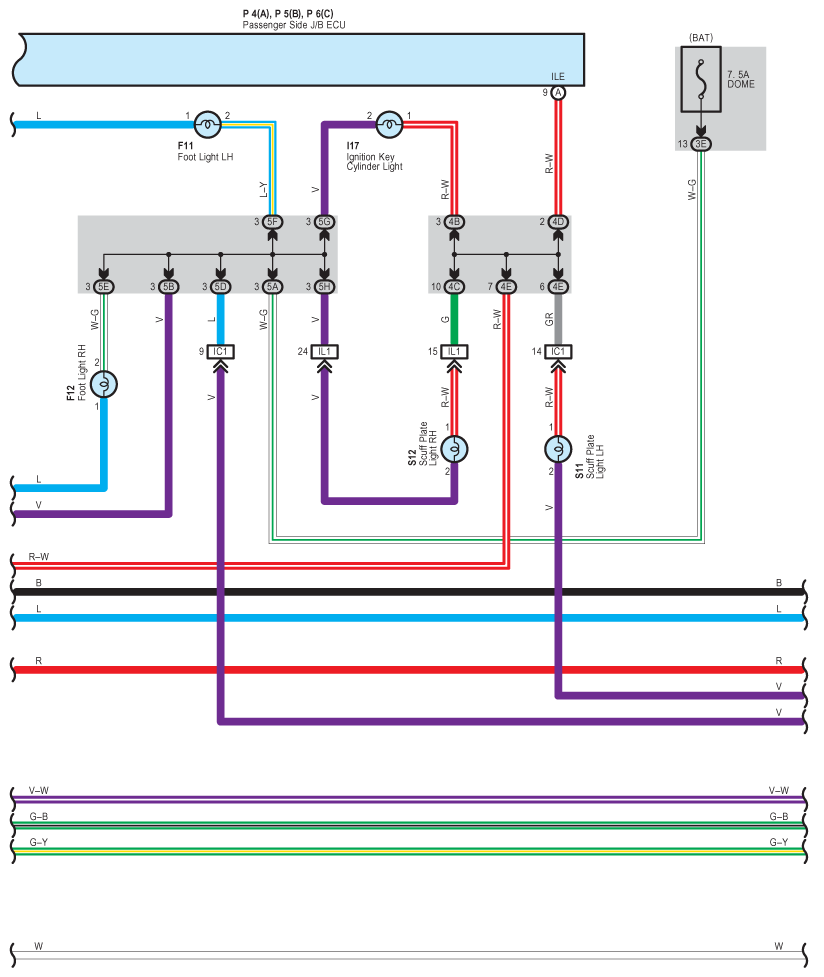

Fig 16: Multiplx Communication System - J/B Ecu - Wiring Diagram (16 Of 20)

G08933791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

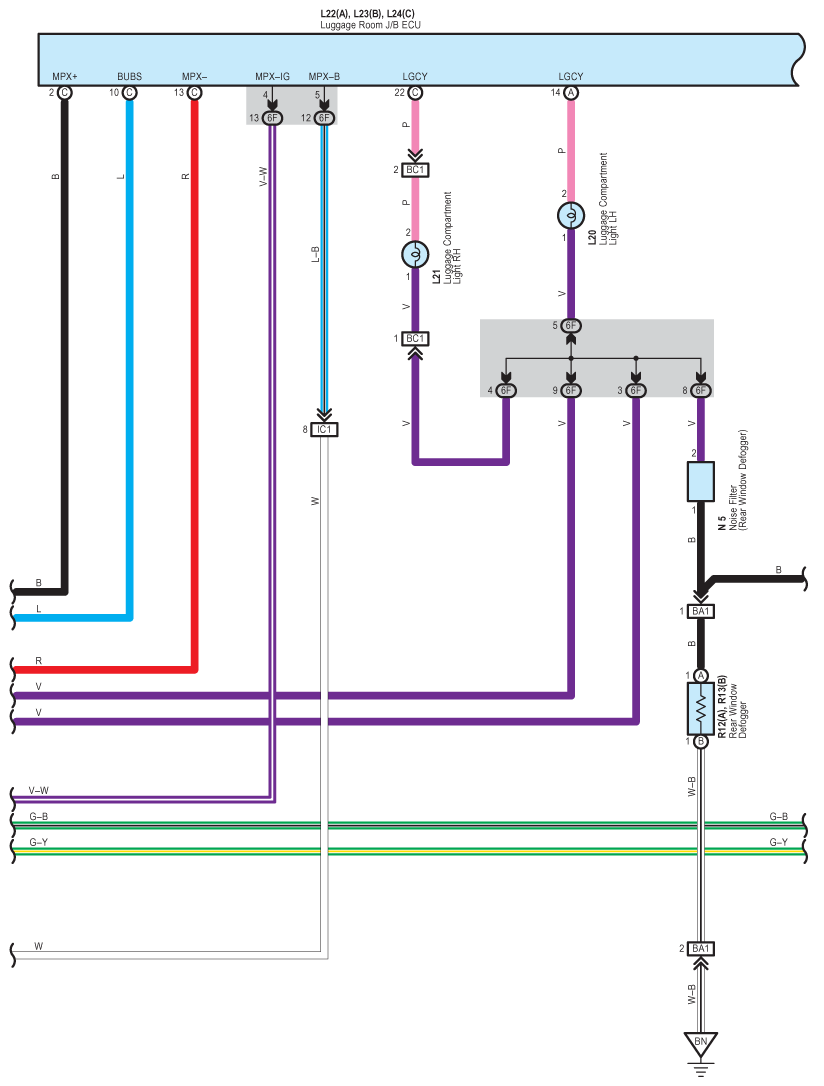

Fig 17: Multiplx Communication System - J/B Ecu - Wiring Diagram (17 Of 20)

G08933792

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

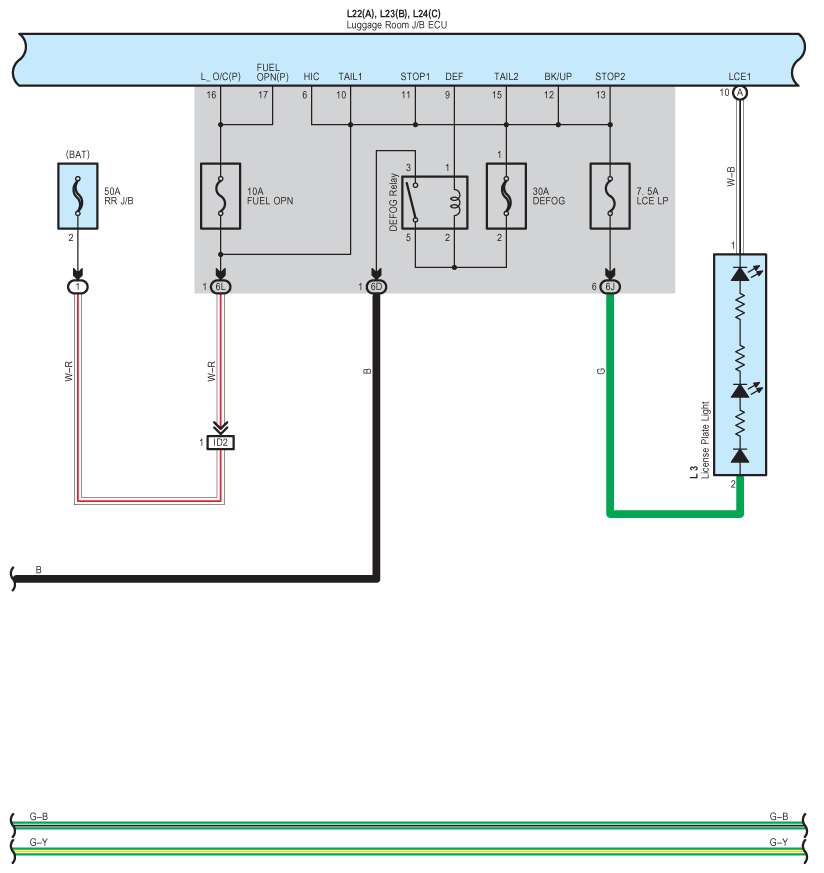

Fig 18: Multiplx Communication System - J/B Ecu - Wiring Diagram (18 Of 20)

G08933793

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

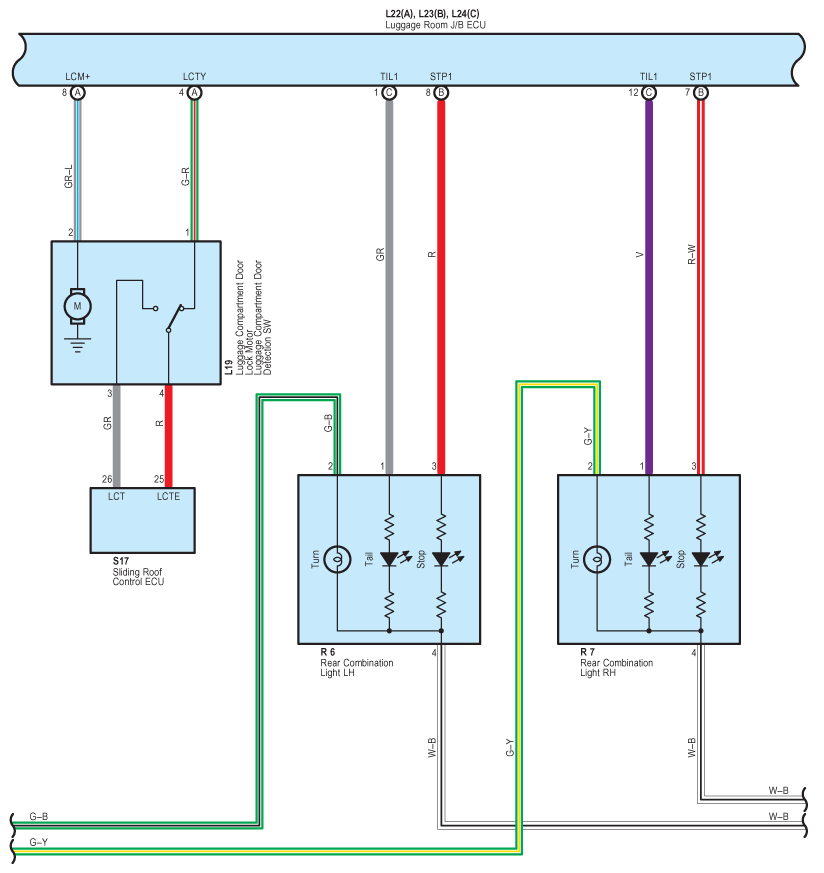

Fig 19: Multiplx Communication System - J/B Ecu - Wiring Diagram (19 Of 20)

G08933794

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

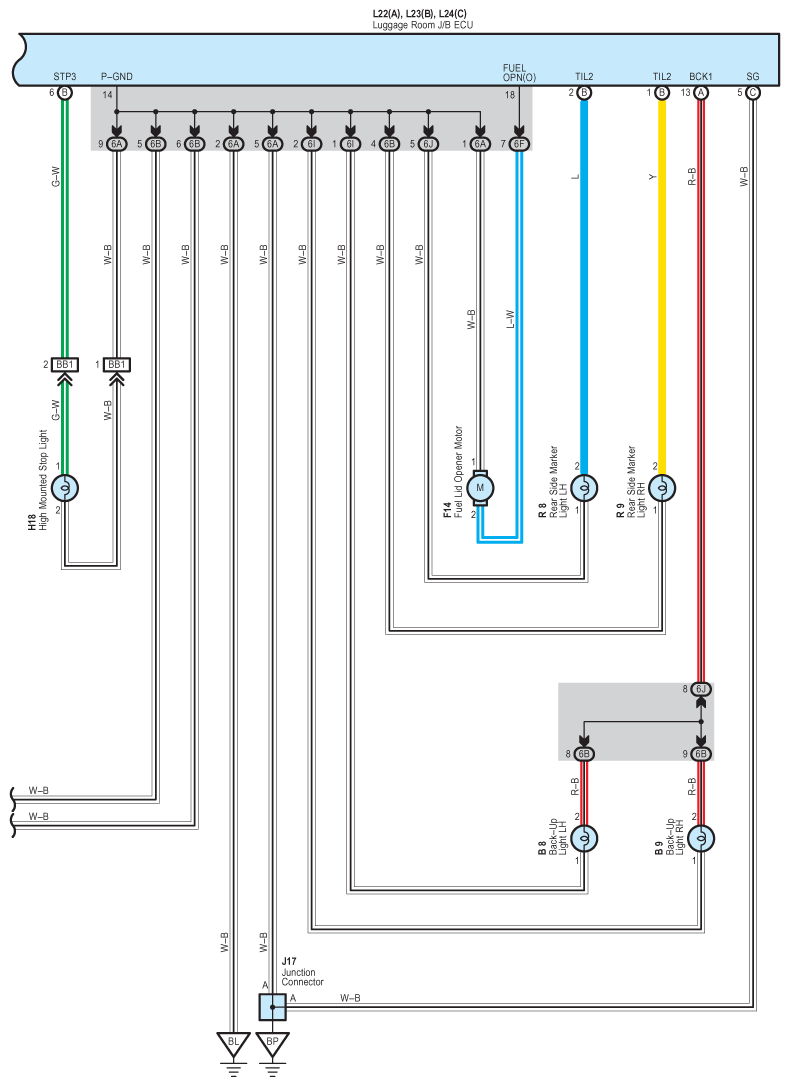

Fig 20: Multiplx Communication System - J/B Ecu - Wiring Diagram (20 Of 20)

G08933795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
