Power Seat: Notes

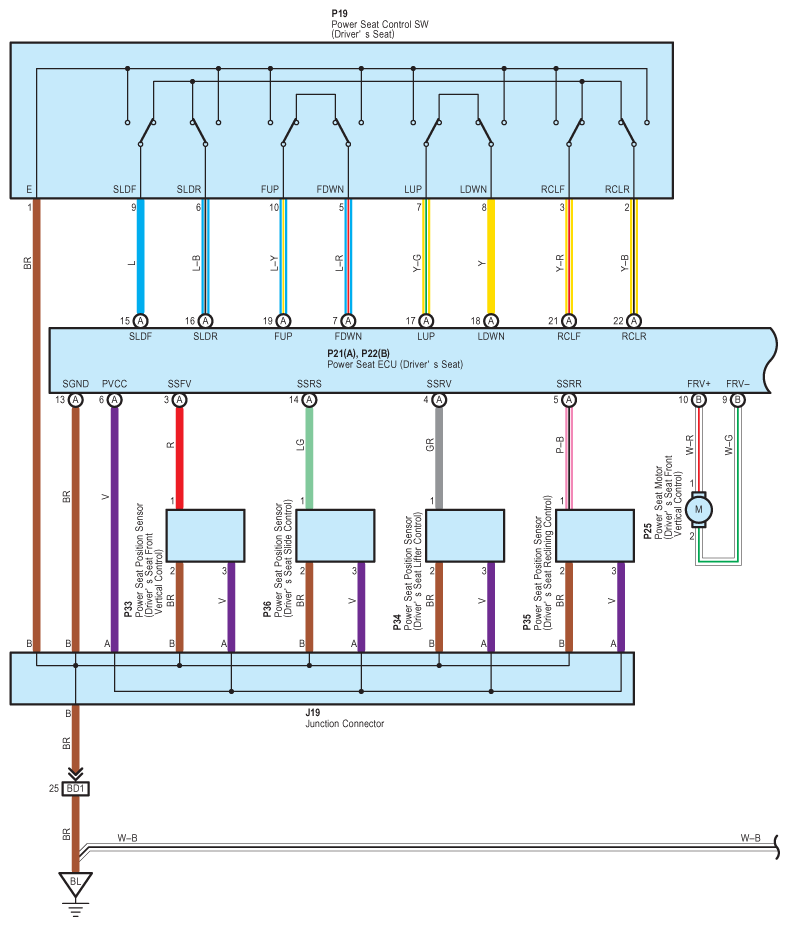

Fig 1: Power Seat - Wiring Diagram (1 Of 4)
G08933898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

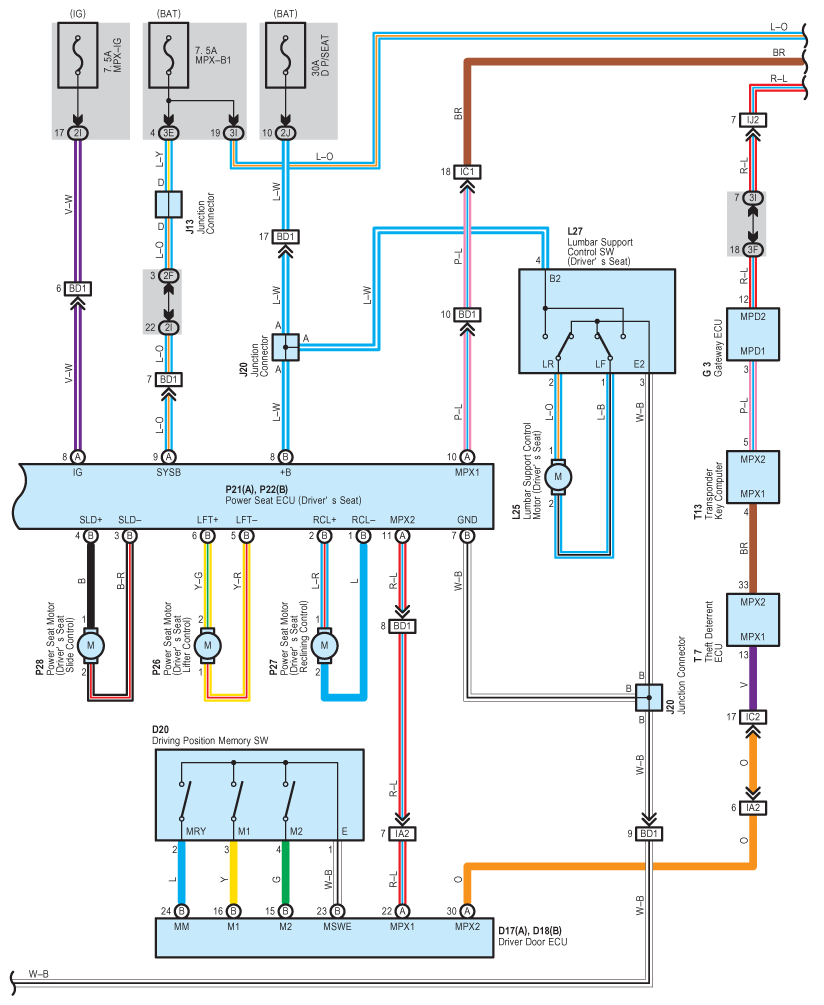

Fig 2: Power Seat - Wiring Diagram (2 Of 4)
G08933899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

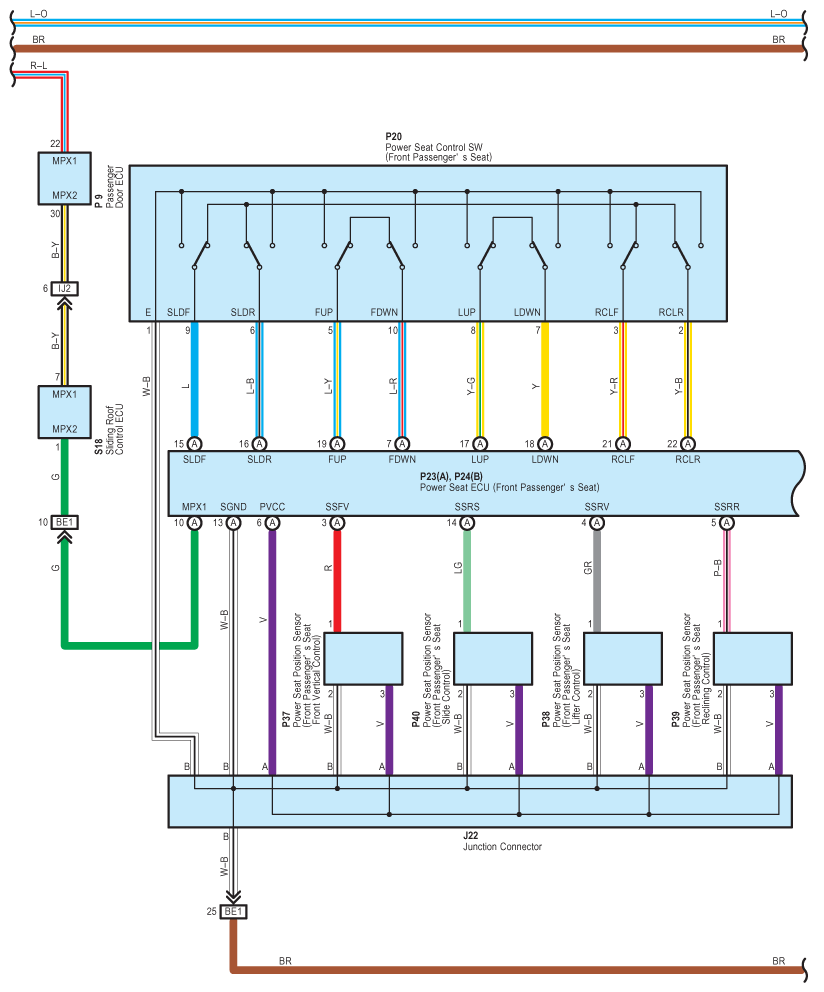

Fig 3: Power Seat - Wiring Diagram (3 Of 4)
G08933900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

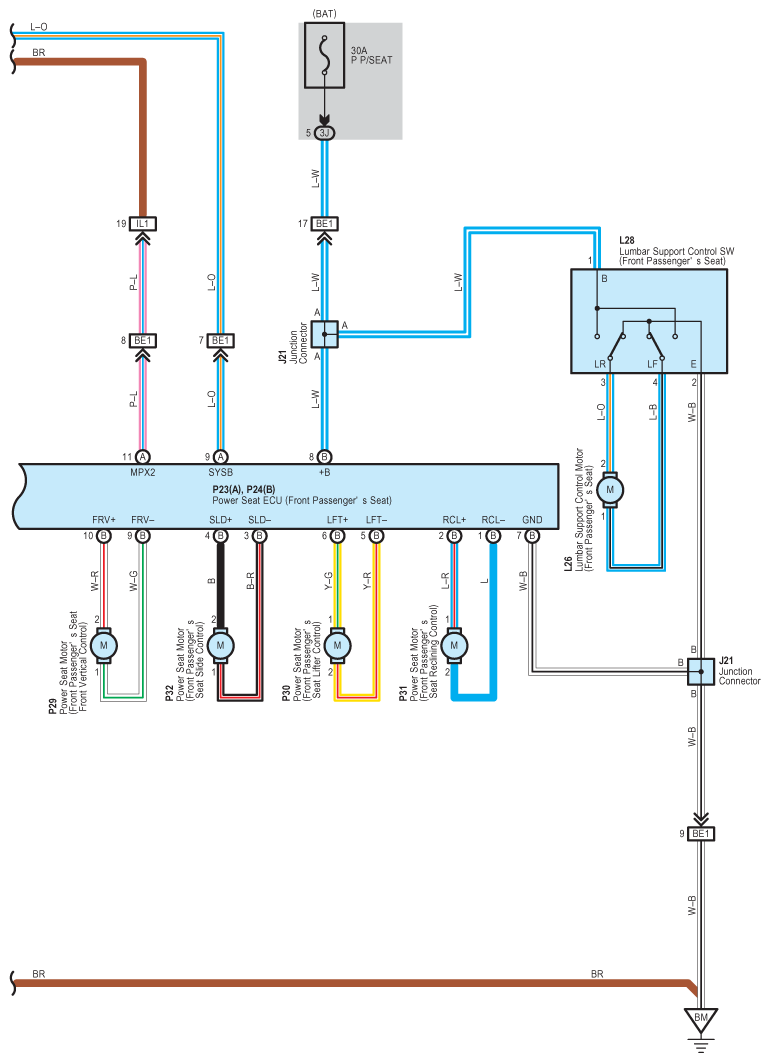

Fig 4: Power Seat - Wiring Diagram (4 Of 4)
G08933901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
