Power Window: Notes

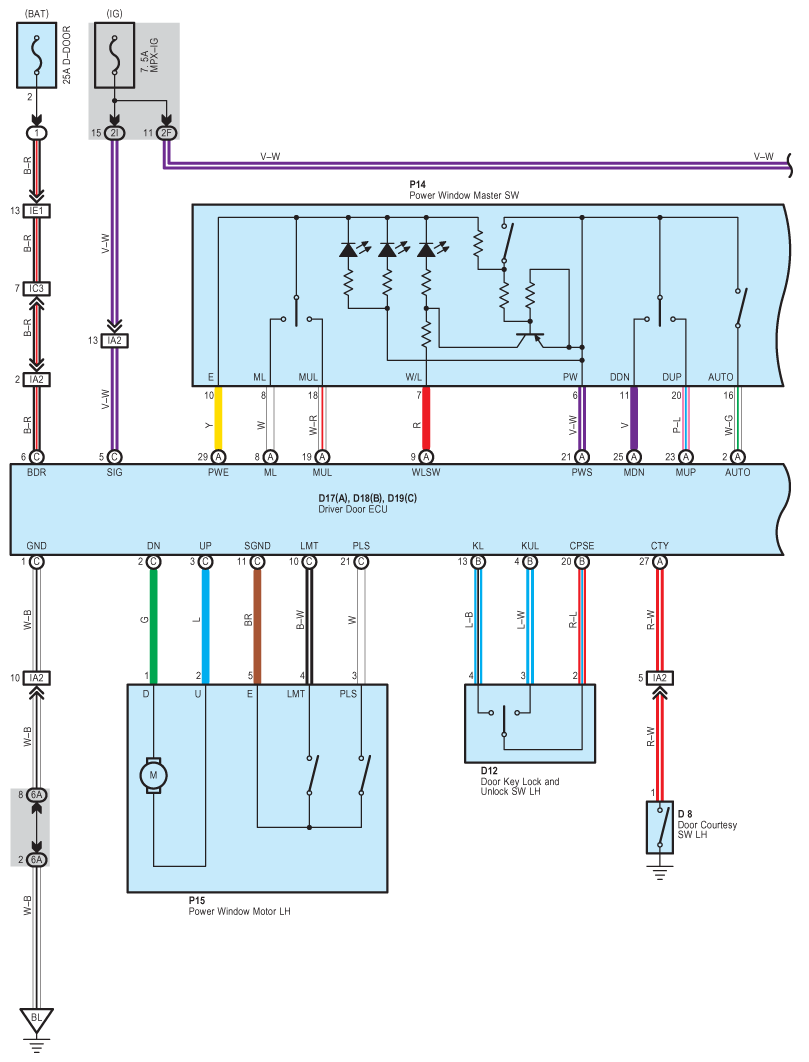

Fig 1: Power Window - Wiring Diagram (1 Of 4)
G08933839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

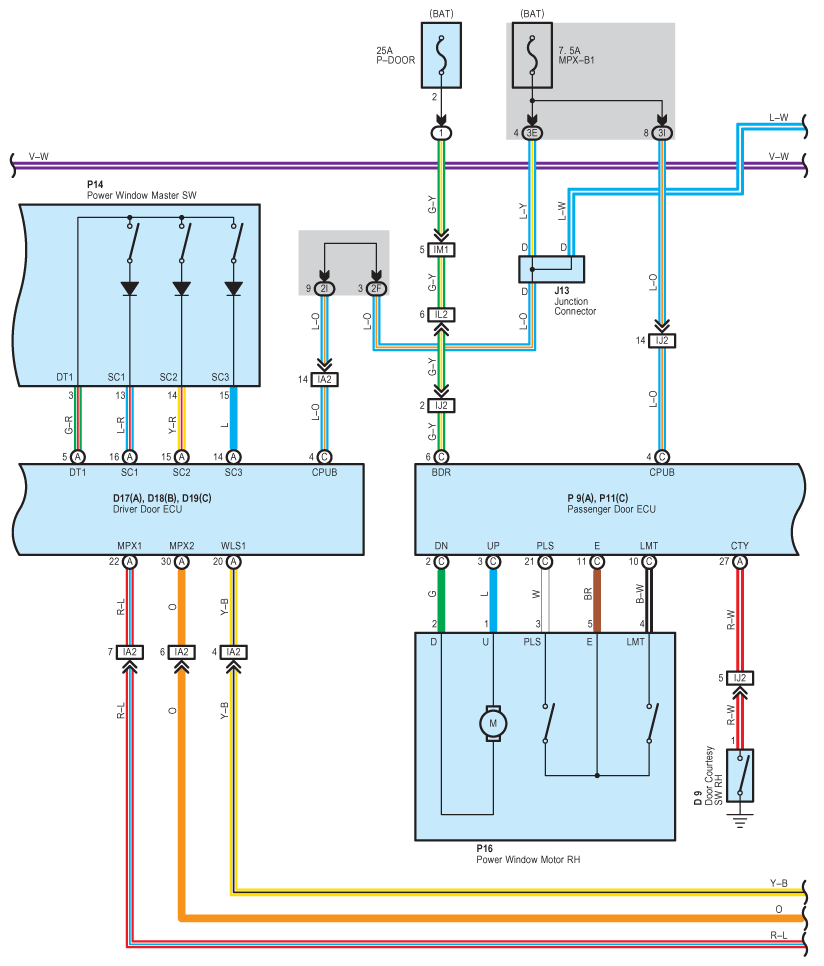

Fig 2: Power Window - Wiring Diagram (2 Of 4)
G08933840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

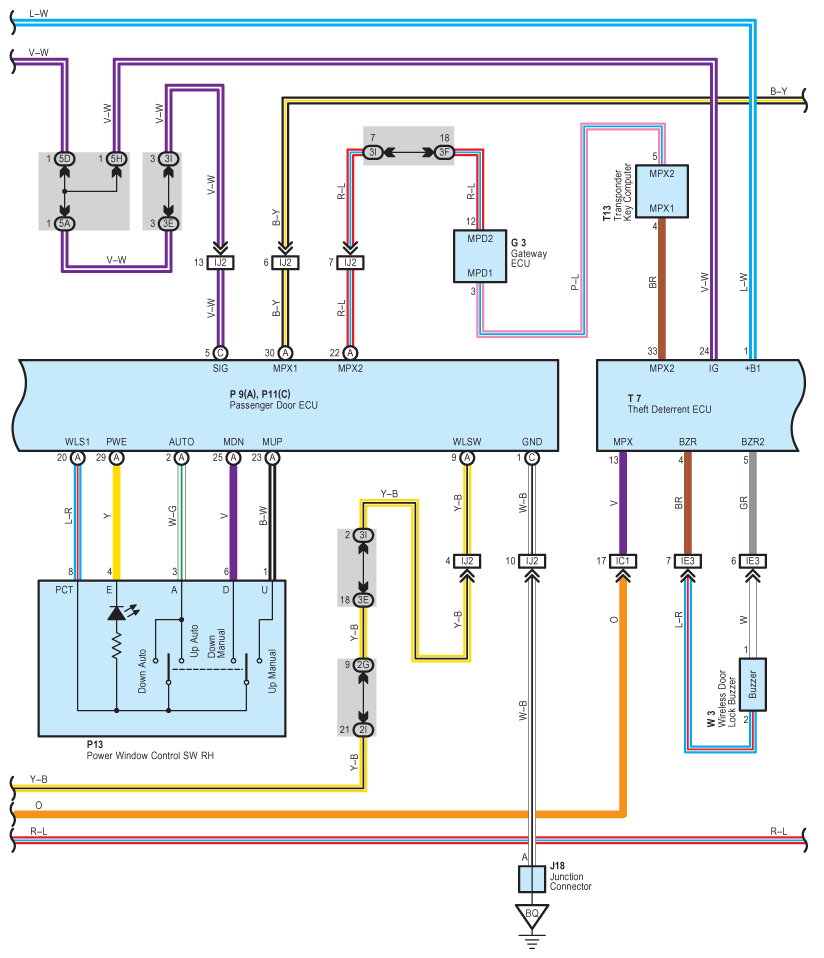

Fig 3: Power Window - Wiring Diagram (3 Of 4)
G08933841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

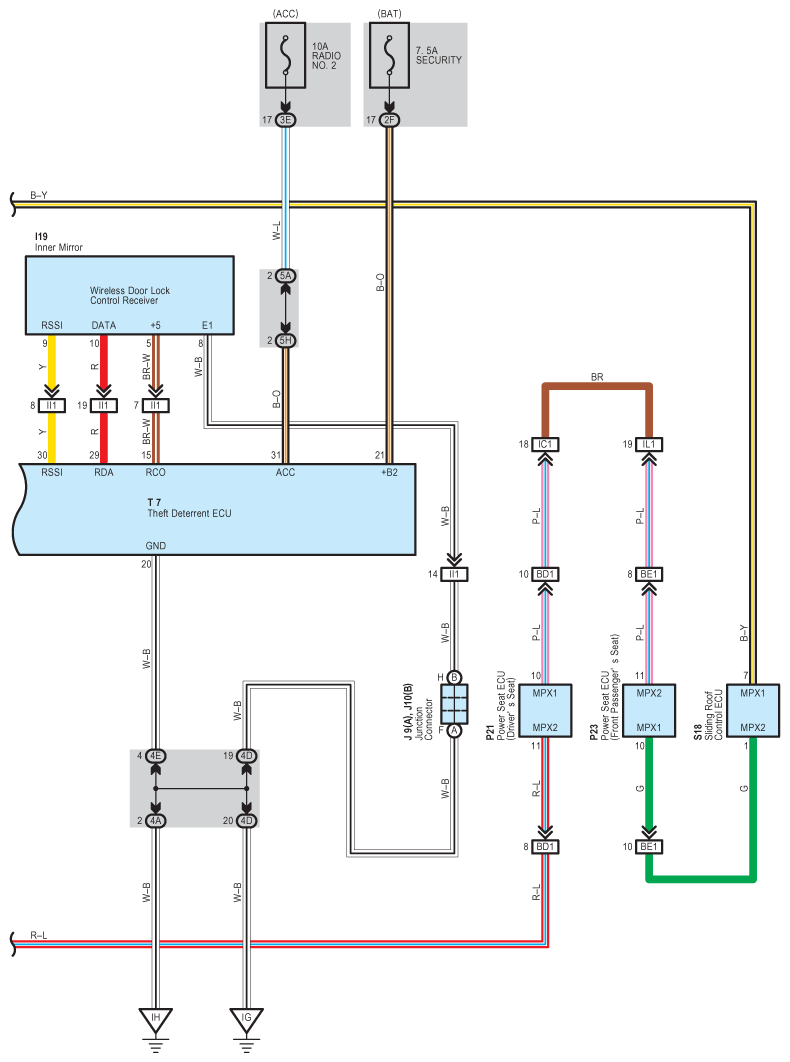

Fig 4: Power Window - Wiring Diagram (4 Of 4)
G08933842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
