Retractable Hardtop: Notes

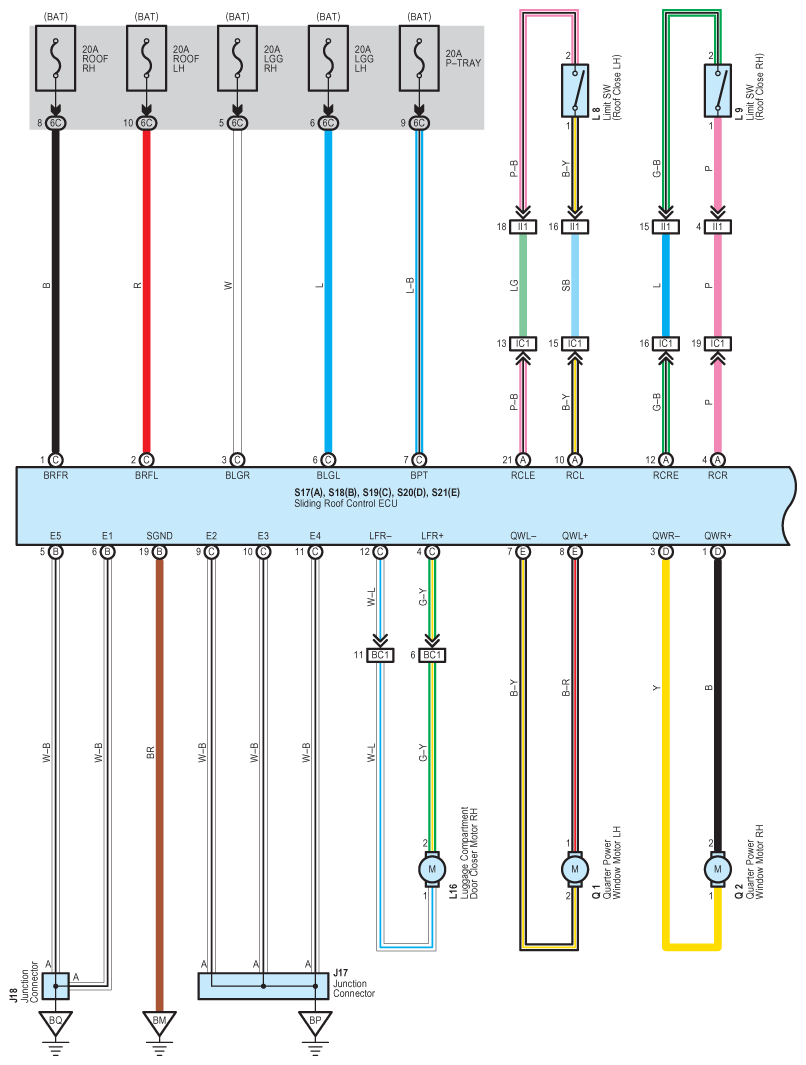

Fig 1: Retractable Hardtop - Wiring Diagram (1 Of 7)
G08933843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

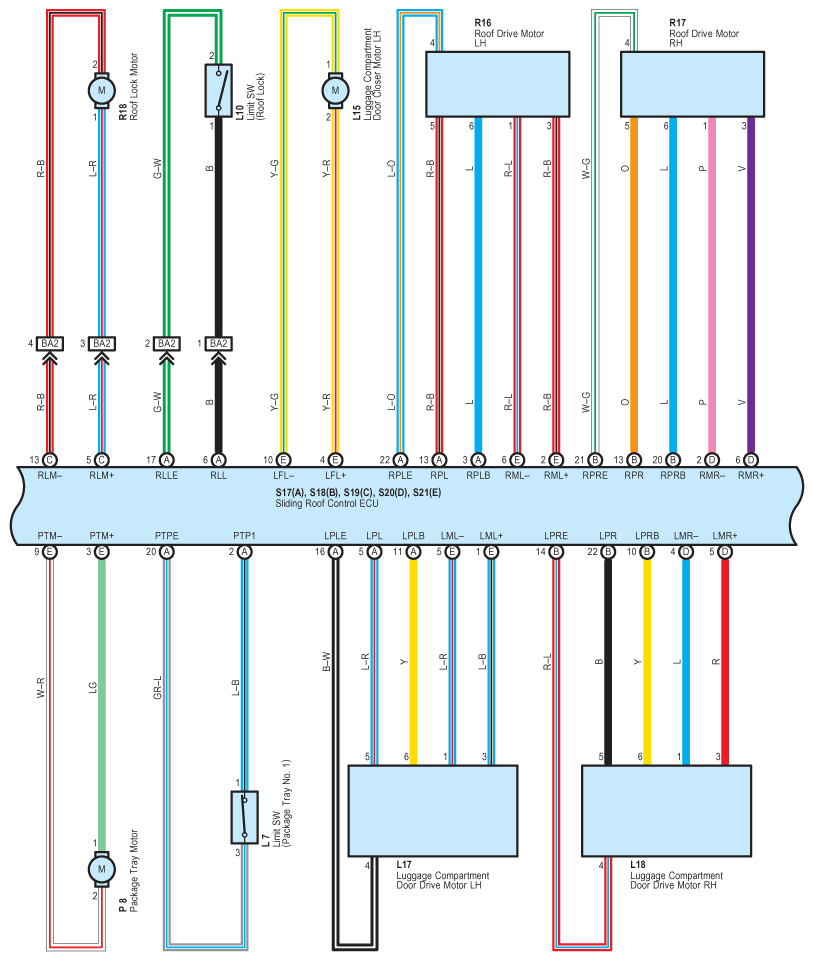

Fig 2: Retractable Hardtop - Wiring Diagram (2 Of 7)
G08933844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

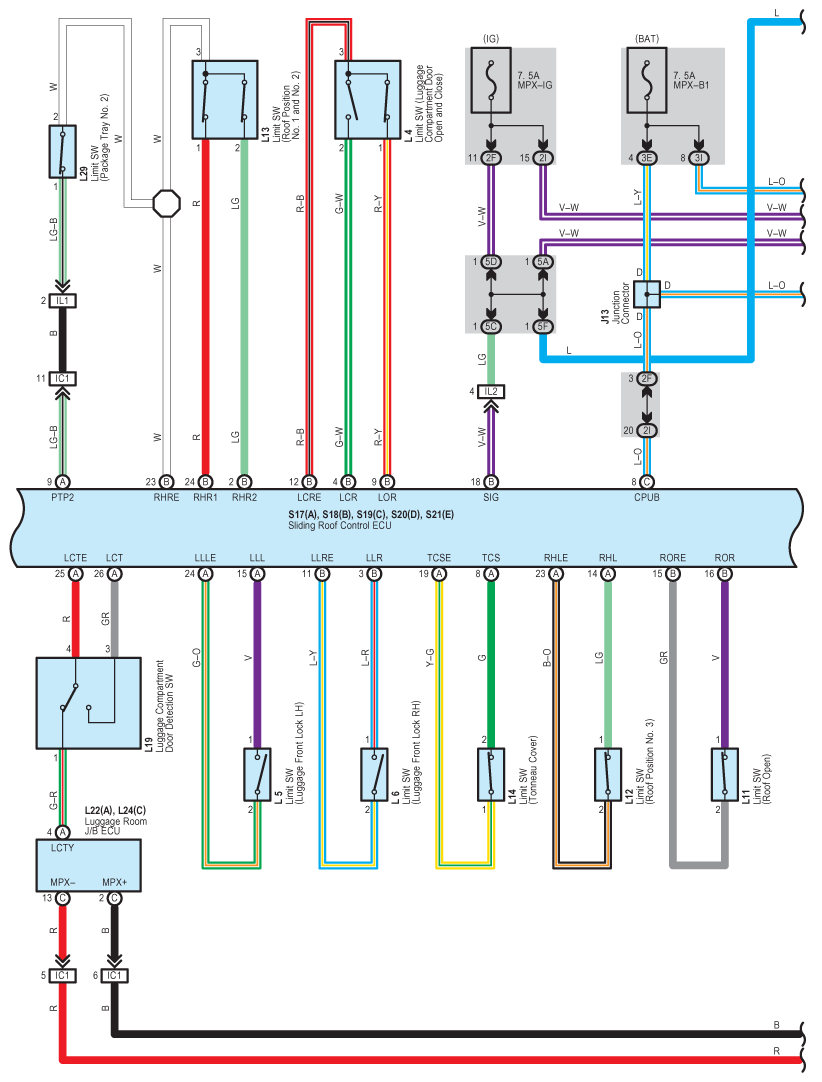

Fig 3: Retractable Hardtop - Wiring Diagram (3 Of 7)
G08933845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

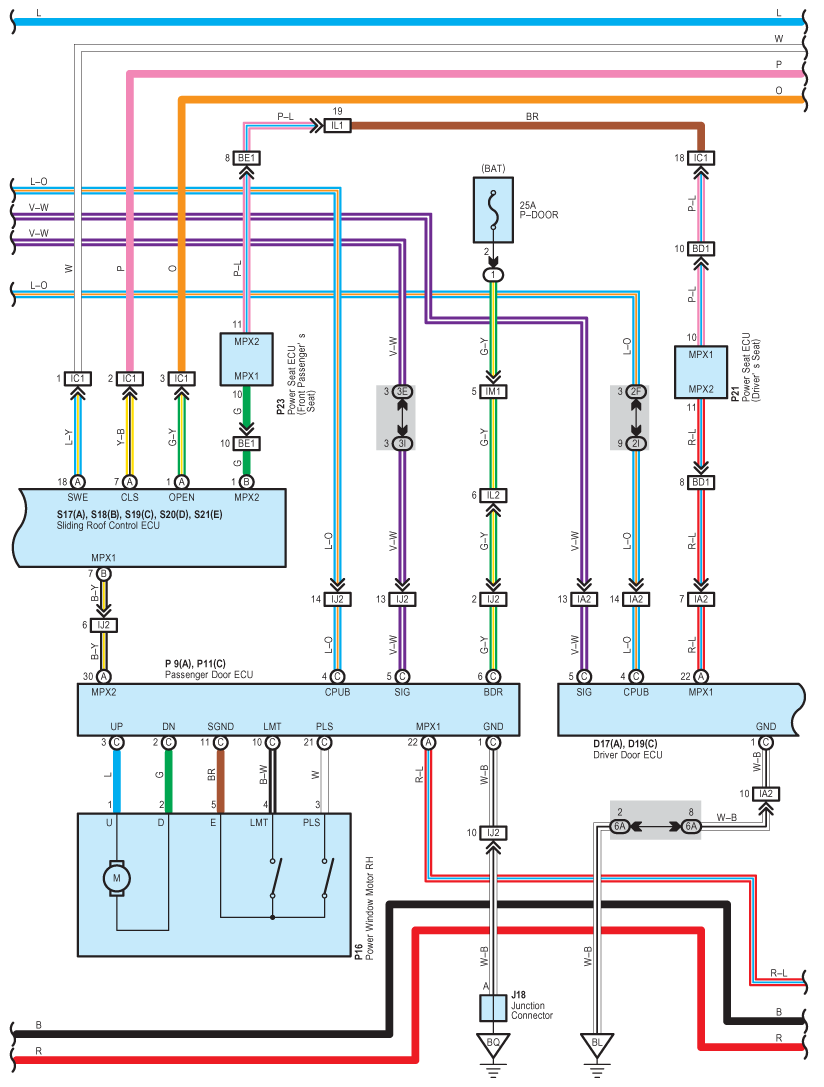

Fig 4: Retractable Hardtop - Wiring Diagram (4 Of 7)
G08933846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

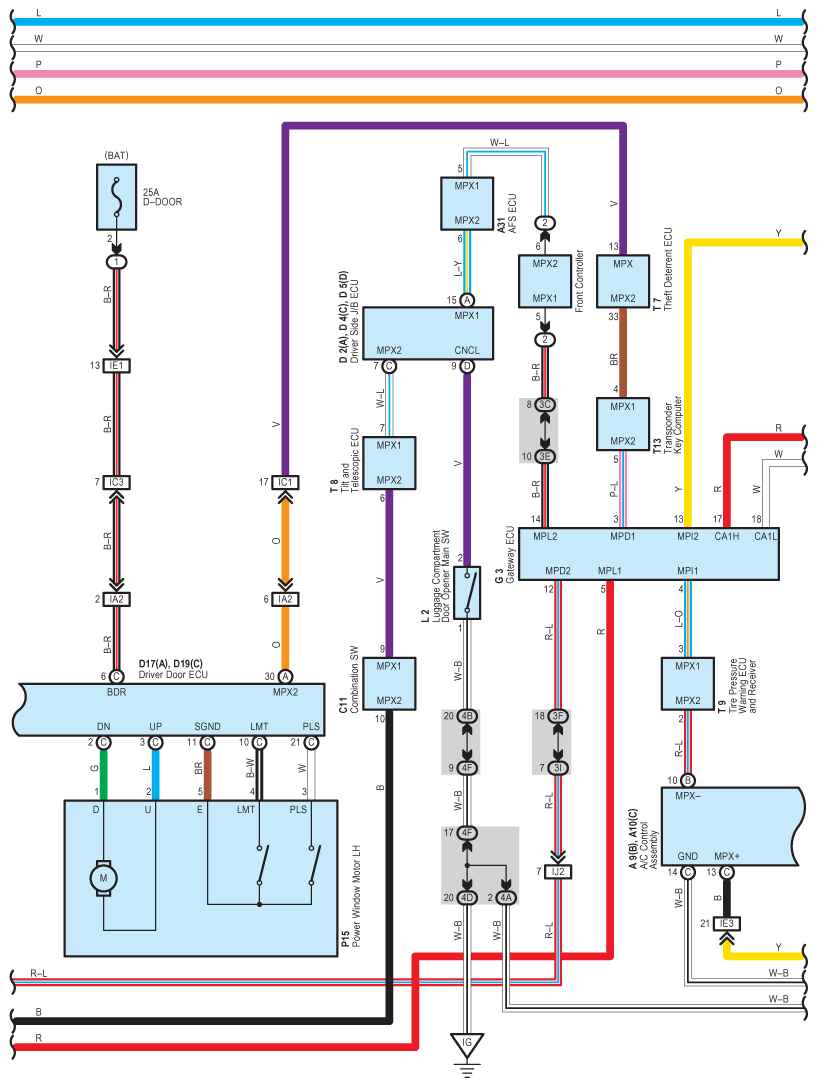

Fig 5: Retractable Hardtop - Wiring Diagram (5 Of 7)
G08933847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

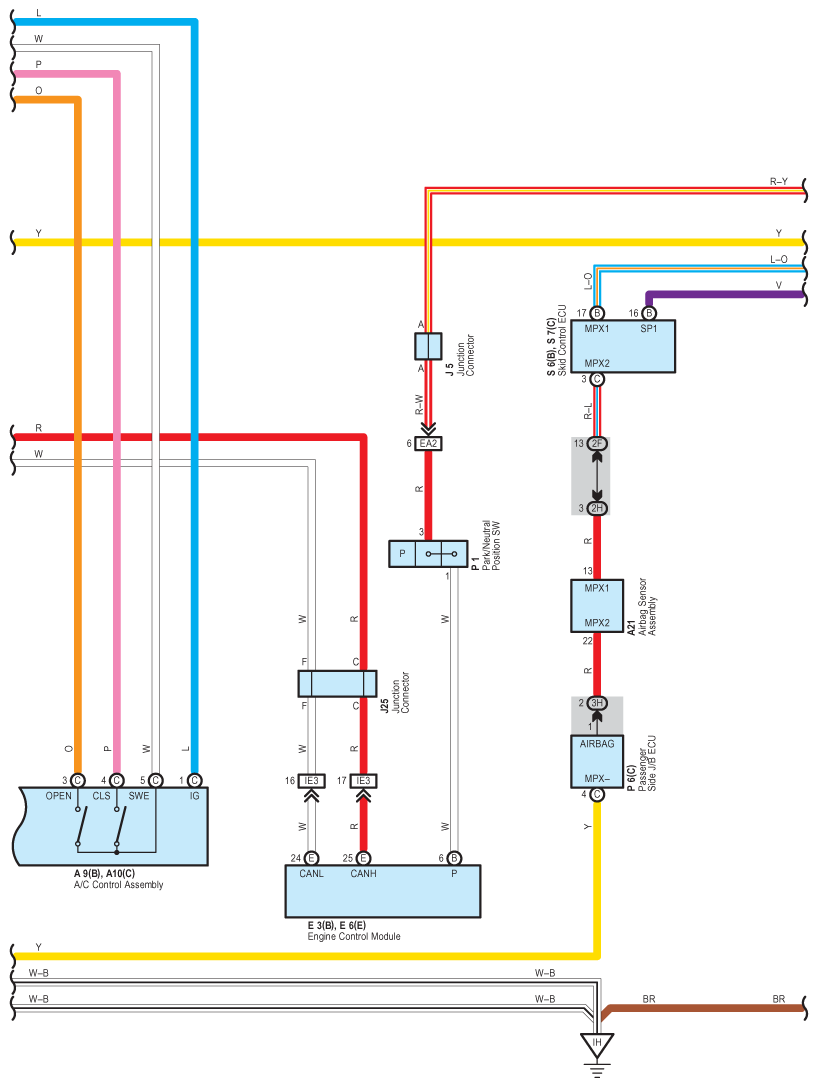

Fig 6: Retractable Hardtop - Wiring Diagram (6 Of 7)
G08933848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

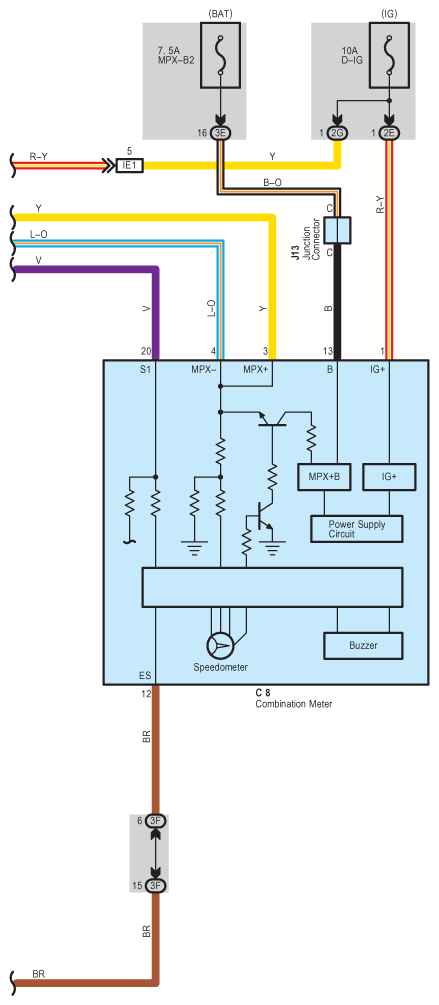

Fig 7: Retractable Hardtop - Wiring Diagram (7 Of 7)
G08933849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
