Stop Light: Notes

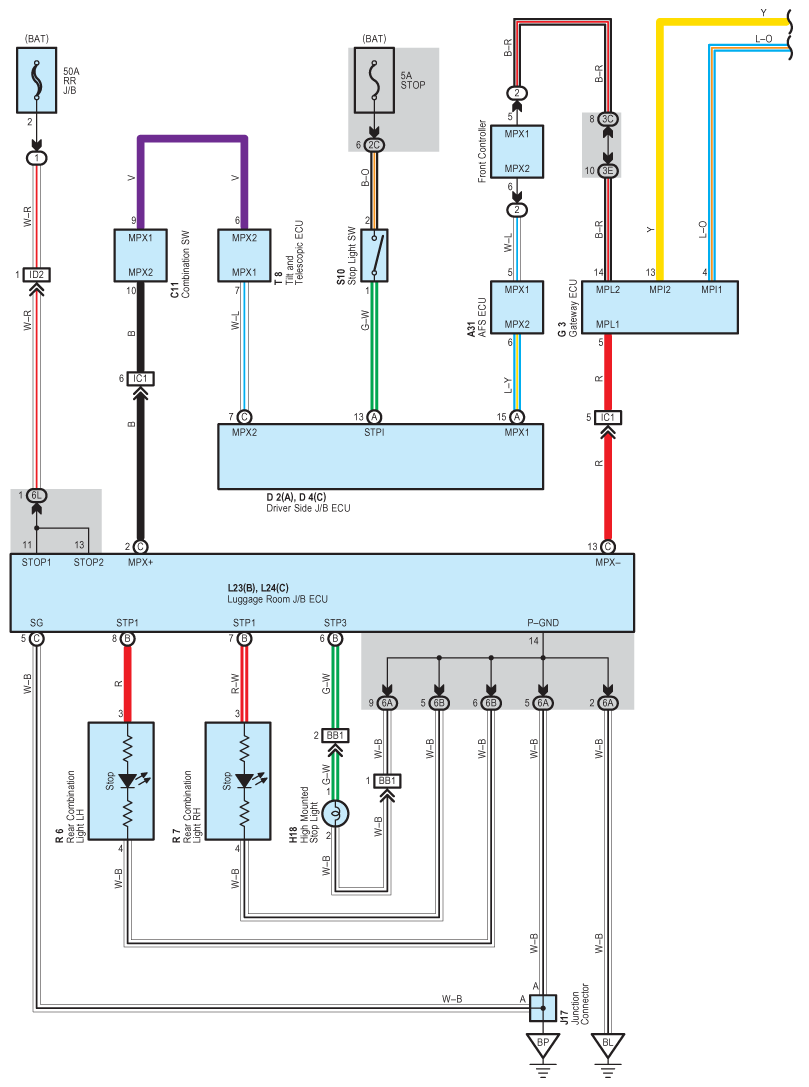

Fig 1: Stop Light - Wiring Diagram (1 Of 2)
G08933810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

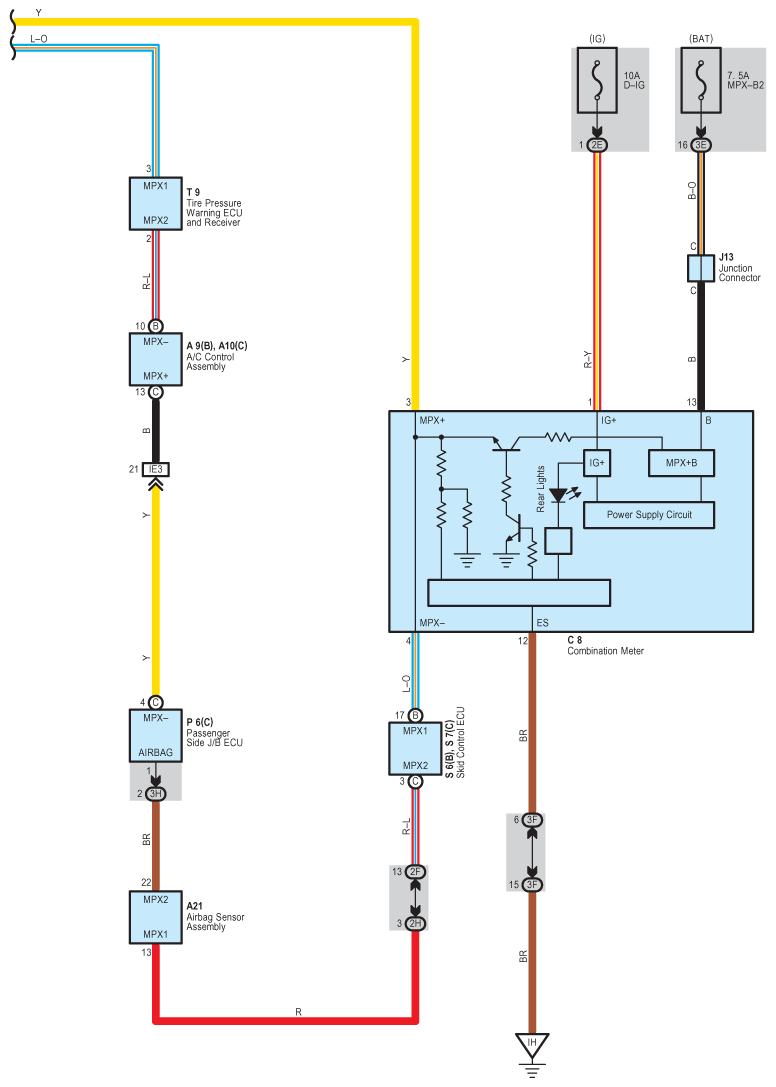

Fig 2: Stop Light - Wiring Diagram (2 Of 2)
G08933811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
