Charging Systems: Charging: Generator: Components

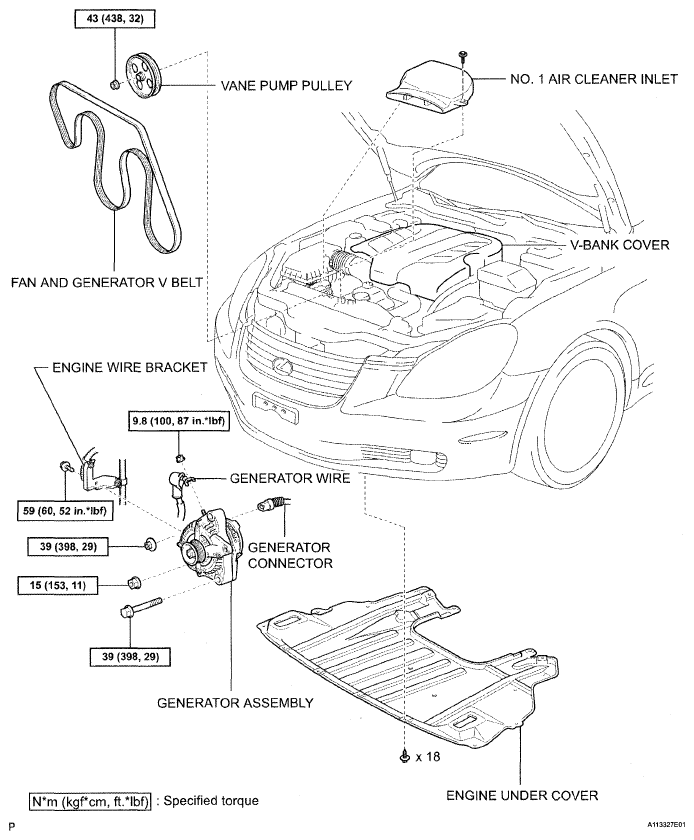

Fig 1: Generator Replacement Components With Torque Specifications (1 Of 2)
G05289479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

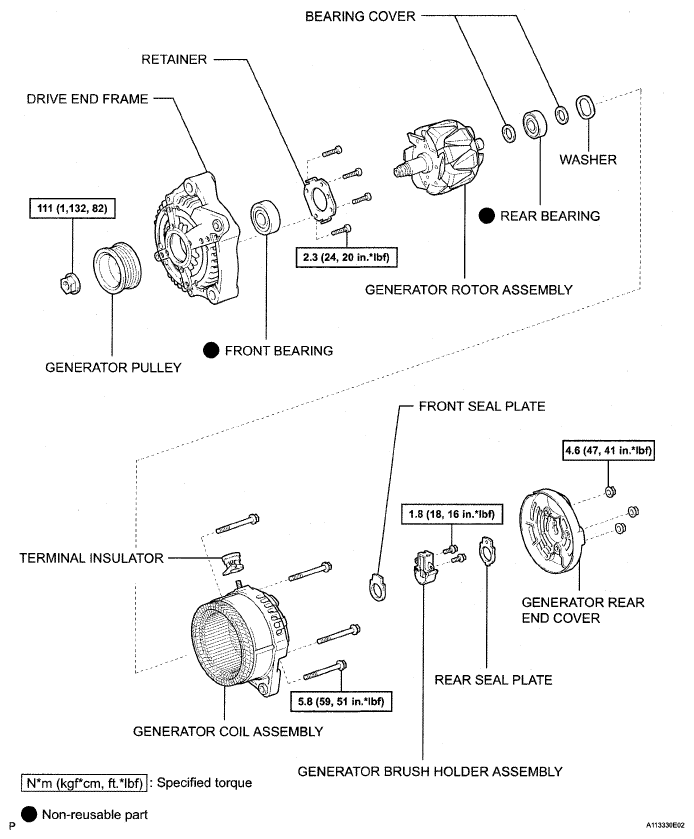

Fig 2: Generator Replacement Components With Torque Specifications (2 Of 2)
G05289480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
