Intake Manifold: Disassembly

  1. REMOVE VACUUM CONTROL VALVE SET
    1. Disconnect the vacuum hose from the intake air control valve actuator.
    2. Disconnect the VSV connector (for ACIS).
    3. Disconnect the 2 vacuum hoses from the manifold and clamp.
    4. Remove the bolt and harness clamp.
    5. Remove the 2 nuts and vacuum control valve set.

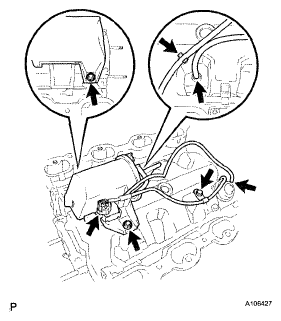

      Fig 1: Locating Vacuum Control Valve Set
      G05289271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INTAKE AIR CONTROL VALVE ACTUATOR
    1. Remove the 3 nuts, actuator and gasket.
      Fig 2: Locating Intake Air Control Valve Actuator
      G05289272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE INTAKE MANIFOLD SUB-ASSEMBLY UPPER
    1. Remove the 14 bolts, 6 nuts, manifold upper and gasket from the manifold lower.

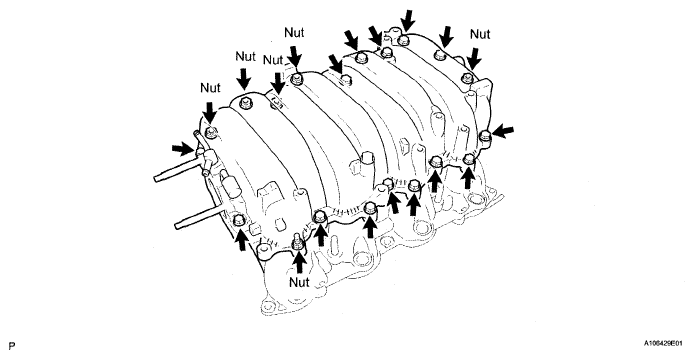

      Fig 3: Locating Bolts, Nuts, Manifold Upper And Gasket From Manifold Lower
      G05289273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE INTAKE AIR CONTROL VALVE ASSEMBLY
    1. Remove the 6 bolts and control valve.
      Fig 4: Locating Intake Air Control Valve Assembly
      G05289274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)
    1. Remove the screw and VSV from the vacuum tank.
      Fig 5: Locating Valve With Bolts
      G05289275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
