Intake Manifold: Reassembly

INSTALL VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)
1. Install the VSV to the vacuum tank with the screw.
  Torque: 1.4 N*m (14 kgf*cm, 12 in.*lbf)

  Fig 1: Locating VSV To Vacuum Tank With Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE AIR CONTROL VALVE ASSEMBLY
1. Install the valve with the 6 bolts.
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  Fig 2: Locating Valve With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD SUB-ASSEMBLY UPPER

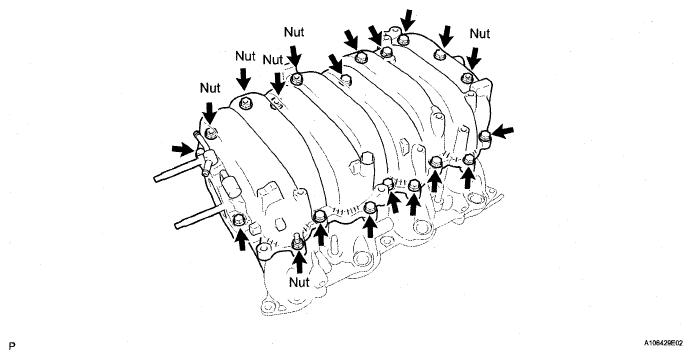

1. Install a new gasket and the manifold upper to the manifold lower with the 14 bolts and 6 nuts.

  Fig 3: Locating Manifold Lower With Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)
INSTALL INTAKE AIR CONTROL VALVE ACTUATOR
HINT:

Before installing the actuator, adjust the intake air control valve to the fully closed position.
1. Install a new gasket and the actuator with the 3 nuts.
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  Fig 4: Locating Intake Air Control Valve Actuator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

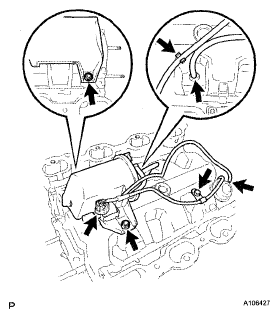

INSTALL VACUUM CONTROL VALVE SET
1. Install the vacuum control valve set with the 2 nuts.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)
2. Connect the 2 vacuum hoses to the manifold and clamp.
3. Connect the VSV connector (for ACIS).
4. Install the harness clamp to the manifold with the bolt.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
5. Connect the vacuum hose to the air control valve actuator.

  Fig 5: Locating Harness Clamp To Manifold With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
