Monitor Result

Refer to CHECKING MONITOR STATUS  .

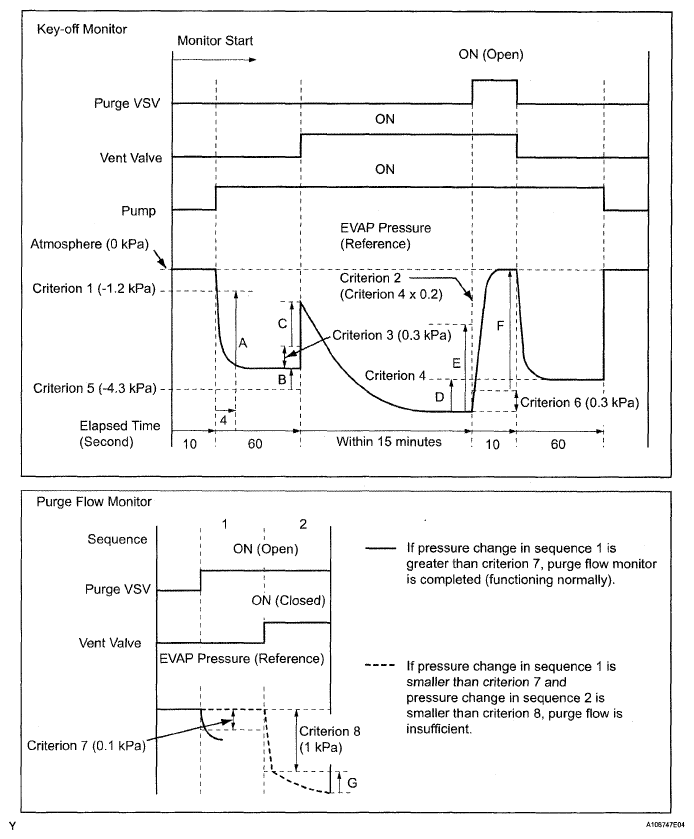

Fig 1: Monitoring Purge Flow Diagram
G05291532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
