VVT Sensor: Installation

  1. INSTALL VVT SENSOR
    1. Install the 2 sensors with the 2 bolts.

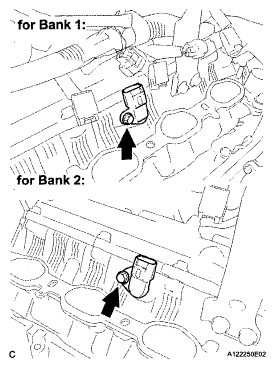

      Fig 1: Identifying 2 Sensors With Bolts
      G05291591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  2. INSTALL INTAKE MANIFOLD
    1. Install the intake manifold (see INSTALLATION ).
  3. INSTALL INTAKE AIR CONNECTOR PIPE (See  INSTALLATION  )
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  5. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  6. ADD ENGINE COOLANT (See  COOLANT  )
  7. CHECK FOR ENGINE COOLANT LEAKS
    1. Check for engine coolant leaks (see COOLING SYSTEM ).
  8. INSTALL NO. 1 AIR CLEANER INLET (See  INSTALLATION  )
  9. INSTALL V-BANK COVER (See  INSTALLATION  )
