System Diagram

  1. FUEL FLOW DIAGRAM
    Fig 1: Fuel Flow Diagram
    G05289149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. FUEL SYSTEM WIRING DIAGRAM
    Fig 2: Fuel System Wiring Diagram
    G05289150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. FUEL SYSTEM WIRING DIAGRAM 2

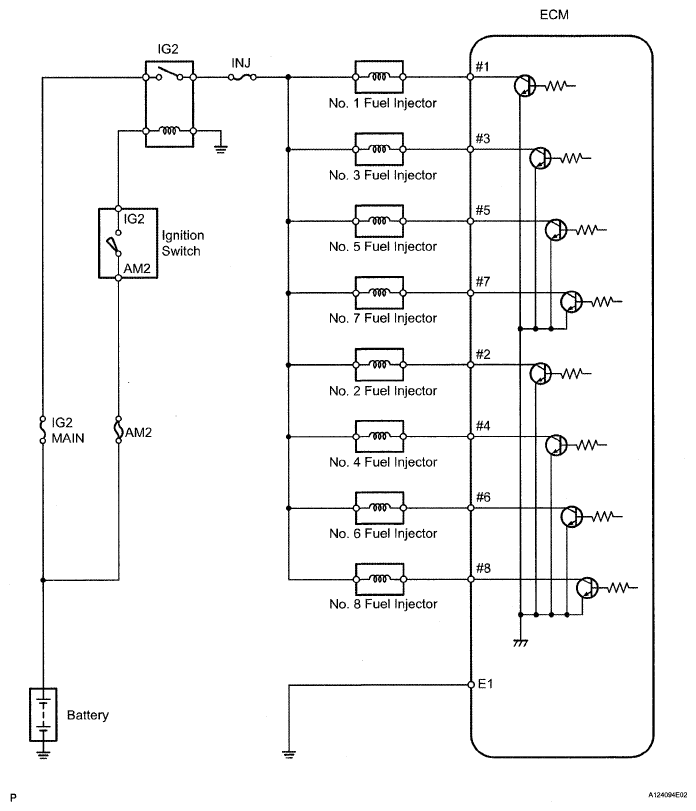

    Fig 3: Fuel System Wiring Diagram 2
    G05289151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
