Automatic Transmission Assembly: Components

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications (1 Of 3)
G05289792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Automatic Transmission Assembly Replacement Components With Torque Specifications (2 Of 3)
G05289793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

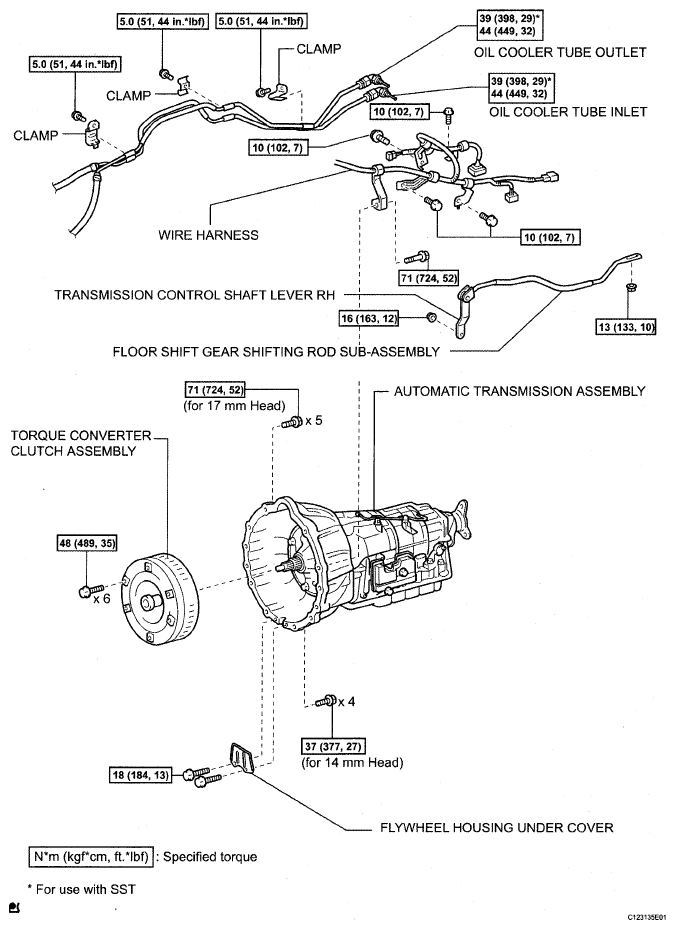

Fig 3: Automatic Transmission Assembly Replacement Components With Torque Specifications (3 Of 3)
G05289794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
