System Diagram

The configuration of the electronic control system in the A761E automatic transmission is as shown in the following chart.

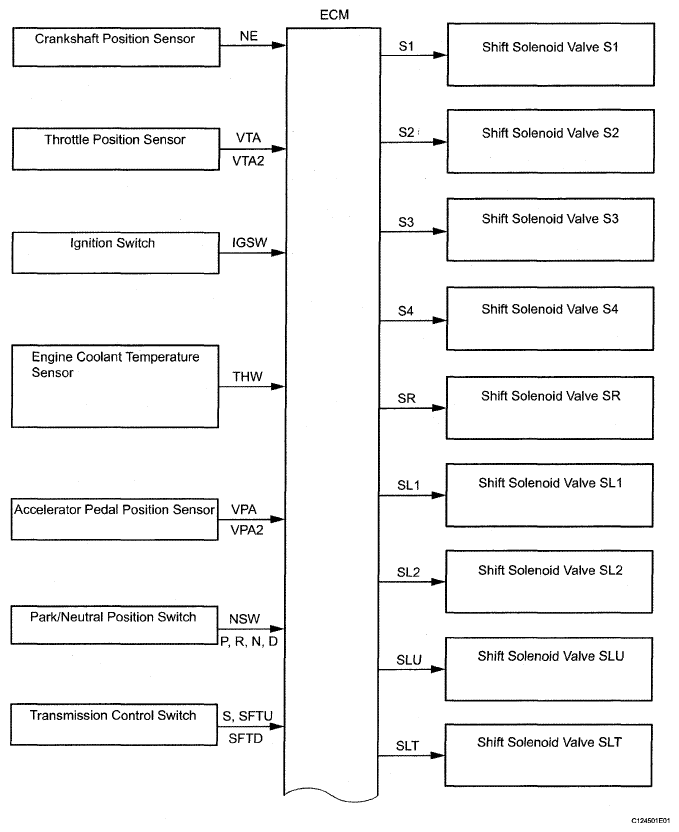

Fig 1: Automatic Transmission System Diagram (1 Of 4)
G05289517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

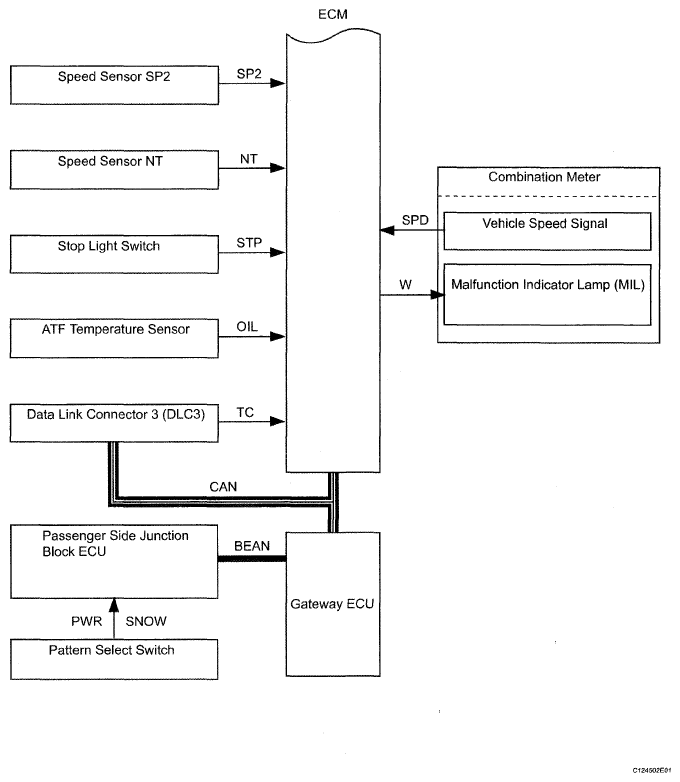

Fig 2: Automatic Transmission System Diagram (2 Of 4)
G05289518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Automatic Transmission System Diagram (3 Of 4)
G05289519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

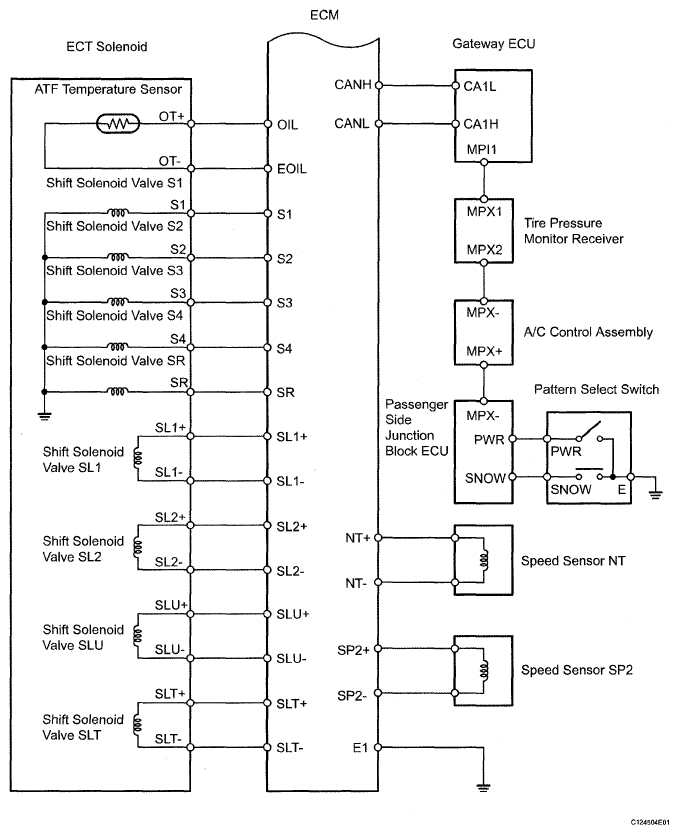

Fig 4: Automatic Transmission System Diagram (4 Of 4)
G05289520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
