Valve Body Assembly: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
DRAIN AUTOMATIC TRANSMISSION FLUID
1. Remove the drain plug and gasket, and drain the ATF.
2. Install a new gasket and the drain plug.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
1. Remove the 4 bolts, 2 nuts and bracket.

  Fig 1: Locating Exhaust Pipe Support Bracket Sub-Assembly Bolts And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
NOTE: Some fluid will remain in the oil pan.
1. Remove the 20 bolts, oil pan and gasket.

  Fig 2: Locating Automatic Transmission Oil Pan Sub-Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 magnets from the oil pan.
3. Examine the particles in the pan.
  1. Collect any steel chips with the removed magnets.
    Carefully look at the foreign objects and particles in the pan and on the magnets to guess the type of wear which might be found in the transmission.

    Steel (magnetic): bearing, gear and clutch plate wear

    Brass (non-magnetic): bush wear

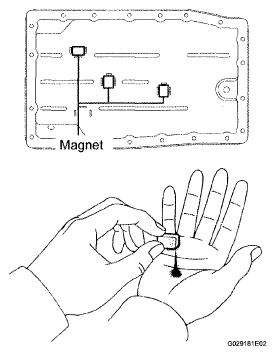

    Fig 3: Identifying Oil Pan Magnet
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VALVE BODY OIL STRAINER ASSEMBLY
1. Remove the 4 bolts and oil strainer.
  NOTE: Be careful as some fluid will come out of the oil strainer.

  Fig 4: Locating Valve Body Oil Strainer Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the oil strainer.

  Fig 5: Locating Oil Strainer O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT TRANSMISSION WIRE
1. Remove the bolt, lock plate and ATF temperature sensor.

  Fig 6: Locating Transmission Wire Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and disconnect the 2 clamps.

  Fig 7: Locating Bolt And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the 9 connectors from the solenoid valves.

  Fig 8: Locating Solenoid Valves Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION VALVE BODY ASSEMBLY

Fig 9: Locating Transmission Valve Body Assembly Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 20 bolts and valve body.

  Fig 10: Identifying Lever Pin And Manual Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the check ball body and spring.
  NOTE: Do not drop the check ball body and spring.

  Fig 11: Removing Check Ball Body And Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
