Inspection Procedure

1. Connect Techstream to the DLC3.
2. Start the engine and turn Techstream on.
3. Select the following menu items: Powertrain / Engine / Active Test / Activate the VSV for Intake Control. Operate the VSV for AICS.

   OK:

   Operational noise can be heard.

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )

NG: Go to next step.

1. Disconnect the B41 VSV for ACIS connector.
2. Apply battery voltage between the terminals of the air intake control valve connector.
3. Check the air intake valve operation.
   Fig 1: Identifying Terminals Of B41 VSV For ACIS Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK:

   Operational noise can be heard.

NG: REPLACE INTAKE AIR SURGE TANK

OK: Go to next step.

1. Check the wire harness and connectors between the VSV for ACIS and ECM.
   1. Disconnect the B41 VSV for ACIS connector.
   2. Disconnect the B12 ECM connector.
   3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for open)

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Specified Condition
      VSV for ACIS (B41-1) - ACIS (B12-107)	Below 1 Ω

      Standard Resistance (Check for short)

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Specified Condition
      VSV for ACIS (B41-1) or ACIS (B12-107) - Body ground	10 kΩ or higher

   4. Reconnect the VSV for ACIS connector.
   5. Reconnect the ECM connector.
2. Check the EFI No. 3 fuse.
   1. Remove the EFI No. 3 fuse from the engine room R/B.
   2. Measure the EFI No. 3 fuse resistance.

      Standard Resistance:

      Below 1 Ω

   3. Reinstall the EFI No. 3 fuse.
3. Check the wire harness between the VSV for ACIS connector and EFI relay.
   1. Remove the engine room junction block from the engine room R/B.
   2. Disconnect the B41 VSV for ACIS connector.
   3. Measure the resistance between the terminals.

      Standard Resistance (Check for open)

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Specified Condition
      VSV for ACIS (B41 -2) - 1E-6	Below 1 Ω

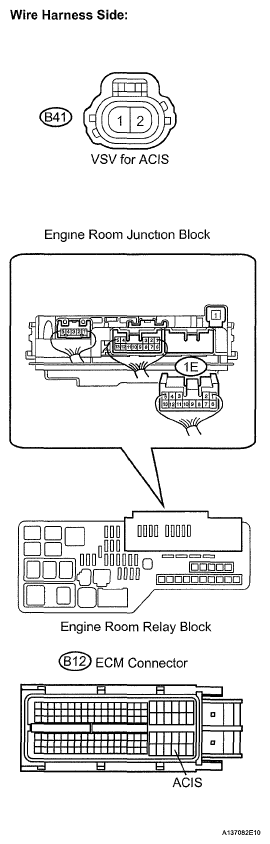

      Fig 2: Identifying Terminals Of B41 VSV For ACIS And B12 ECM Connectors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Reinstall the engine room junction block.
   5. Reconnect the VSV connector.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE ECM (See  REMOVAL   )
