System Diagram

The configuration of the electronic control system in the U660E automatic transaxle is as shown in the following chart.

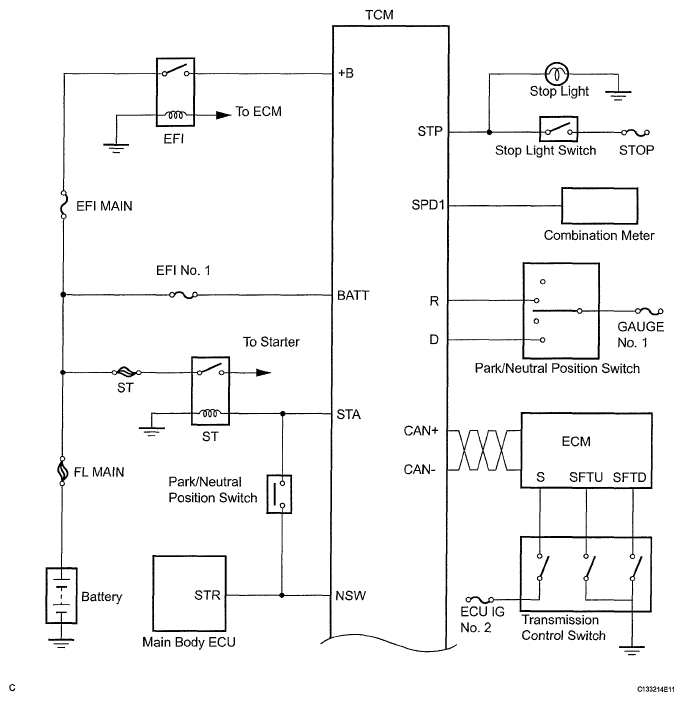

Fig 1: Automatic Transaxle System - System Diagram (1 Of 3)
G05836039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

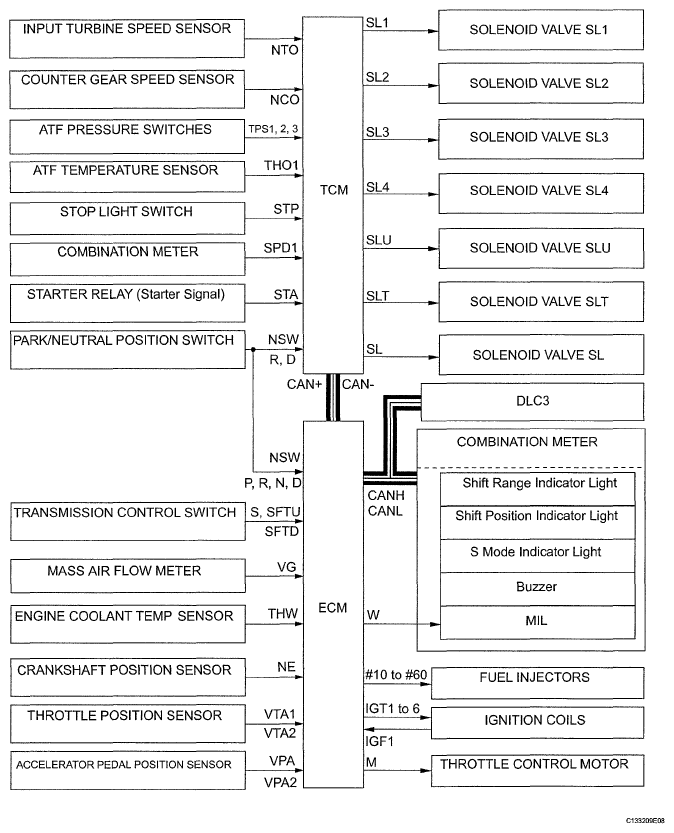

Fig 2: Automatic Transaxle System - System Diagram (2 Of 3)
G05836040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

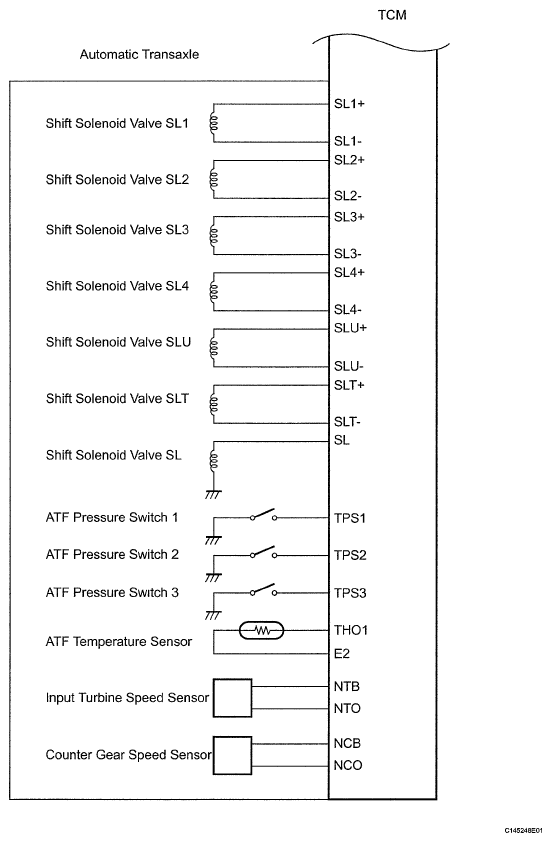

Fig 3: Automatic Transaxle System - System Diagram (3 Of 3)
G05836041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
