Customize Parameters

HINT:

The following items can be customized.

NOTE:
  • When the customer requests a change in a function, first make sure that the function can be customized.
  • Be sure to make a note of the current settings before customizing.
  • When troubleshooting a function, first make sure that the function is set to the default setting.
  1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Power tilt and power telescopic steering column

    POWER TILT AND POWER TELESCOPIC STEERING COLUMN REFERENCE CHART

    Display Default Contents Setting
    Autoaway/Return function ON ON/OFF of the auto away/return function ON/OFF
  2. AIR CONDITIONING SYSTEM

    Air Conditioning System

    AIR CONDITIONING SYSTEM REFERENCE CHART

    Display (Item) Default Contents Setting
    Set Temperature Shift NORMAL To control with the shifted temperature against the display temperature +2 C / +1 C / NORMAL / -1 C / -2 C
    Air Inlet Mode AUTO In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATION mode MANUAL/AUTO
    Compressor Mode AUTO Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF MANUAL/AUTO
    Compressor/Air Inlet DEF operation) LINK Function to turn the A/C ON automatically linked with the FRONT DEF button when A/C OFF MANUAL / LINK
    Emission Gas Sensor Shift NORMAL Function to change the sensitivity of the exhaust gas sensor MU MORE / MORE / LI MORE / NORMAL / LI LESS / LESS / MU LESS
    Button Press Buzzer ON Function to sound a buzzer when button is pressed OFF / ON
    Foot/DEF Auto Mode ON Function to turn the airflow from FOOT / DEF ON automatically when AUTO MODE is ON OFF / ON
    Foot/DEF Automatic Blow Up Function ON Function to change the blower level automatically when the defroster is ON OFF / ON
    Ambient Temperature Shift Normal Function to control the shifted ambient temperature in relation to the displayed ambient temperature +3 C / +2 C / +1 C / Normal / -1 C / -2C / -3C
    Foot Air Leak ON Function to cut off the airstream felt underfoot while the vehicle is moving OFF / ON
  3. THEFT DETERRENT SYSTEM

    Security

    SECURITY REFERENCE CHART

    Display (Item) Default Contents Setting
    Warning by Horn ON Function that allows vehicle horns and theft deterrent horn to be used as warning device. ON / OFF
    Passive Mode OFF Passive arming mode is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not inside vehicle and driver side door is closed.
    In passive arming mode, theft deterrent system will judge that a theft is taking place and switch to alarm sounding state if one of the following operations are not performed within 14 seconds (see entry delay below) after door is opened:
    • Unlock any door by key or wireless operation
    • Turn power switch ON (IG)
    		 ON / OFF
    Entry Delay Time 14s Function that changes entry delay time (time before warning starts) for PASSIVE ARMING MODE 0s/14 s/30s
  4. LIGHTING SYSTEM

    Illuminated entry

    ILLUMINATED ENTRY REFERENCE CHART

    Display Default Contents Setting
    I/L when ACC OFF ON Function to light the interior light when the power switch is operated from ON (IG or ACC) to OFF ON / OFF
    Lighting Time 15s Function to change the lighting time after closing the door. (It will quickly fade out in case of turning the power switch ON (IG)) 7.5s / 15s / 30s
    Light Control ON Function to light up step light and door inside handle light when the power switch is ON (IG) and shift position is not P ON / OFF
    I/L ON / Unlock ON Function to light the interior light, etc. when the door is unlocked with a transmitter, door key or door lock control switch. ON / OFF
    Seat Light Control AVAIL Function to light up the seat light when unlocking with the door key cylinder NOT AVL / AVAIL
    Steering Light Control AVAIL Function to light up the steering light when unlocking with the door key cylinder NOT AVL / AVAIL
    Shift Light Control AVAIL Function to light up the shift light when unlocking with the door key cylinder NOT AVL / AVAIL

    HINT:

    Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.

    Light control

    LIGHT CONTROL REFERENCE CHART

    Display Default Contents Setting
    Light Auto OFF Delay 30s Function to keep on lighting the headlight for a certain period of time after closing all the doors with the power switch turned from ON to OFF under the condition that the light control switch is at HEAD or AUTO with the headlight ON OFF / 30s / 60s / 90s
    Sensitivity NORMAL Function to adjust the sensitivity of lighting illumination*1. LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2
    Disp Ex ON Sen NORMAL Changes brightness when lowering lights such as combination meter indicator light, A/C indicator light, and clock light. Refer to Fig 2for illustration*2. LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
    Disp Ex OFF Sen NORMAL Changes brightness when lowering lights such as combination meter indicator light, A/C indicator light, and clock light. Refer to Fig 3for illustration*3. LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
    Foot Light Time (Driver's Side)*4 15s Function to set how long foot light stays on (driver's side) OFF / 7.5s / 15s / 30s
    Foot Light Time (Passenger's Side)*4 15s Function to set how long foot light stays on (passenger's side) OFF/7.5s / 15s / 30s
    Foot Light Set up ON Function to light up foot light ON / OFF
    DRL Function* ON DRL control ON / OFF
    HINT:
    *:Except Canada

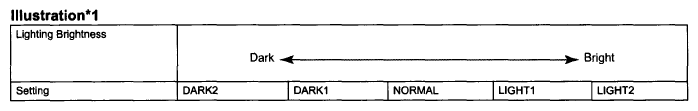

    Fig 1: Light System Reference Chart - Illustration*1
    G05813202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

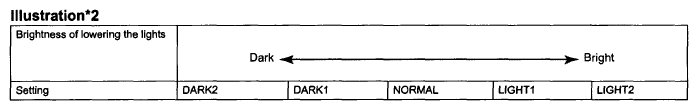

    Fig 2: Light System Reference Chart - Illustration*2
    G05813203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

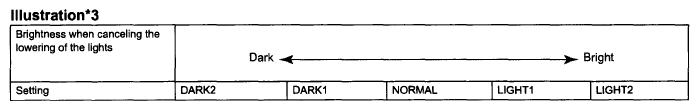

    Fig 3: Light System Reference Chart - Illustration*3
    G05813204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    *4: When customizing the foot light, make sure the driver seat and front passenger seat are set to the same setting.

  5. WIPER AND WASHER SYSTEM

    Wiper

    WIPER REFERENCE CHART

    Display (Item) Default Contents Setting
    Auto Wiper Available Function to operate the wiper automatically when it is raining Not Available / Available
    Re-wiper Control Speed Mode Function to change the time between end of wiper motor operation and start of wiper operation to prevent streaking from washer fluid OFF / 3s / Speed Mode
    Speed Mode Available Function to change to the intermittent operation when the vehicle comes to a stop from driving condition with the wiper switch in the LO position Not Available / Available
  6. POWER DOOR LOCK CONTROL SYSTEM

    Power Door Lock Control System

    POWER DOOR LOCK CONTROL SYSTEM REFERENCE CHART

    Tester Display Default Contents Setting
    Unlock/Park ON Function that unlocks all doors when shift lever is shifted to P from any position other than P while power switch is ON (IG) ON/OFF
    All Unlock/Open-Close OFF Function that unlocks all other doors when opening driver door within 10 seconds after turning power switch is ON (IG) ON/OFF
    Unlock/Key Twice ON Function that unlocks only driver side door when driver side door key cylinder is turned to unlock once, and unlock all doors when it is turned to unlock twice. For OFF setting, turning it once unlocks all doors. ON/OFF
    Auto Lock/Shift ON Function that locks all doors when shift lever is shifted to from P to any position other than P ON/OFF
    Auto Lock OFF Function that locks doors when vehicle reaches a vehicle speed of 20 km/h (13 mph) ON/OFF
  7. WIRELESS DOOR LOCK CONTROL SYSTEM

    Wireless door lock control system

    WIRELESS DOOR LOCK CONTROL SYSTEM REFERENCE CHART

    Display (Item) Default Contents Setting
    Hazard Answer Back ON When wireless lock switch on transmitter is pressed, this function illuminates all turn signal lights once. When unlock switch is pressed, all turn signal lights illuminate twice ON / OFF
    Wireless Control ON ON / OFF of wireless door lock function ON / OFF
    Open Door Warning ON If door is not completely closed and transmitter LOCK switch is pressed, this function makes buzzer sound for 10 seconds ON / OFF
    Trunk Lid Operation 0.8 s PR This function changes transmitter operation method for opening luggage compartment door 1 time / 2 times / 0.8 s PR / OFF
    Panic Function ON Function to operate theft deterrent system by continuously pressing panic switch on transmitter for 2.5 seconds ON / OFF
    Unlock 2 Operation ON Function that unlocks driver side door when unlock switch on transmitter is pressed once, and unlocks all doors when pressed twice. If setting is OFF, pressing unlock switch once makes all doors unlock. ON / OFF
    Auto Lock Time 60s Function to change time until relocking after unlocking with wireless door lock function 30 s / 60 s / 120 s / OFF
    Wireless Buzzer Resp ON ON / OFF on wireless buzzer response function ON / OFF
  8. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (FOR DOOR LOCK)

    Smart Access System with Push-button Start

    SMART ACCESS SYSTEM WITH PUSH-BUTTON START REFERENCE CHART

    Tester Display Default Contents Setting
    Park Wait Time 2.5s Function that sets waiting time to permit opening door after door is locked with entry lock function 0.5s / 1.5s / 2.5s / 5.0s
    Trunk Open Mode ON Function to permit opening luggage compartment door ON / OFF
    Key Low Battery Warning ON Function that warns driver that key's battery power is low ON / OFF
    Ignition Available Area All Function to choose the available area for electrical key to start engine and release the steering lock. All / FRONT
  9. METER / GAUGE SYSTEM

    Combination meter

    COMBINATION METER REFERENCE CHART

    Tester Display Default Contents Setting
    Key Remind Volume (Key reminder buzzer volume) Large To change the volume of the key reminder buzzer Large / Medium / Small
    Key Remind Sound (Key reminder buzzer frequency) Normal To change the frequency of the key reminder buzzer Normal / Fast / Slow
  10. INTUITIVE PARKING ASSIST SYSTEM

    Warning

    WARNING REFERENCE CHART

    Tester Display Default Contents Setting
    Front Buzzer Onset Range Wide Function to set front buzzer activation range Narrow / Wide
    Rear Buzzer Onset Range Wide Function to set rear buzzer activation range Narrow / Wide
    Keep Sense Status Buzzer ON Function to make buzzer sound when distance between vehicle and obstacle does not change for more than 3 seconds ON/OFF
    Fr & Rr Buzzer Volume M2 Function to change volume of buzzer L / M1 / M2 / M3 / H

    Sensor

    SENSOR REFERENCE CHART

    Tester Display Default Contents Setting
    Sensor Condition N Range OFF Function to make sensors available when shift position is N OFF / ON
    Sonar Mode Steering Function to change sonar mode Normal / Steering

    Display

    DISPLAY REFERENCE CHART

    Tester Display Default Contents Setting
    Display Mode Guide Function to change display mode All / Guide / Undisp
  11. POWER WINDOW CONTROL SYSTEM

    Power Window

    POWER WINDOW REFERENCE CHART

    Tester Display Default Contents Setting
    Door Key Linked P/W Up ON Function that raises all engine windows when, with power switch off, key is used to hold driver door key cylinder to lock position for more than 2.3 seconds ON/OFF
    Door Key Linked P/W Down ON Function that lowers all engine windows when, with power switch off, key is used to hold driver door key cylinder to unlock position for more than 2.3 seconds ON/OFF
    P/W Down w/ Transmitter ON Function that lowers all engine windows when, with power switch off, unlock switch on transmitter is pressed and held for more than 3.0 seconds ON/OFF
  12. REAR SUNSHADE SYSTEM

    Rear Sunshade System

    REAR SUNSHADE SYSTEM REFERENCE CHART

    Tester Display Contents Default Selection
    Automatic Transmission Reverse Signal Response Time Function to adjust reverse-linked sunshade lowering function's response time 0.7 sec. 0 / 0.7 / 0.9 / 1.2
  13. SLIDING ROOF SYSTEM

    Sliding Roof ECU

    SLIDING ROOF ECU REFERENCE CHART

    Tester Display Default Contents Setting
    Wireless Key Related Operation SLIDE Function to select tilt up or slide open of manual sliding roof operation linked with power window
    Activate by pressing on transmitter UNLOCK switch for 3 seconds or more when power switch is OFF    		 TILT / SLIDE
    Door Key Related Operation SLIDE Function to select tilt up or slide open of manual sliding roof operation linked with power window
    Activate by holding driver side door key for 3 seconds or more to unlock position when power switch is OFF    		 TILT / SLIDE
    Wireless Key Related Open ON Function to manually open sliding roof linked with power window if pressing transmitter UNLOCK switch for 3 seconds or more when power switch is OFF ON/OFF
    Door Key Related Open ON Function to manually open sliding roof linked with power window if holding driver side door key for 3 seconds or more to unlock position when power switch is OFF ON/OFF
    Door Key Related Close ON Function to manually close sliding roof linked with power window if holding driver side door key for 3 seconds or more to lock position when power switch is OFF ON/OFF
