Yaw Rate And Acceleration Sensor: Components

Fig 1: Yaw Rate And Acceleration Sensor Components (1 Of 2)
G05807272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

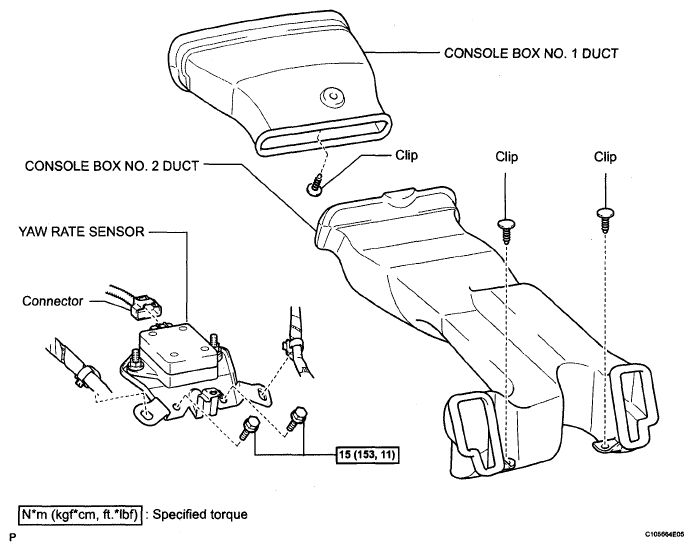

Fig 2: Yaw Rate And Acceleration Sensor Components (2 Of 2) With Torque Specificaitons
G05807273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
