Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
  1. Vehicle Identification Number
  2. Certification Label

    Fig 1: Identifying Vehicle Identification Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustrations.

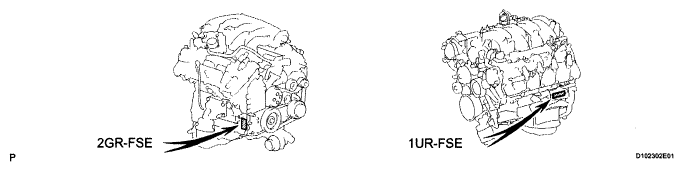

  1. Engine Serial Number

    Fig 2: Identifying Engine Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

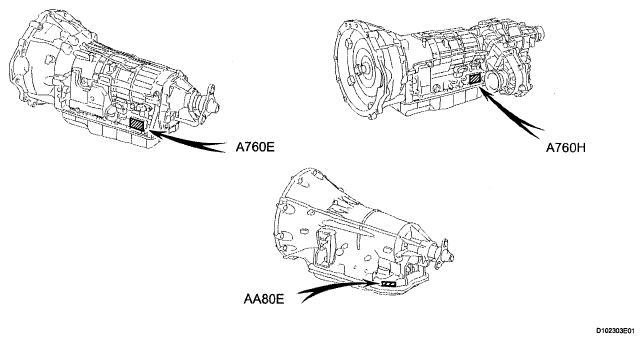

  2. Transmission Serial Number

    Fig 3: Identifying Transmission Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
