Floor Shift Assembly: Components

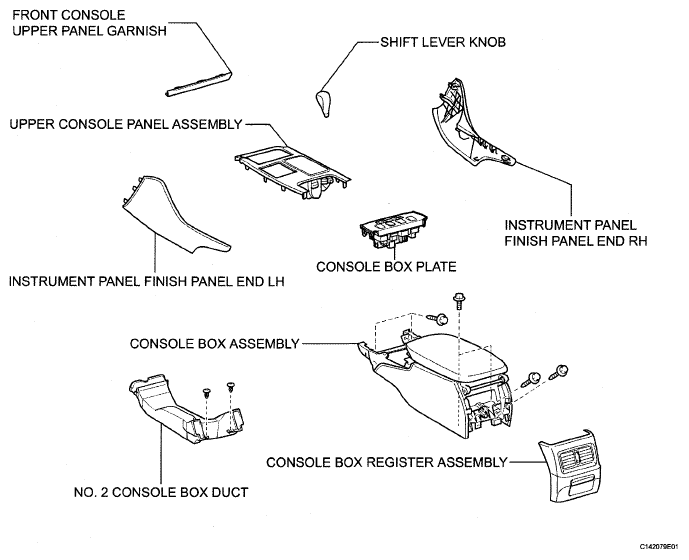

Fig 1: Floor Shift Assembly Replacement Components With Torque Specifications (1 Of 3)
G05305125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

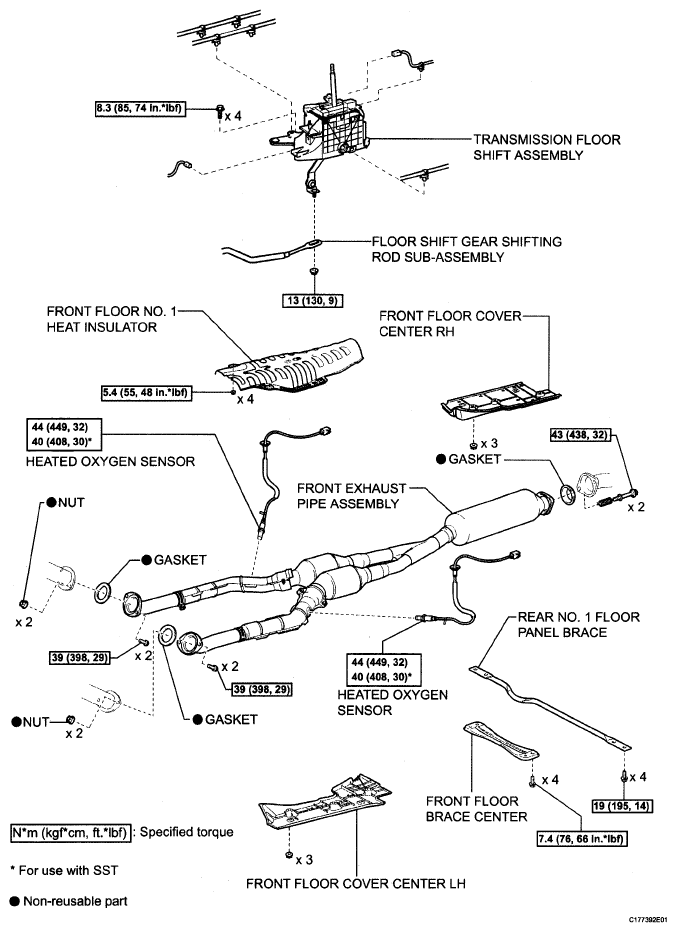

Fig 2: Floor Shift Assembly Replacement Components With Torque Specifications (2 Of 3)
G05806436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

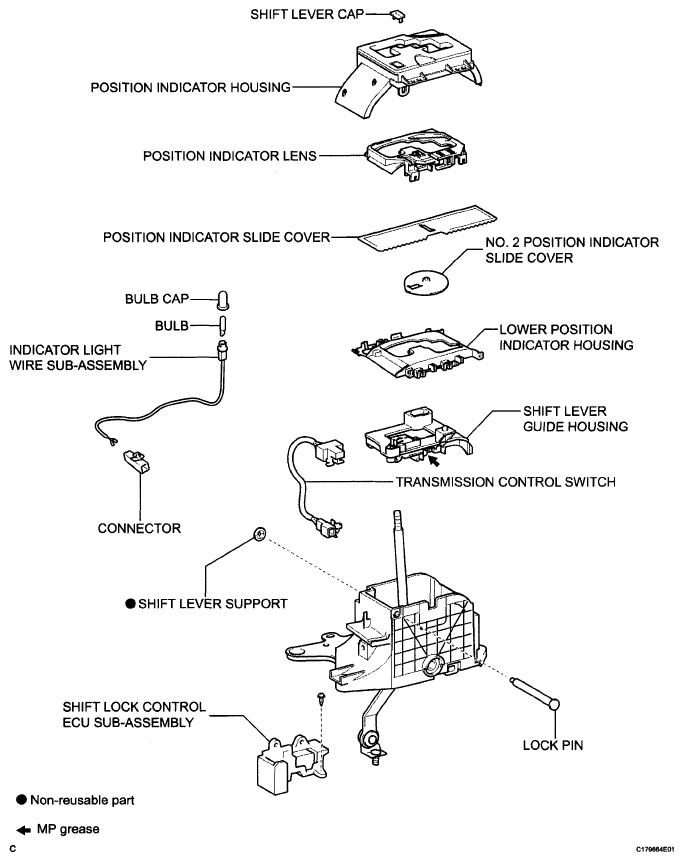

Fig 3: Floor Shift Assembly Replacement Components With Torque Specifications (3 Of 3)
G05806437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
