Engine Coolant Temperature Sensor: Inspection

INSPECT ENGINE COOLANT TEMPERATURE SENSOR
1. Check the resistance.
  1. Using an ohmmeter, measure the resistance between the terminals.
    Resistance:

    20°C (68°F):

    2.32 to 2.59 kΩ

    80°C (176°F):

    0.310 to 0.326 kΩ

    NOTE: If inspecting the water temperature sensor in water, prevent water from flowing into the terminals. After inspection, wipe the water off the sensor.

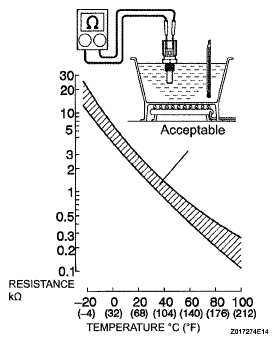

    Fig 1: Inspecting Engine Coolant Temperature Sensor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
