Fuel Pump Relay: Inspection

  1. INSPECT FUEL PUMP RELAY ASSEMBLY
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Standard resistance

        STANDARD RESISTANCE

        Tester Connection Specified Condition
        3-4 Below 1 Ω
        3-5 10 kΩ or higher
        3-4 10 kΩ or higher (Apply battery voltage to terminals 1 and 2)
        3-5 Below 1 Ω (Apply battery voltage to terminals 1 and 2)

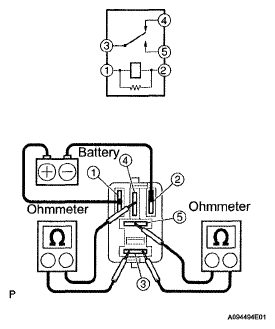

        Fig 1: Inspecting Fuel Pump Relay Assembly
        G04968249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        If the result is not as specified, replace the fuel pump relay.
