DTC P0230 Fuel Pump Primary Circuit: Wiring Diagram

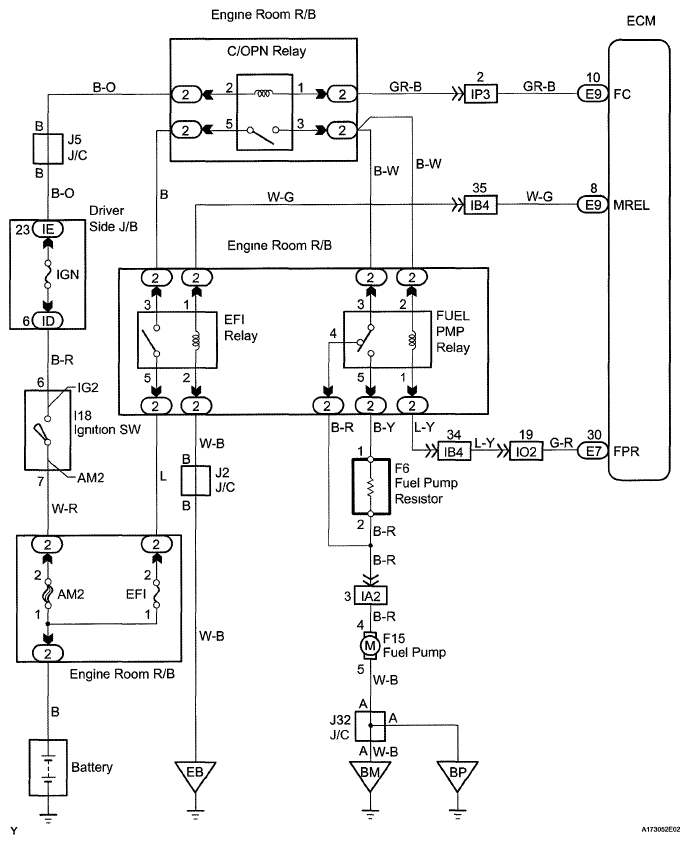

Fig 1: Fuel Pump Primary Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

This troubleshooting procedure is based on the premise that the engine is started. If the engine is not started, proceed to the PROBLEM SYMPTOMS TABLE  (See .
