DTC P0617 Starter Relay Circuit High: Wiring Diagram

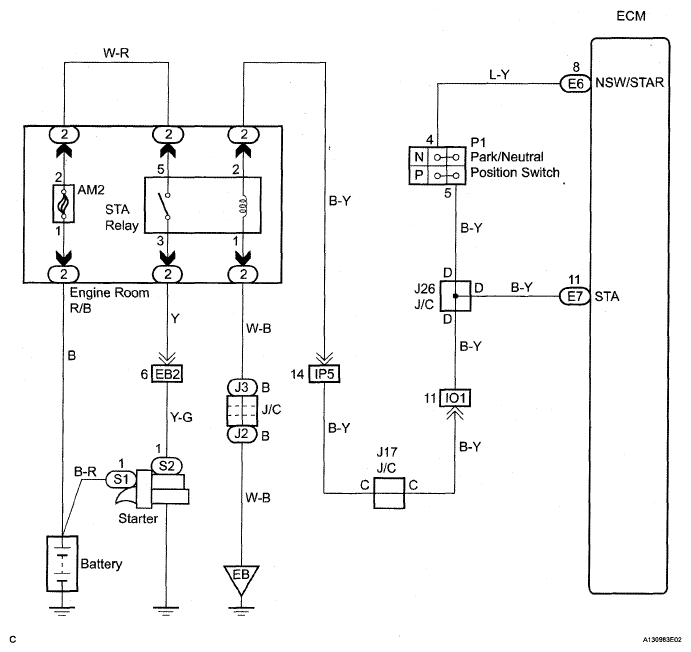

Fig 1: Starter Relay Wiring Diagram
G05264134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
