Power Window Regulator Motor: Components

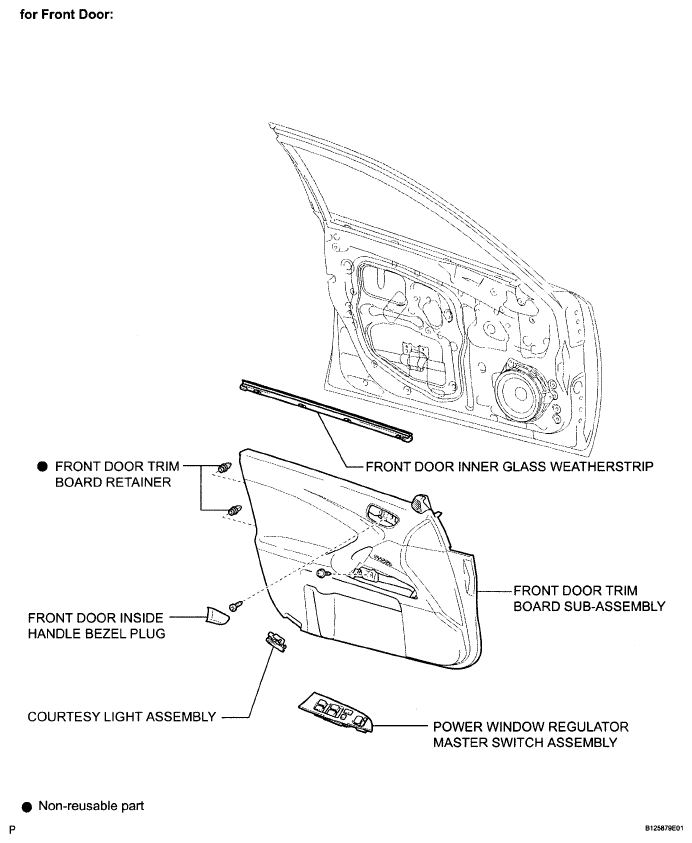

Fig 1: Identifying Power Window Regulator Motor Components (1 Of 4)
G05832858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

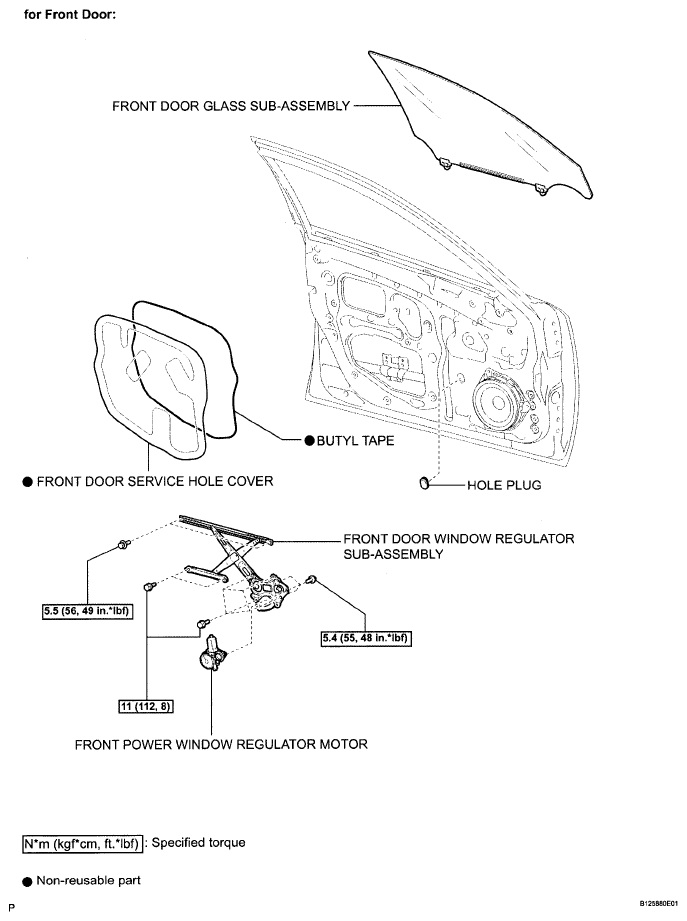

Fig 2: Power Window Regulator Motor Replacement Components With Torque Specifications (2 Of 4)
G05832859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

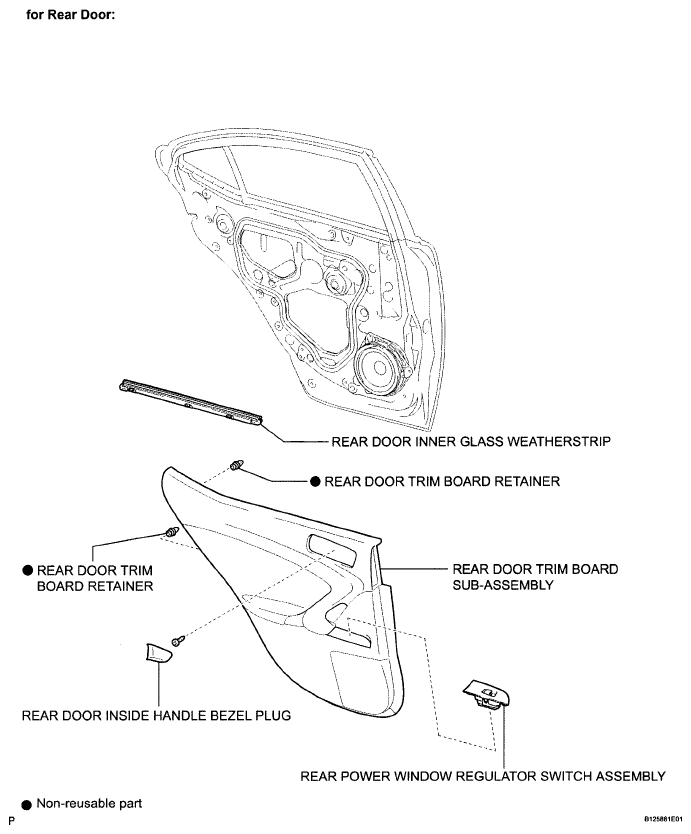

Fig 3: Identifying Power Window Regulator Motor Components (3 Of 4)
G05832860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

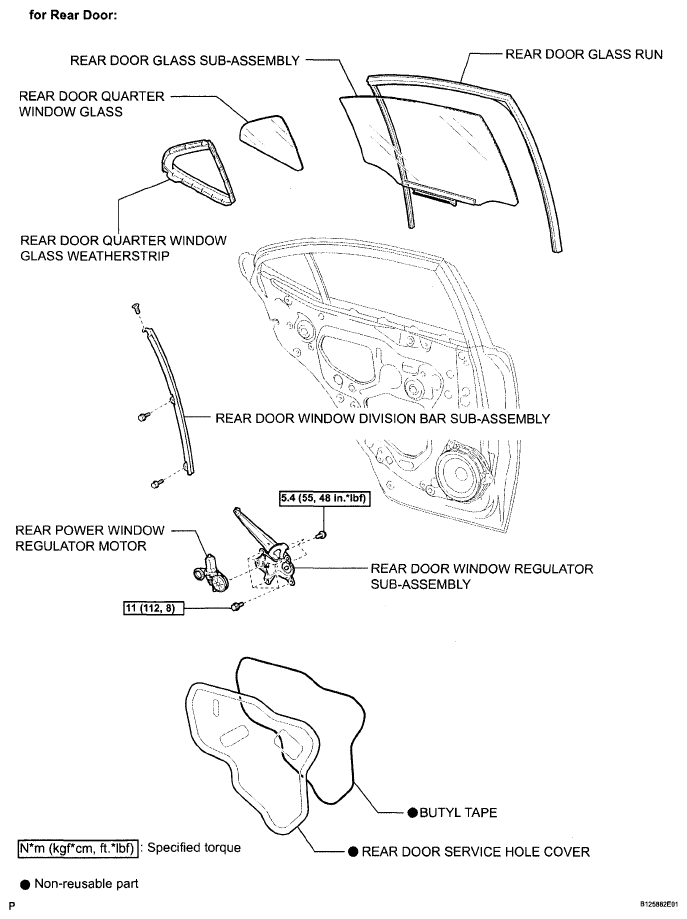

Fig 4: Power Window Regulator Motor Replacement Components With Torque Specifications (4 Of 4)
G05832861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
