ECT and A/T Indicator for 4GR-FSE: Notes

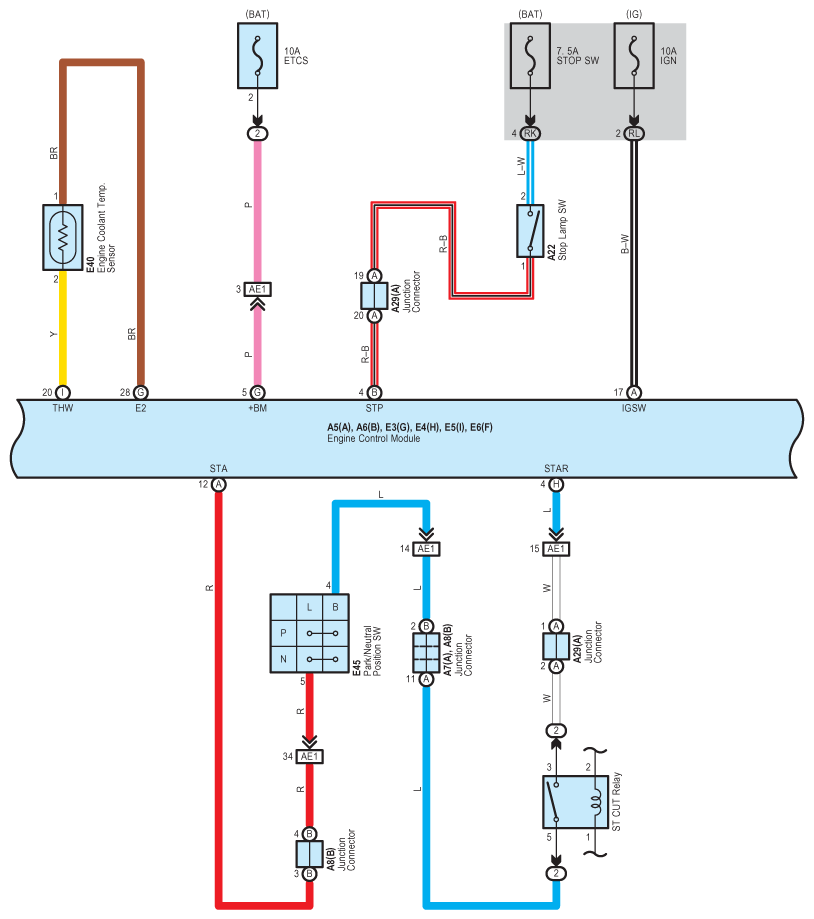

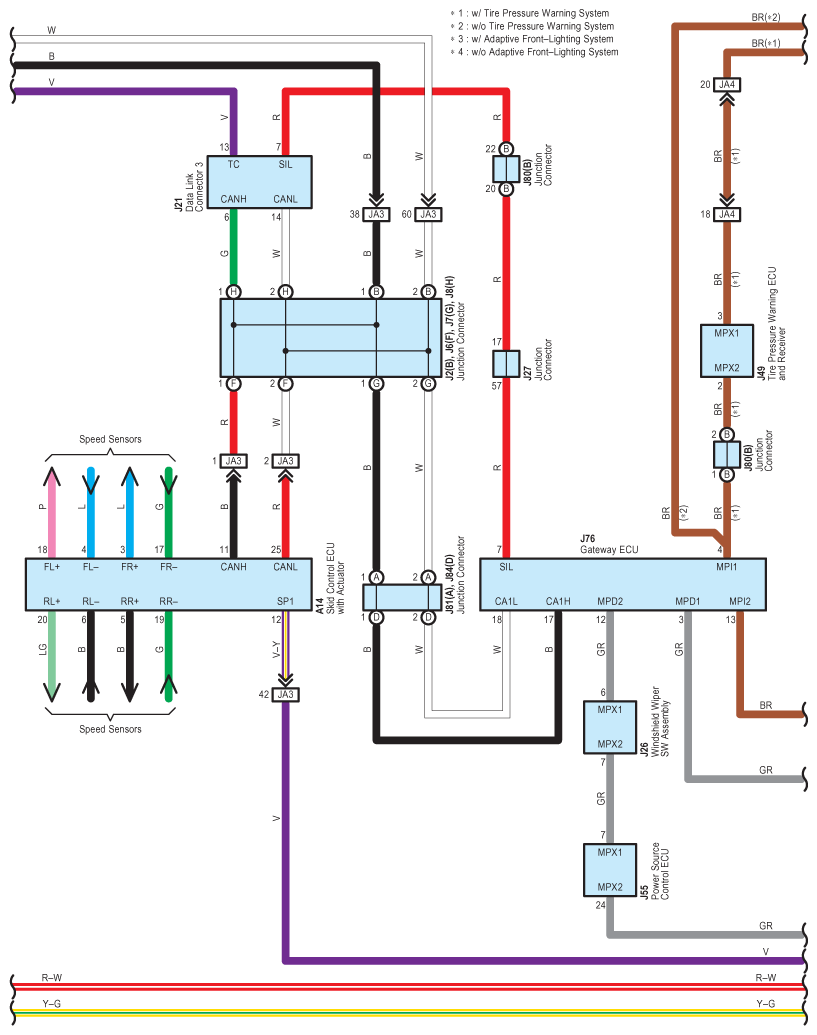

Fig 1: ECT And A/T Indicator For 4GR-FSE - Circuit Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

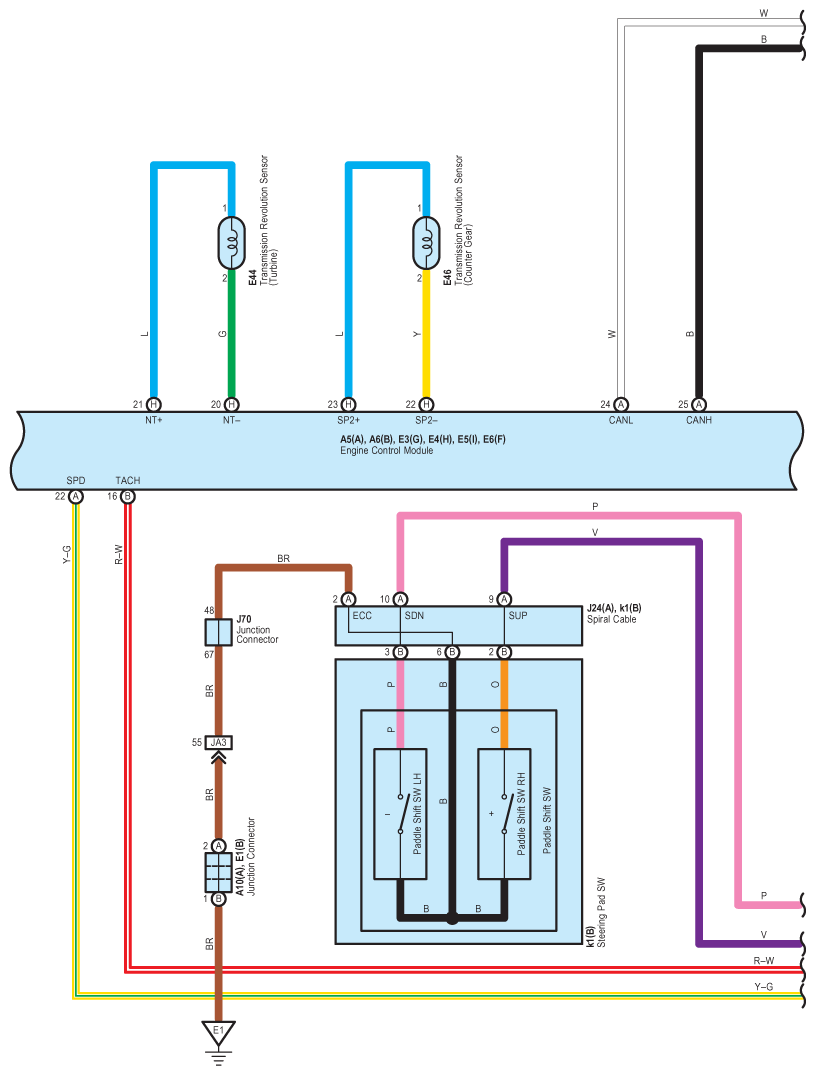

Fig 2: ECT And A/T Indicator For 4GR-FSE - Circuit Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

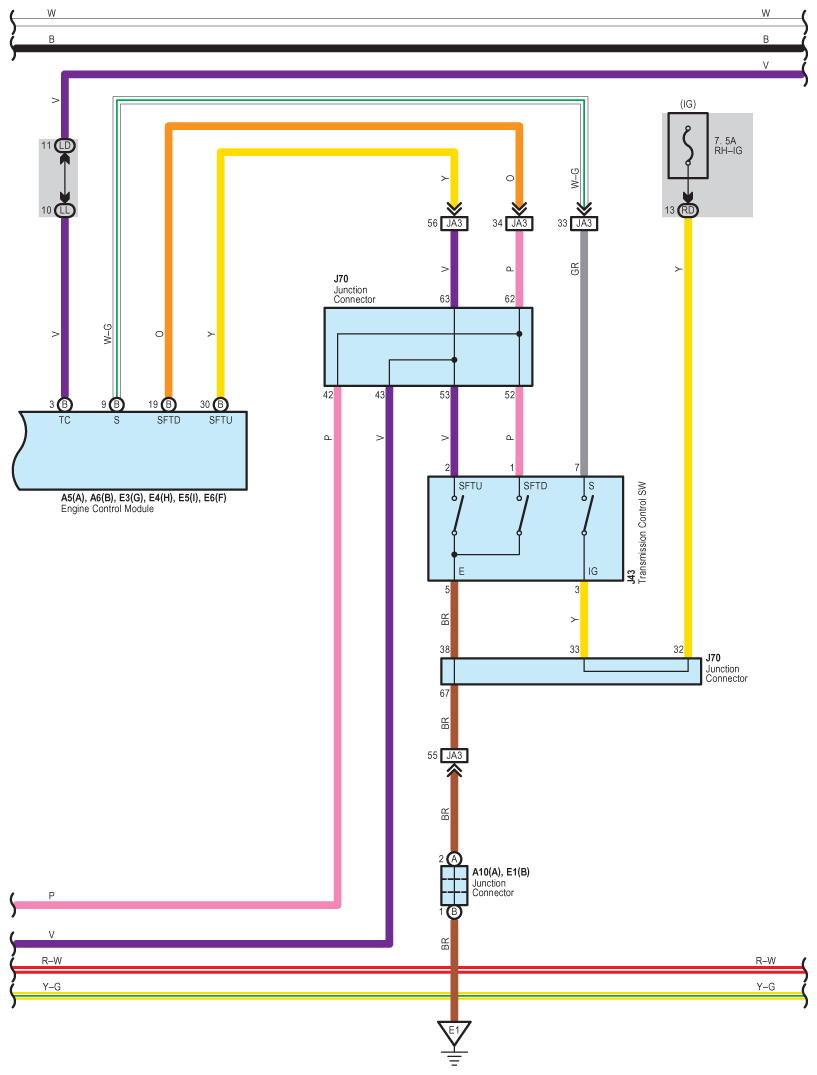

Fig 3: ECT And A/T Indicator For 4GR-FSE - Circuit Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

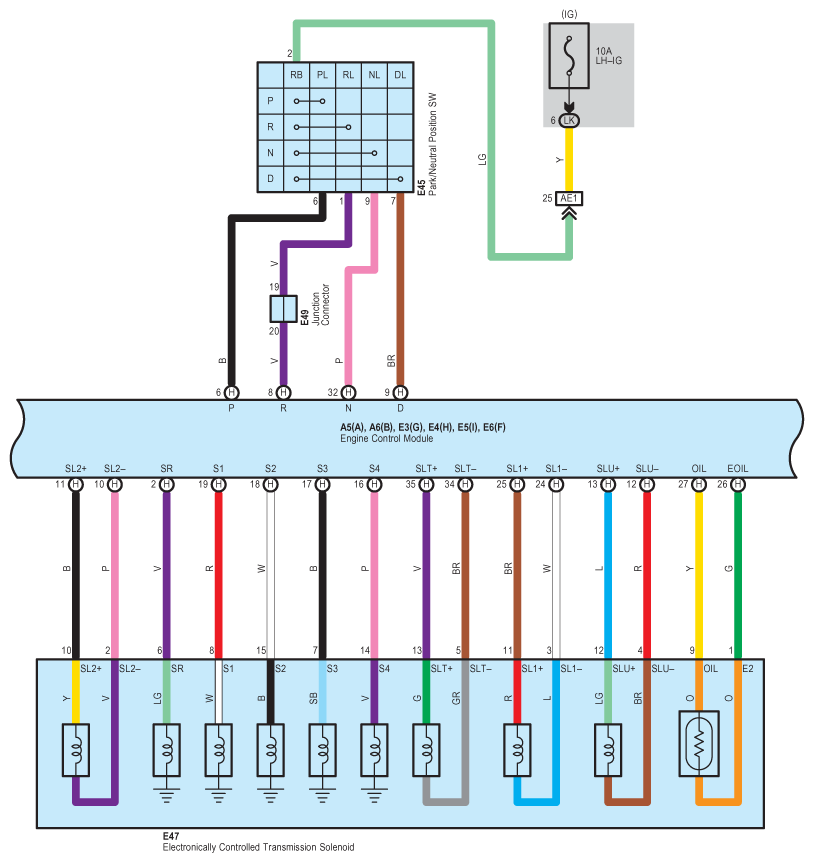

Fig 4: ECT And A/T Indicator For 4GR-FSE - Circuit Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

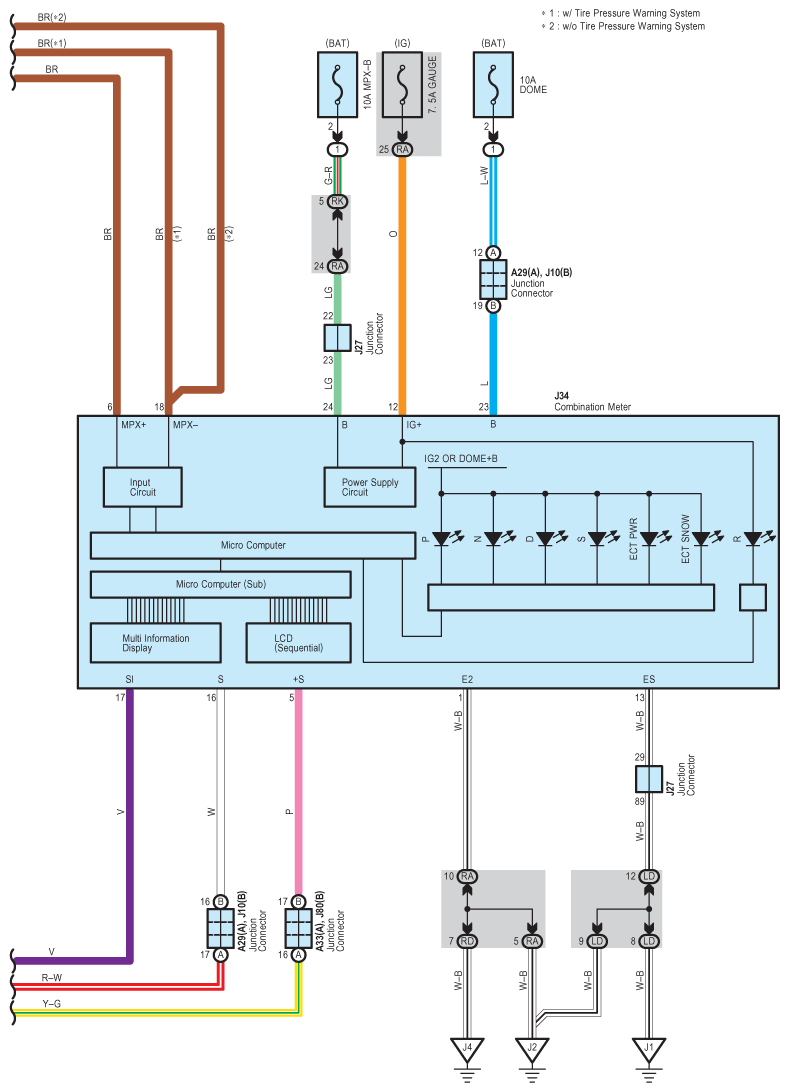

Fig 5: ECT And A/T Indicator For 4GR-FSE - Circuit Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

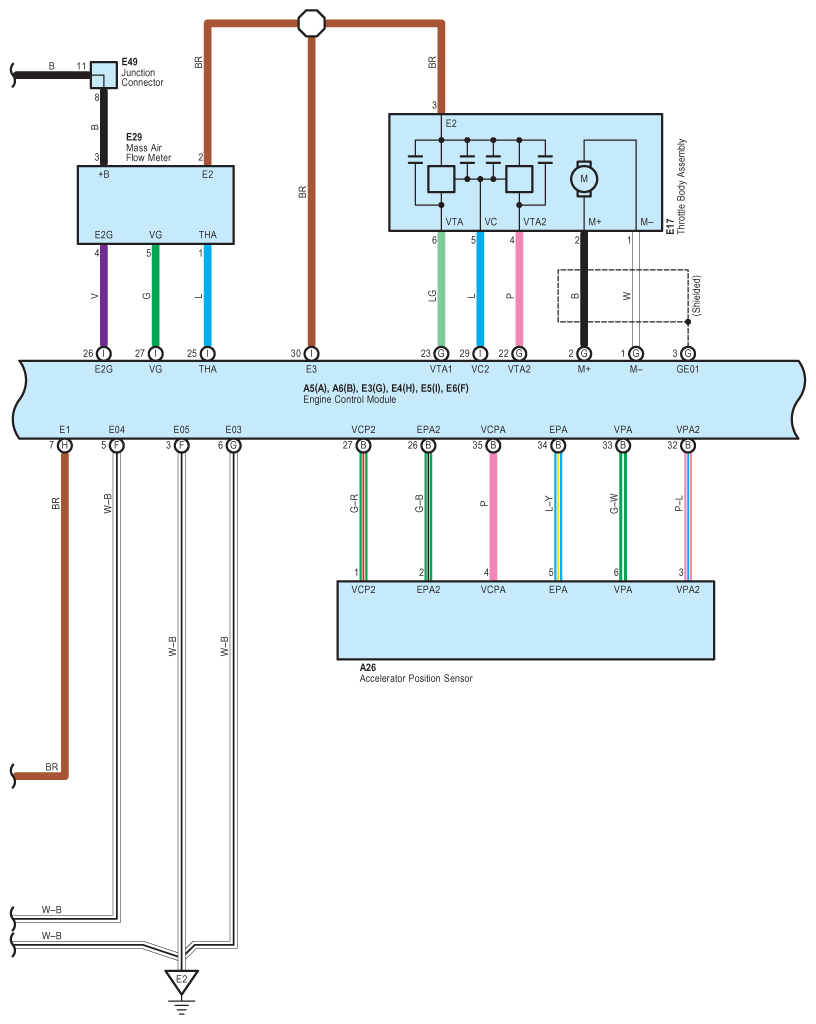

Fig 6: ECT And A/T Indicator For 4GR-FSE - Circuit Diagram (6 Of 9)

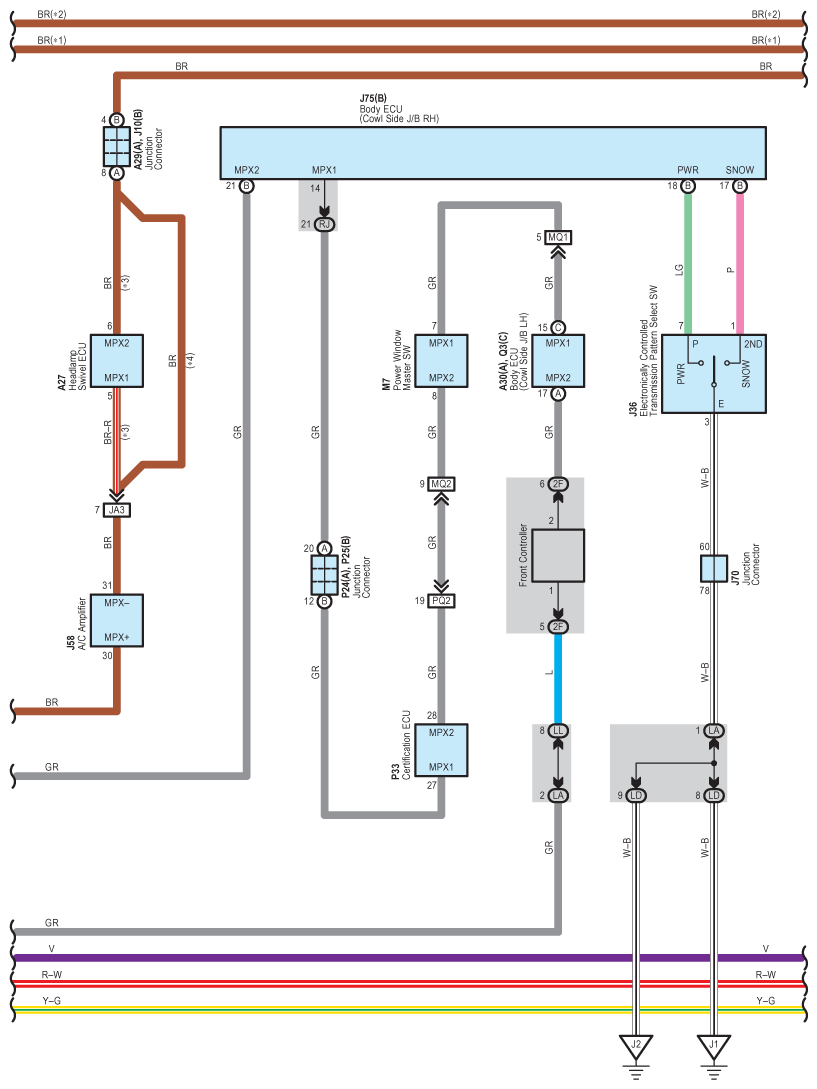

Fig 7: ECT And A/T Indicator For 4GR-FSE - Circuit Diagram (7 Of 9)

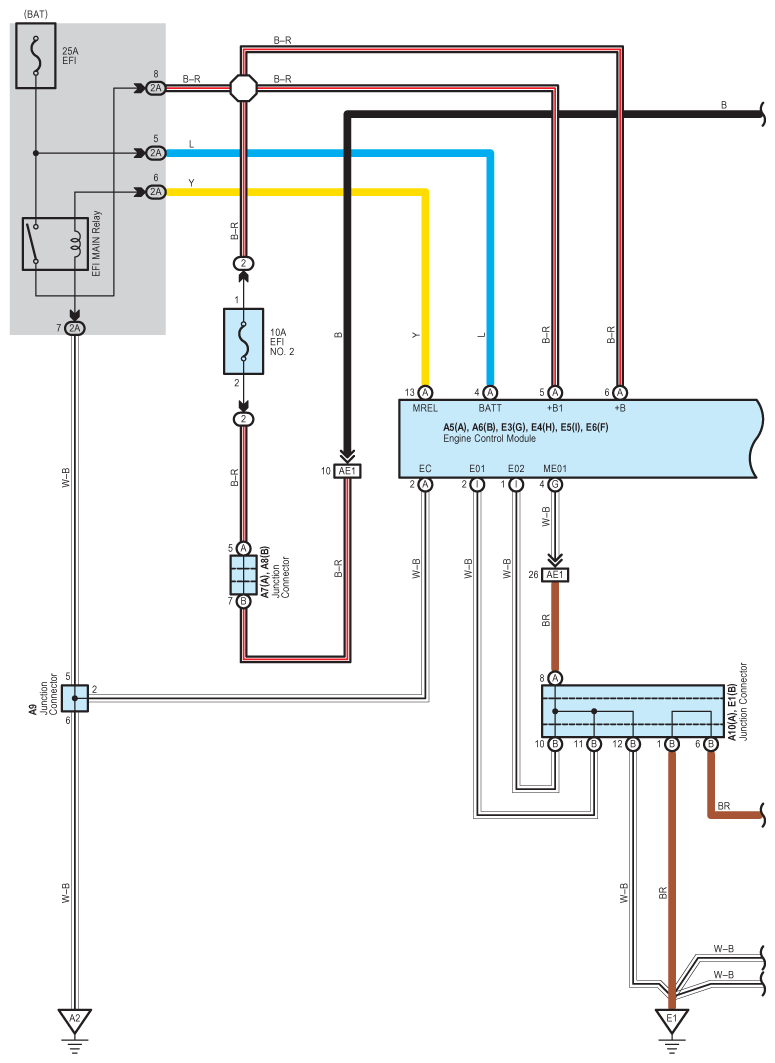

Fig 8: ECT And A/T Indicator For 4GR-FSE - Circuit Diagram (8 Of 9)

Fig 9: ECT And A/T Indicator For 4GR-FSE - Circuit Diagram (9 Of 9)
