Power Seat for Front Passenger's Seat with Memory: Notes

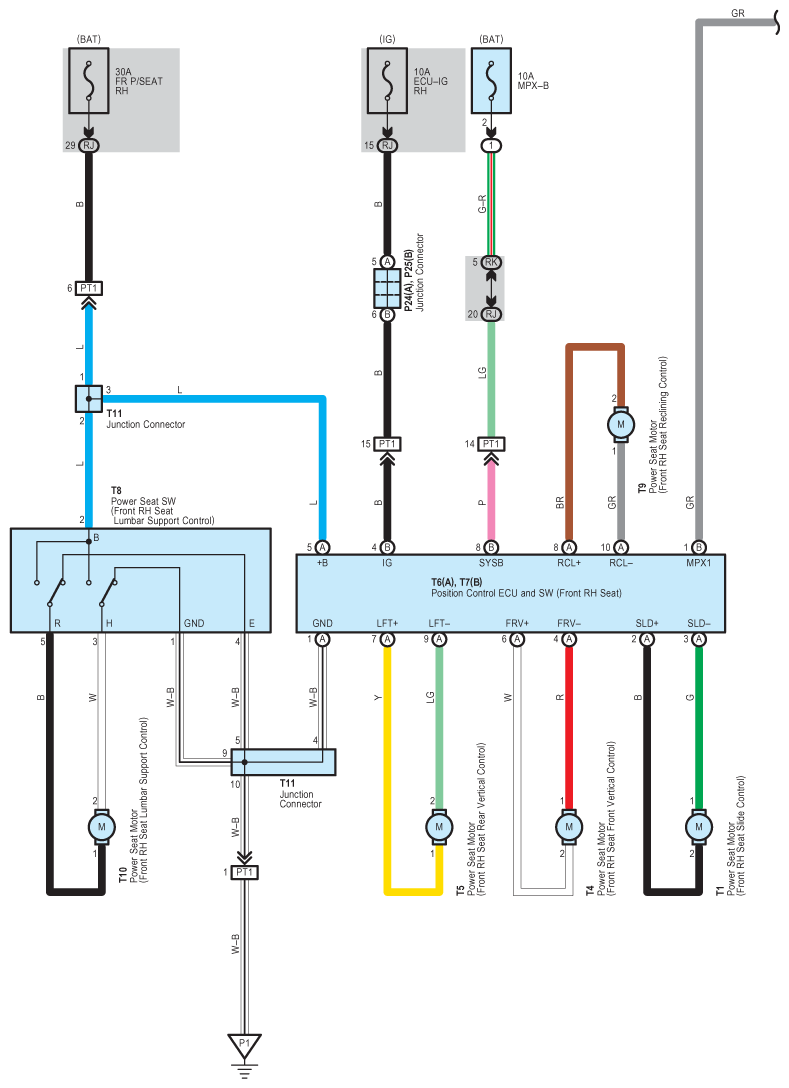

Fig 1: Power Seat For Front Passenger's Seat With Memory - Circuit Diagram (1 Of 5)
G07591893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

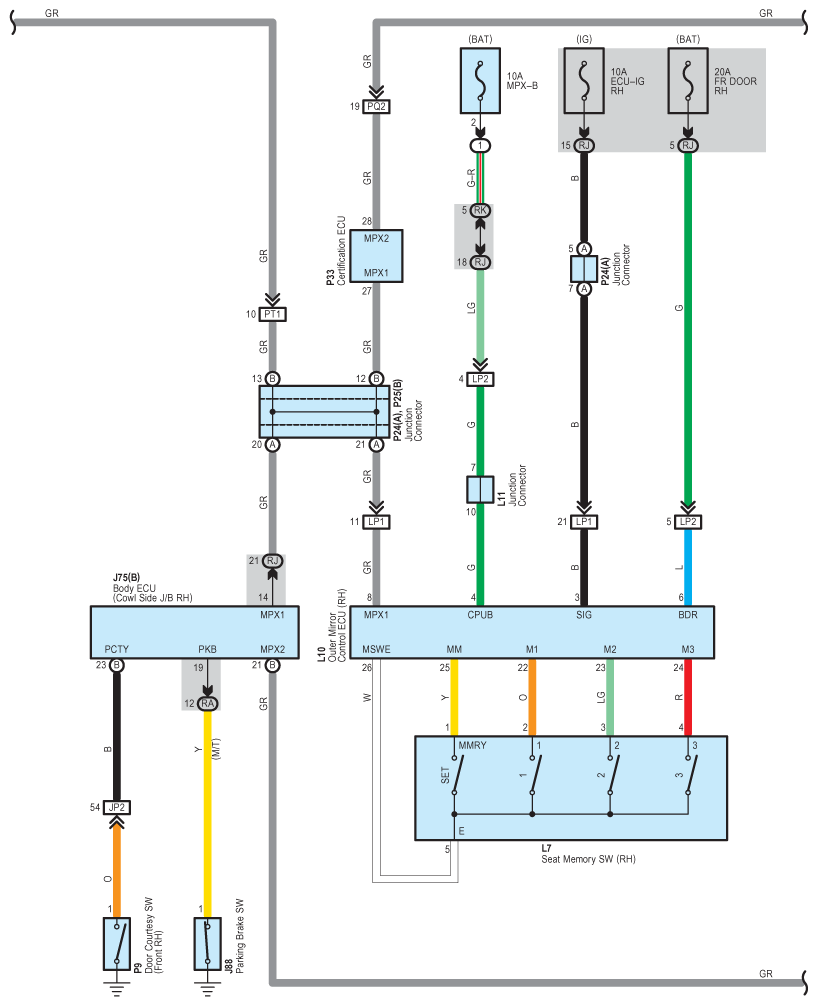

Fig 2: Power Seat For Front Passenger's Seat With Memory - Circuit Diagram (2 Of 5)
G07591894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

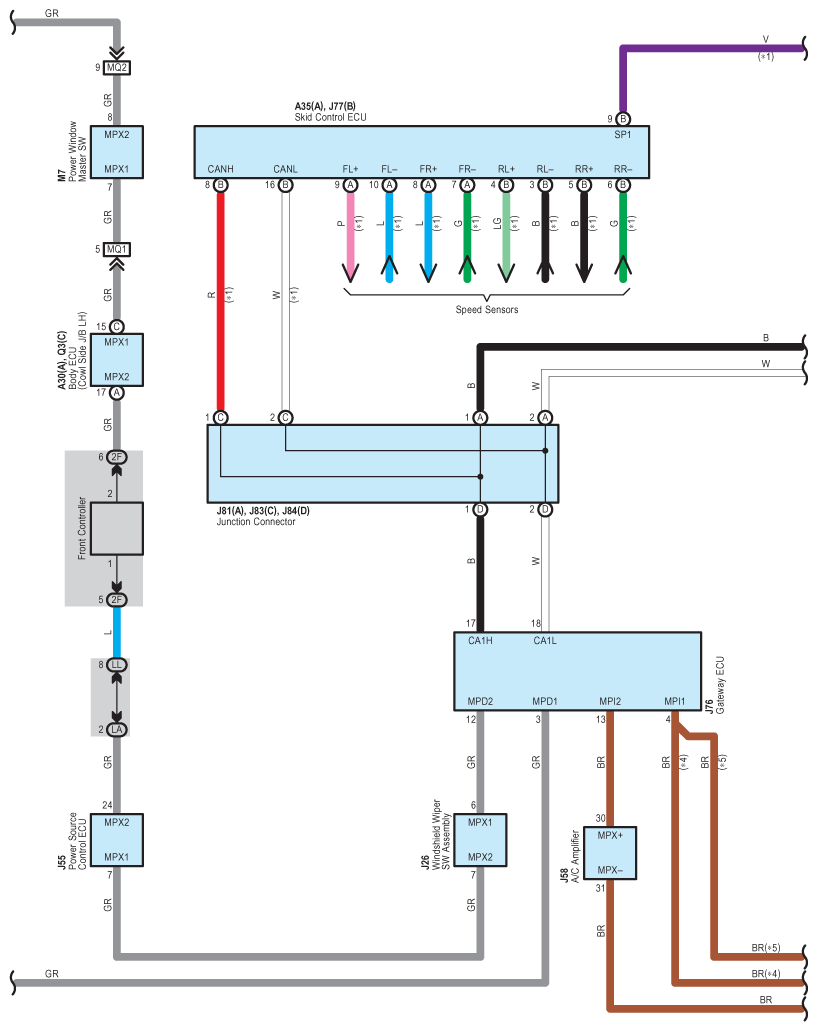

Fig 3: Power Seat For Front Passenger's Seat With Memory - Circuit Diagram (3 Of 5)
G07591895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

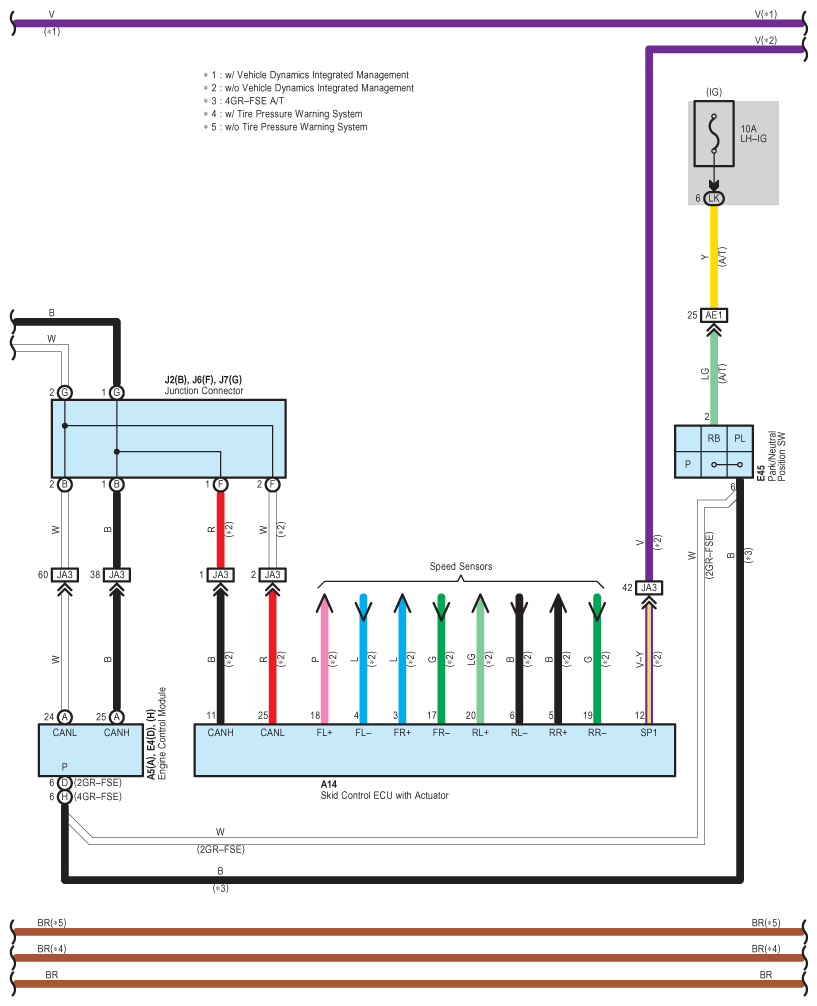

Fig 4: Power Seat For Front Passenger's Seat With Memory - Circuit Diagram (4 Of 5)
G07591896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

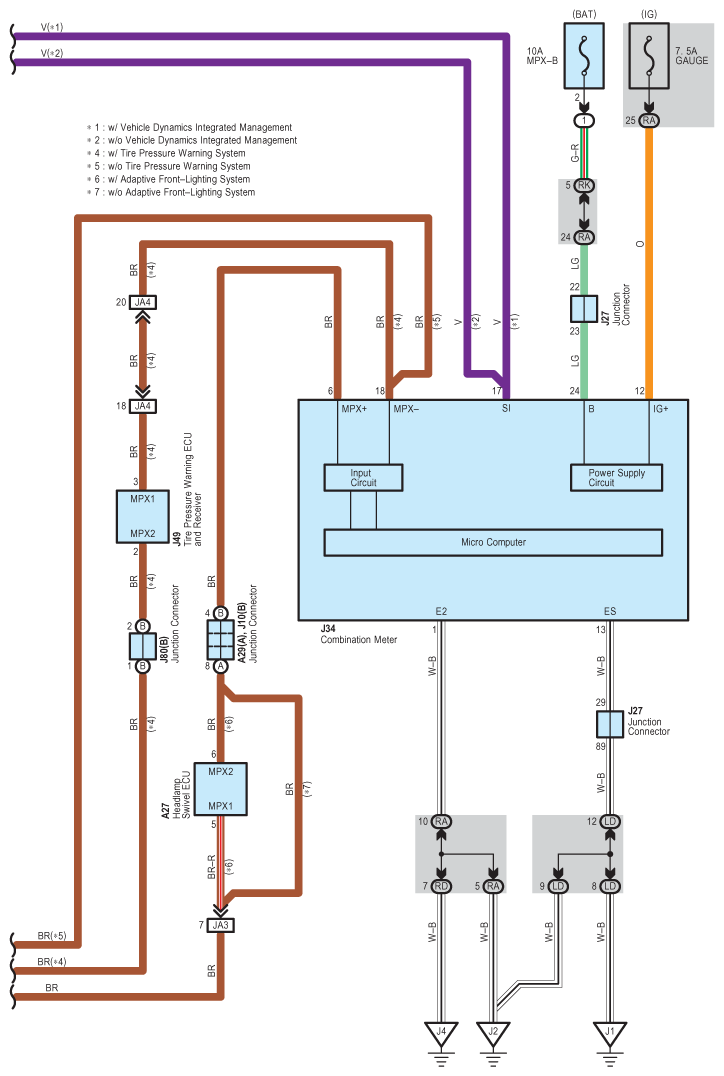

Fig 5: Power Seat For Front Passenger's Seat With Memory - Circuit Diagram (5 Of 5)
G07591897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
