Operation Check

  1. CHECK WINDOW LOCK SWITCH
    1. Check that the multiplex network switches (front passenger, rear LH and rear RH side) are disabled when the window lock switch of the multiplex network master switch assembly is pressed

      OK: Multiplex network switches (front passenger, rear LH and rear RH side) are disabled.

    2. Check that the multiplex network switches (front passenger, rear LH and rear RH side) operate when the window lock switch is pressed again
      Fig 1: Identifying Window Lock Switch
      G05755715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Multiplex network switches (front passenger, rear LH and rear RH side) can be operated.

  2. CHECK MANUAL UP / DOWN FUNCTION
    1. Check that the driver side power window operates as follows

      OK

      SWITCH OPERATION REFERENCE

      Condition Master Switch Switch Operation Power Window
      Engine switch on (IG) Driver side Pulled halfway up UP (Closes)
      Pushed halfway down DOWN (Opens)
    2. Check that the front passenger side and rear power windows operate as follows:

      OK

      SWITCH OPERATION REFERENCE

      Condition Regulator Switch Switch Operation Power Window
      • Engine switch on (IG)
      • Window lock switch off
      		 Front passenger side Pulled halfway up UP (Closes)
      Pushed halfway down DOWN (Opens)
      Rear LH side Pulled halfway up UP (Closes)
      Pushed halfway down DOWN (Opens)
      Rear RH side Pulled halfway up UP (Closes)
      Pushed halfway down DOWN (Opens)
  3. CHECK AUTO UP / DOWN FUNCTION
    1. Check that the driver side power window operates as follows:

      OK

      SWITCH OPERATION REFERENCE

      Condition Master Switch Switch Operation Power Window
      Engine switch on (IG) Driver side Pulled up (One touch operation) AUTO UP (Closes)
      Pushed down (One touch operation) AUTO DOWN (Opens)
    2. Check that the front passenger side and rear power windows operate as follows:

      OK

      SWITCH OPERATION REFERENCE

      Condition Regulator Switch Switch Operation Power Window
      • Engine switch on (IG)
      • Window lock switch off
      		 Front passenger side Pulled up (One touch operation) AUTO UP (Closes)
      Pushed down (One touch operation) AUTO DOWN (Opens)
      Rear LH side Pulled up (One touch operation) AUTO UP (Closes)
      Pushed down (One touch operation) AUTO DOWN (Opens)
      Rear RH side Pulled up (One touch operation) AUTO UP (Closes)
      Pushed down (One touch operation) AUTO DOWN (Opens)
  4. CHECK REMOTE MANUAL UP / DOWN FUNCTION
    1. Check that the front passenger side and rear power windows operate as follows:

      OK

      SWITCH OPERATION REFERENCE

      Condition Master Switch Switch Operation Power Window
      • Engine switch on (IG)
      • Window lock switch off
      		 Front passenger side Pulled up UP (Closes)
      Pushed down DOWN (Opens)
      Rear LH side Pulled up UP (Closes)
      Pushed down DOWN (Opens)
      Rear RH side Pulled up UP (Closes)
      Pushed down DOWN (Opens)
  5. CHECK REMOTE AUTO UP / DOWN FUNCTION
    1. Check that the front passenger side and rear power windows operate as follows

      OK

      SWITCH OPERATION REFERENCE

      Condition Master Switch Switch Operation Power Window
      • Engine switch on (IG)
      • Window lock switch off
      		 Front passenger side Pulled up (One touch operation) AUTO UP (Closes)
      Pushed down (One touch operation) AUTO DOWN (Opens)
      Rear LH side Pulled up (One touch operation) AUTO UP (Closes)
      Pushed down (One touch operation) AUTO DOWN (Opens)
      Rear RH side Pulled up (One touch operation) AUTO UP (Closes)
      Pushed down (One touch operation) AUTO DOWN (Opens)
  6. CHECK POWER WINDOW OPERATION FUNCTION AFTER ENGINE SWITCH IS TURNED OFF
    1. Check that all the power windows can be operated with the multiplex network master switch assembly after the engine switch is turned off
    2. Check that the key-off operation function does not operate after the driver side door or front passenger side door is opened
    3. Check that all the power windows cannot be operated after more than approximately 45 seconds elapse after the engine switch is turned off
  7. CHECK TRANSMITTER-LINKED FUNCTION
    1. Check that all power windows operate as follows when operating the transmitter

      OK

      TRANSMITTER OPERATION REFERENCE

      Condition Transmitter Operation Power Window
      No key is inside vehicle, and all doors are closed and locked UNLOCK switch pressed for more than 3 0 seconds DOWN (Opens)
      No key is inside vehicle, and all doors are closed and locked UNLOCK switch released STOP
  8. CHECK KEY-LINKED FUNCTION USING DRIVER SIDE DOOR KEY CYLINDER
    1. Check that all power windows operate as follows

      OK

      DOOR KEY CYLINDER OPERATION REFERENCE

      Condition Door Key Cylinder Operation Power Window
      No key is inside vehicle, and all doors are closed Turned (LOCK) for more than 1 5 seconds UP (Closes)
      No key is inside vehicle, and all doors are closed Returned to neutral position STOP
      No key is inside vehicle, and all doors are closed Turned (UNLOCK) for more than 1 5 seconds DOWN (Opens)
      No key is inside vehicle, and all doors are closed Returned to neutral position STOP
  9. CHECK JAM PROTECTION FUNCTION
    1. Check the basic function
      CAUTION:
      • Do not put your fingers between the door frame and door glass to check the jam protection function. Also, prevent any part of your body from being caught during inspection.

      HINT:

      The jam protection function is operative during both the AUTO UP and MANUAL UP operations while the engine is running or the engine switch is on (IG), and also after the key is removed from the door key cylinder

      1. Fully open the window
      2. Set a thick book wrapped with a piece of cloth near the window fully closed position
      3. Operate the AUTO UP or MANUAL UP function to check that the power window goes down after the book is caught between the window and door frame, and stops when the opening reaches approximately 200 mm (7 87 in)

        HINT

        The power window moves down approximately 50 mm (1.97 in.). However, when the opening does not reach 200 mm (7.87 in), the power window continues to go down until the opening reaches 200 mm (7 87 in) or until approximately 5 seconds elapse

      4. While the power window is moving down, check that the door glass cannot be raised when the power window switch is used.
        Fig 2: Checking Jam Protection Function
        G05755716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CHECK POWER WINDOW SWITCH LED ILLUMINATION
    1. Check the LED illumination (multiplex network master switch assembly)
      1. Check that the LEDs located on the multiplex network master switch assembly illuminate when the engine switch is on (IG).
        2. Fig 3: Identifying LED Illumination (Multiplex Network Master Switch Assembly)
        G05755717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the LED illumination (multiplex network switch assembly)

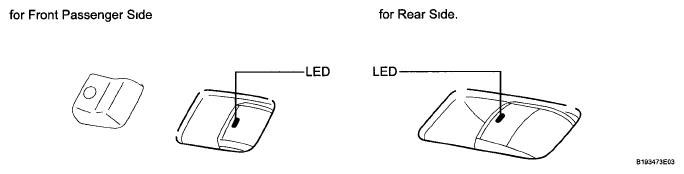

      Fig 4: Identifying LED Illumination (Multiplex Network Switch Assembly)
      G05755718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Check that the LEDs located on the multiplex network switch assembly (front passenger, rear LH and rear RH side) illuminates when the engine switch is on (IG)
