Remote Up / Down Function does not Operate: Wiring Diagram

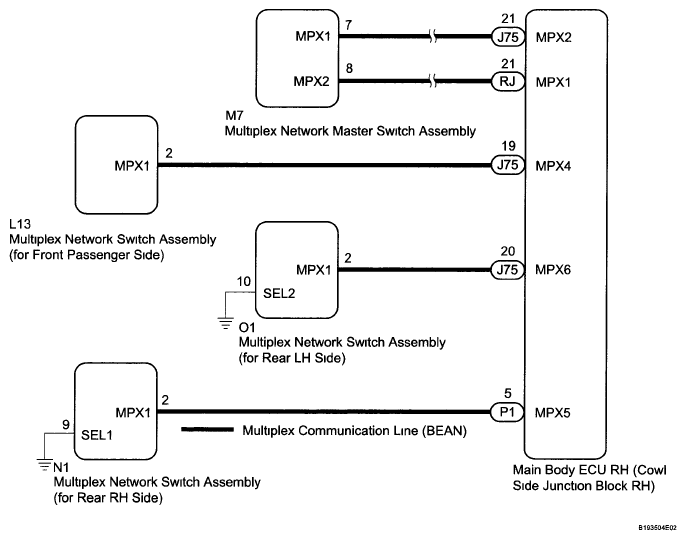

Fig 1: Multiplex Network Master Switch Assembly Wiring Diagram
G05755726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
