Windshield Glass: Components

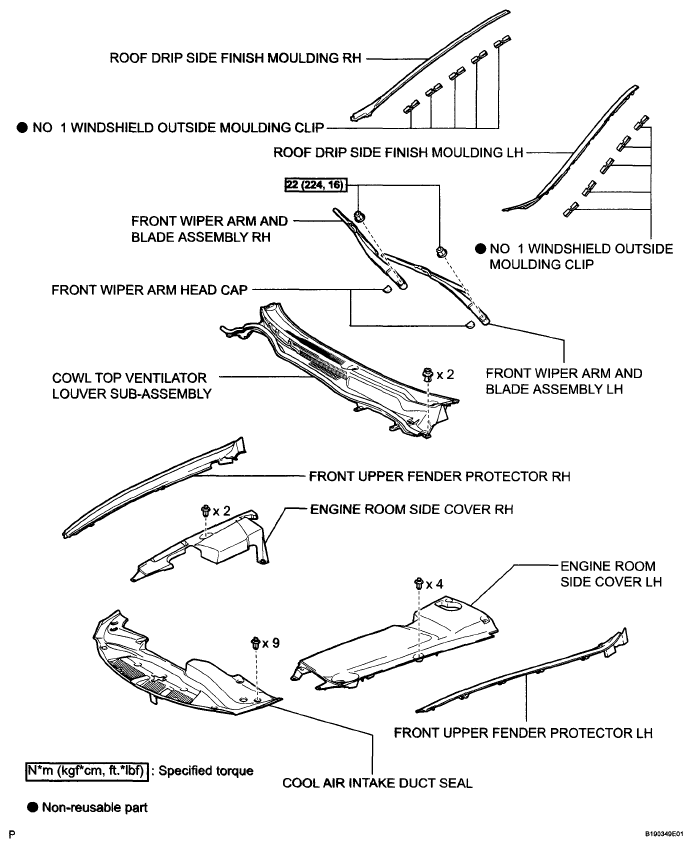

Fig 1: Identifying Windshield Glass Replacement Components (1 Of 3) With Torque Specification
G05755800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Windshield Glass Replacement Components (2 Of 3) With Torque Specification
G05755801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

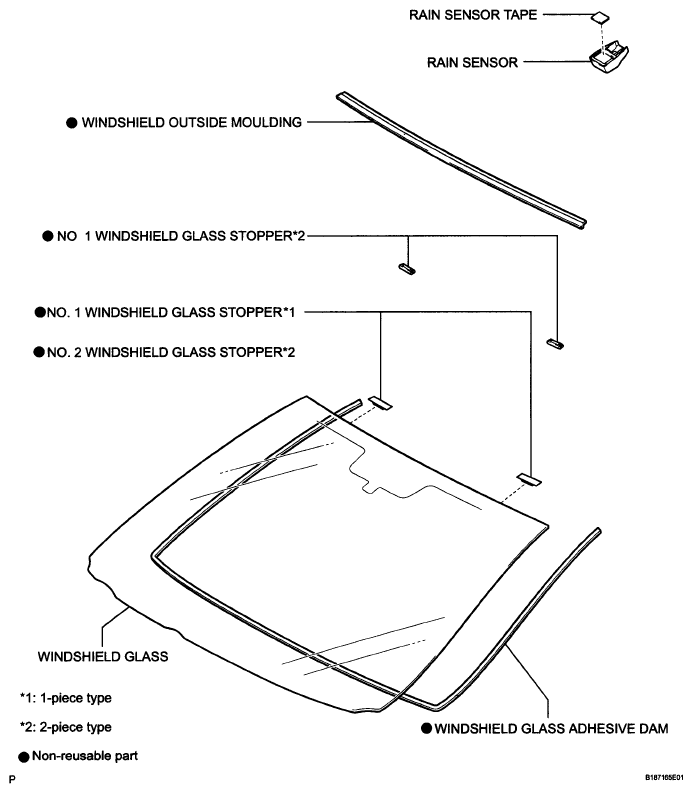

Fig 3: Identifying Windshield Glass Components (3 Of 3)
G05755802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
