Skid Control Ecu: Components

Fig 1: Identifying Skid Control ECU Replacement Components (1 Of 2)
G05752717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

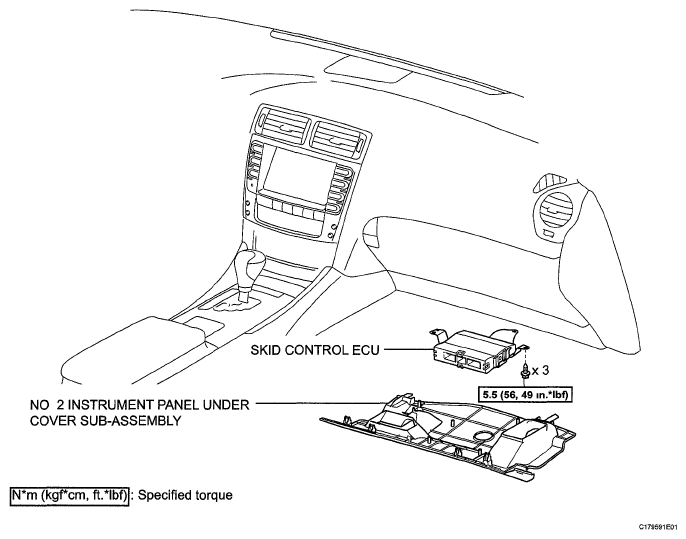

Fig 2: Skid Control ECU Replacement Components (2 Of 2) With Torque Specification
G05752718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
