Steering Angle Sensor: Components

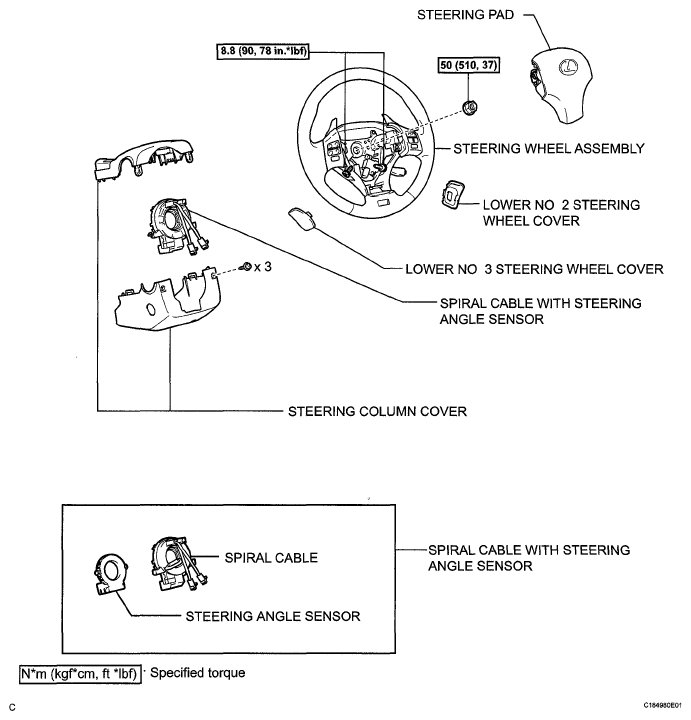

Fig 1: Steering Angle Sensor Replacement Components With Torque Specifications
G05752714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
