Cruise Control: Notes

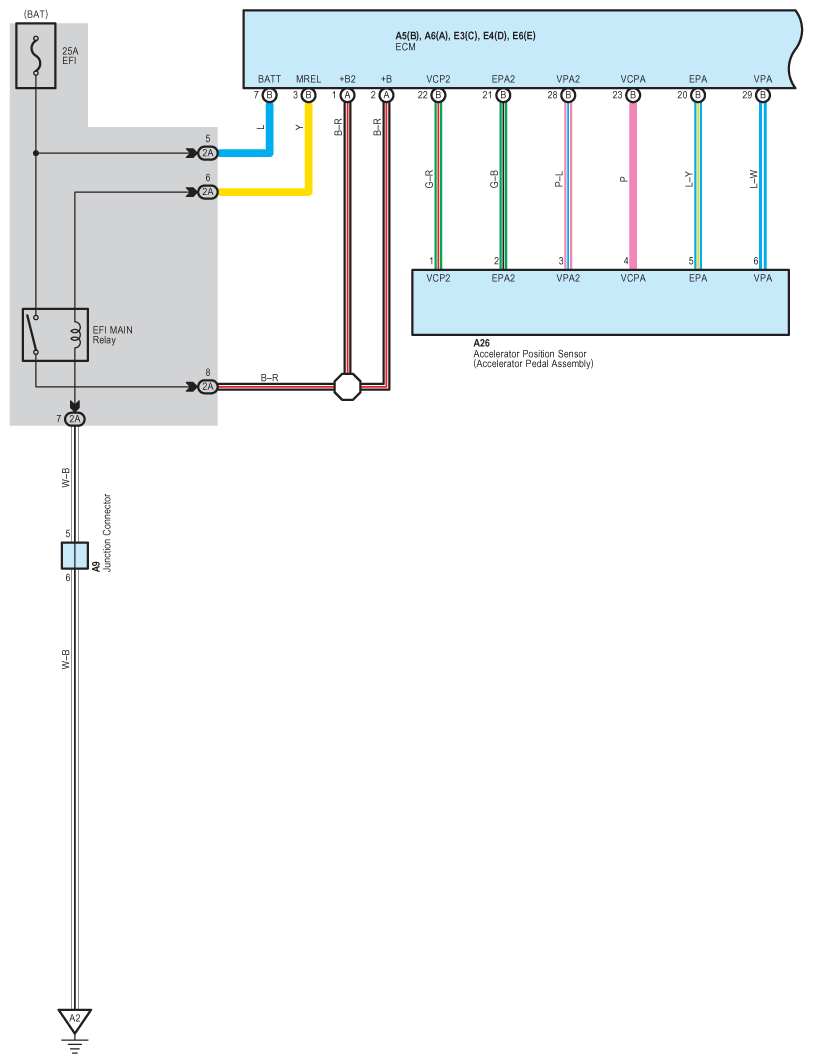

Fig 1: Cruise Control - Circuit Diagram (1 Of 10)

G07592351

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

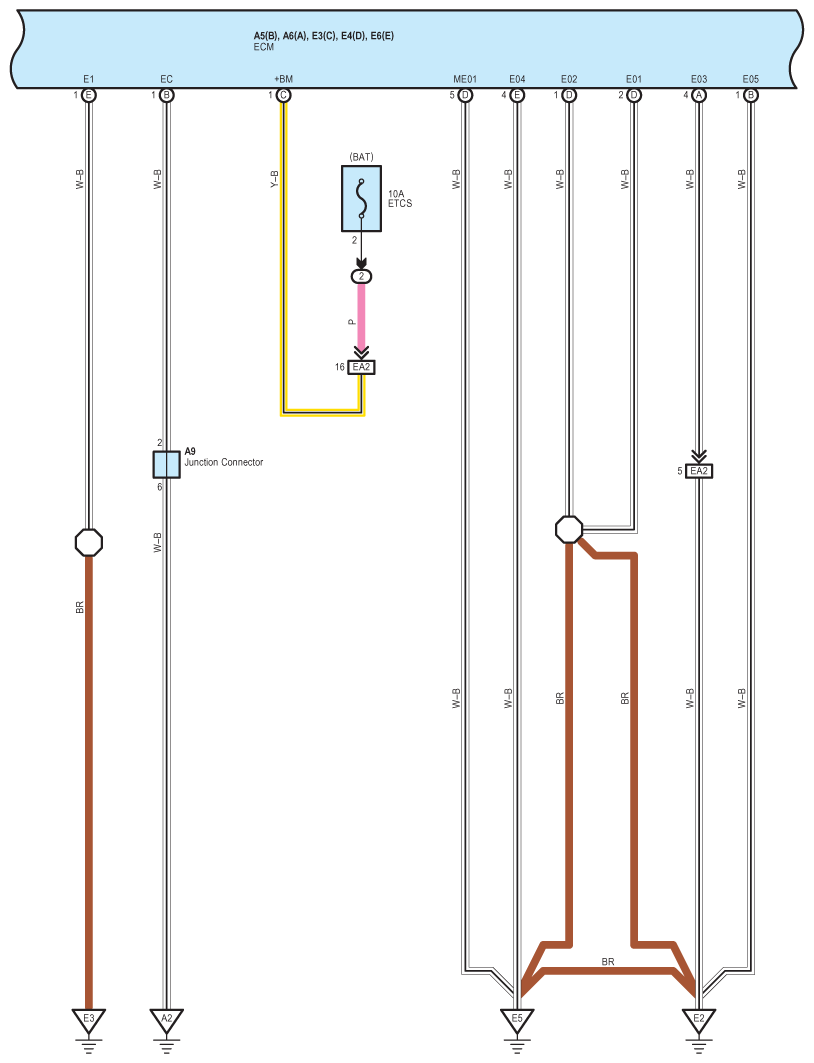

Fig 2: Cruise Control - Circuit Diagram (2 Of 10)

G07592352

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

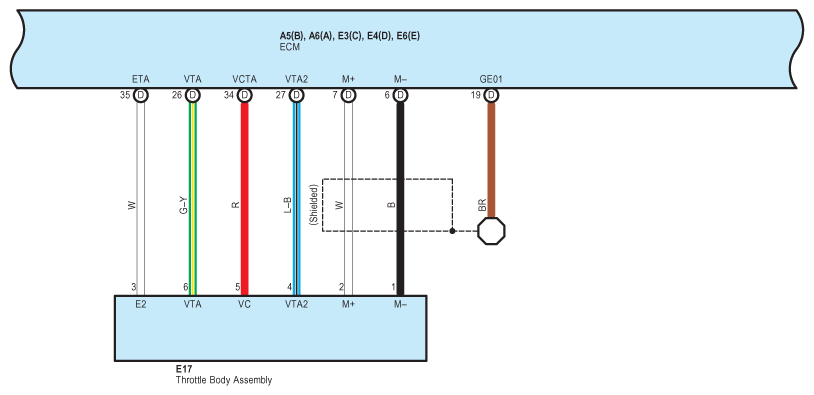

Fig 3: Cruise Control - Circuit Diagram (3 Of 10)

G07592353

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

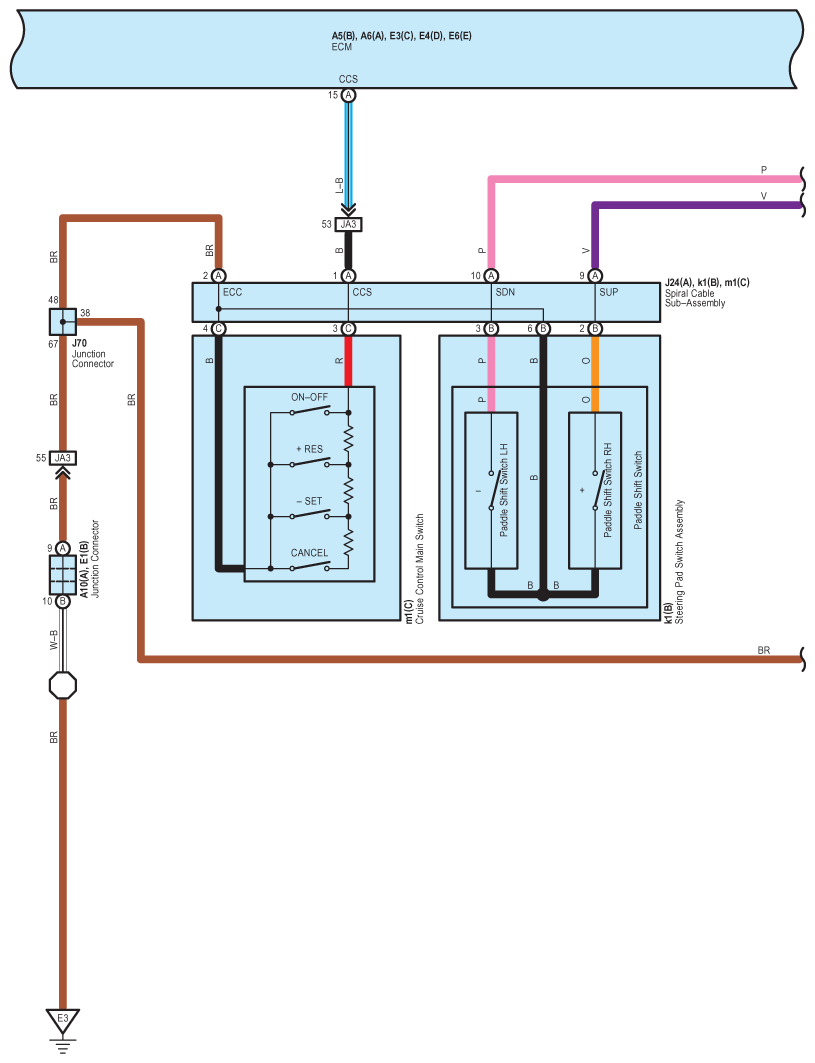

Fig 4: Cruise Control - Circuit Diagram (4 Of 10)

G07592354

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

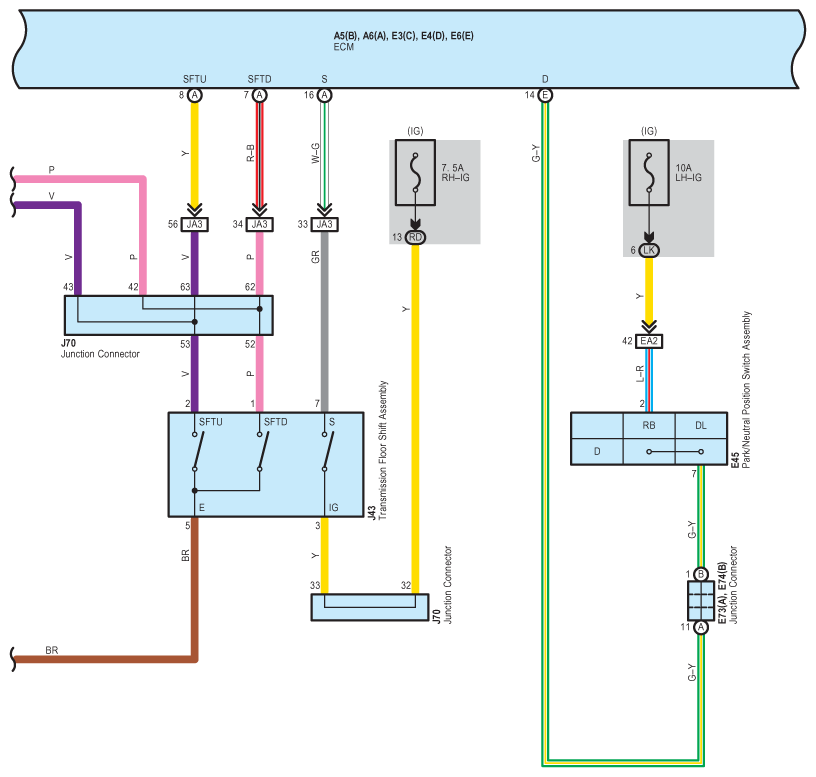

Fig 5: Cruise Control - Circuit Diagram (5 Of 10)

G07592355

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

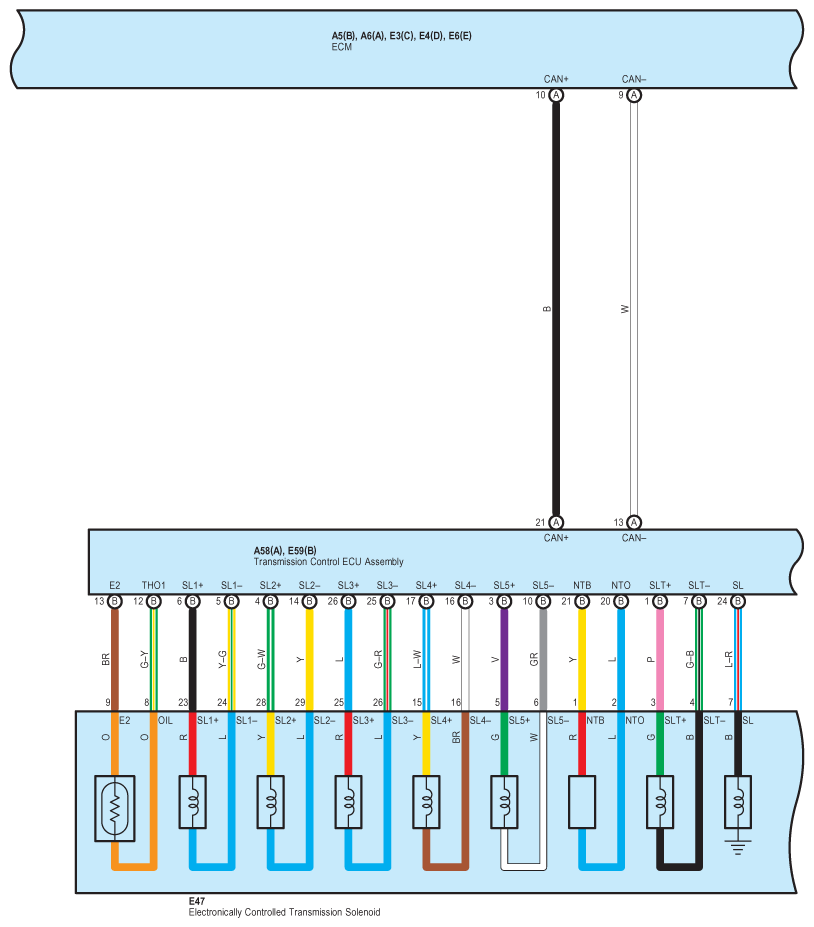

Fig 6: Cruise Control - Circuit Diagram (6 Of 10)

G07592356

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

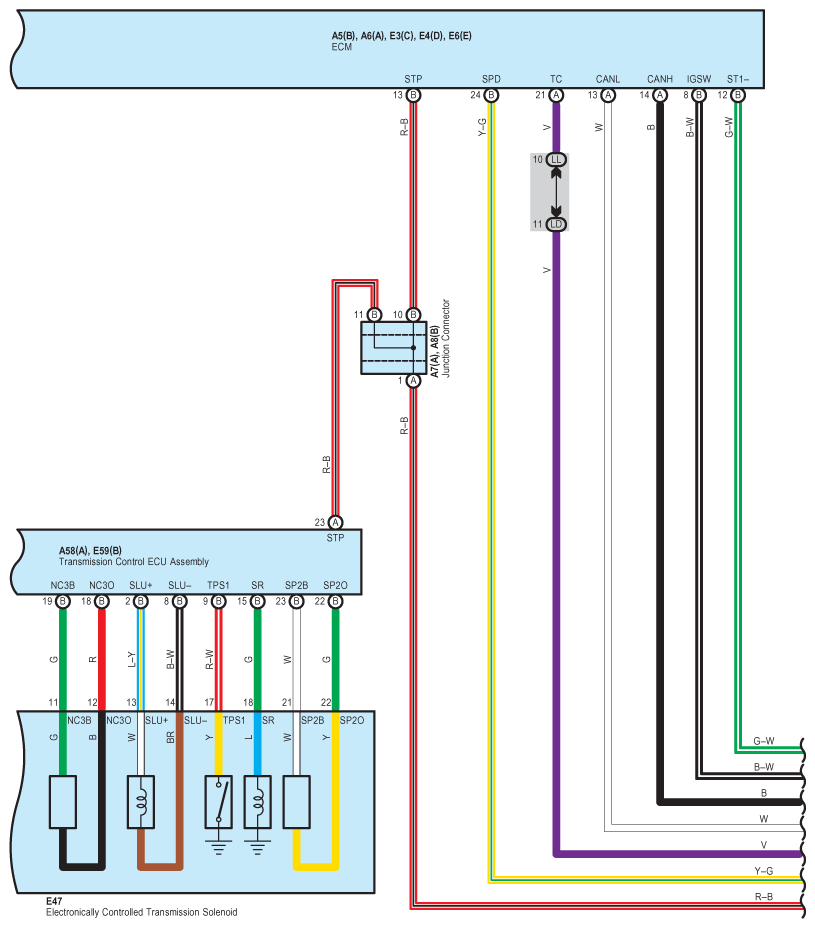

Fig 7: Cruise Control - Circuit Diagram (7 Of 10)

G07592357

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

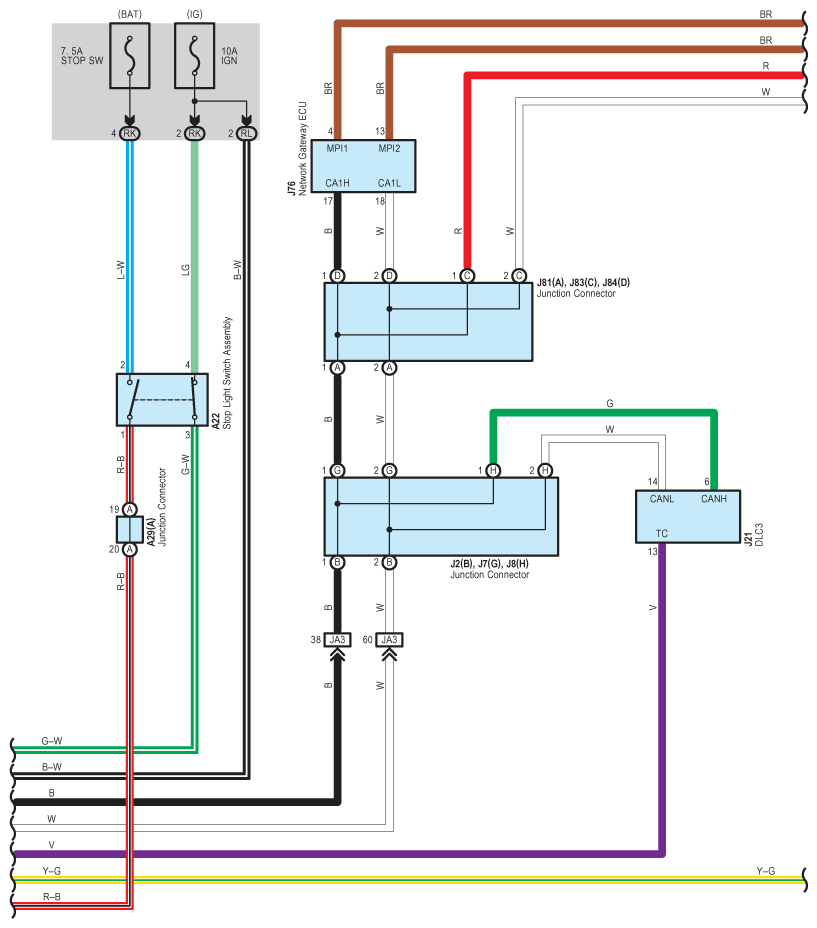

Fig 8: Cruise Control - Circuit Diagram (8 Of 10)

G07592358

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

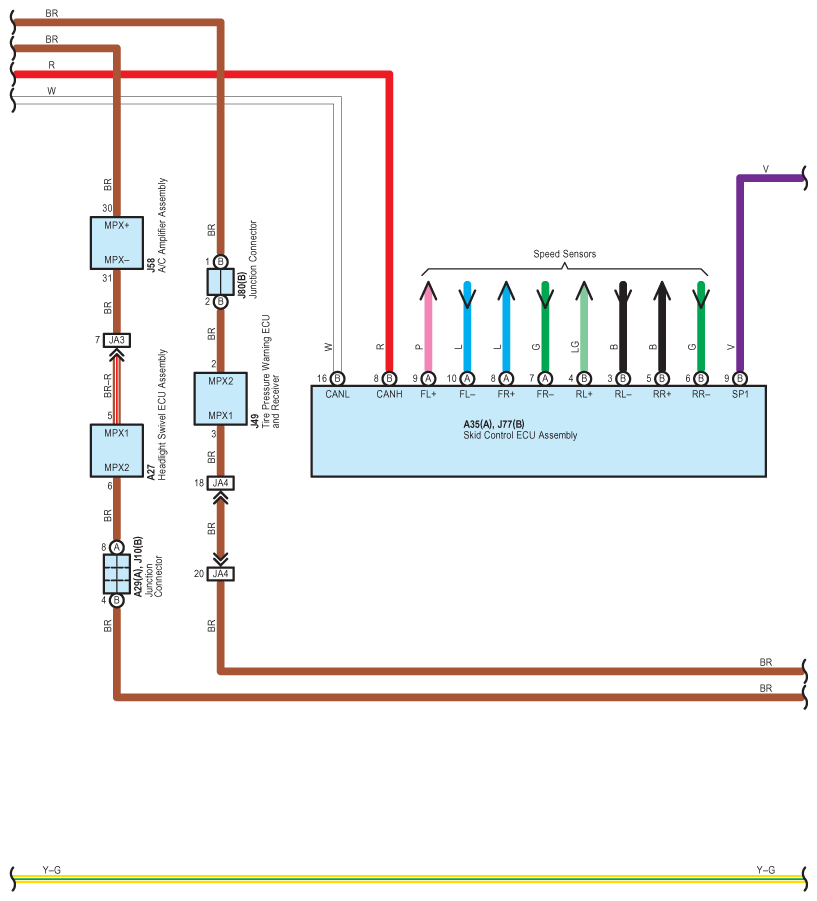

Fig 9: Cruise Control - Circuit Diagram (9 Of 10)

G07592359

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

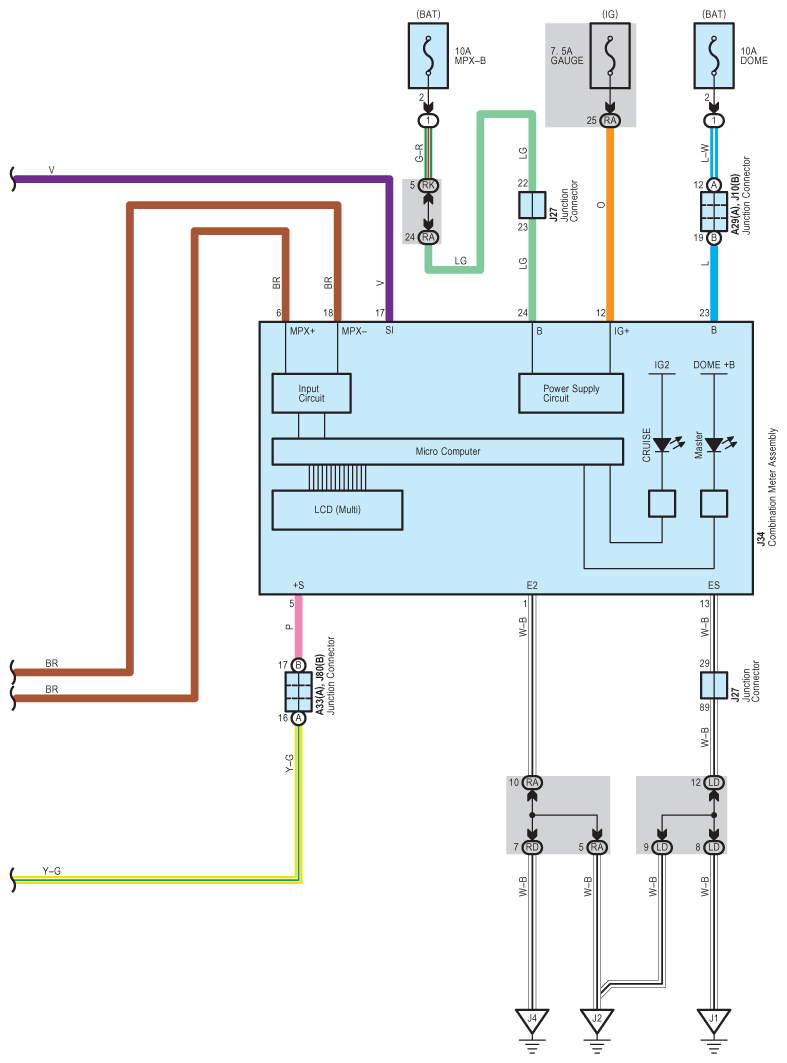

Fig 10: Cruise Control - Circuit Diagram (10 Of 10)

G07592360

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
