Dynamic Radar Cruise Control: Notes

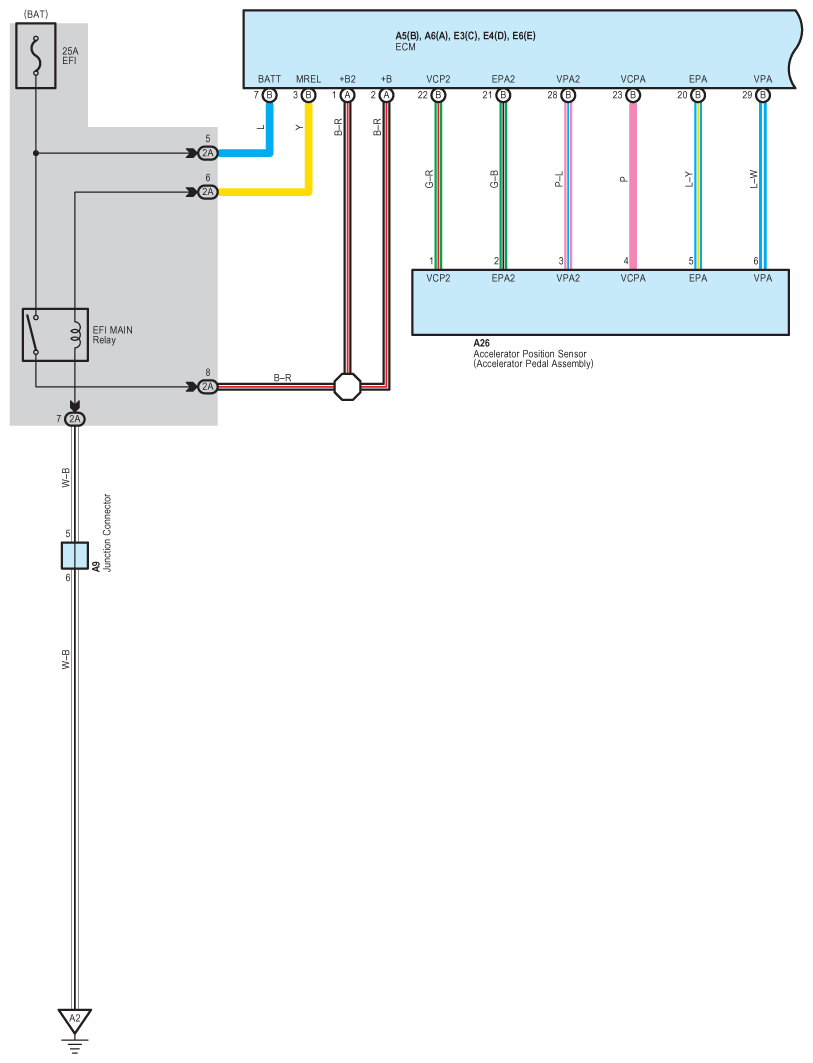

Fig 1: Dynamic Radar Cruise Control - Circuit Diagram (1 Of 20)

G07592331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

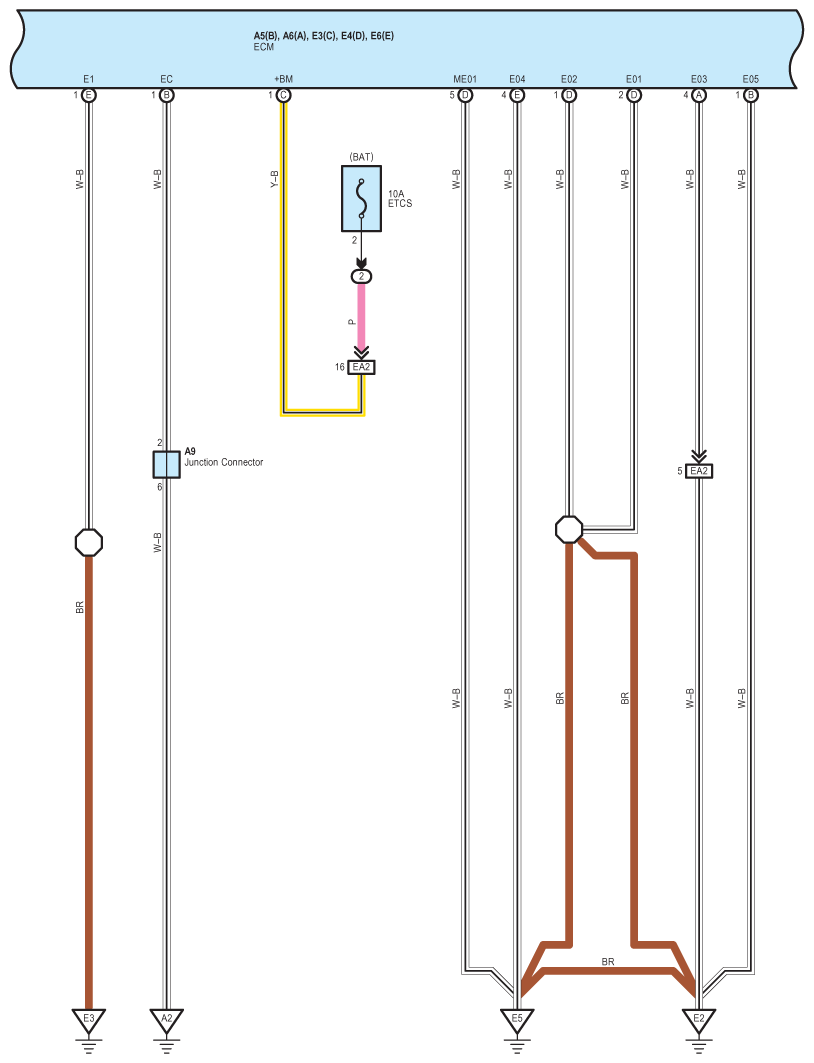

Fig 2: Dynamic Radar Cruise Control - Circuit Diagram (2 Of 20)

G07592332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

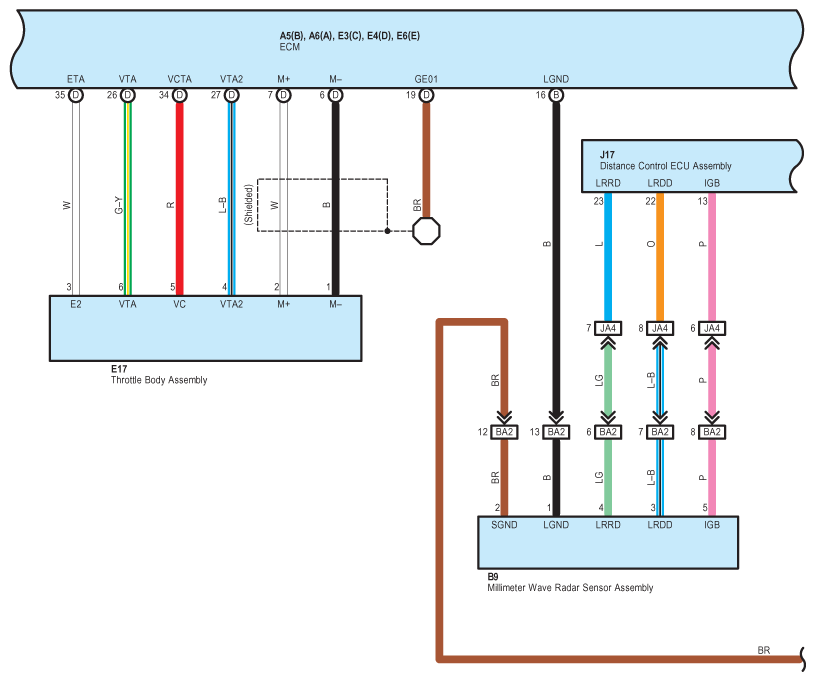

Fig 3: Dynamic Radar Cruise Control - Circuit Diagram (3 Of 20)

G07592333

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

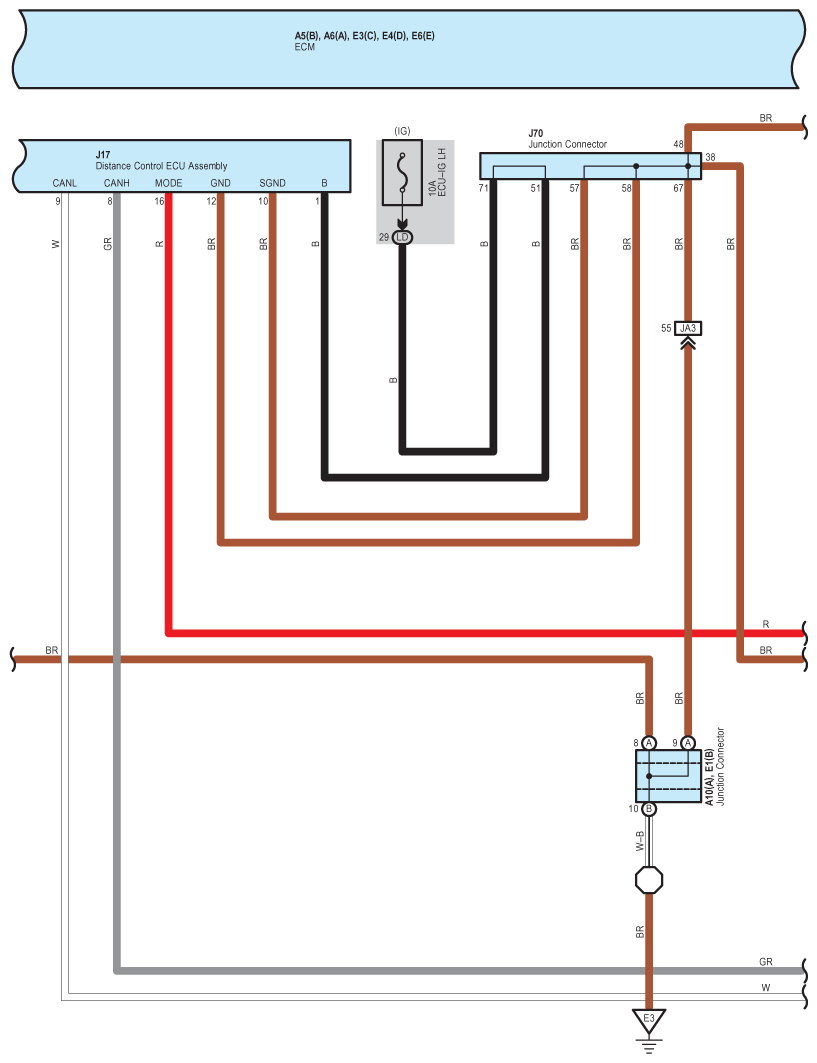

Fig 4: Dynamic Radar Cruise Control - Circuit Diagram (4 Of 20)

G07592334

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dynamic Radar Cruise Control - Circuit Diagram (5 Of 20)

G07592335

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

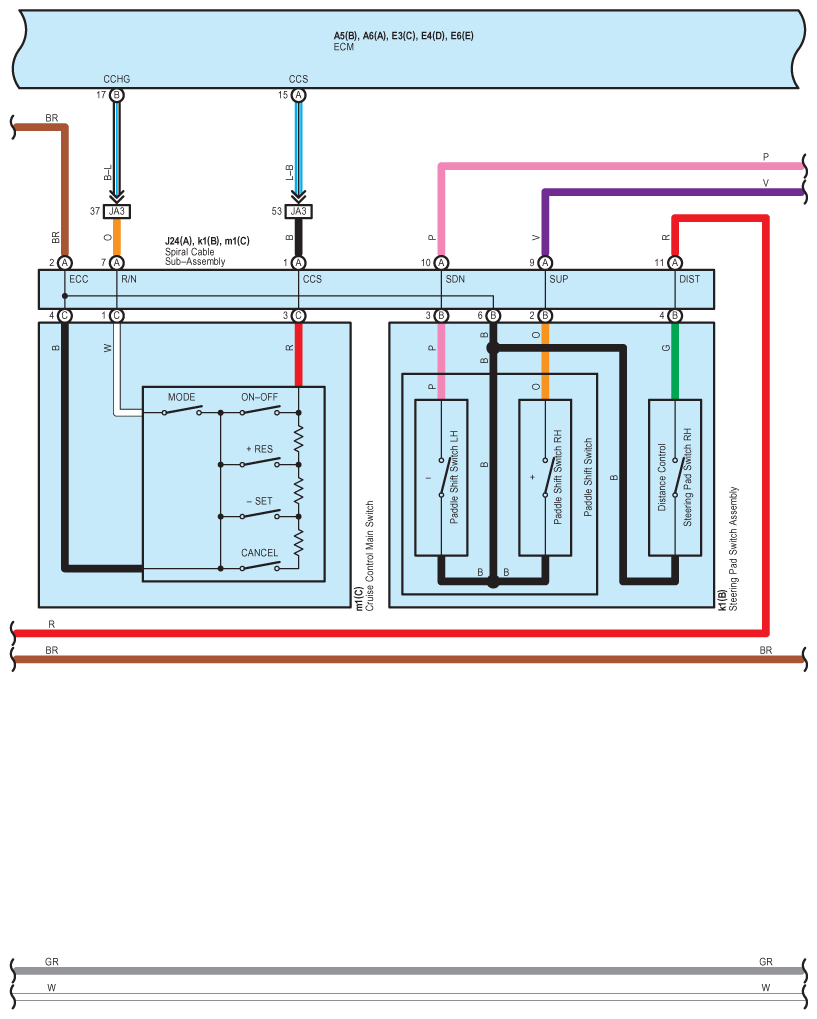

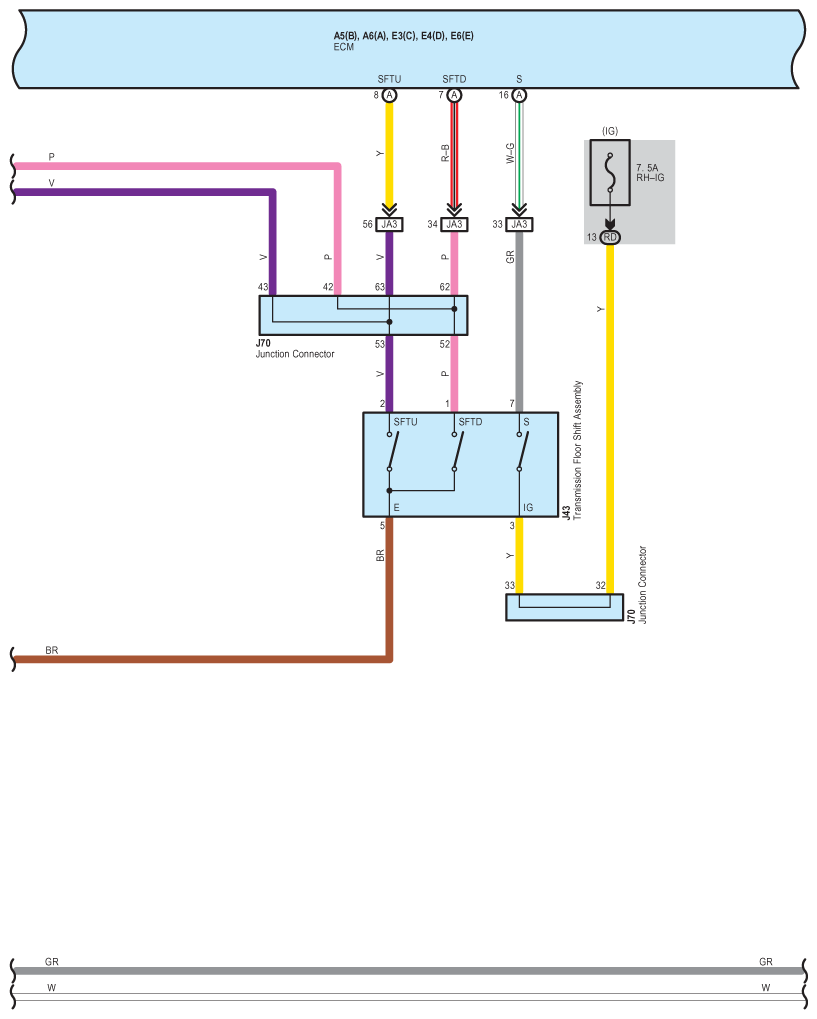

Fig 6: Dynamic Radar Cruise Control - Circuit Diagram (6 Of 20)

G07592336

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

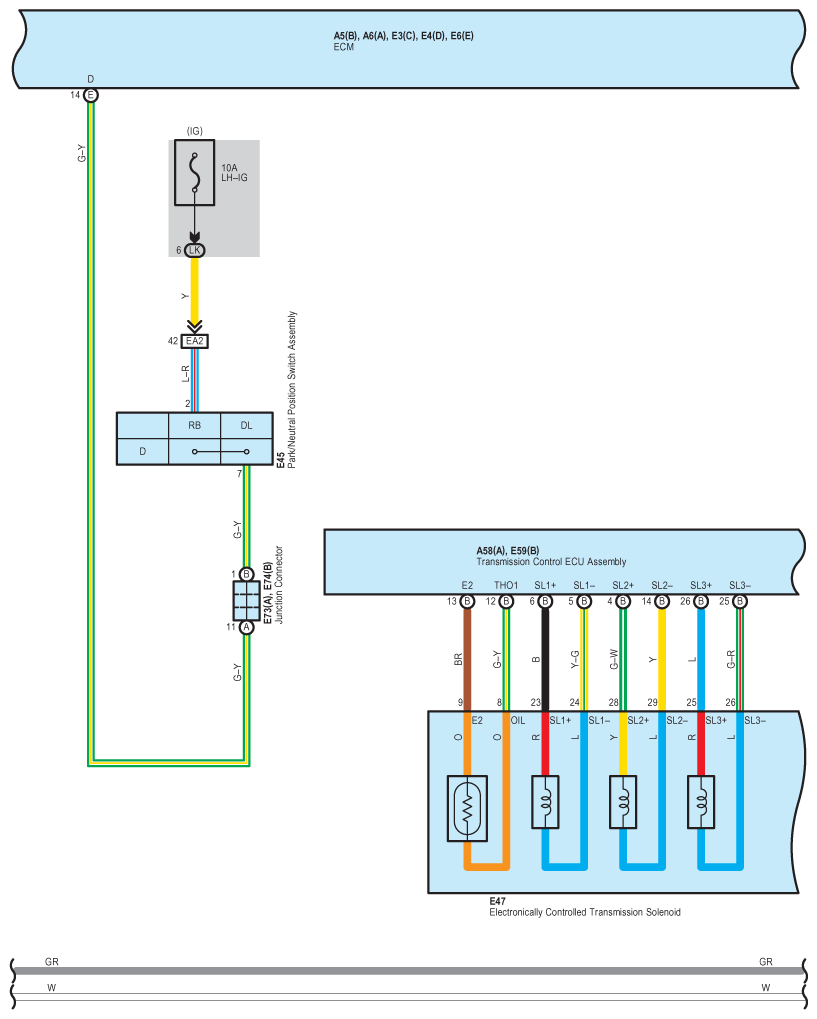

Fig 7: Dynamic Radar Cruise Control - Circuit Diagram (7 Of 20)

G07592337

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

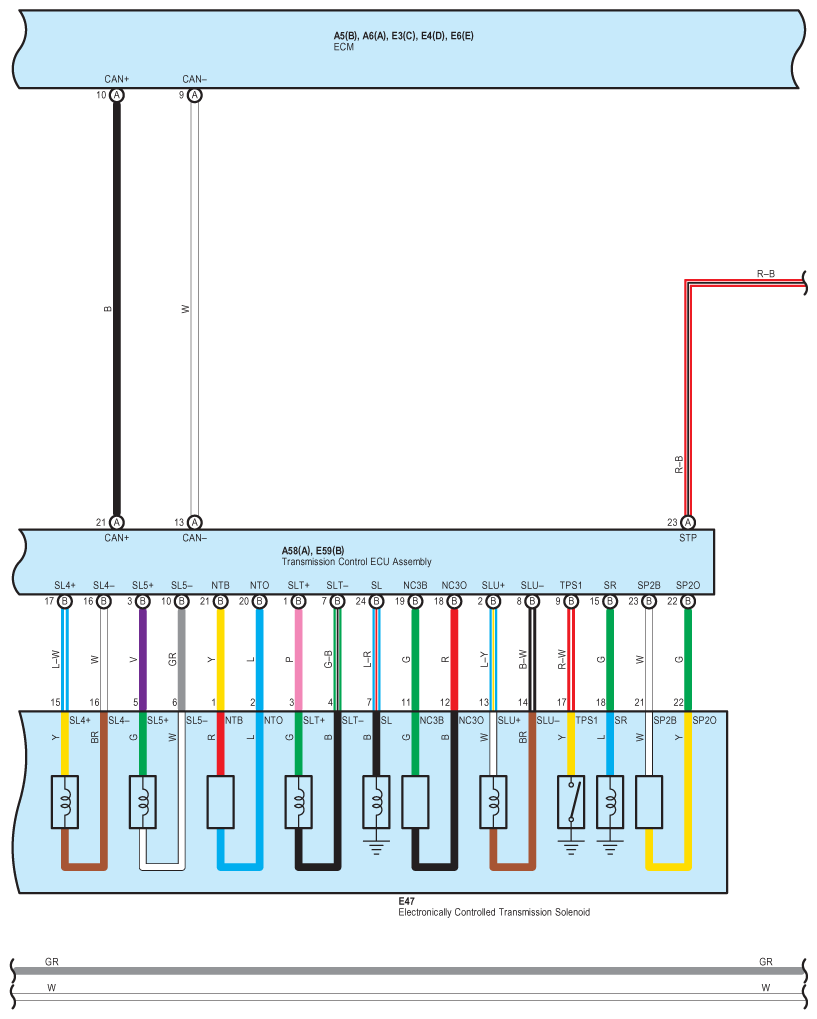

Fig 8: Dynamic Radar Cruise Control - Circuit Diagram (8 Of 20)

G07592338

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

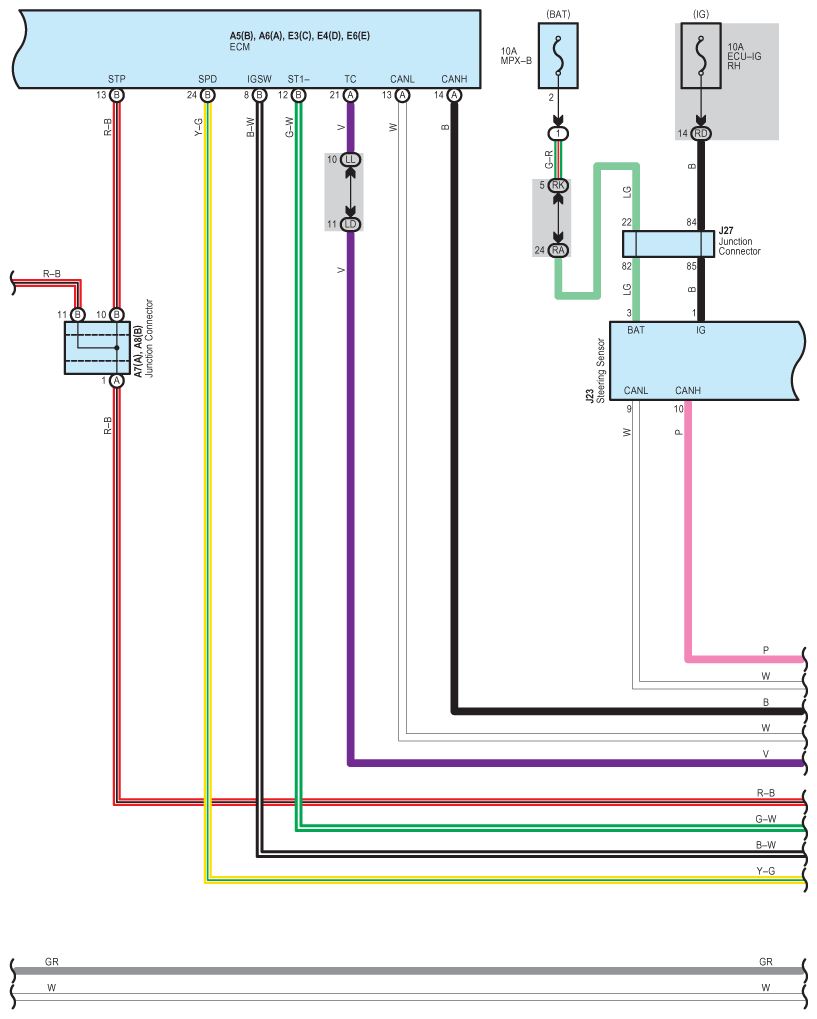

Fig 9: Dynamic Radar Cruise Control - Circuit Diagram (9 Of 20)

G07592339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

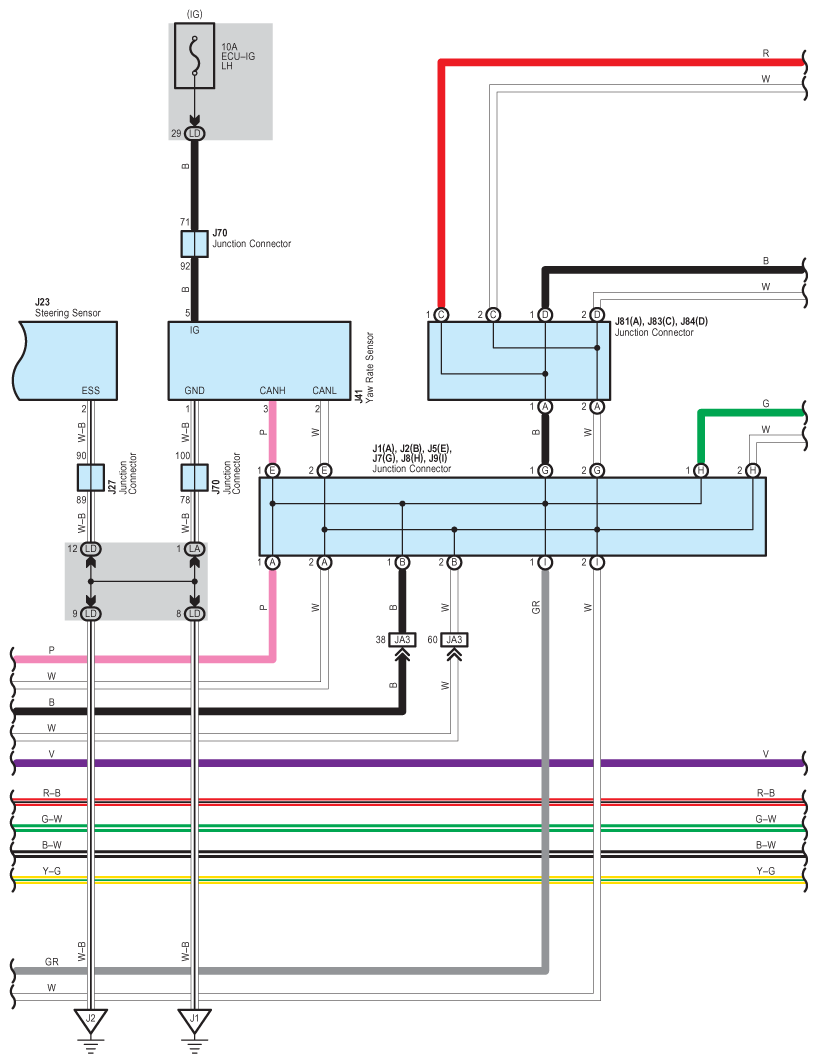

Fig 10: Dynamic Radar Cruise Control - Circuit Diagram (10 Of 20)

G07592340

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

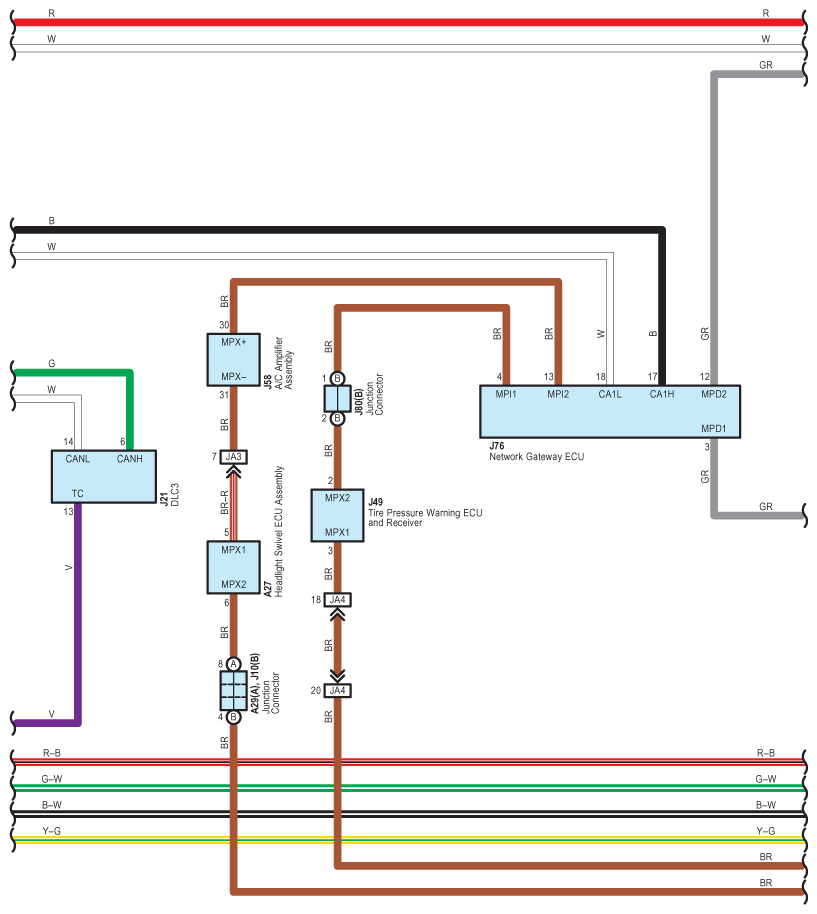

Fig 11: Dynamic Radar Cruise Control - Circuit Diagram (11 Of 20)

G07592341

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

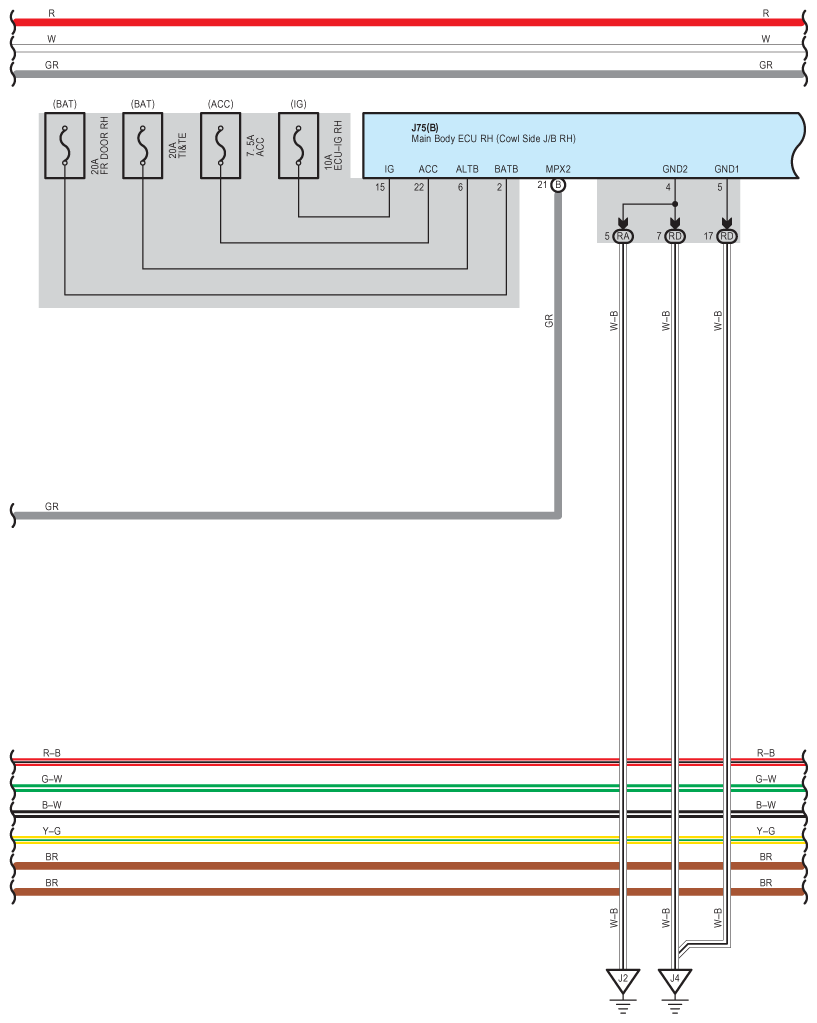

Fig 12: Dynamic Radar Cruise Control - Circuit Diagram (12 Of 20)

G07592342

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

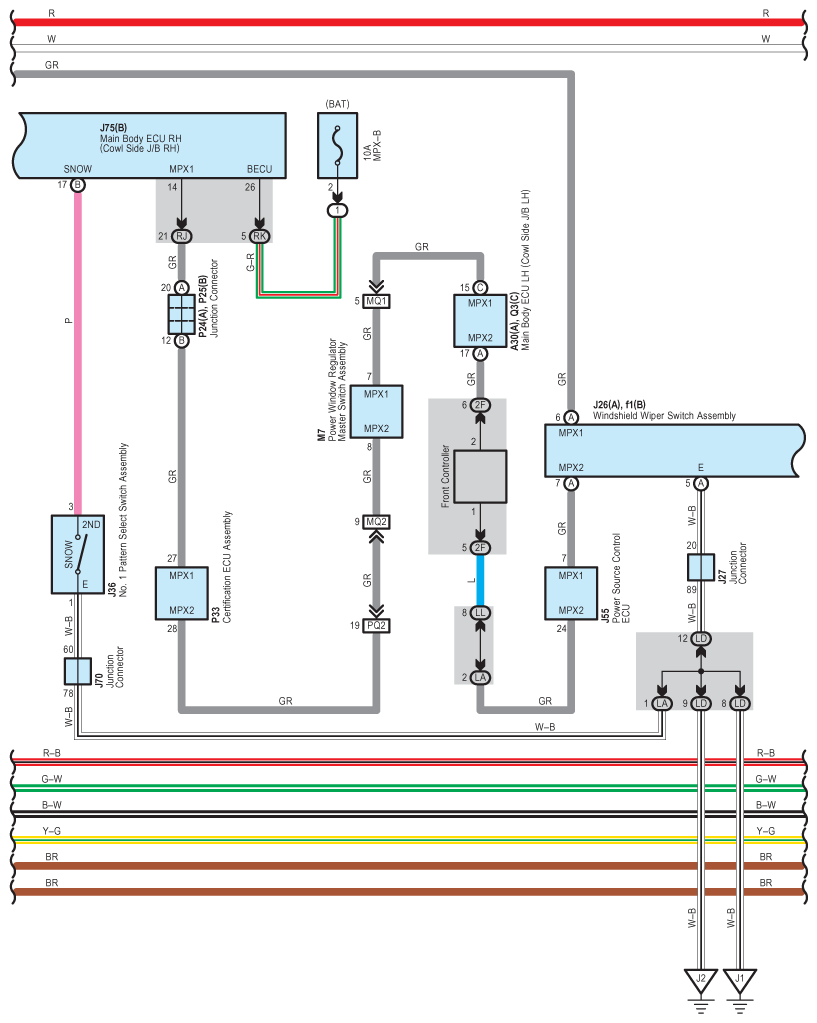

Fig 13: Dynamic Radar Cruise Control - Circuit Diagram (13 Of 20)

G07592343

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Dynamic Radar Cruise Control - Circuit Diagram (14 Of 20)

G07592344

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

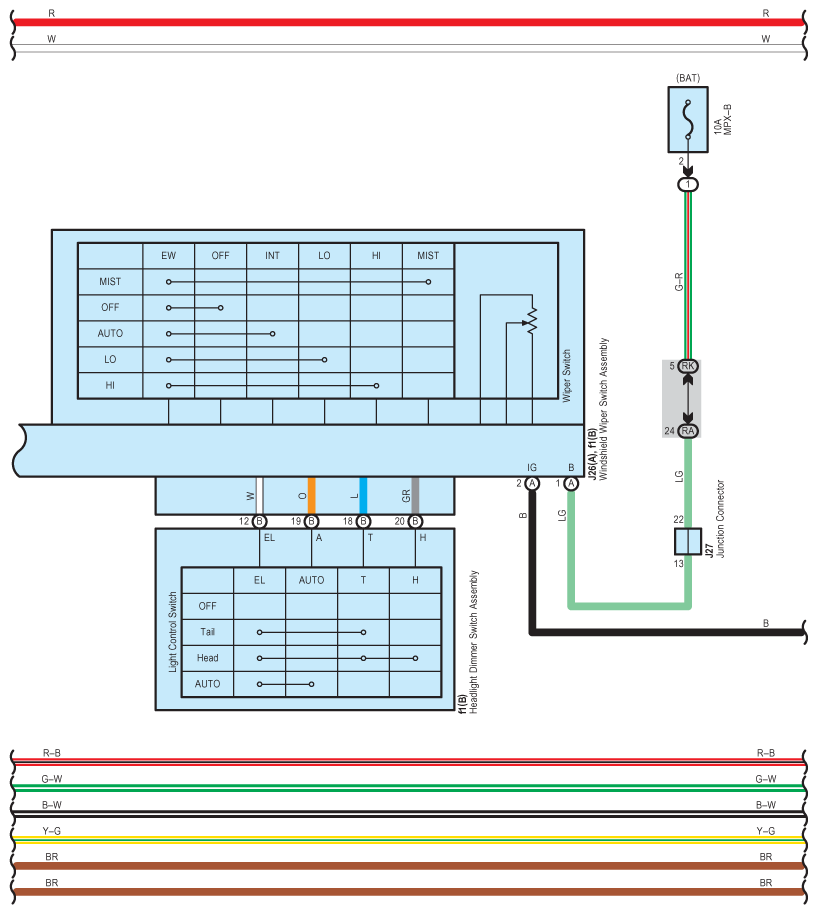

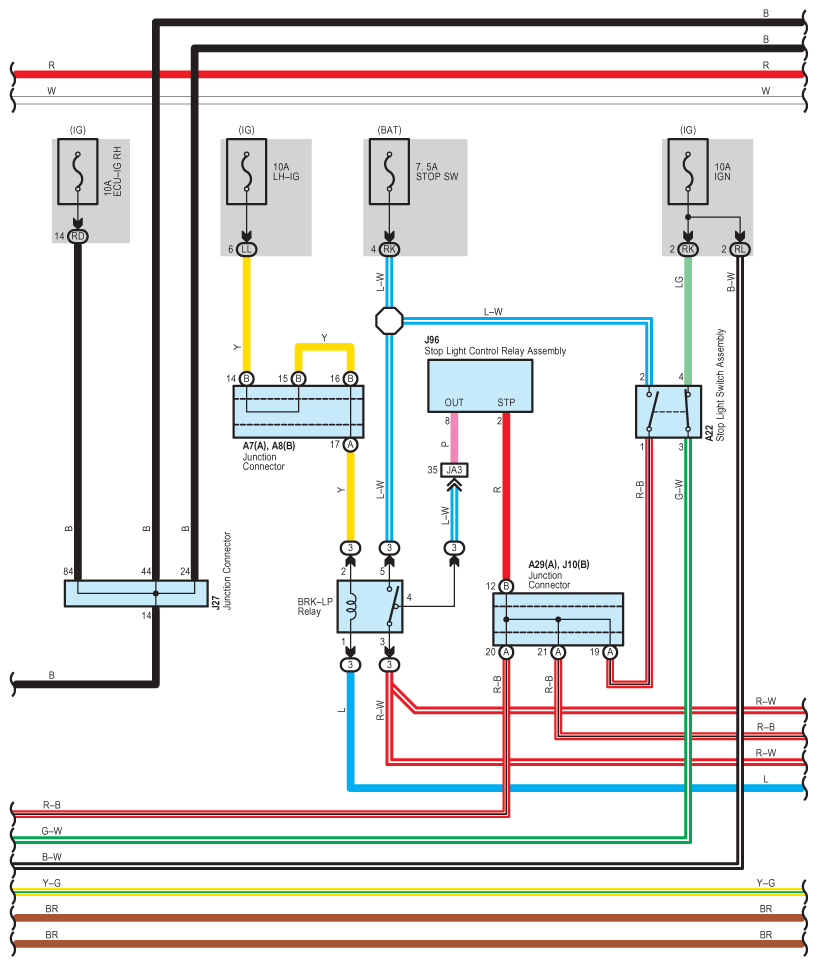

Fig 15: Dynamic Radar Cruise Control - Circuit Diagram (15 Of 20)

G07592345

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

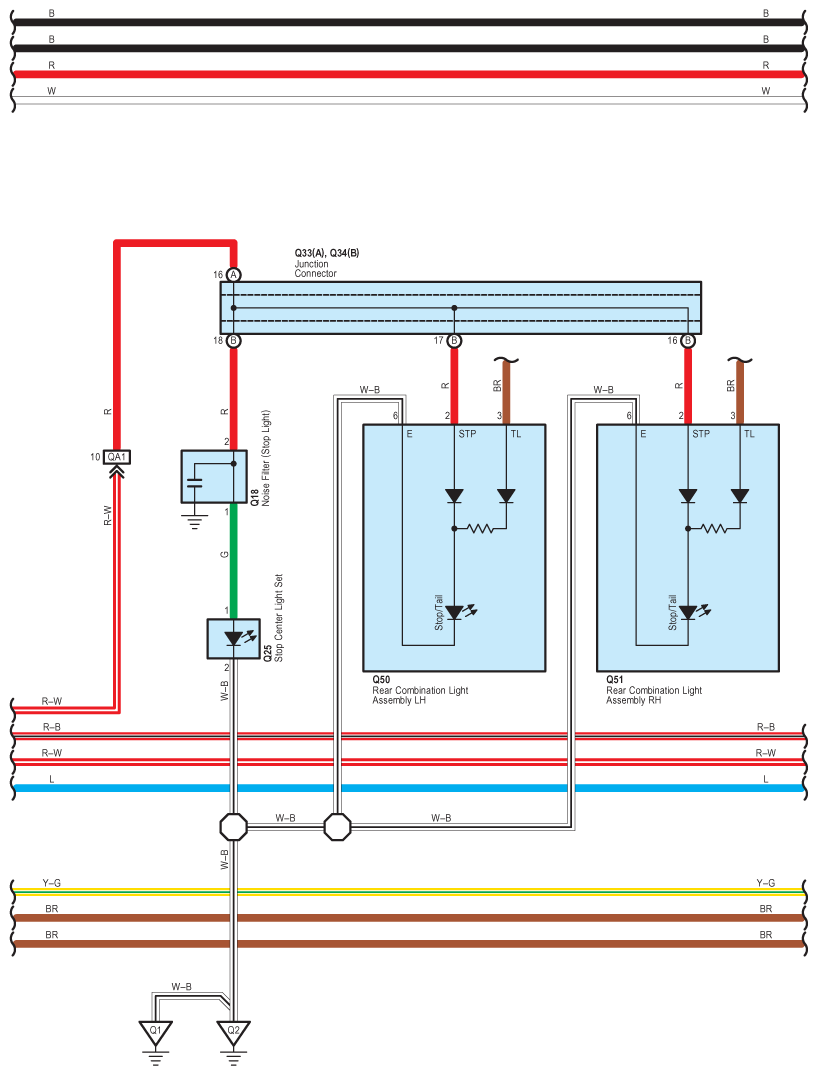

Fig 16: Dynamic Radar Cruise Control - Circuit Diagram (16 Of 20)

G07592346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

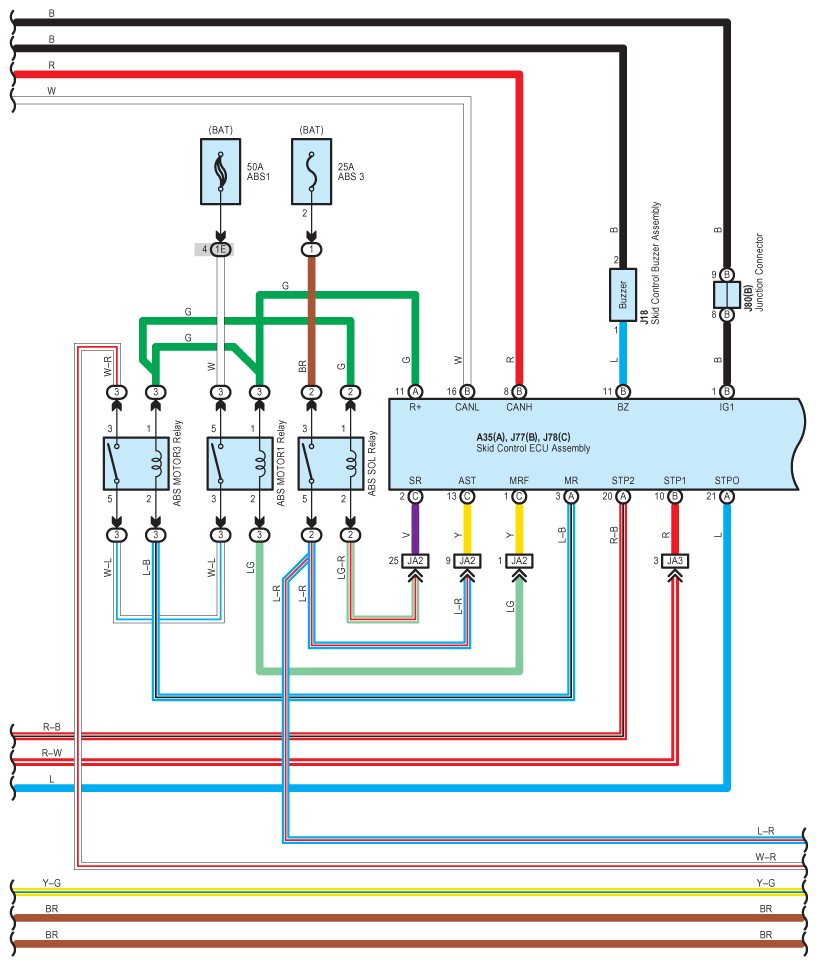

Fig 17: Dynamic Radar Cruise Control - Circuit Diagram (17 Of 20)

G07592347

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

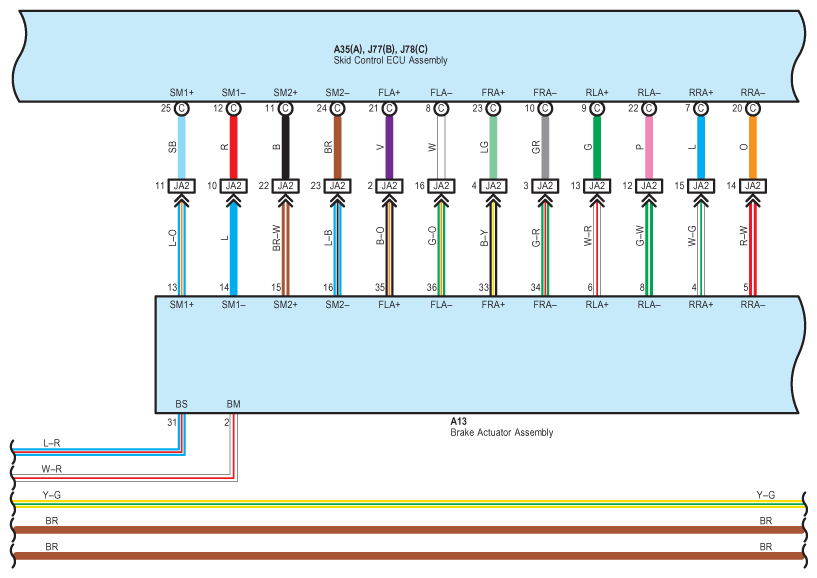

Fig 18: Dynamic Radar Cruise Control - Circuit Diagram (18 Of 20)

G07592348

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

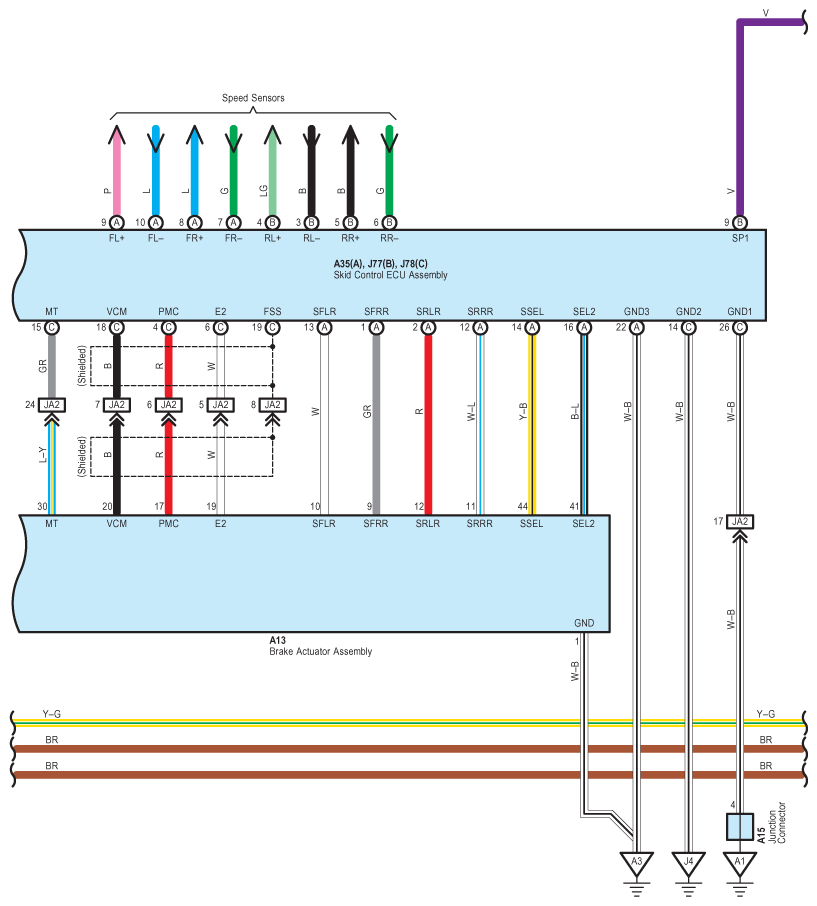

Fig 19: Dynamic Radar Cruise Control - Circuit Diagram (19 Of 20)

G07592349

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

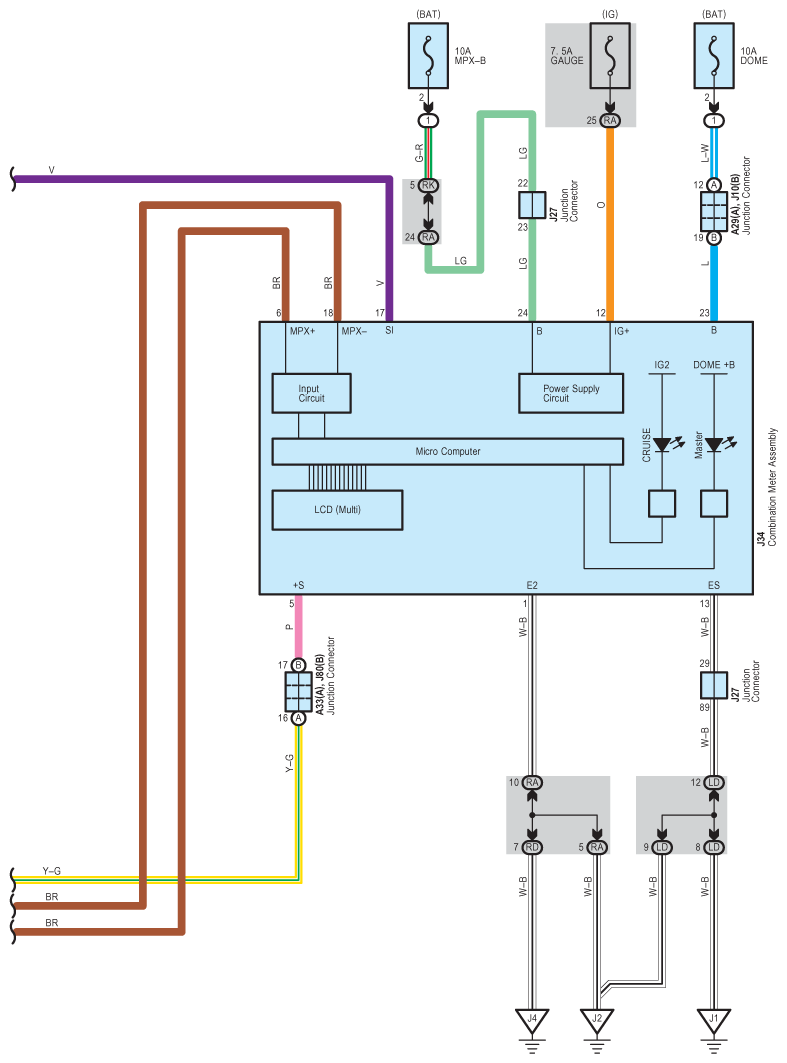

Fig 20: Dynamic Radar Cruise Control - Circuit Diagram (20 Of 20)

G07592350

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
