Engine Control, ECT and A/T Indicator: Notes

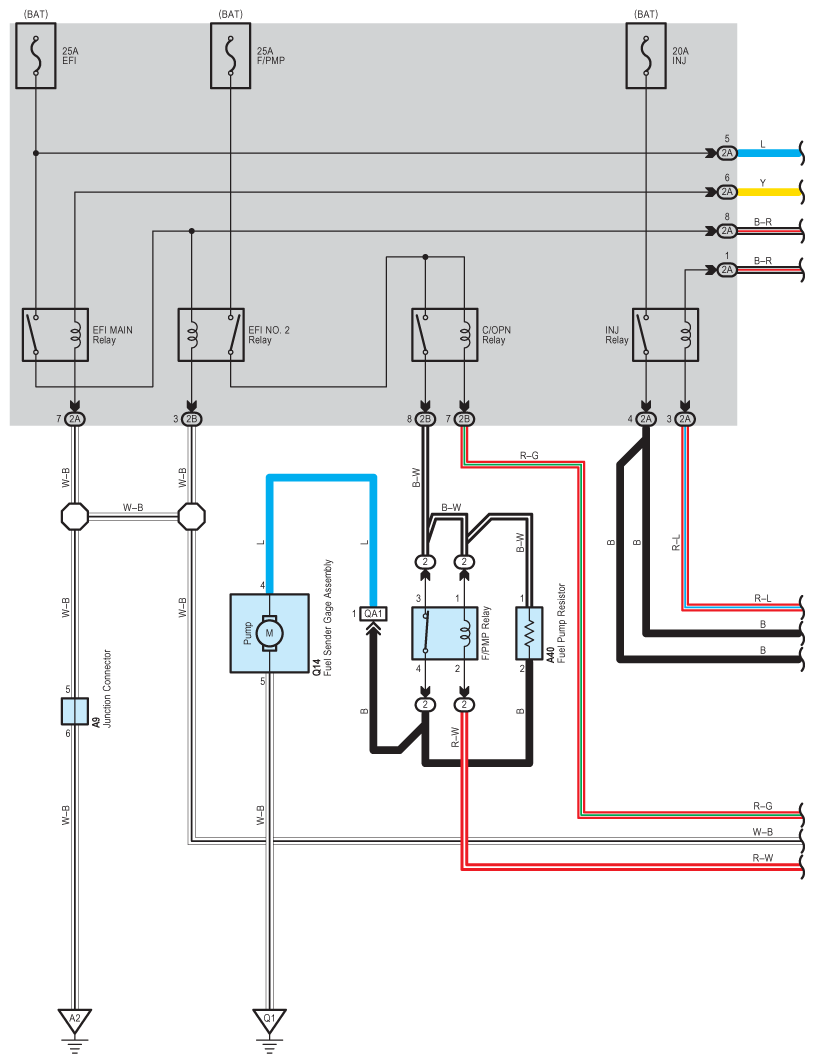

Fig 1: Engine Control, ECT And A/T Indicator - Circuit Diagram (1 Of 30)

G07592200

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

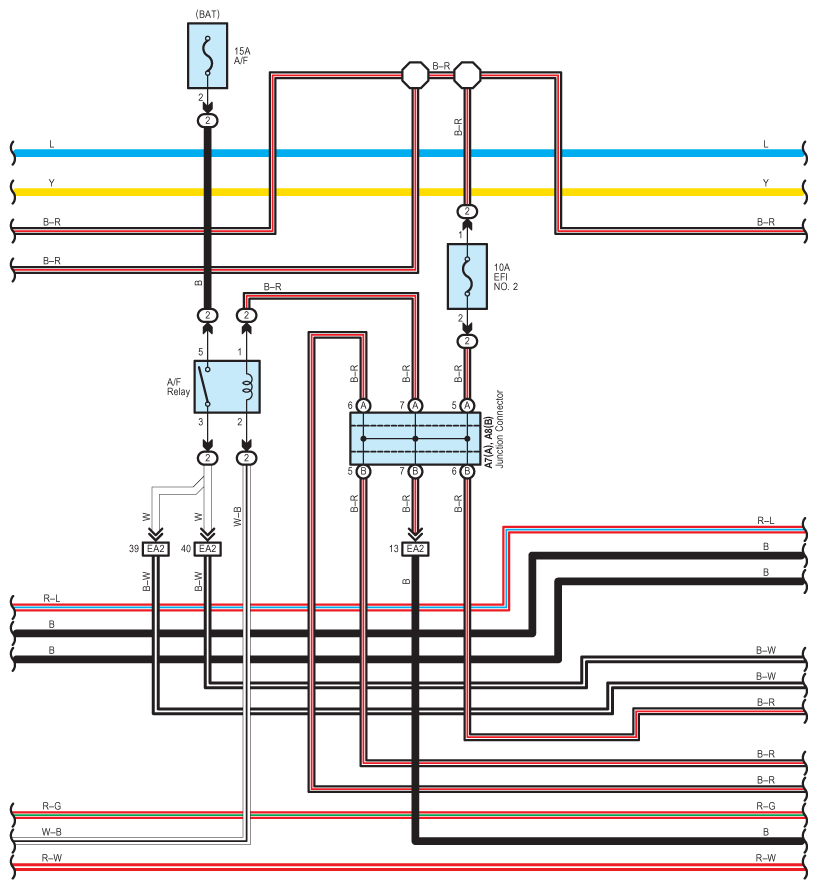

Fig 2: Engine Control, ECT And A/T Indicator - Circuit Diagram (2 Of 30)

G07592201

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

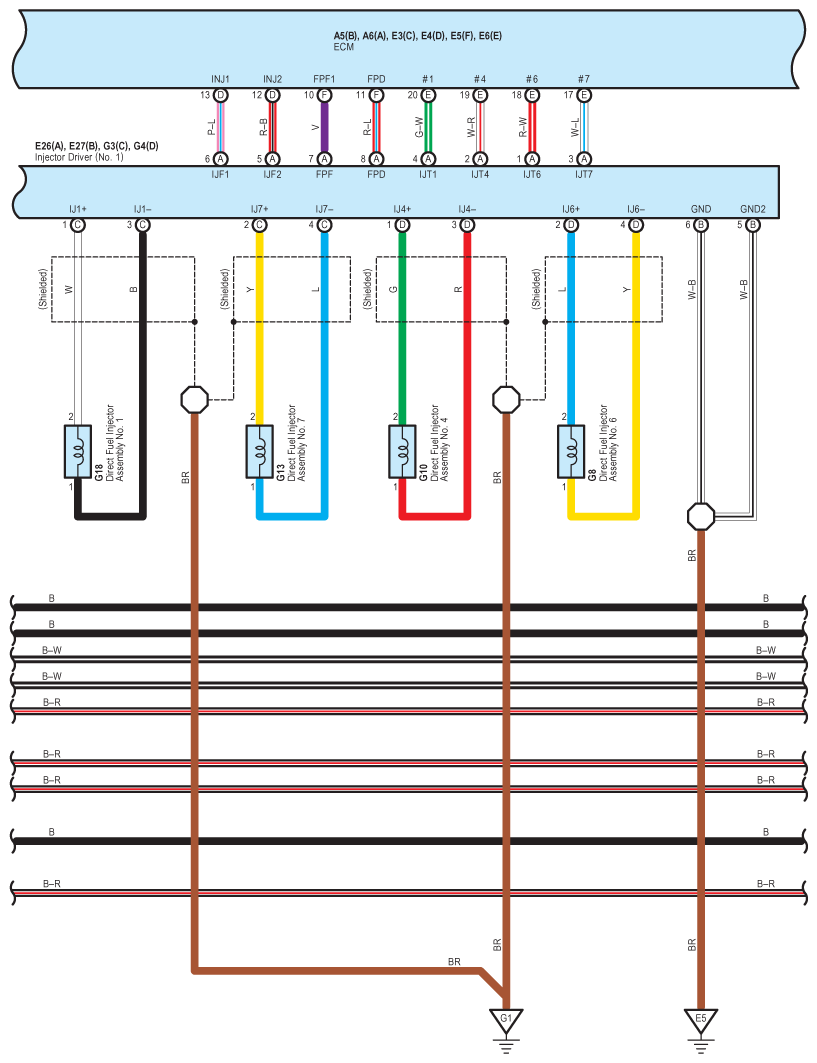

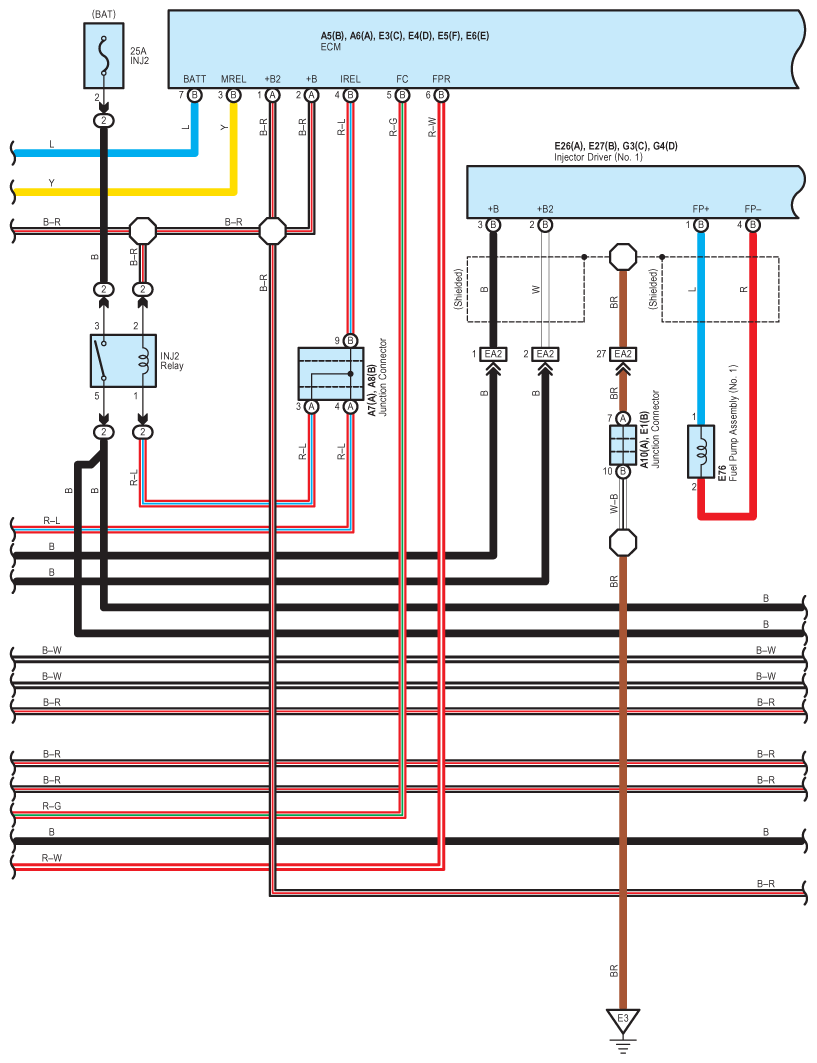

Fig 3: Engine Control, ECT And A/T Indicator - Circuit Diagram (3 Of 30)

G07592202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

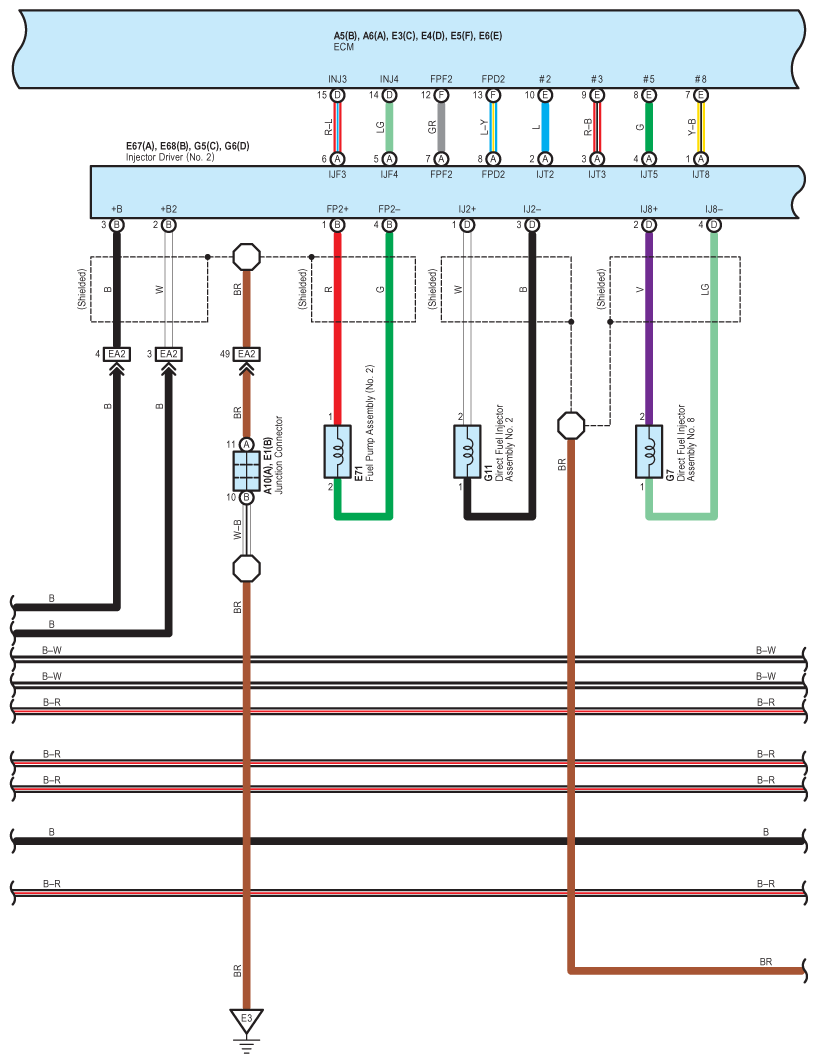

Fig 4: Engine Control, ECT And A/T Indicator - Circuit Diagram (4 Of 30)

G07592203

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Control, ECT And A/T Indicator - Circuit Diagram (5 Of 30)

G07592204

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

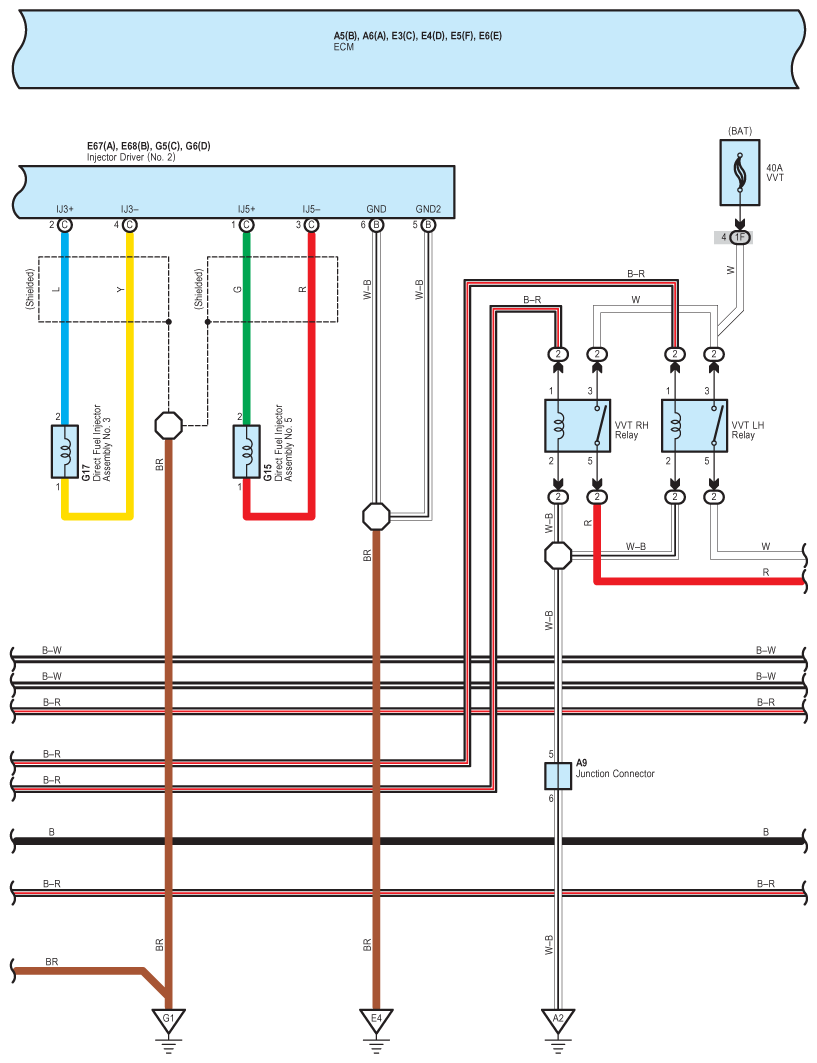

Fig 6: Engine Control, ECT And A/T Indicator - Circuit Diagram (6 Of 30)

G07592205

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

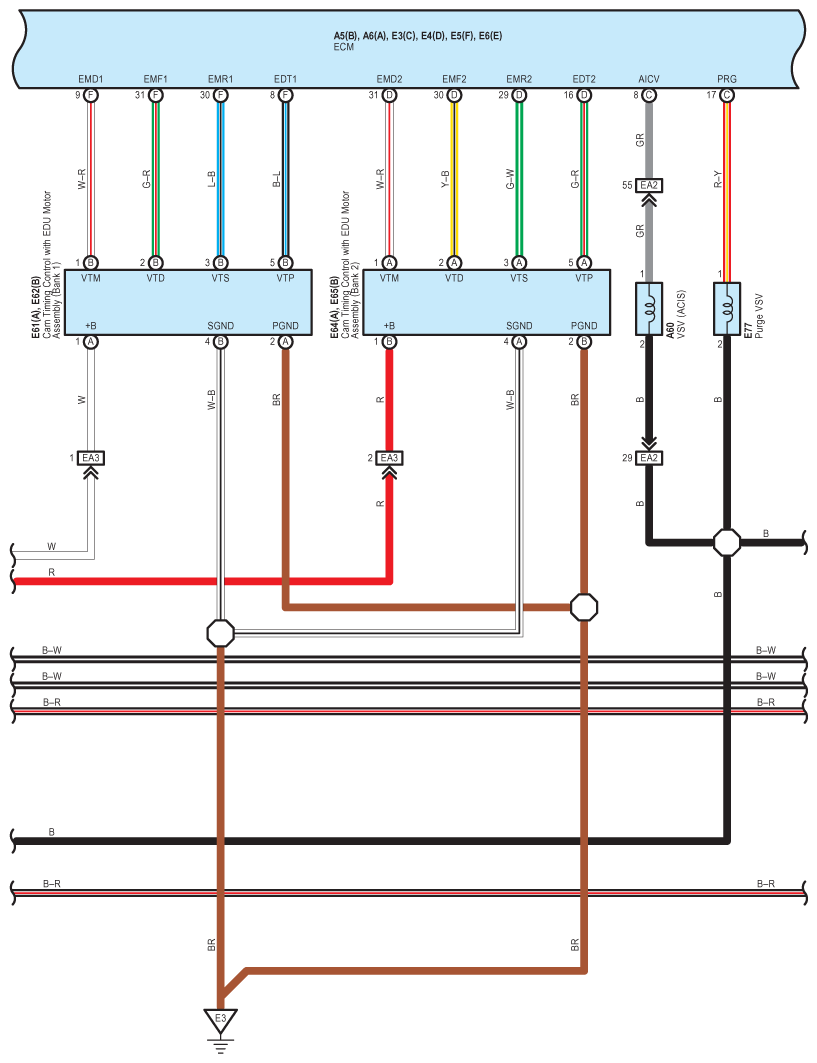

Fig 7: Engine Control, ECT And A/T Indicator - Circuit Diagram (7 Of 30)

G07592206

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

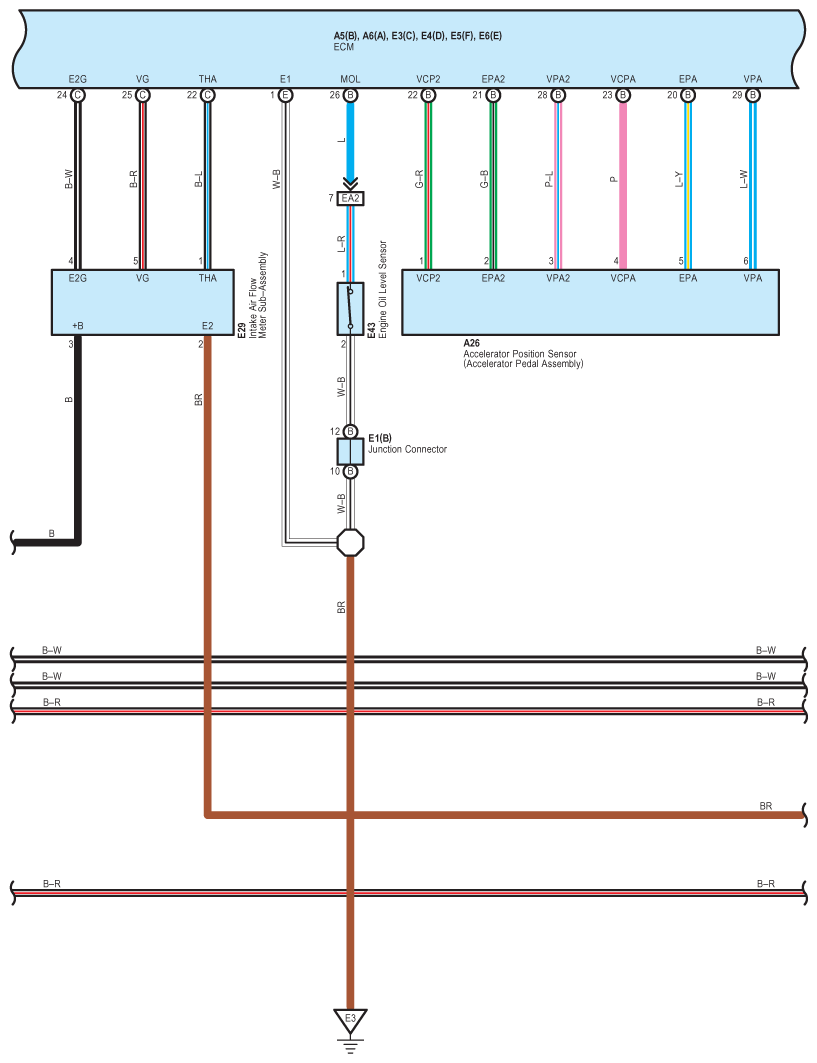

Fig 8: Engine Control, ECT And A/T Indicator - Circuit Diagram (8 Of 30)

G07592207

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

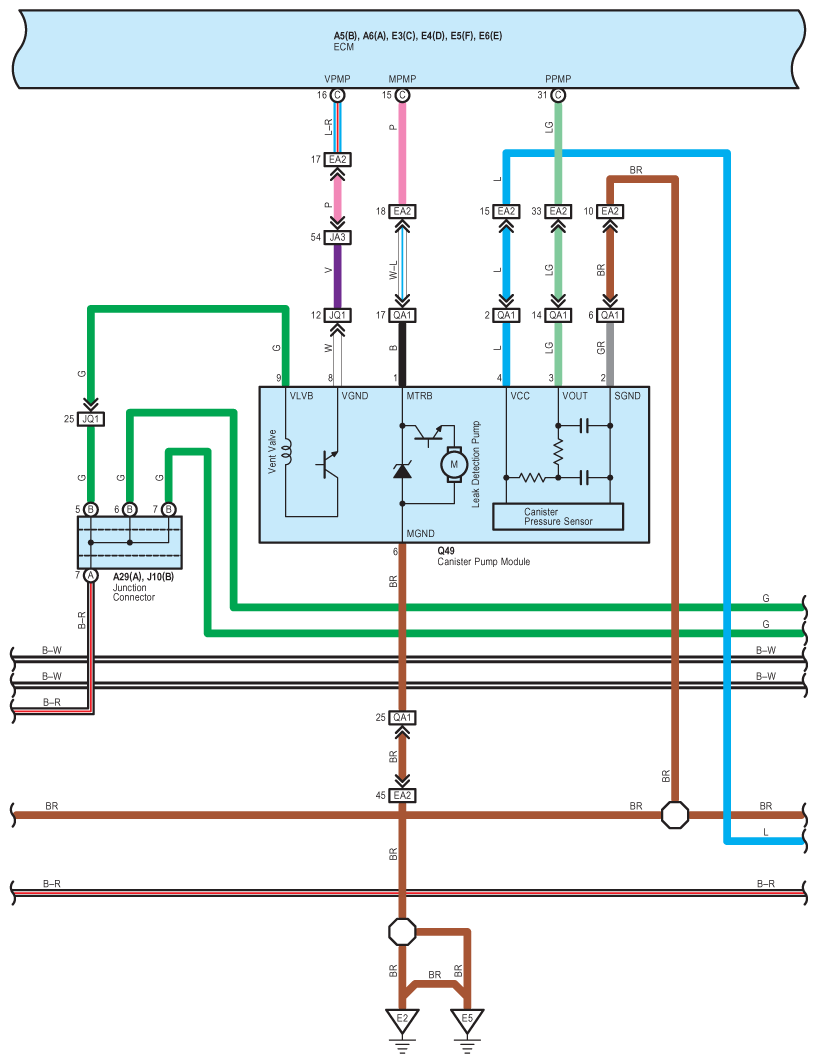

Fig 9: Engine Control, ECT And A/T Indicator - Circuit Diagram (9 Of 30)

G07592208

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

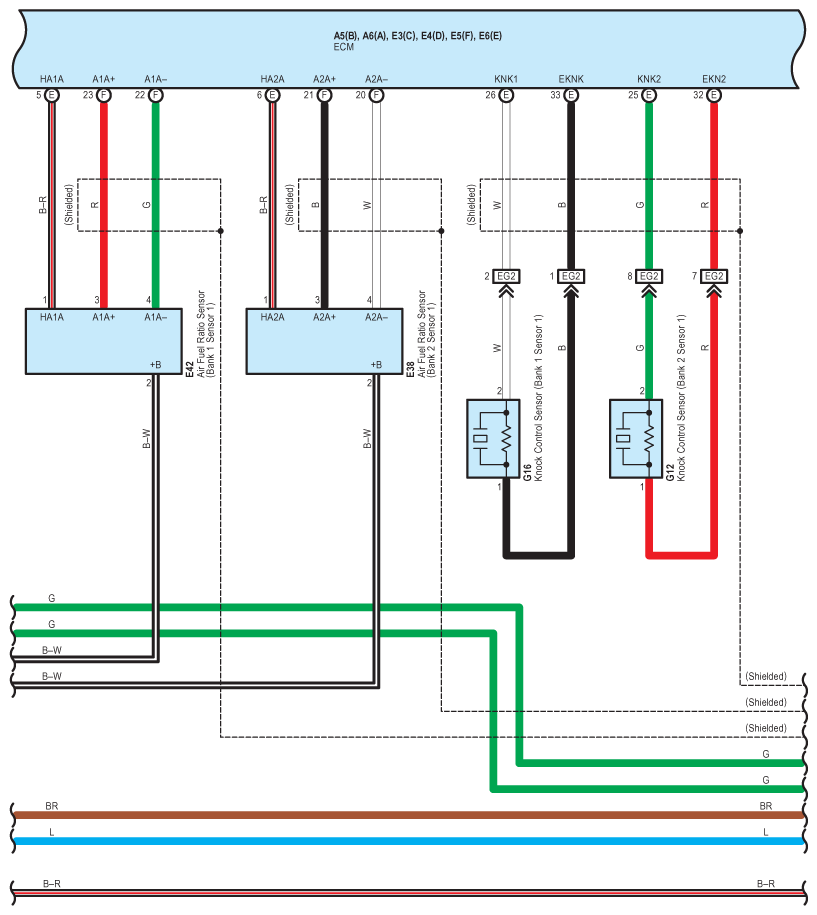

Fig 10: Engine Control, ECT And A/T Indicator - Circuit Diagram (10 Of 30)

G07592209

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

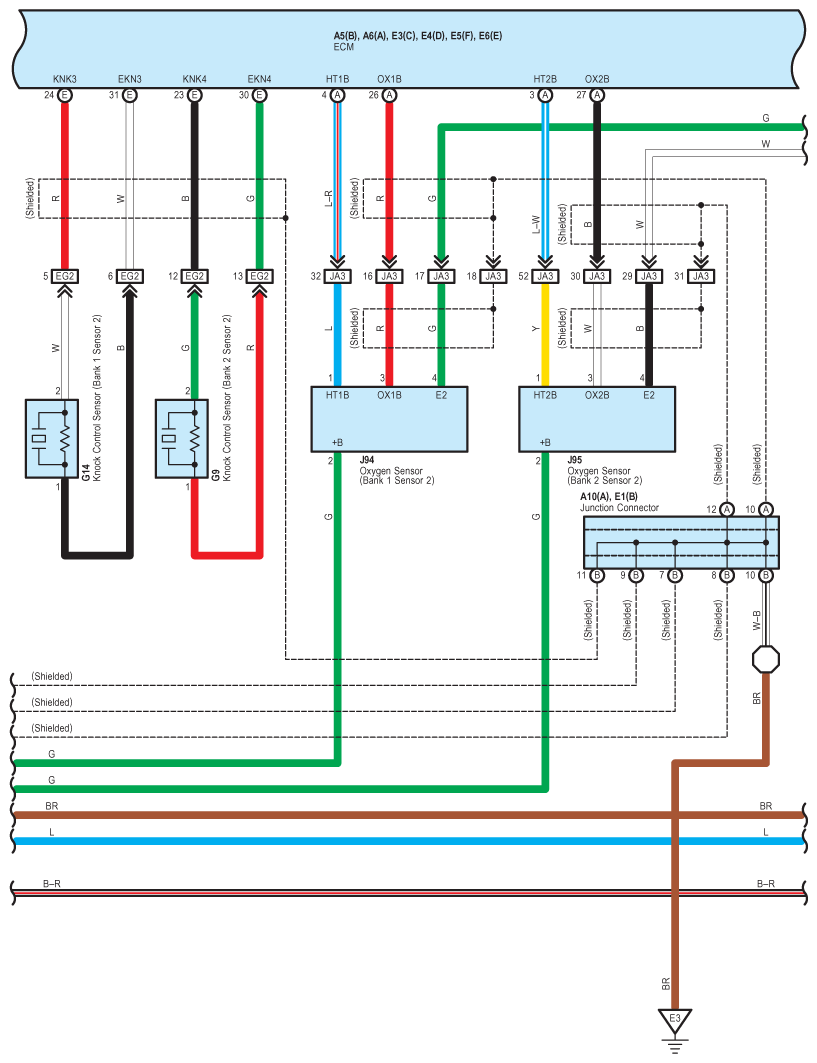

Fig 11: Engine Control, ECT And A/T Indicator - Circuit Diagram (11 Of 30)

G07592210

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

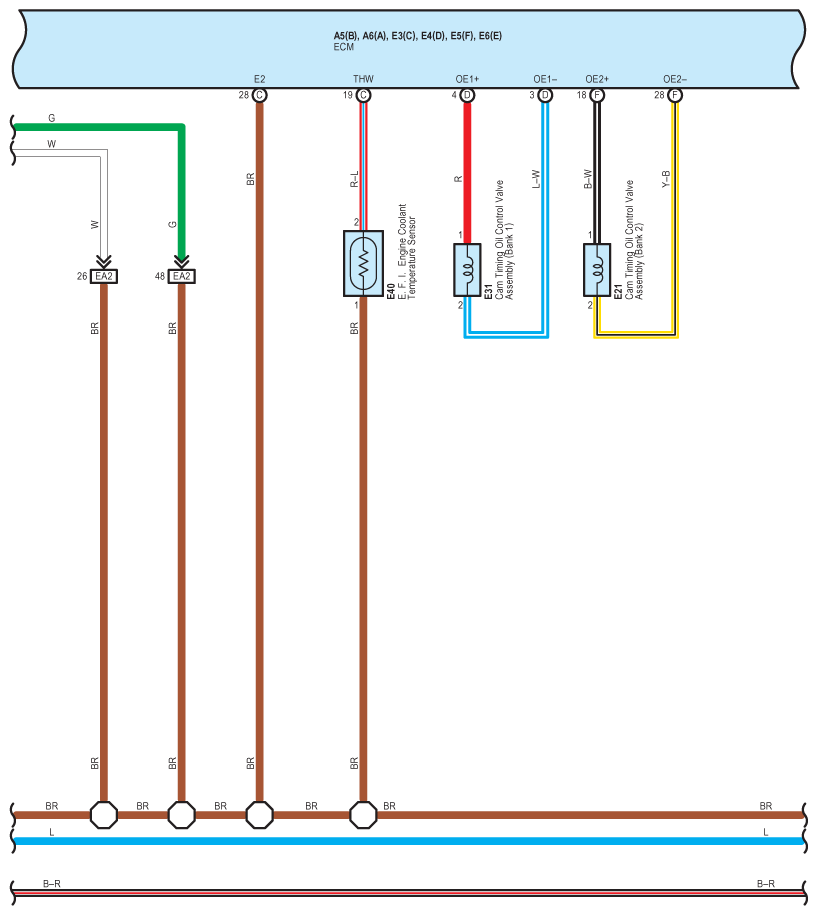

Fig 12: Engine Control, ECT And A/T Indicator - Circuit Diagram (12 Of 30)

G07592211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

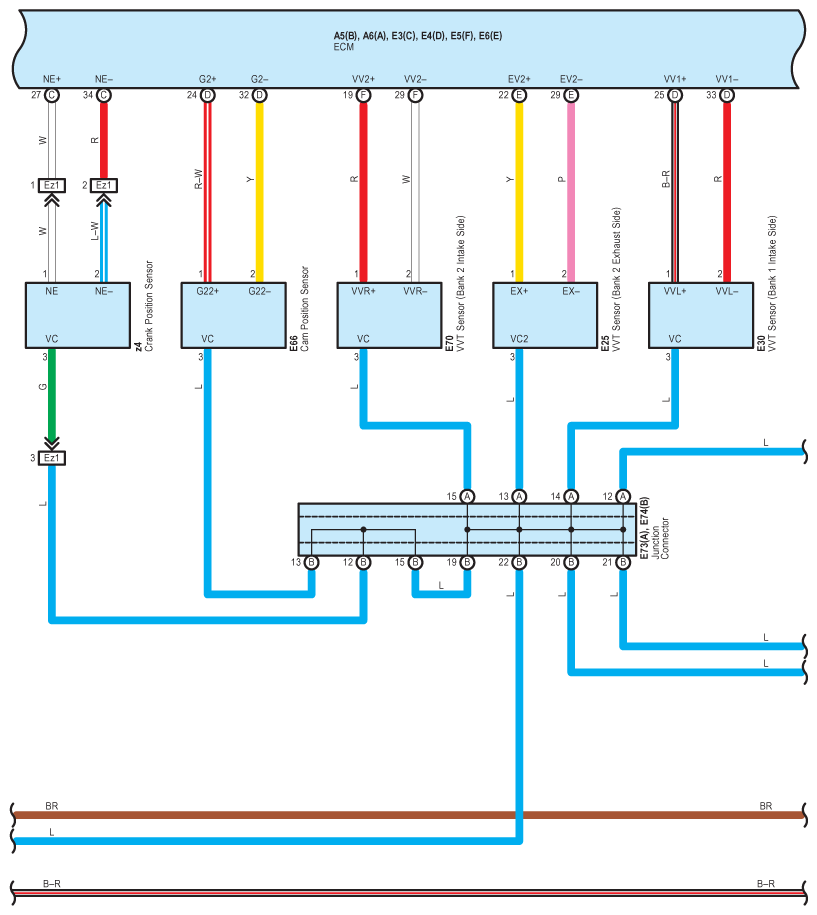

Fig 13: Engine Control, ECT And A/T Indicator - Circuit Diagram (13 Of 30)

G07592212

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

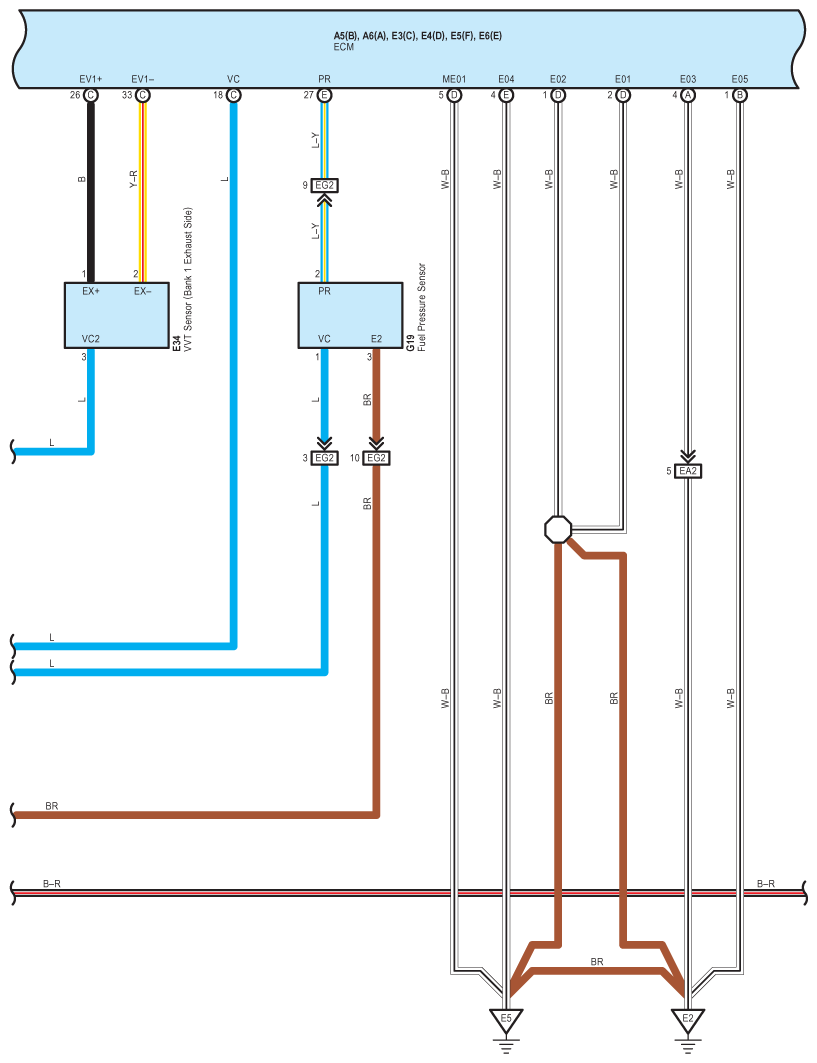

Fig 14: Engine Control, ECT And A/T Indicator - Circuit Diagram (14 Of 30)

G07592213

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

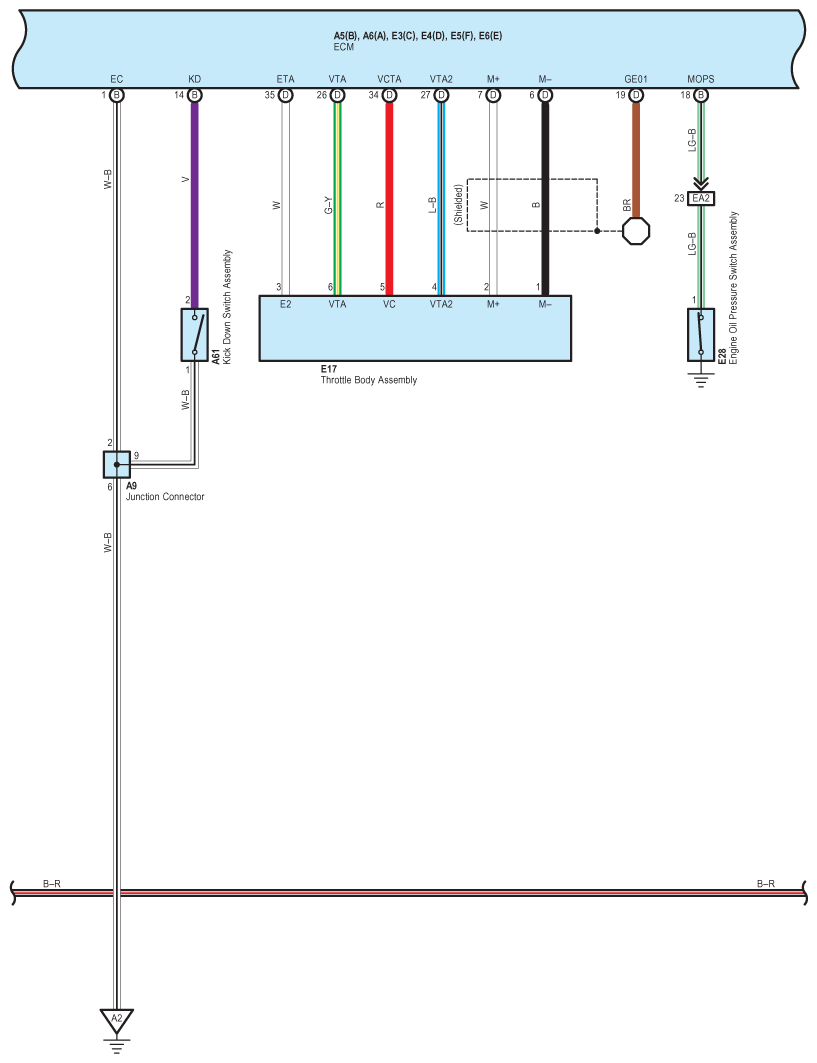

Fig 15: Engine Control, ECT And A/T Indicator - Circuit Diagram (15 Of 30)

G07592214

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

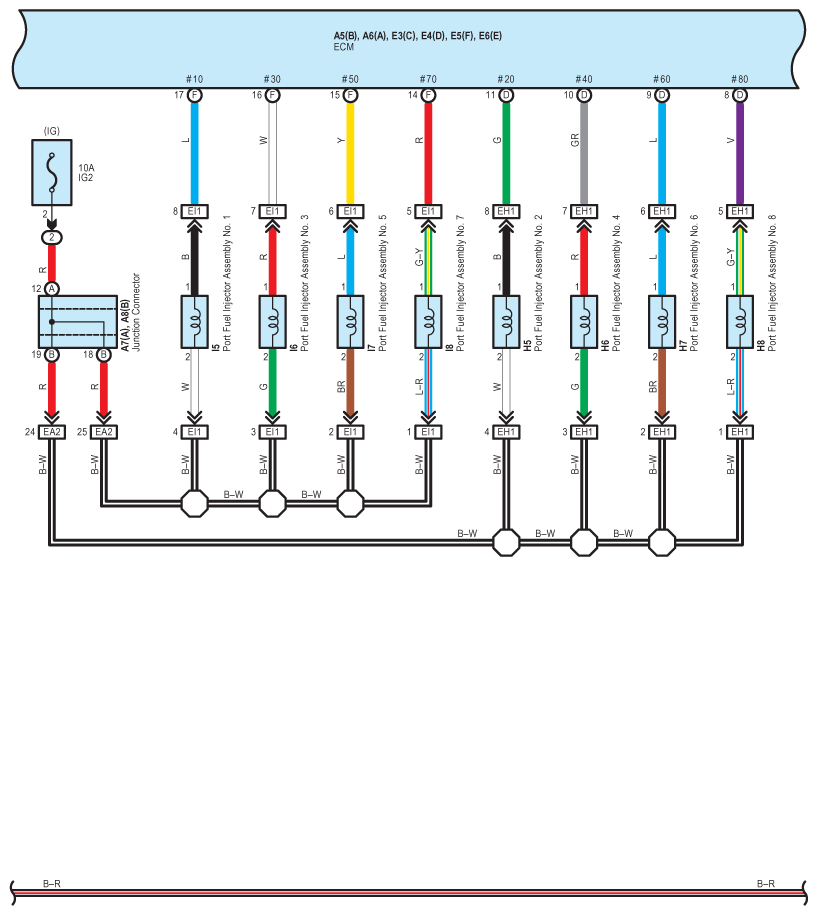

Fig 16: Engine Control, ECT And A/T Indicator - Circuit Diagram (16 Of 30)

G07592215

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

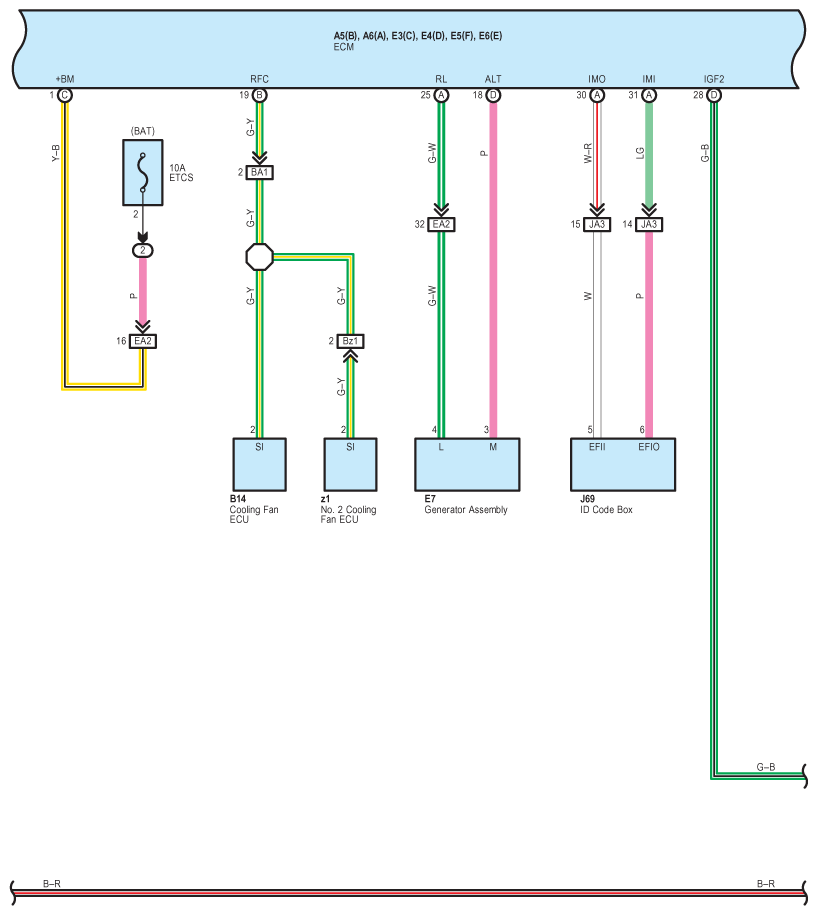

Fig 17: Engine Control, ECT And A/T Indicator - Circuit Diagram (17 Of 30)

G07592216

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

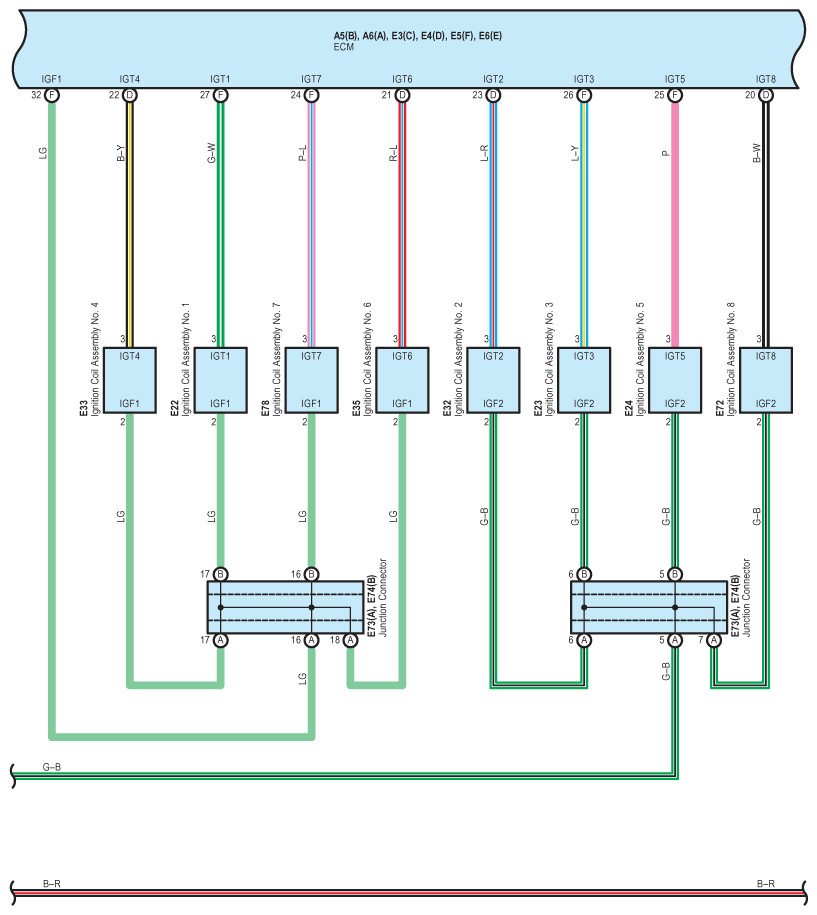

Fig 18: Engine Control, ECT And A/T Indicator - Circuit Diagram (18 Of 30)

G07592217

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

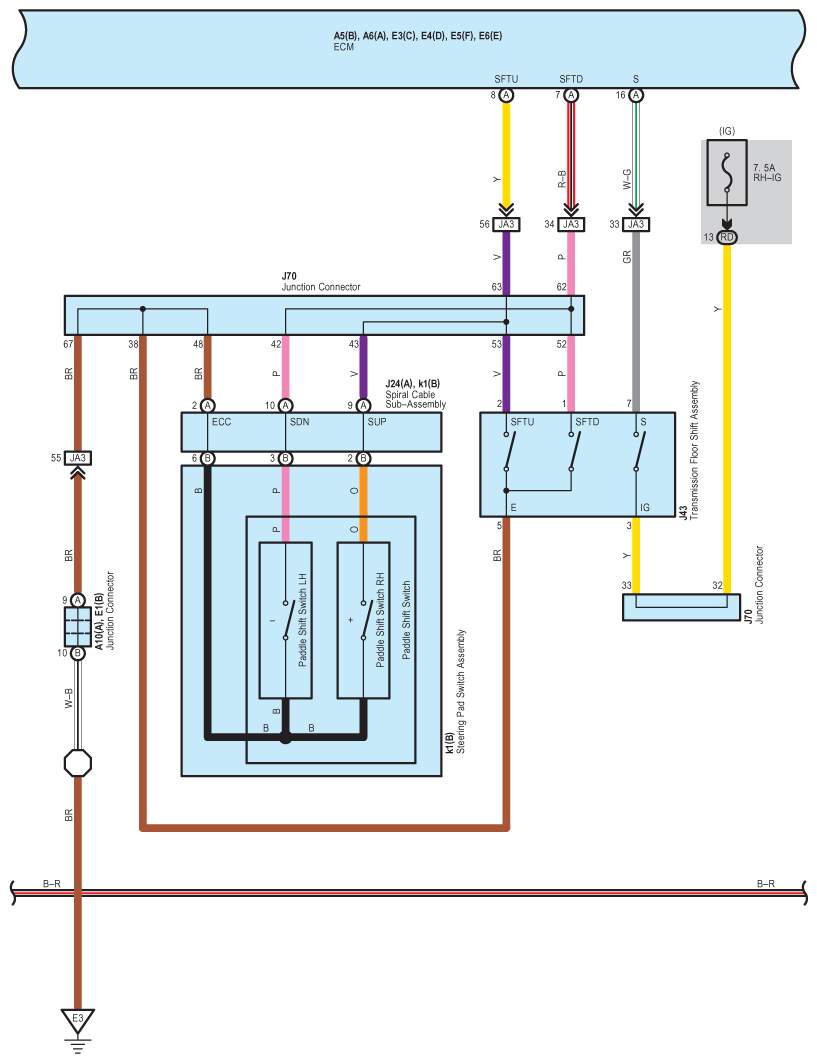

Fig 19: Engine Control, ECT And A/T Indicator - Circuit Diagram (19 Of 30)

G07592218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

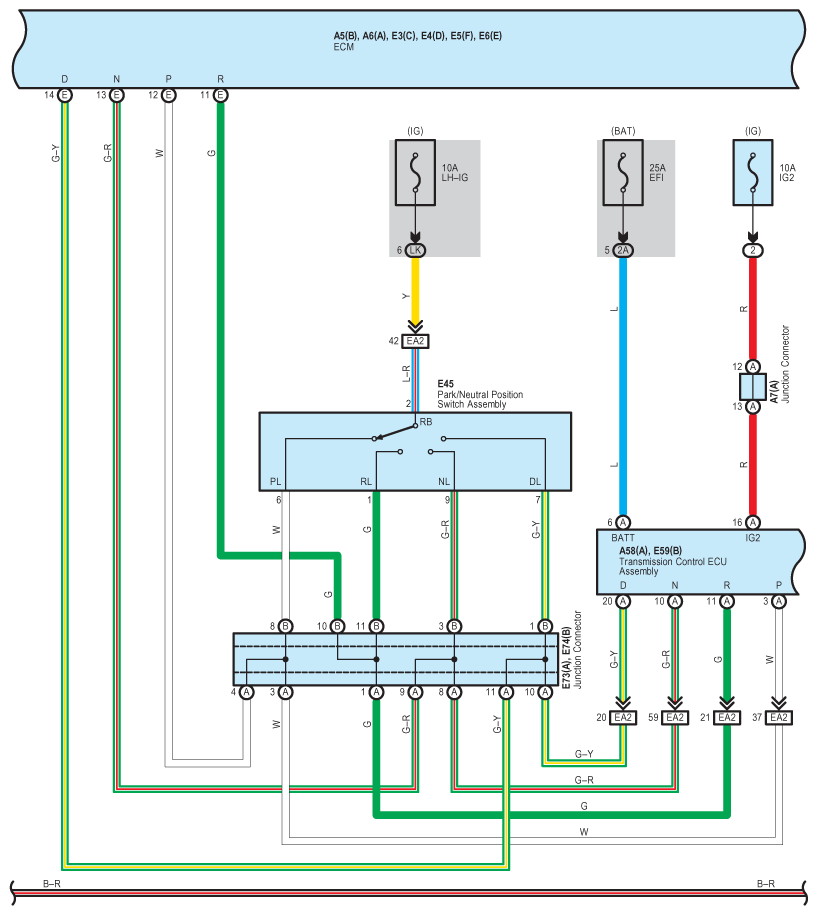

Fig 20: Engine Control, ECT And A/T Indicator - Circuit Diagram (20 Of 30)

G07592219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

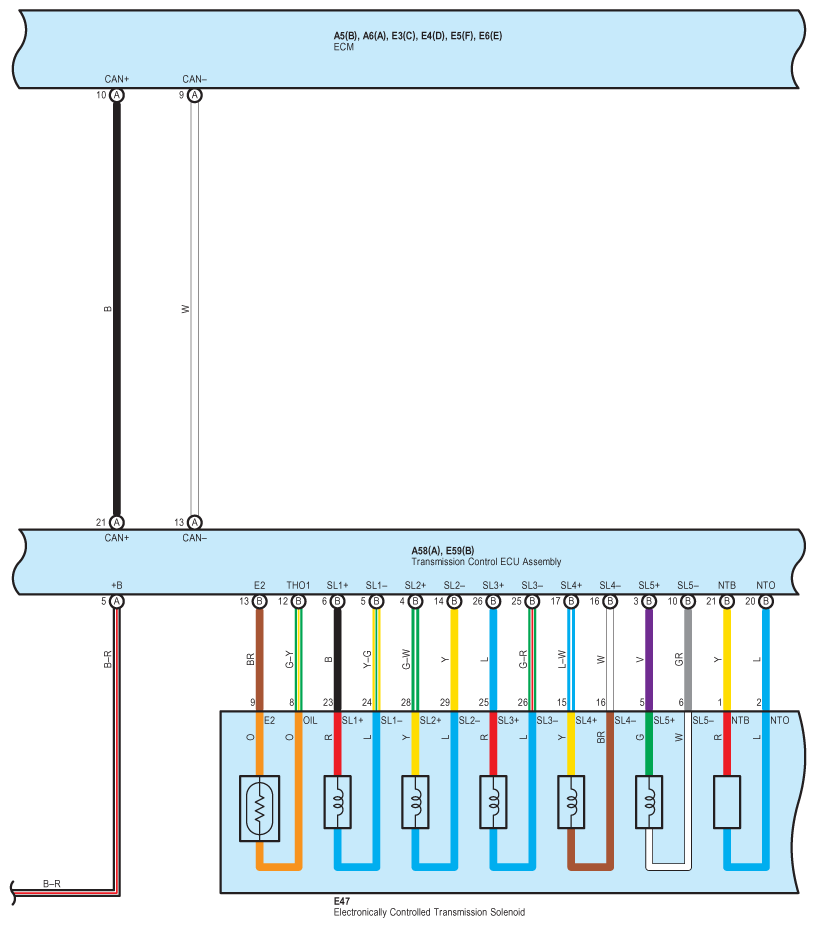

Fig 21: Engine Control, ECT And A/T Indicator - Circuit Diagram (21 Of 30)

G07592220

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

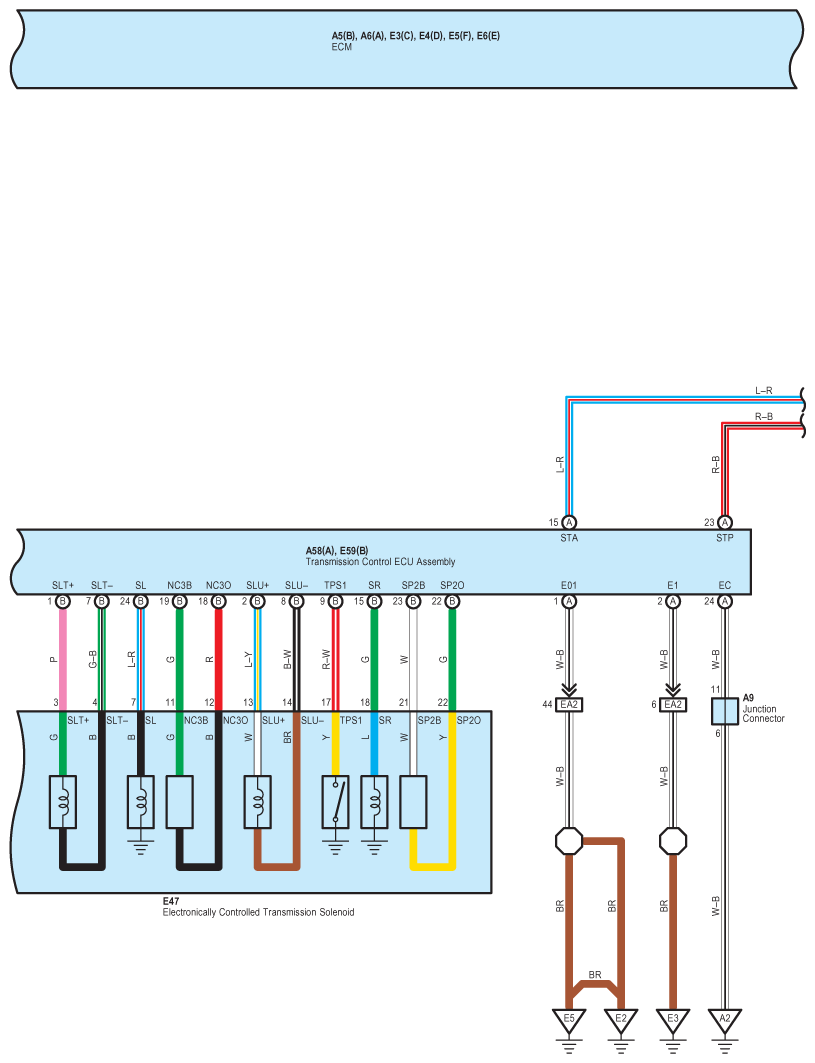

Fig 22: Engine Control, ECT And A/T Indicator - Circuit Diagram (22 Of 30)

G07592221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Engine Control, ECT And A/T Indicator - Circuit Diagram (23 Of 30)

G07592222

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

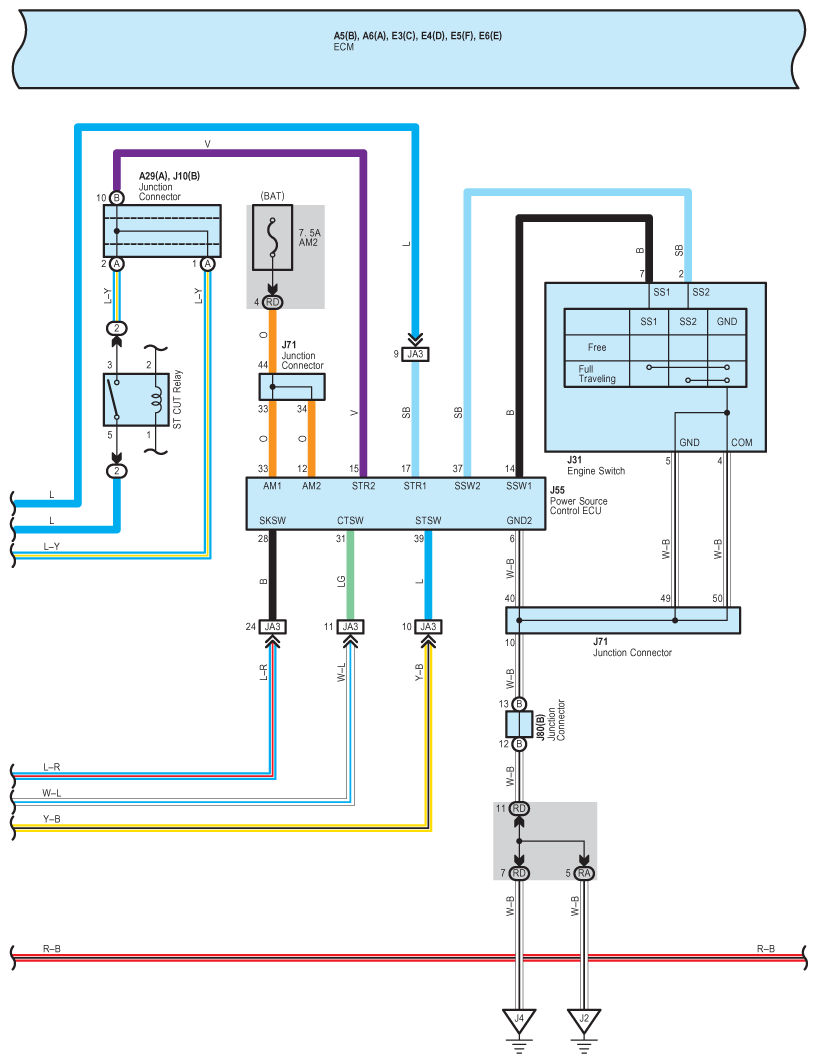

Fig 24: Engine Control, ECT And A/T Indicator - Circuit Diagram (24 Of 30)

G07592223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

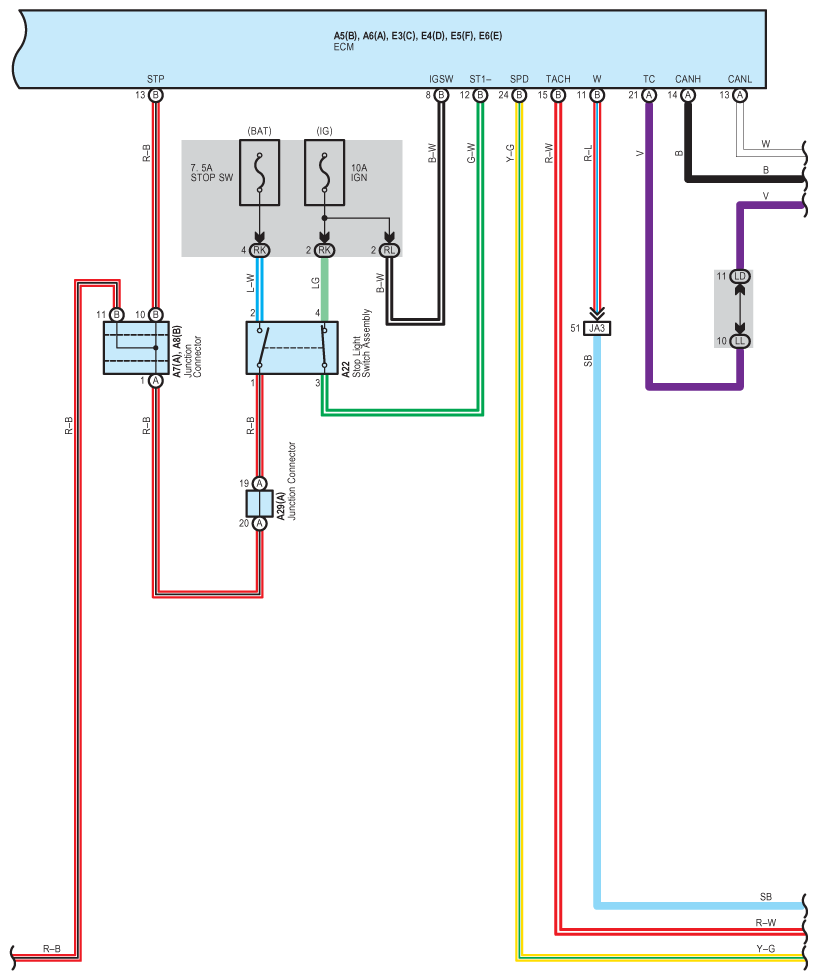

Fig 25: Engine Control, ECT And A/T Indicator - Circuit Diagram (25 Of 30)

G07592224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

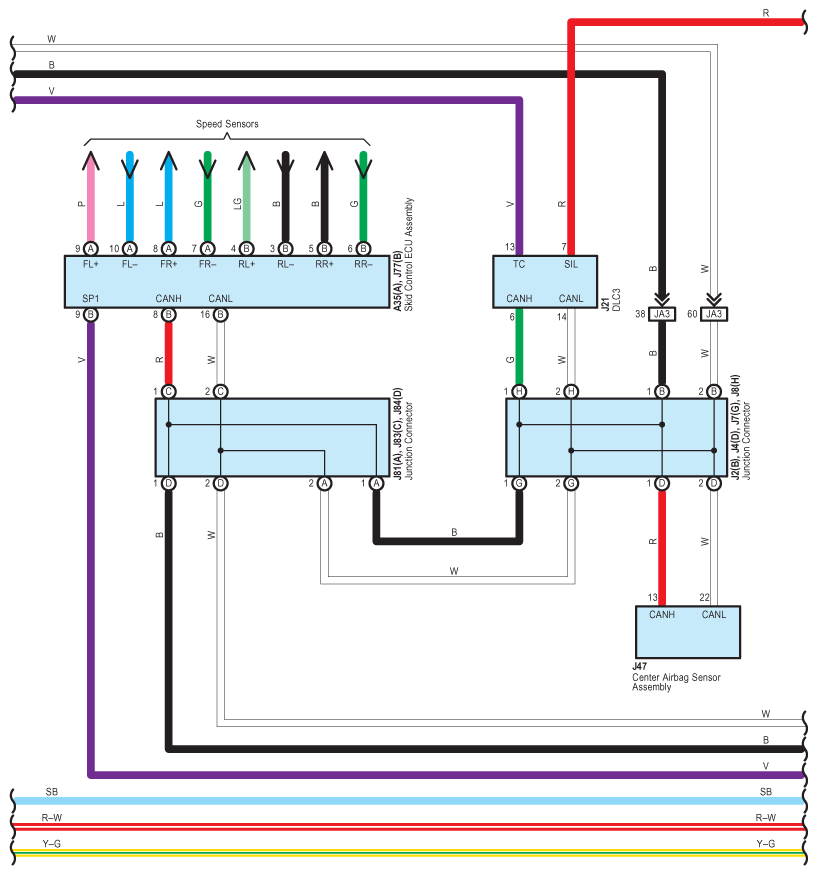

Fig 26: Engine Control, ECT And A/T Indicator - Circuit Diagram (26 Of 30)

G07592225

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

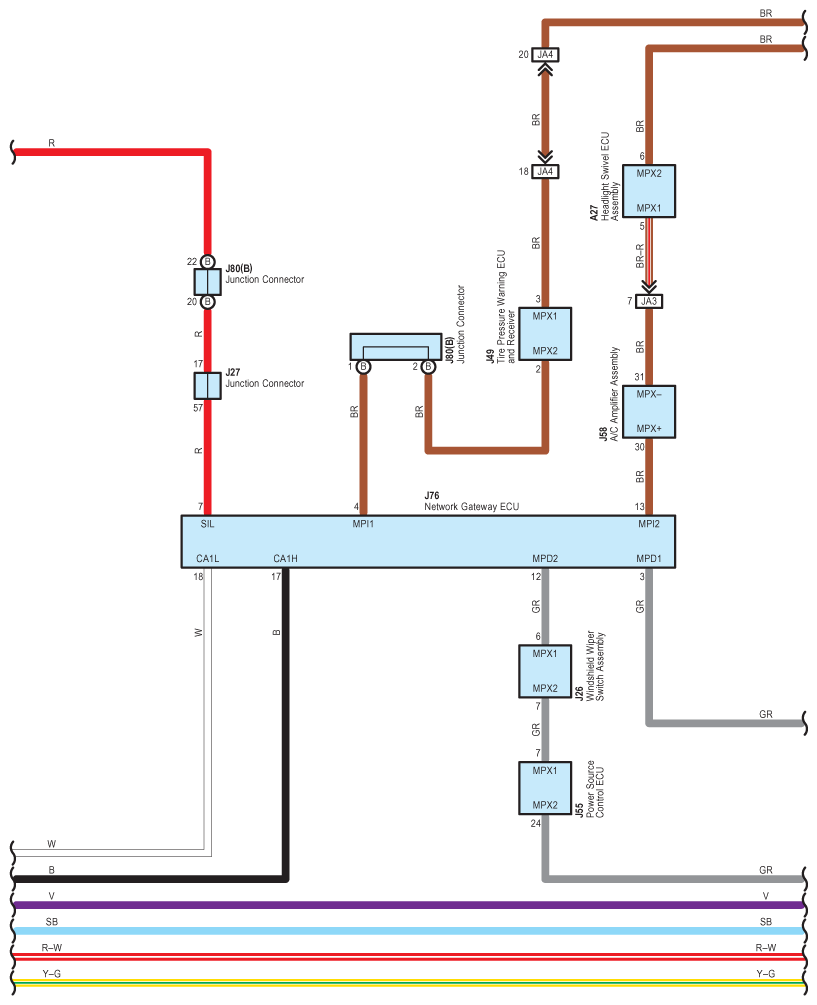

Fig 27: Engine Control, ECT And A/T Indicator - Circuit Diagram (27 Of 30)

G07592226

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

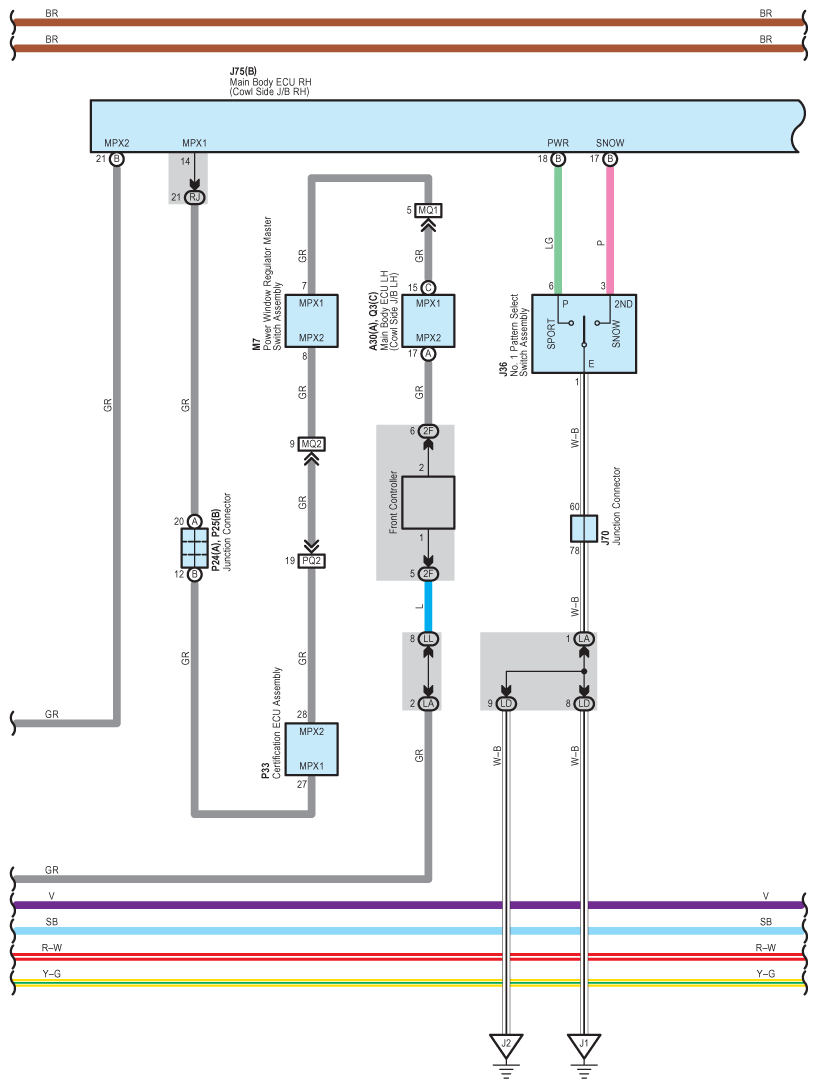

Fig 28: Engine Control, ECT And A/T Indicator - Circuit Diagram (28 Of 30)

G07592227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

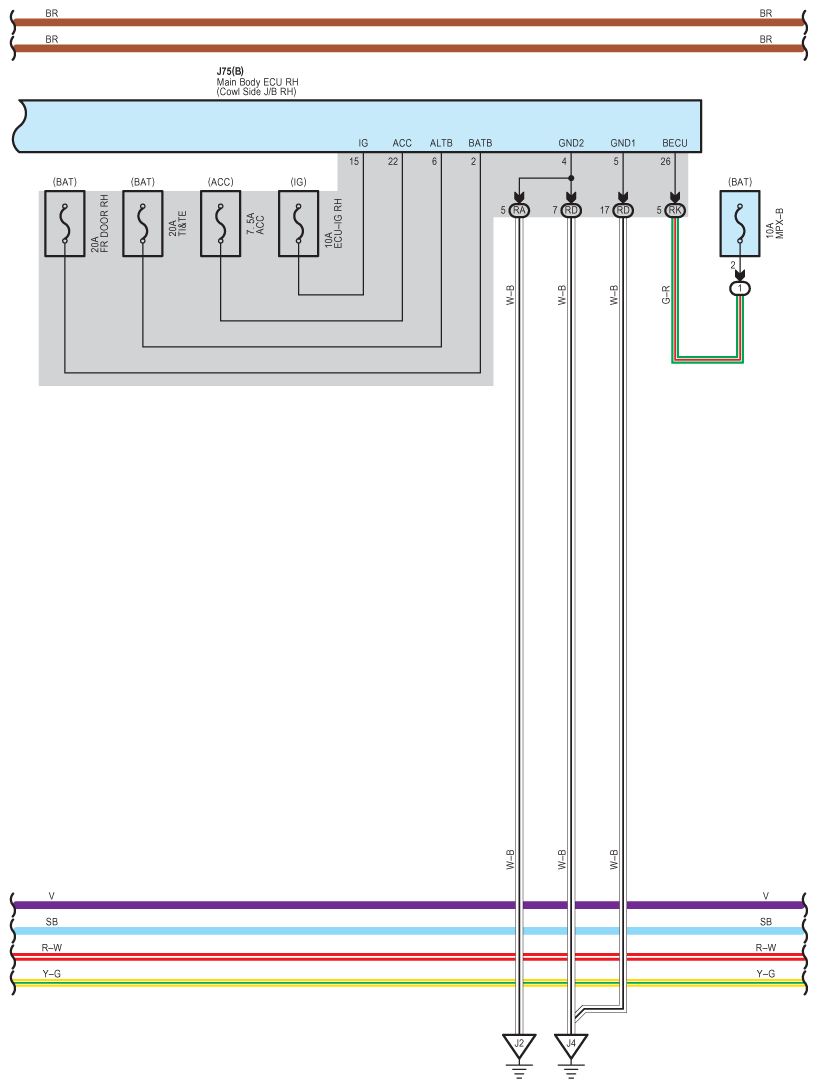

Fig 29: Engine Control, ECT And A/T Indicator - Circuit Diagram (29 Of 30)

G07592228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

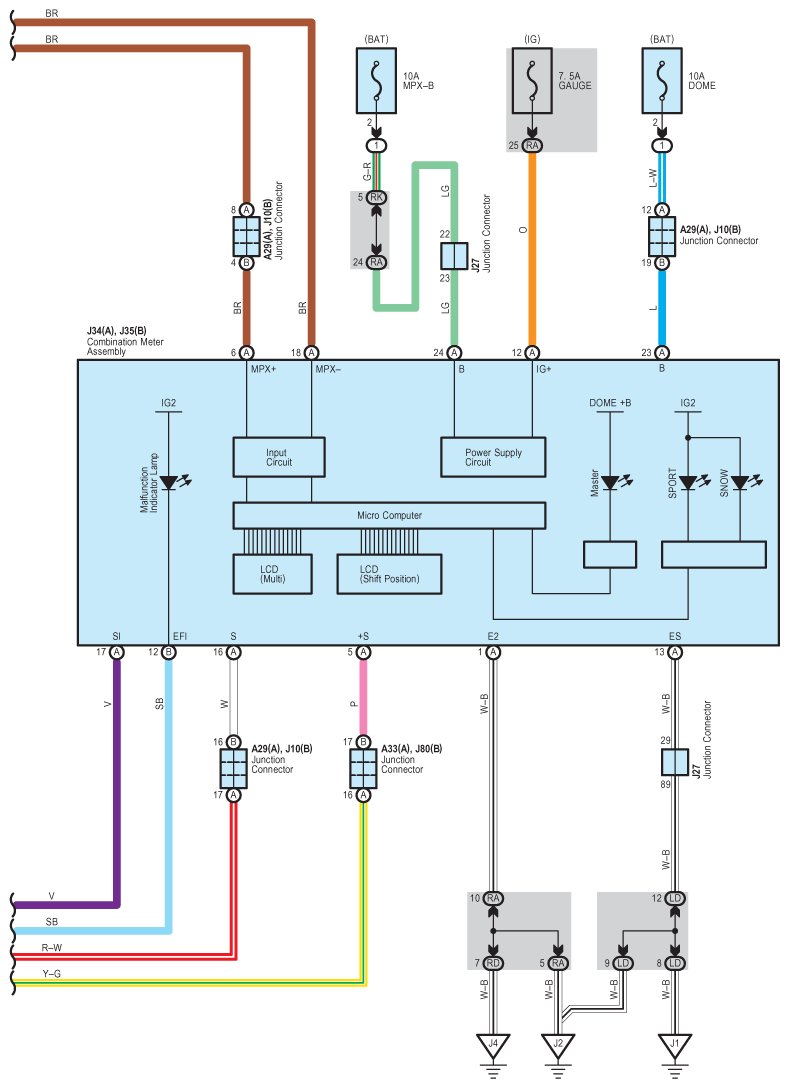

Fig 30: Engine Control, ECT And A/T Indicator - Circuit Diagram (30 Of 30)

G07592229

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
