Front-Fog Light: Notes

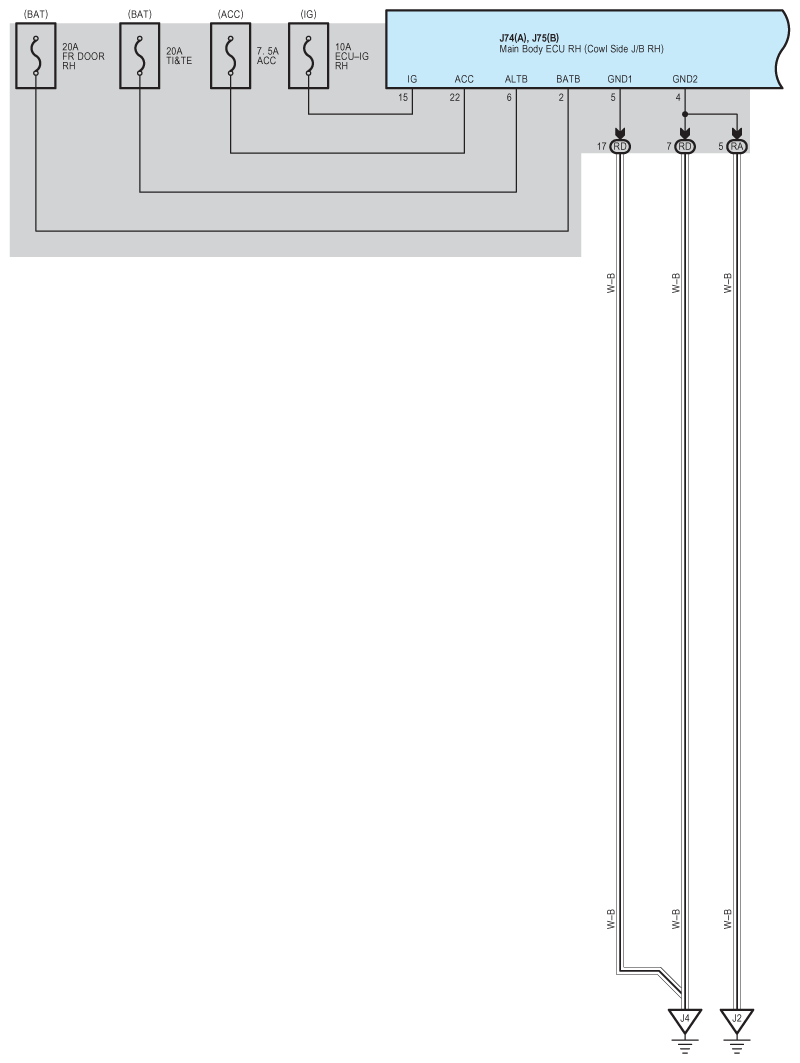

Fig 1: Front-Fog Light - Circuit Diagram (1 Of 5)
G07592282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

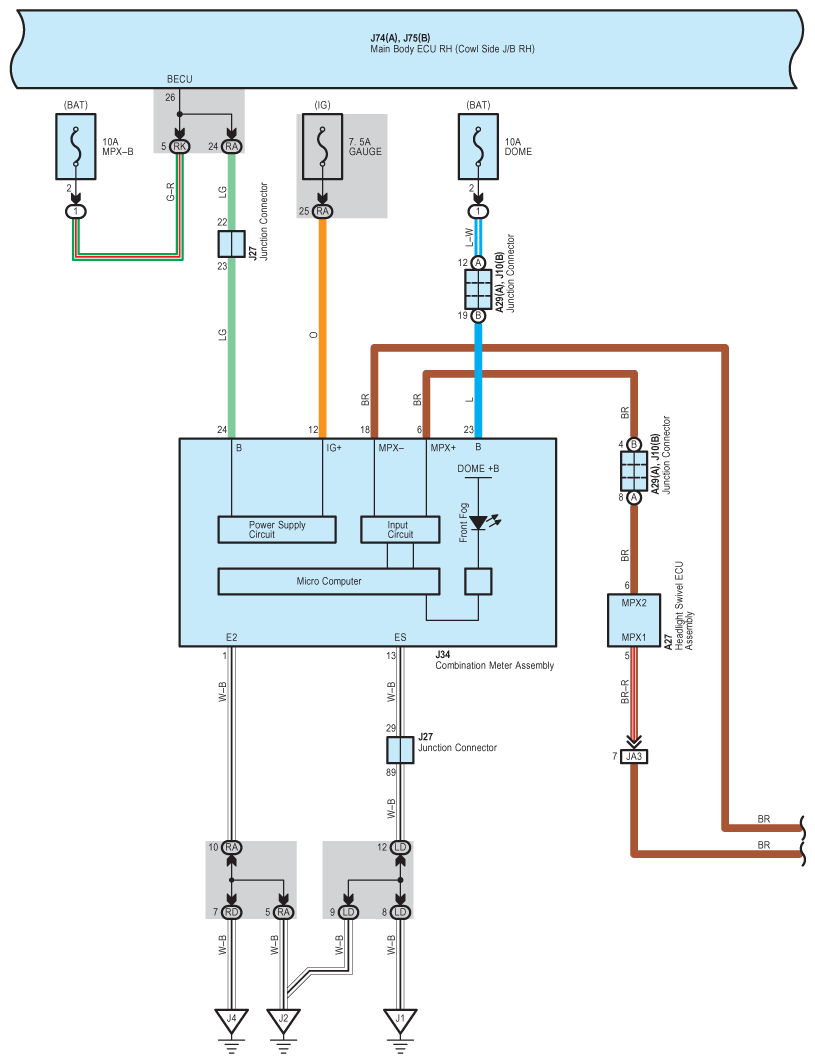

Fig 2: Front-Fog Light - Circuit Diagram (2 Of 5)
G07592283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

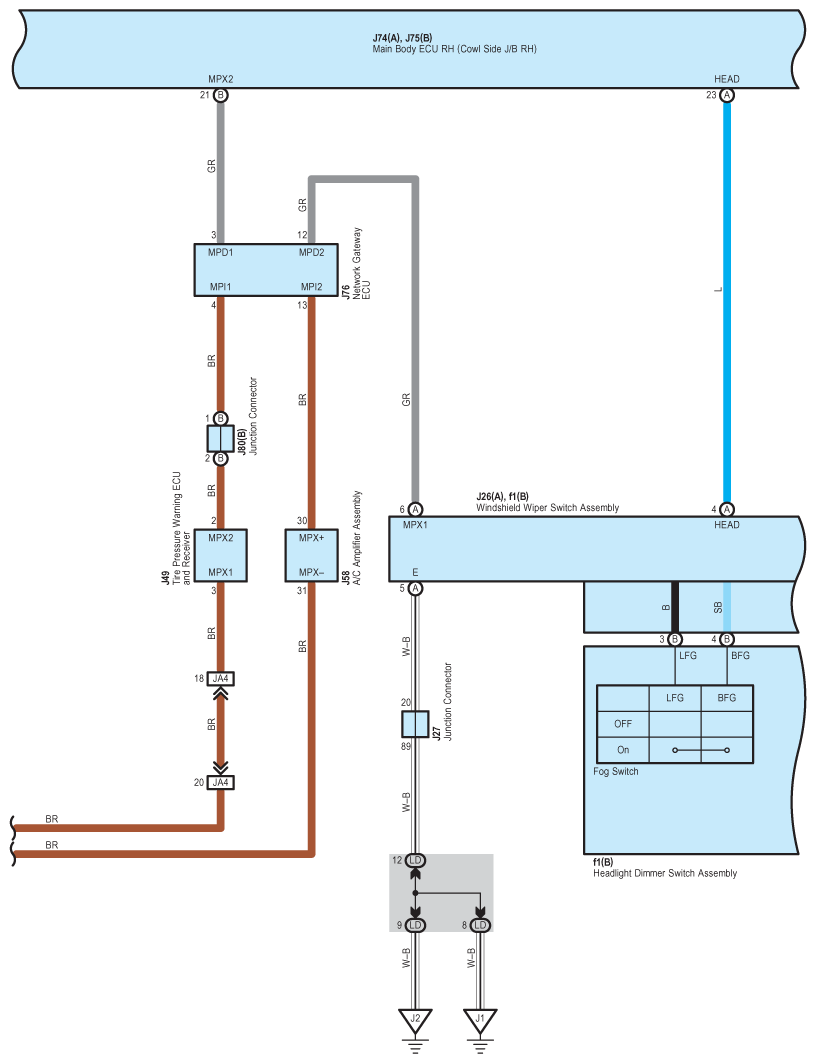

Fig 3: Front-Fog Light - Circuit Diagram (3 Of 5)
G07592284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

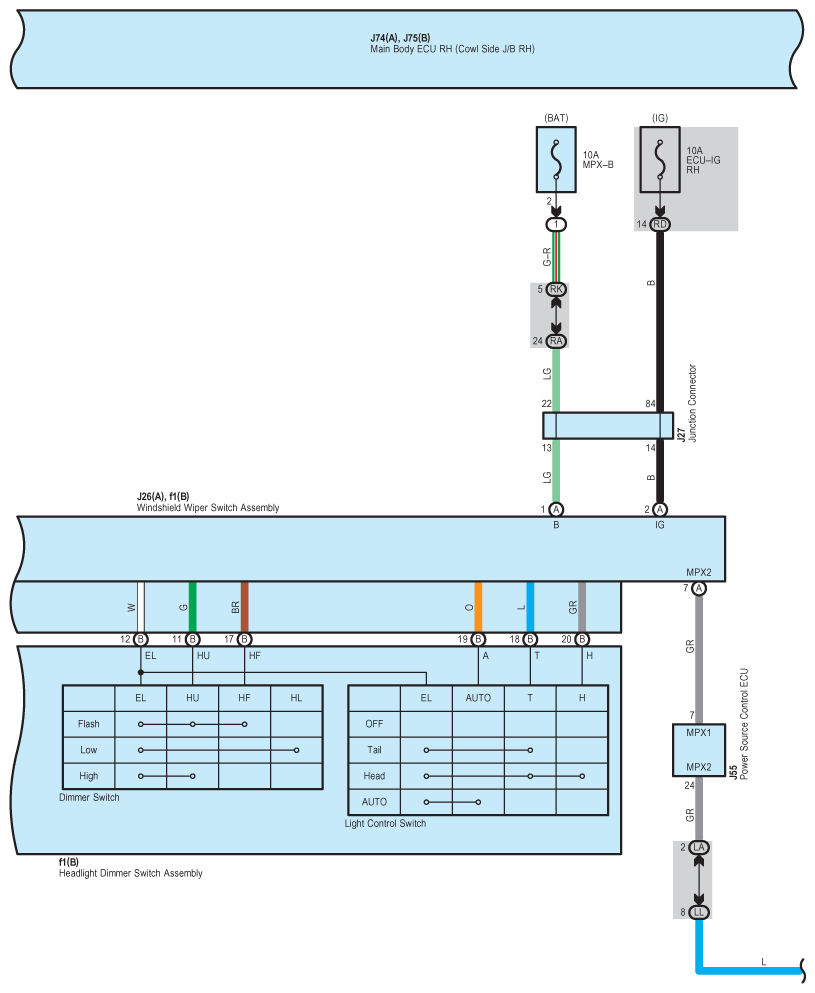

Fig 4: Front-Fog Light - Circuit Diagram (4 Of 5)
G07592285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

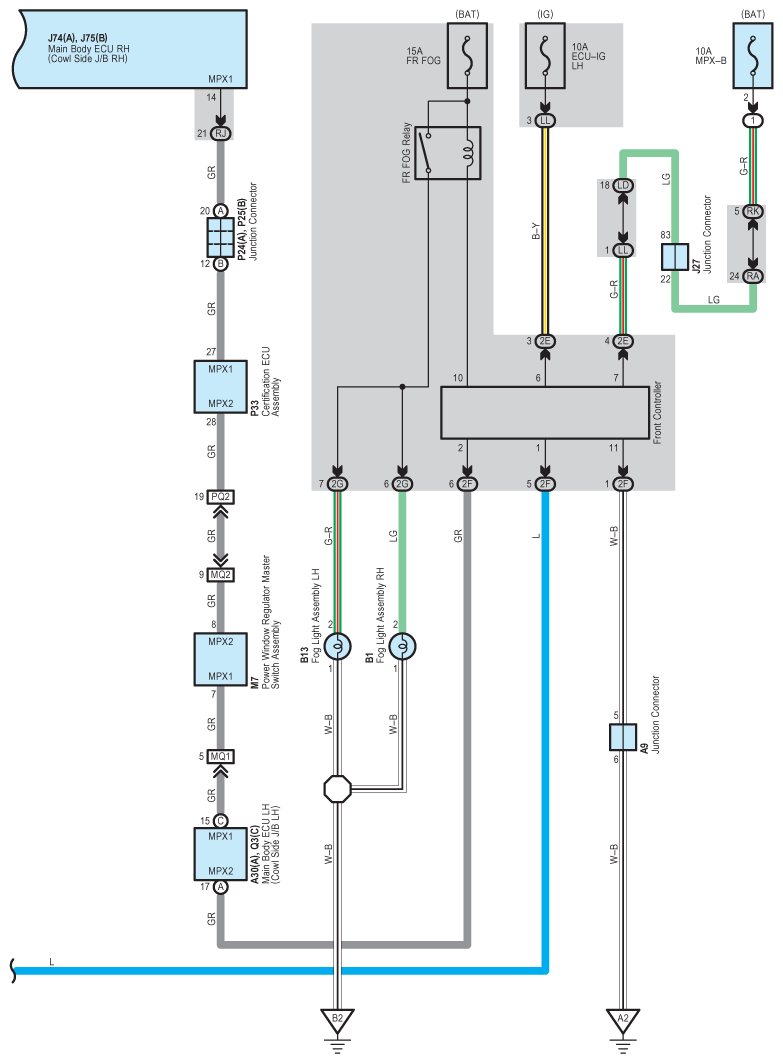

Fig 5: Front-Fog Light - Circuit Diagram (5 Of 5)
G07592286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
