Headlight Cleaner: Notes

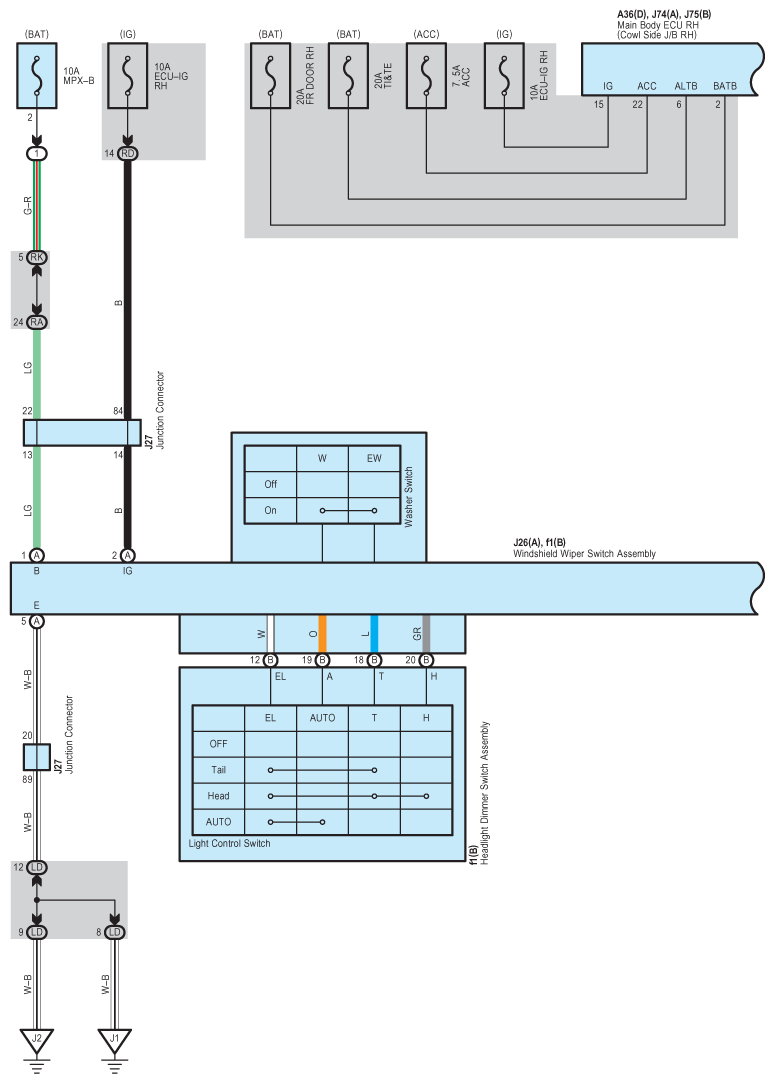

Fig 1: Headlight Cleaner - Circuit Diagram (1 Of 4)
G07592300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

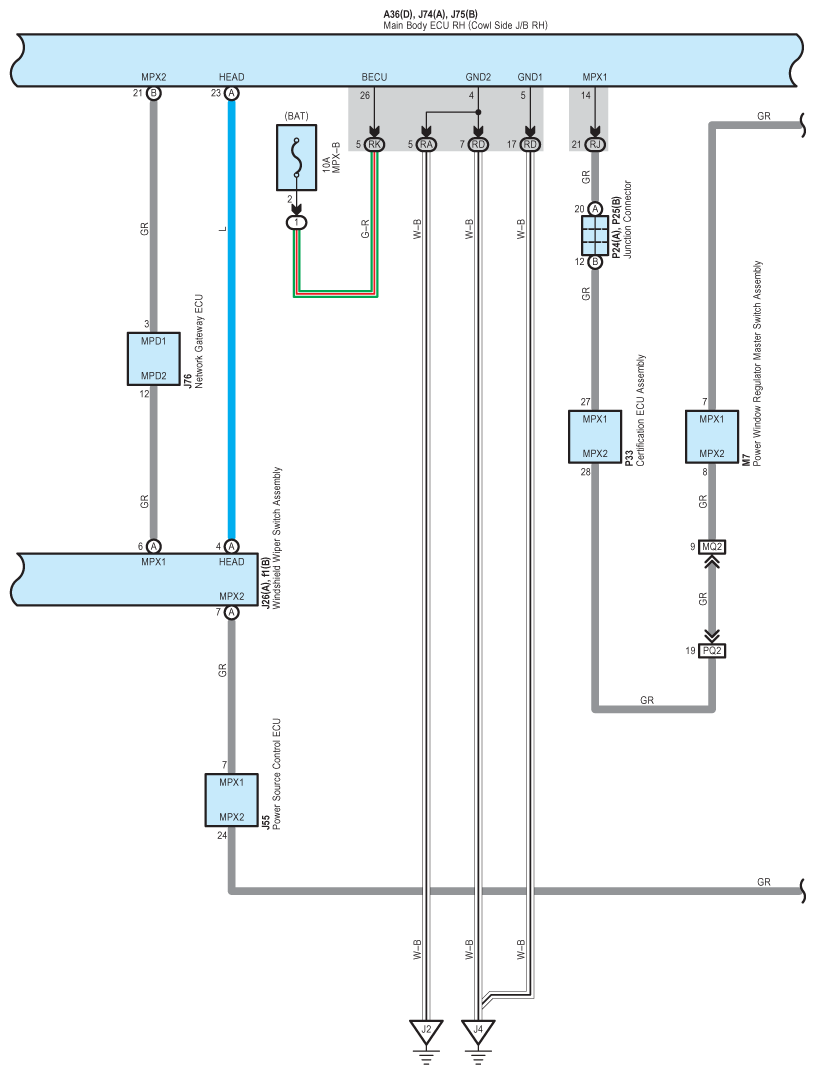

Fig 2: Headlight Cleaner - Circuit Diagram (2 Of 4)
G07592301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

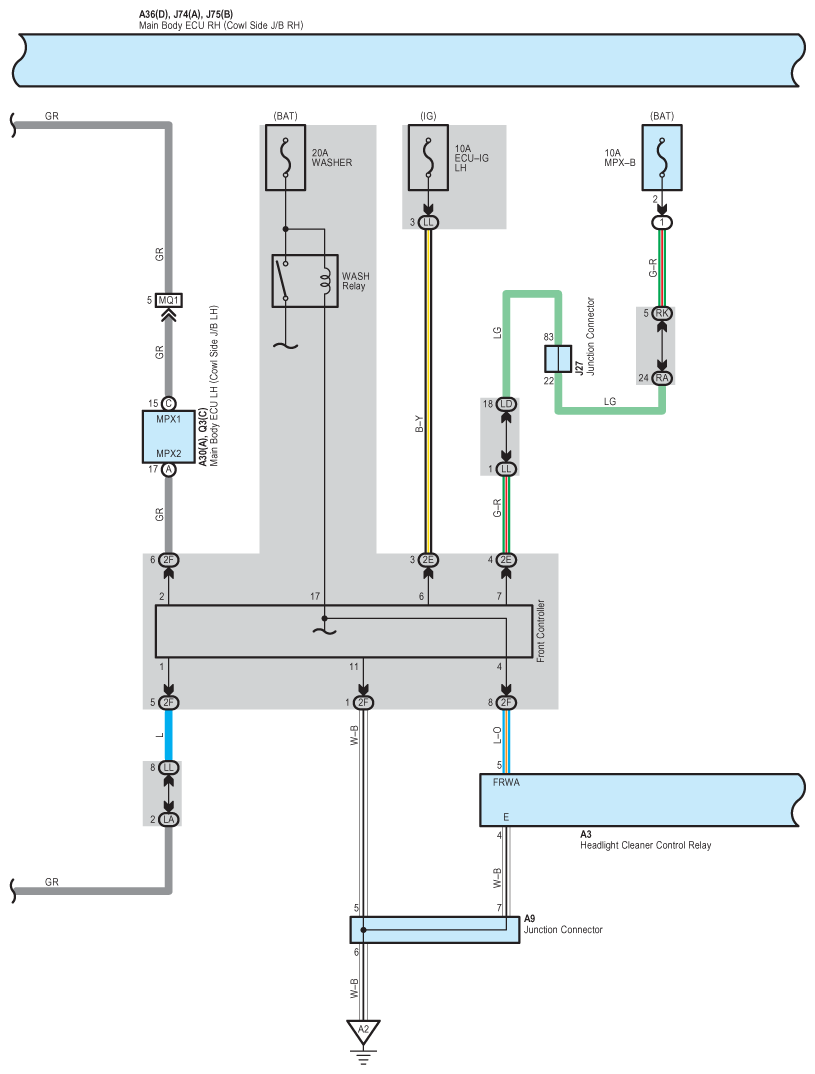

Fig 3: Headlight Cleaner - Circuit Diagram (3 Of 4)
G07592302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

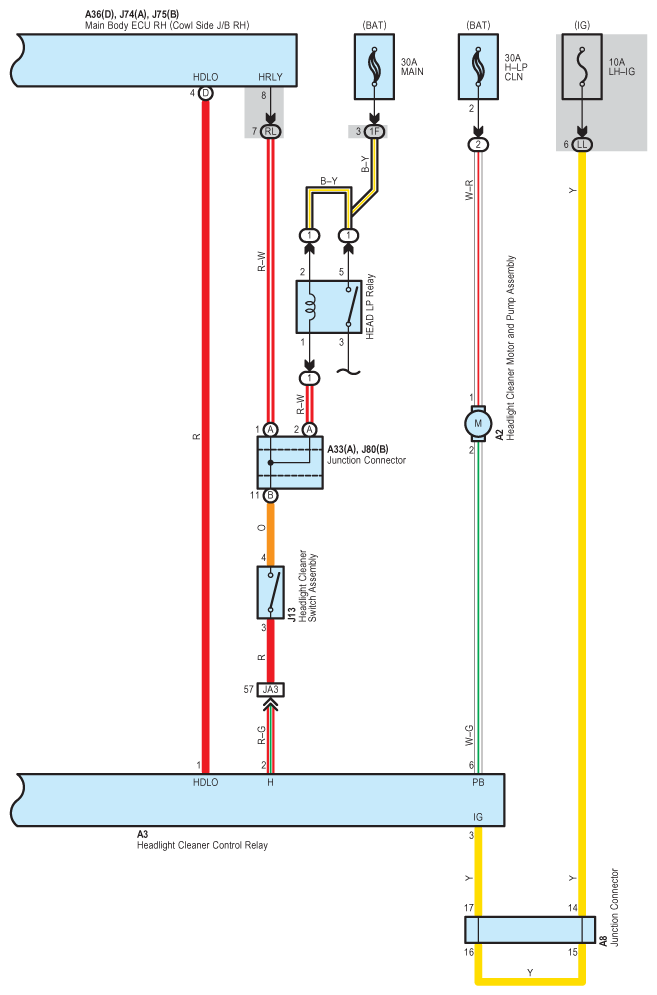

Fig 4: Headlight Cleaner - Circuit Diagram (4 Of 4)
G07592303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
