Multiplex Communication System - AVC-LAN: Notes

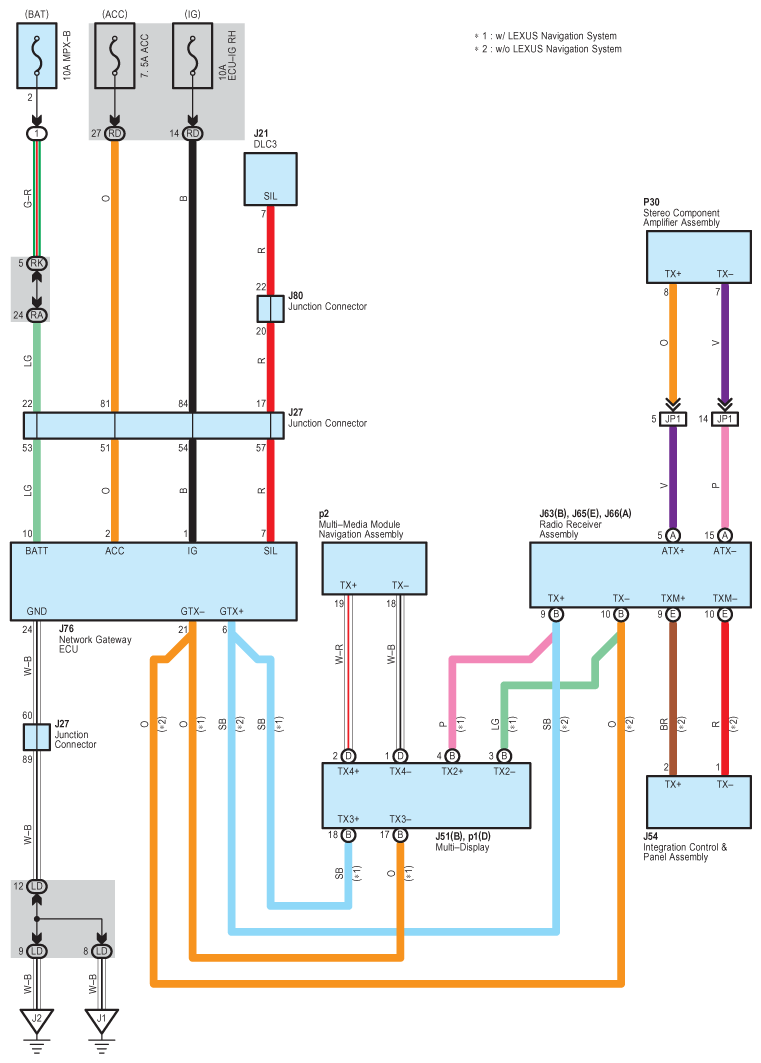

Fig 1: Multiplex Communication System - AVC-LAN - Circuit Diagram
G07592237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
