Power Source: Notes

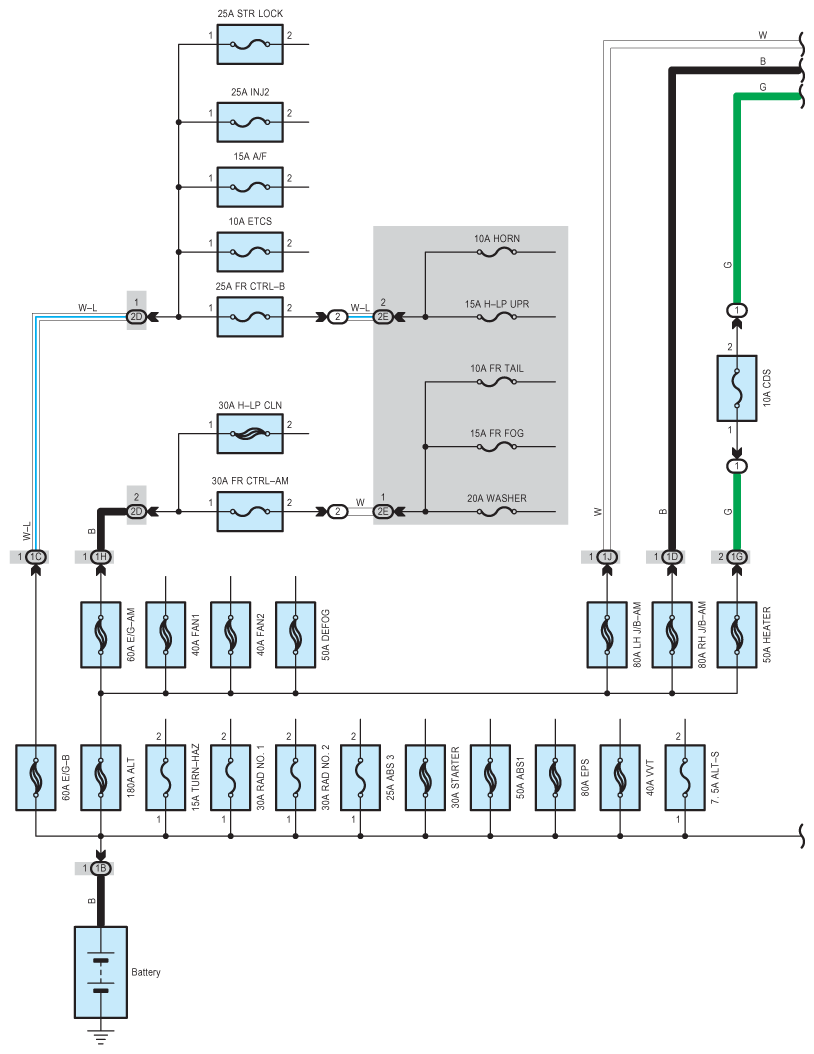

Fig 1: Power Source - Circuit Diagram (1 Of 5)
G07592171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

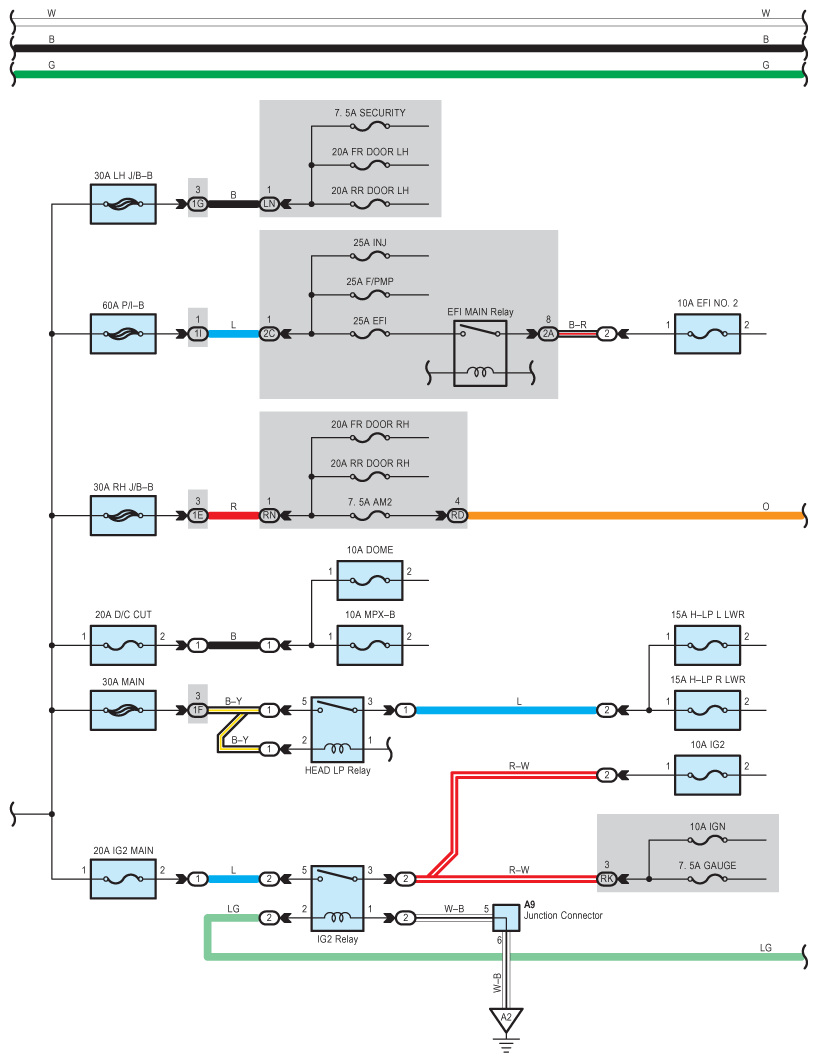

Fig 2: Power Source - Circuit Diagram (2 Of 5)
G07592172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

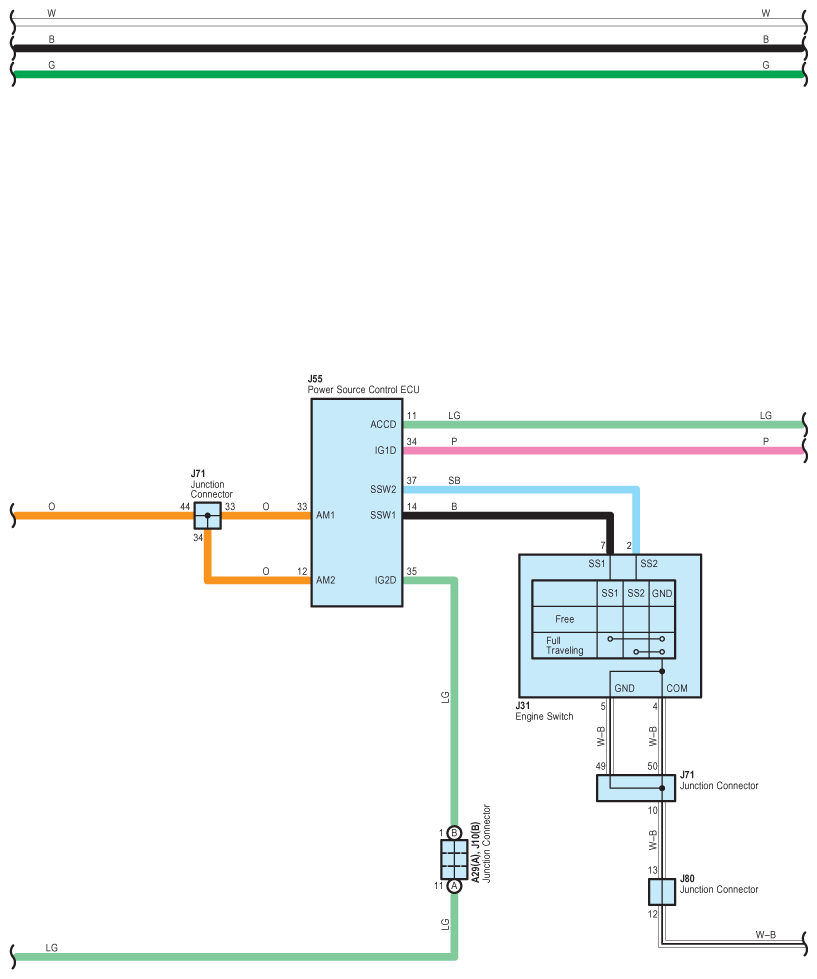

Fig 3: Power Source - Circuit Diagram (3 Of 5)
G07592173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

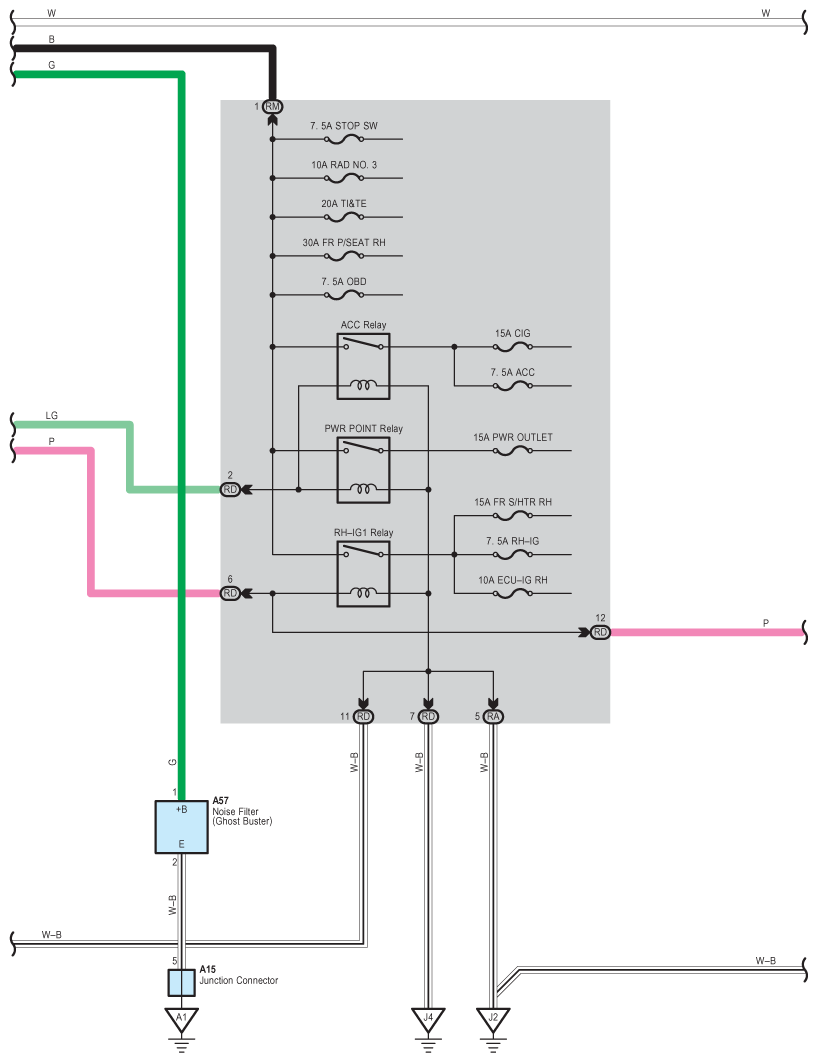

Fig 4: Power Source - Circuit Diagram (4 Of 5)
G07592174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

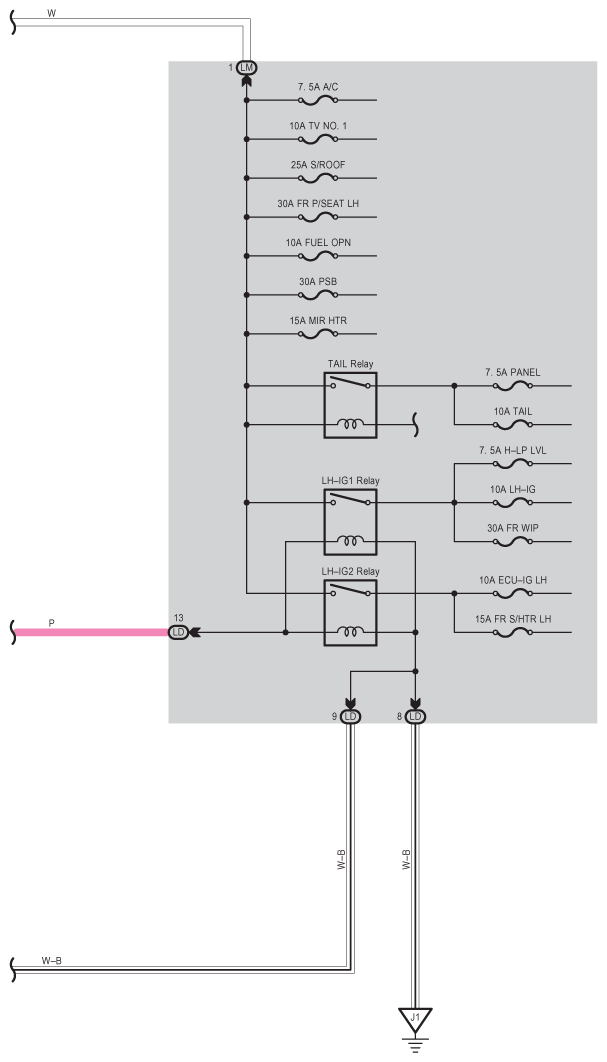

Fig 5: Power Source - Circuit Diagram (5 Of 5)
G07592175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
