Sliding Roof: Notes

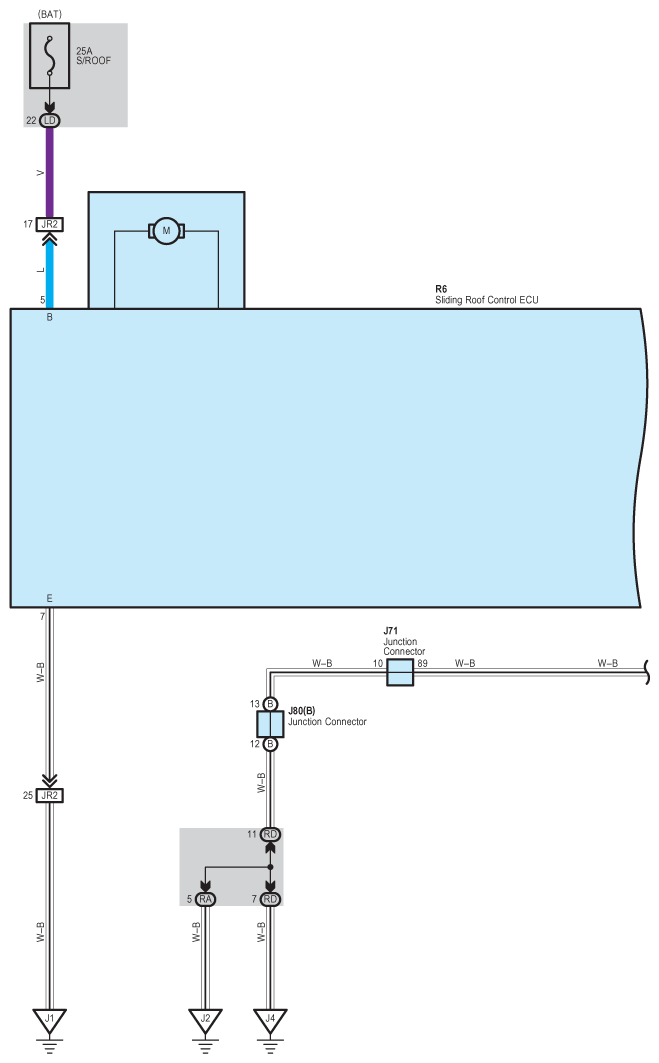

Fig 1: Sliding Roof - Circuit Diagram (1 Of 6)
G07592394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

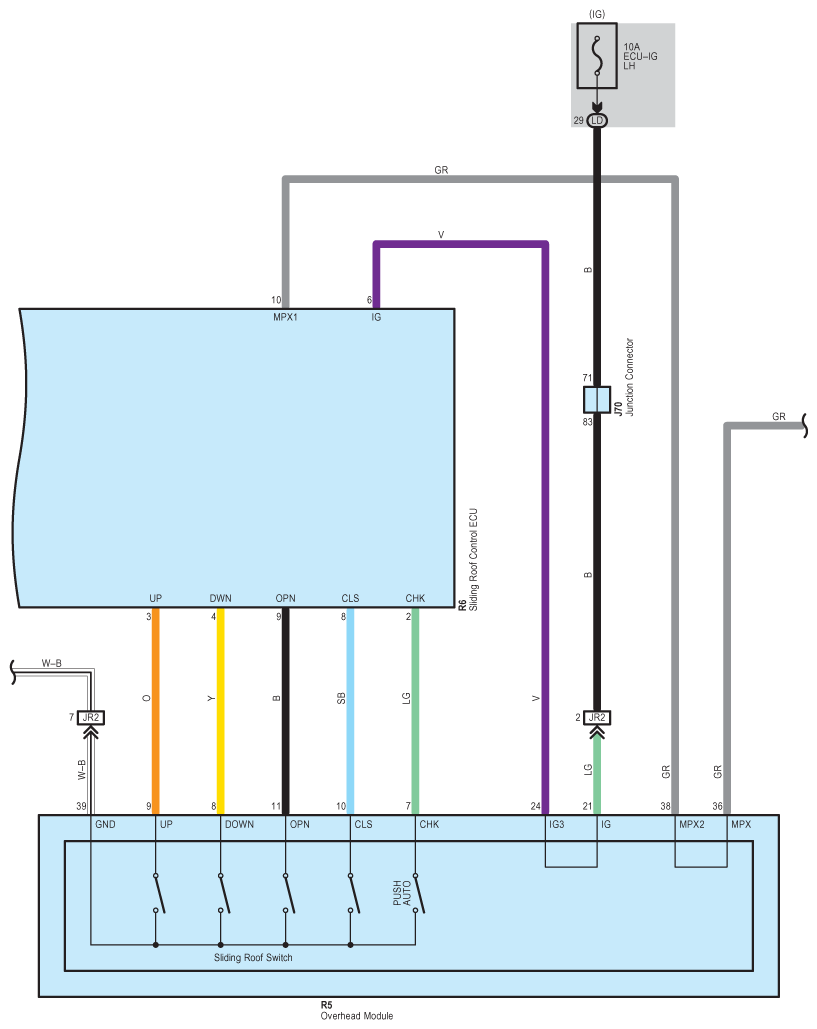

Fig 2: Sliding Roof - Circuit Diagram (2 Of 6)
G07592395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

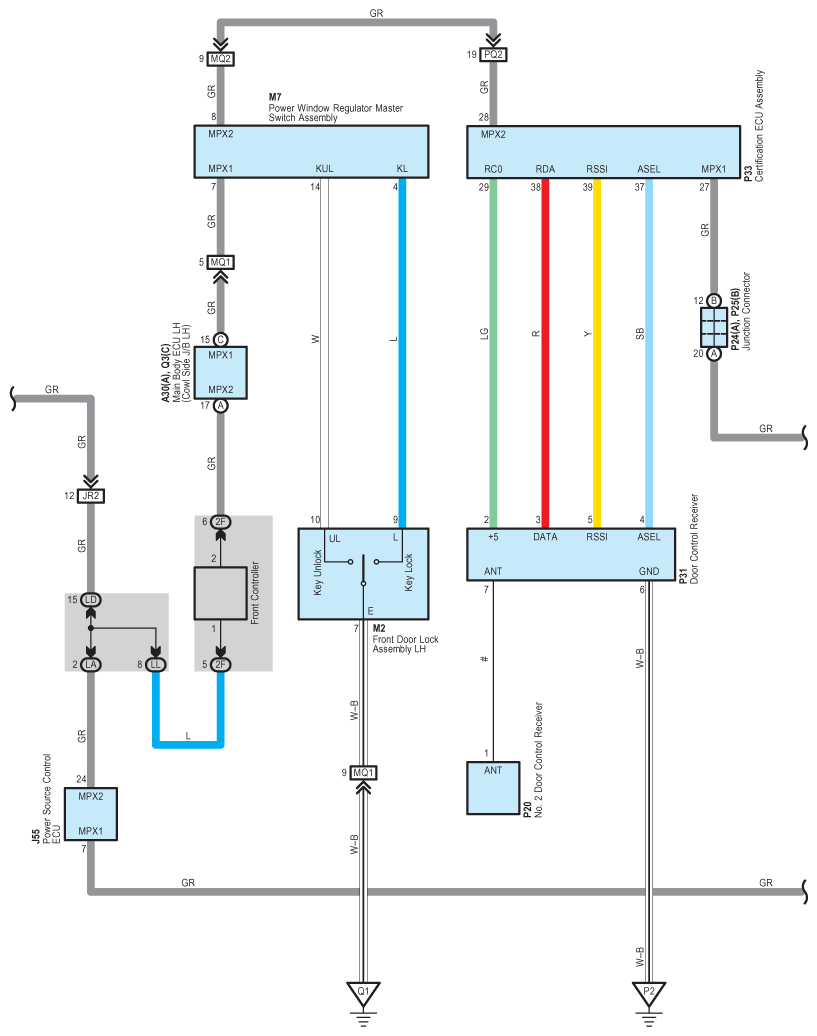

Fig 3: Sliding Roof - Circuit Diagram (3 Of 6)
G07592396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

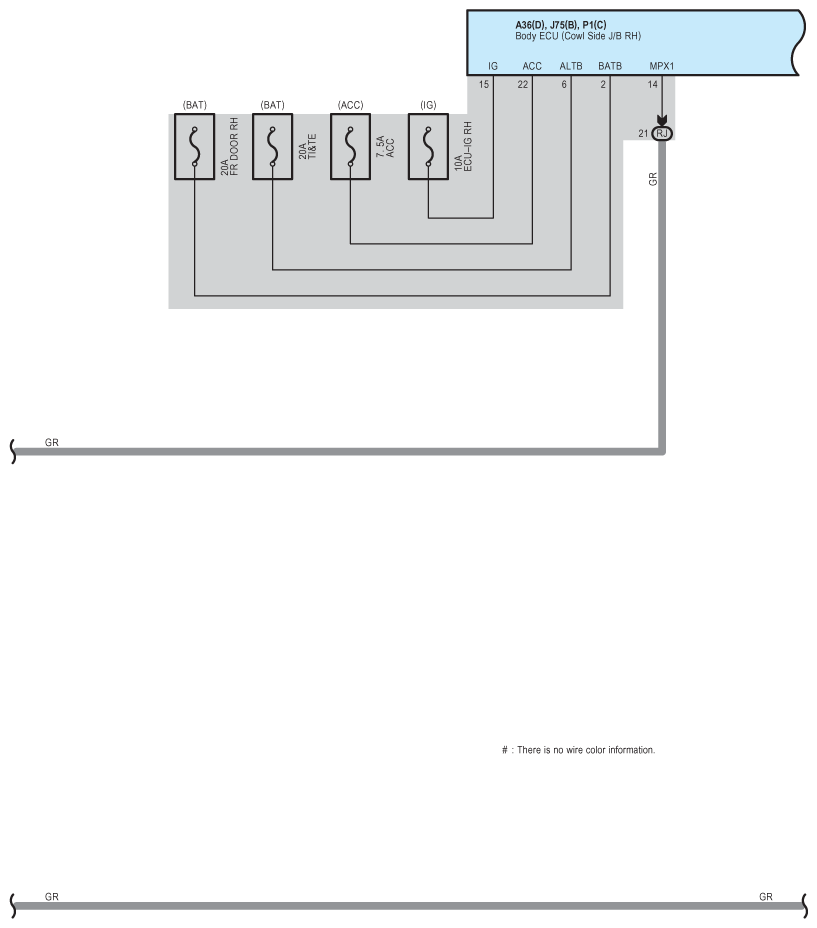

Fig 4: Sliding Roof - Circuit Diagram (4 Of 6)
G07592397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

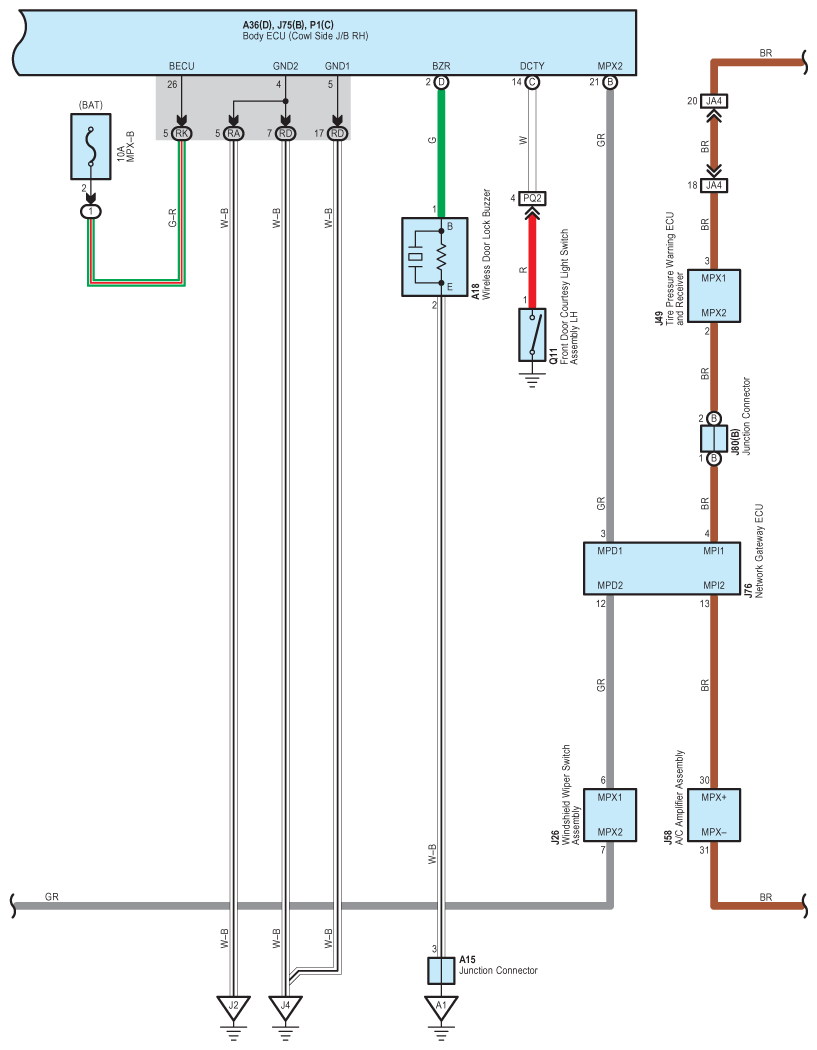

Fig 5: Sliding Roof - Circuit Diagram (5 Of 6)
G07592398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

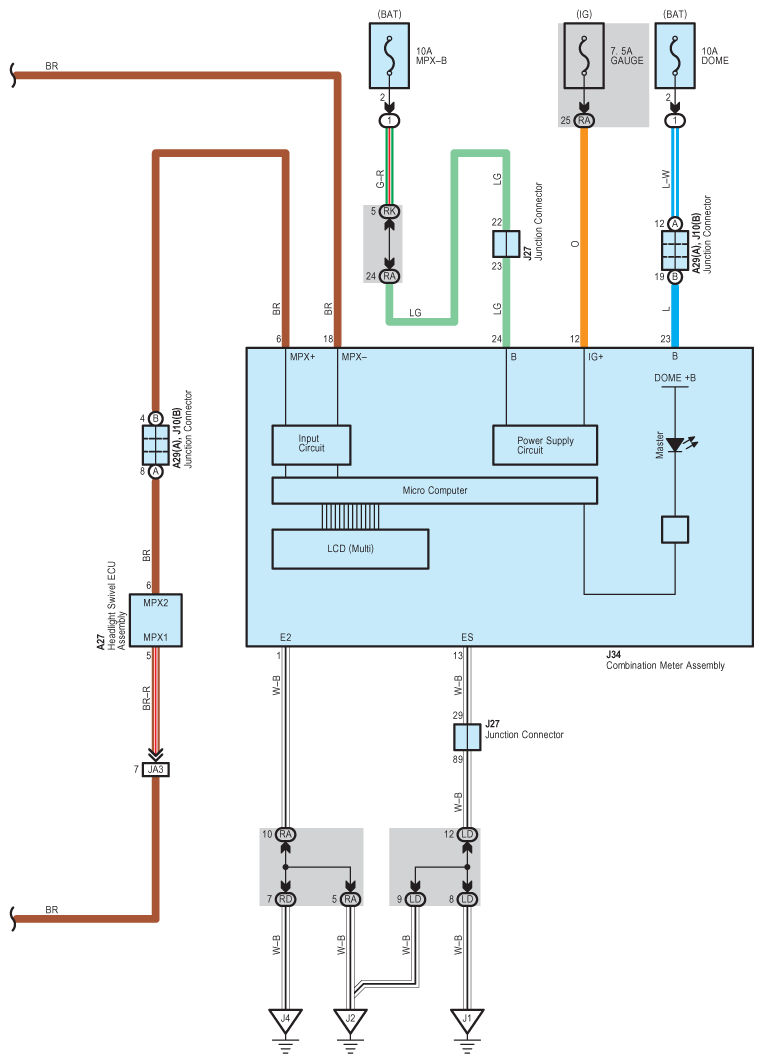

Fig 6: Sliding Roof - Circuit Diagram (6 Of 6)
G07592399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
