OEM System Circuits: Taillight: Notes

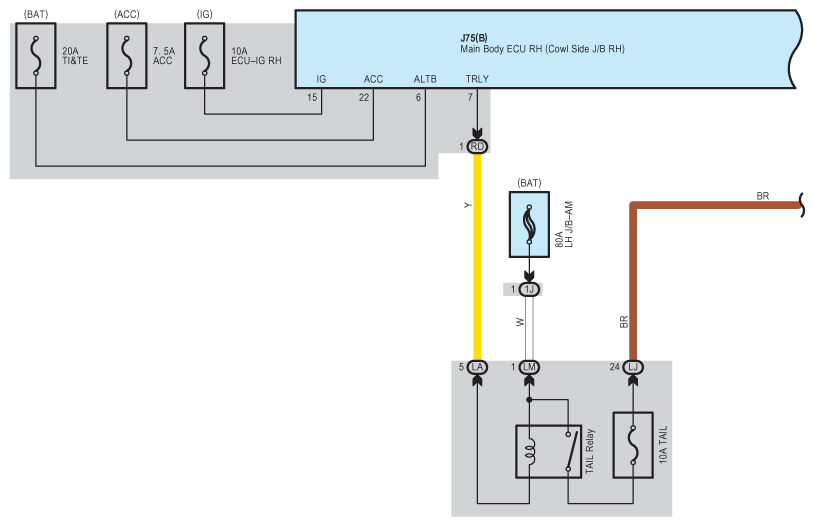

Fig 1: Taillight - Circuit Diagram (1 Of 8)

G07592270

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

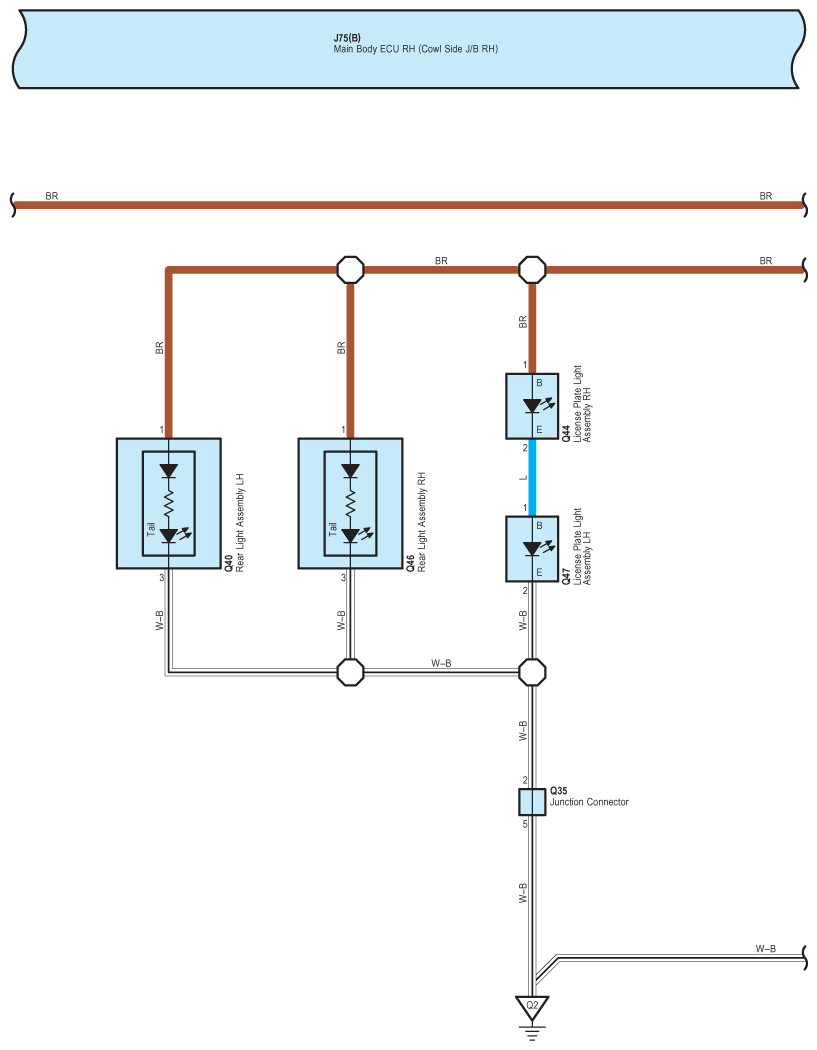

Fig 2: Taillight - Circuit Diagram (2 Of 8)

G07592271

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

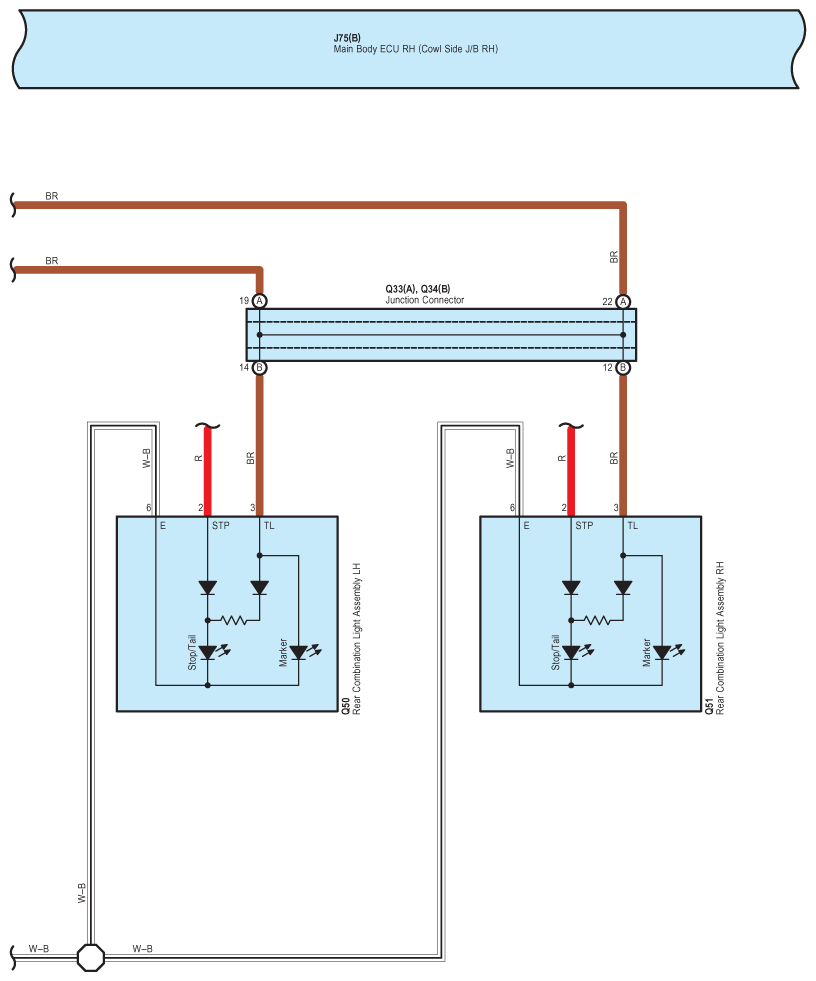

Fig 3: Taillight - Circuit Diagram (3 Of 8)

G07592272

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

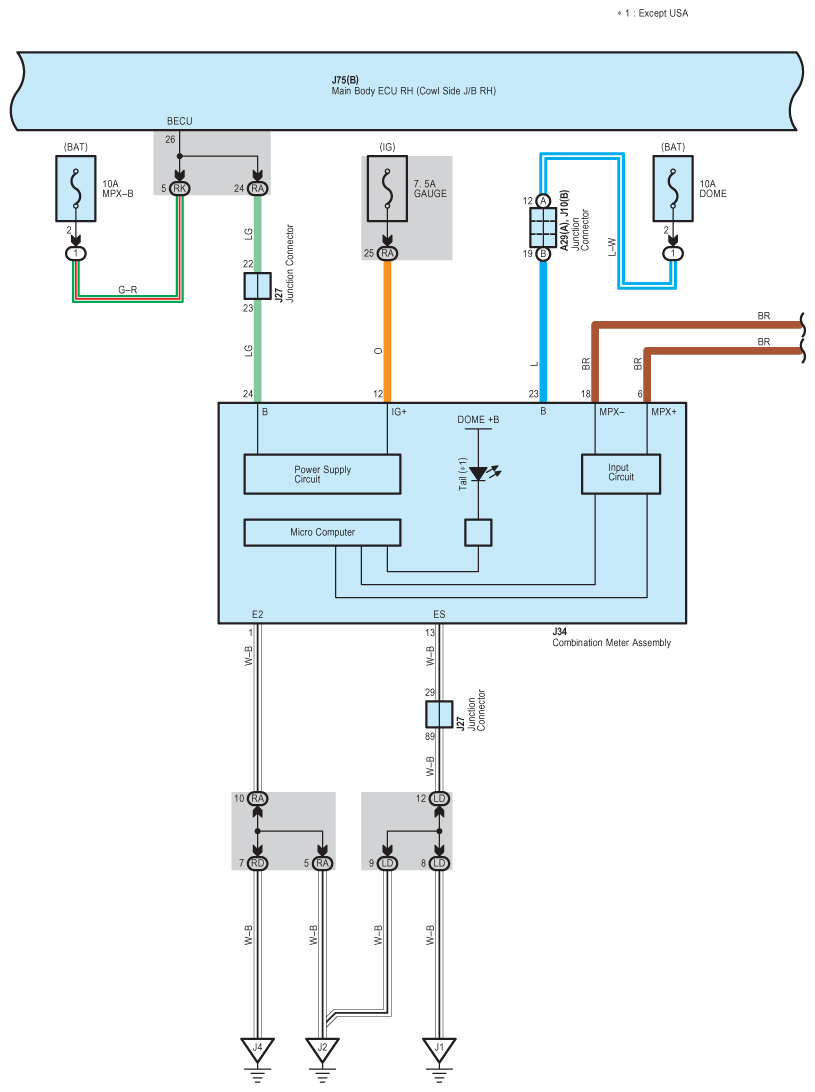

Fig 4: Taillight - Circuit Diagram (4 Of 8)

G07592273

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

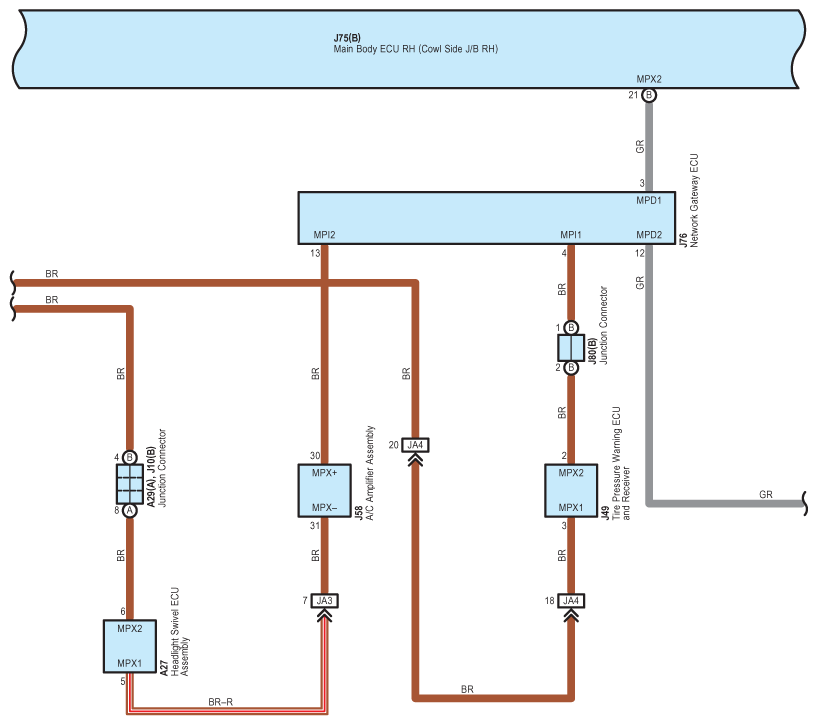

Fig 5: Taillight - Circuit Diagram (5 Of 8)

G07592274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

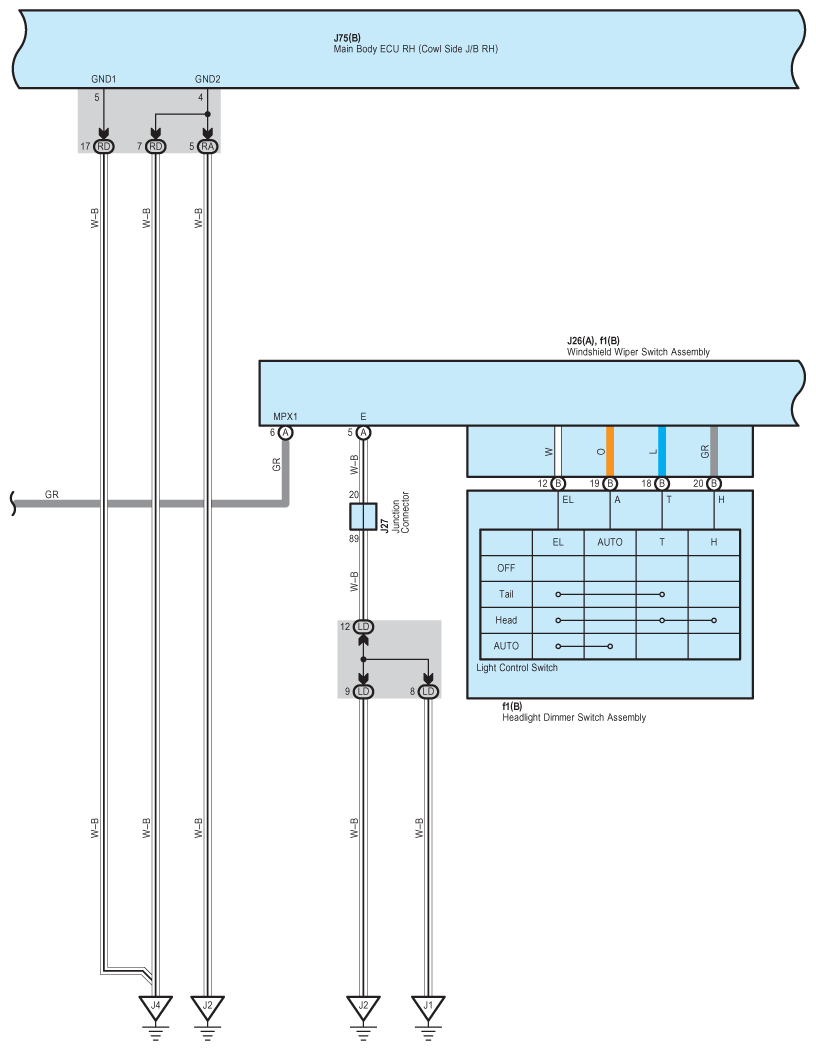

Fig 6: Taillight - Circuit Diagram (6 Of 8)

G07592275

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

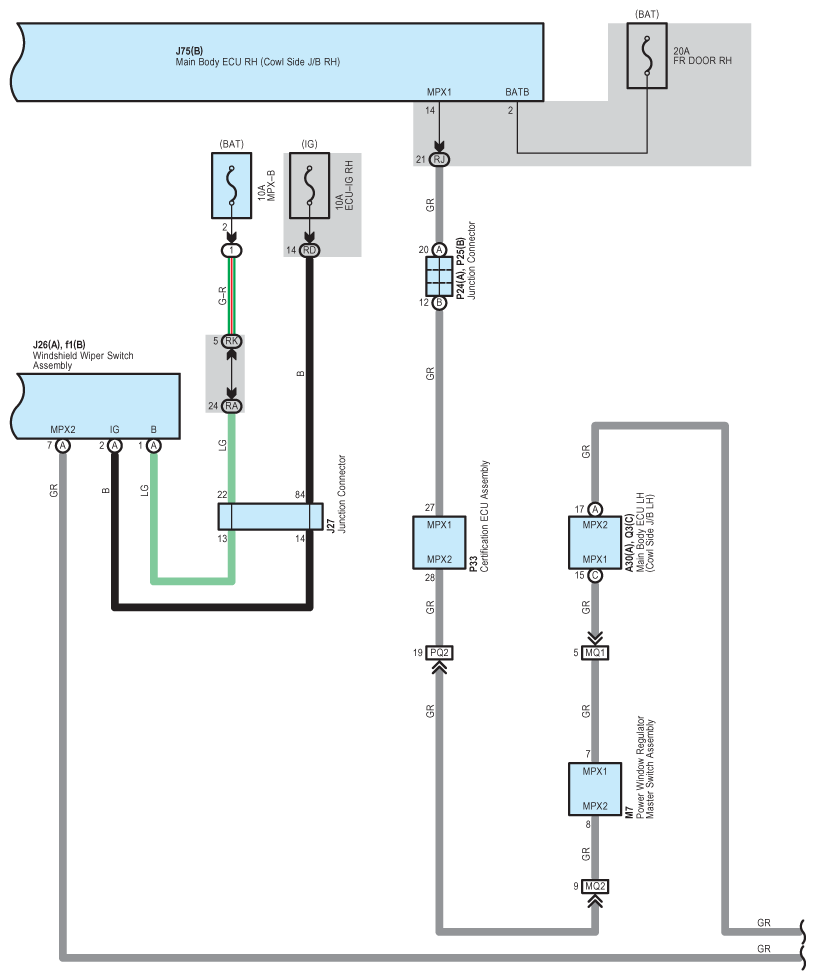

Fig 7: Taillight - Circuit Diagram (7 Of 8)

G07592276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

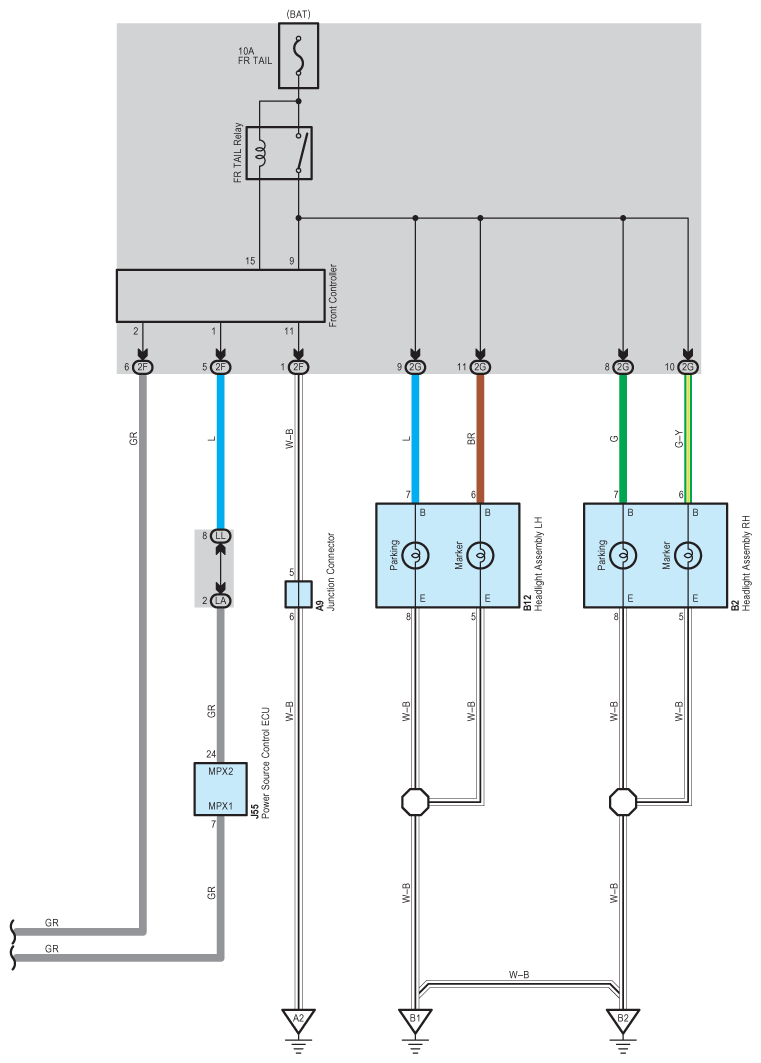

Fig 8: Taillight - Circuit Diagram (8 Of 8)

G07592277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
