Charging System: Generator: Components

Fig 1: Identifying Generator Replacement Components (1 Of 4) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Generator Replacement Components (2 Of 4) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

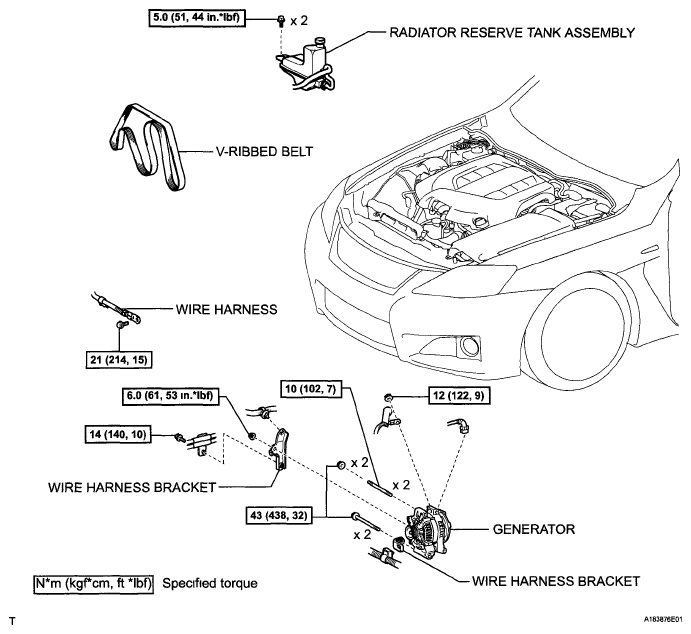

Fig 3: Identifying Generator Replacement Components (3 Of 4) with Torque Specifications

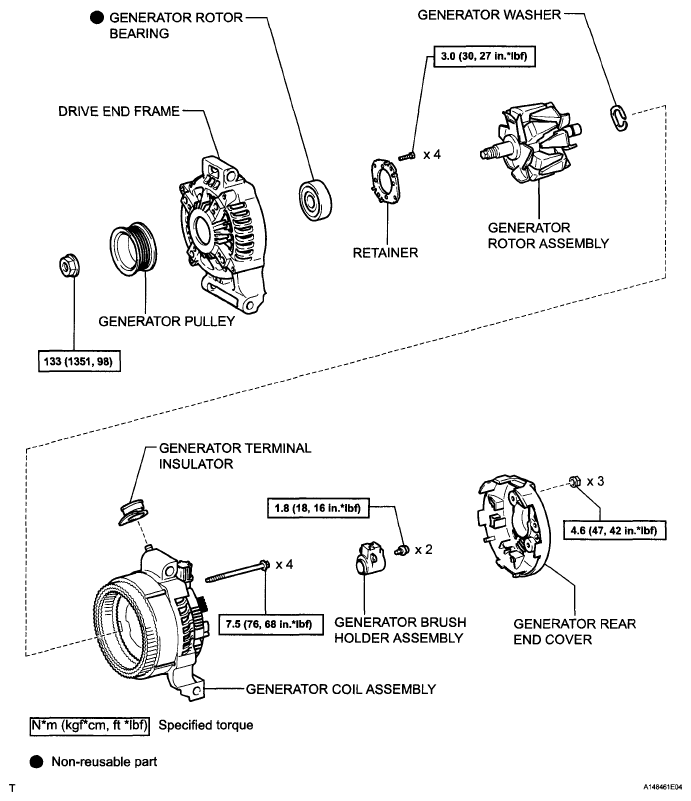

Fig 4: Identifying Generator Replacement Components (4 Of 4) with Torque Specifications
