Electrical Component Locator: Grounds

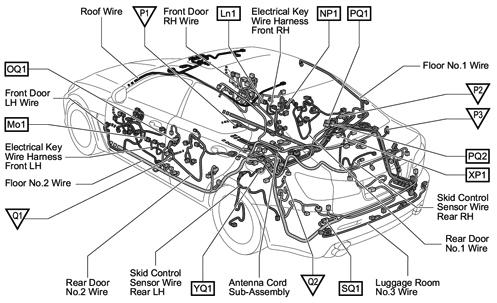

GROUNDS LOCATION
| Component | Location |
|---|---|
| A1 | Left rear corner of engine compartment. See Figure. |
| A2 | Left rear corner of engine compartment. See Figure. |
| A3 | Left rear corner of engine compartment. See Figure. |
| A4 | Right rear corner of engine compartment. See Figure. |
| A5 | Right rear corner of engine compartment. See Figure. |
| B1 | Right front corner of engine compartment. See Figure. |
| B2 | Left front corner of engine compartment. See Figure. |
| C1 | Right front of engine. See Figure. |
| E2 | Right rear of engine. See Figure. |
| E3 | Left side of engine. See Figure. |
| E4 | Left side of engine compartment. See Figure. |
| G1 | Top of engine. See Figure. |
| J1 | Behind left kick panel. See Figure. |
| J2 | Under center console. See Figure. |
| J3 | Under center console. See Figure. |
| J4 | Behind right kick panel. See Figure. |
| P1 | Under right front seat. See Figure. |
| P2 | In right "C" pillar. See Figure. |
| P3 | Right front of trunk. See Figure. |
| Q1 | Under driver's seat. See Figure. |
| Q2 | Left front of trunk. See Figure. |
