System Diagram

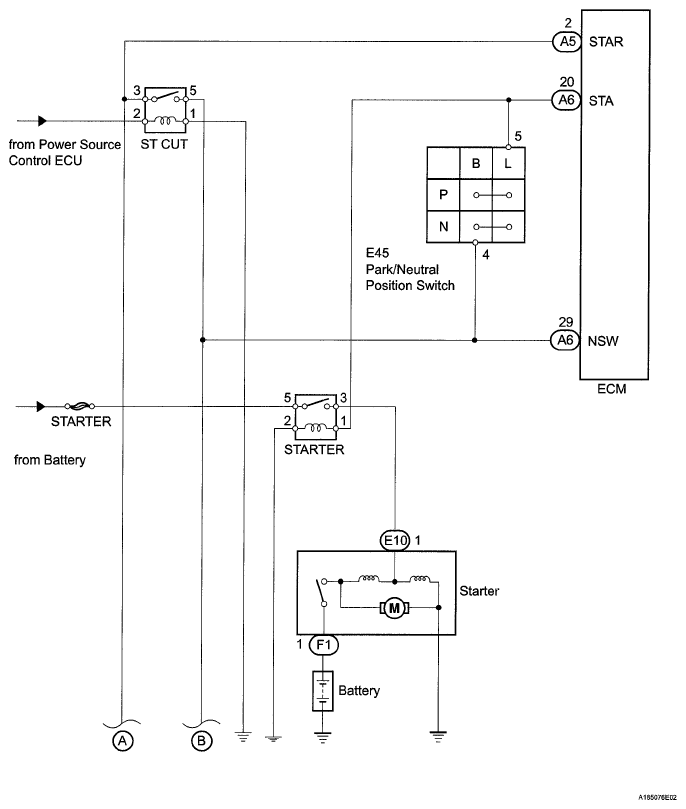

Fig 1: Starting System Diagram (1 Of 2)
G05750493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

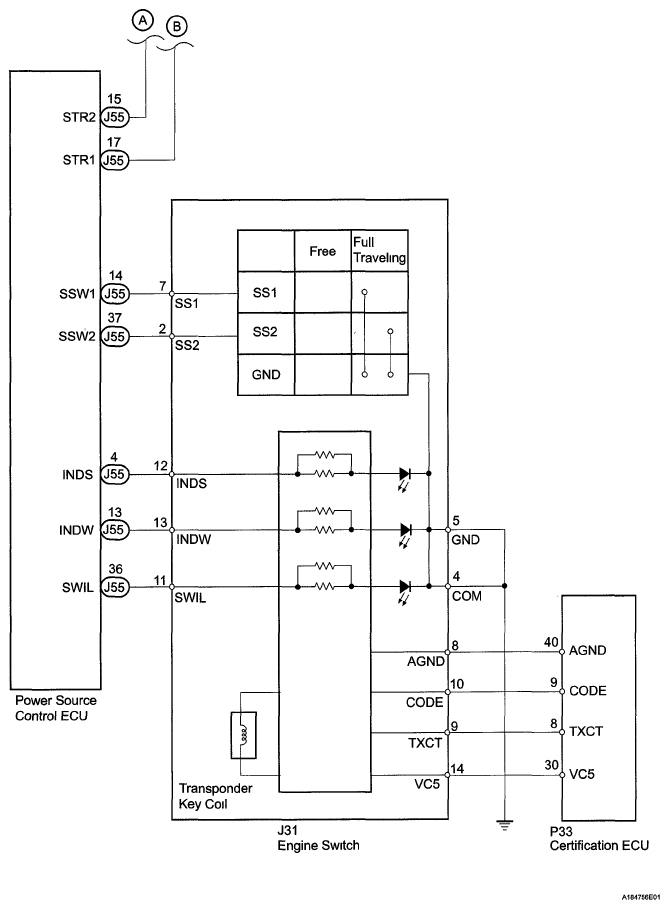

Fig 2: Starting System Diagram (2 Of 2)
G05750494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
