On-Vehicle Inspection

CHECK CAMSHAFT POSITION SENSOR OUTPUT VOLTAGE

Remove the V-bank cover sub-assembly (See REMOVAL ).
Disconnect the 2 fuel delivery pipe connectors.

Fig 1: Locating Fuel Delivery Pipe Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Disconnect the 4 connectors with wire harness locks from the 2 injector drivers.
HINT:
- To release each connector lock, push the claw downward ("Release" in the illustration) and move the lock lever ("Move" in the illustration).
- Perform this step to prevent the engine from starting.
Remove the engine room ECU cover (See REMOVAL ).
Turn the engine switch on (IG).
HINT.

Do not start the engine.

Measure the voltage according to the value(s) in the table below.

Fig 2: Locating Fuel Delivery Pipe Connectors And Wire Harness Locks Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

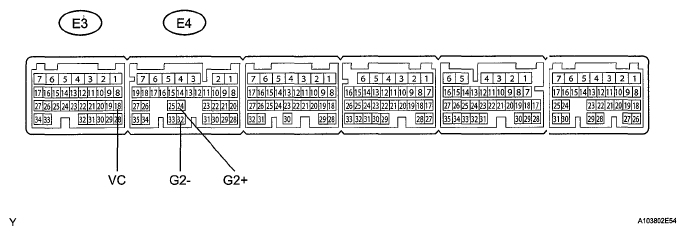

Fig 3: Identifying ECU Connector Terminal E3 And E4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Voltage

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Switch Condition	Specified Condition
E3-18 (VC) - E4-32 (G2-)	Engine switch on (IG)	5 V

While turning the crankshaft pulley by hand, measure the voltage between each terminal Check that the voltage changes between the Hi range and Lo range shown in the table below.

Standard Voltage

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Switch Condition	Specified Condition
E4-24 (G2+) - E4-32 (G2-)	Engine switch on (IG)	3.75 to 4.50 V (Voltage (Hi)) 0.50 to 1.25 V (Voltage (Lo))

CHECK VVT SENSOR OUTPUT VOLTAGE

Remove the V-bank cover sub-assembly (See REMOVAL ).
Disconnect the 2 fuel delivery pipe connectors

Fig 4: Locating Fuel Delivery Pipe Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Disconnect the 4 connectors with wire harness locks from the 2 injector drivers.
HINT:
- To release each connector lock, push the claw downward ("Release" in the illustration) and move the lock lever ("Move" in the illustration).
- Perform this step to prevent the engine from starting.
Remove the engine room ECU cover (See REMOVAL ).
Turn the engine switch on (IG).
HINT:

Do not start the engine

Fig 5: Locating Fuel Delivery Pipe Connectors And Wire Harness Locks Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the voltage according to the value(s) in the table below

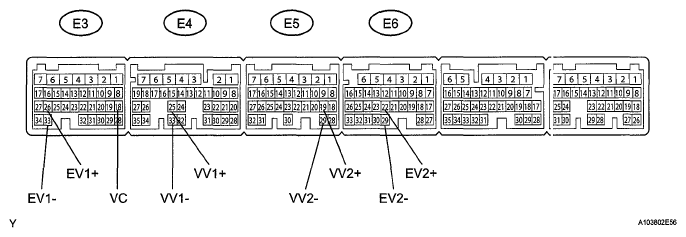

Fig 6: Identifying ECU Connector Terminal

Standard Voltage

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Switch Condition	Specified Condition
E3-18 (VC) - E4-33 (VV1-)	Engine switch on (IG)	5V
E3-18 (VC) - E5-29 (VV2-)	Engine switch on (IG)	5V
E3-18 (VC) - E3-33 (EV1-)	Engine switch on (IG)	5V
E3-18 (VC) - E6-29 (EV2-)	Engine switch on (IG)	5V

While turning the crankshaft pulley by hand, measure the voltage between each terminal. Check that the voltage changes between the Hi range and Lo range shown in the table below

Standard Voltage

VOLTAGE REFERENCE CHART

Sensor Position	Tester Connection	Switch Condition	Specified Condition
Bank 1 (Intake side)	E4-25 (VV1+) - E4-33 (VV1-)	Engine switch on (IG)	3 75 to 4.50 V (Voltage (Hi)) 0.50 to 1.25 V (Voltage (Lo))
Bank 2 (Intake side)	E5-19 (VV2+) - E5-29 (VV2-)	Engine switch on (IG)	3.75 to 4.50 V (Voltage (Hi)) 0.50 to 1.25 V (Voltage (Lo))
Bank 1 (Exhaust side)	E3-26 (EV1+) - E3-33 (EV1-)	Engine switch on (IG)	3.75 to 4.50 V (Voltage (Hi)) 0.50 to 1.25 V (Voltage (Lo))
Bank 2 (Exhaust side)	E6-22 (EV2+) - E6-29 (EV2-)	Engine switch on (IG)	3.75 to 4.50 V (Voltage (Hi)) 0.50 to 1.25 V (Voltage (Lo))
